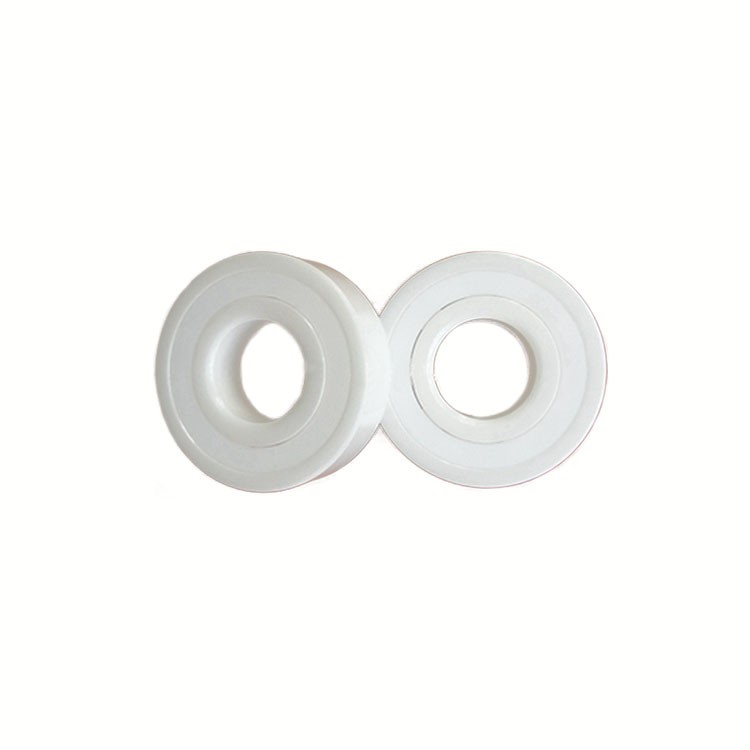

ceramic wheel bearings drag racing 608 longboard ball bearings 608-2RS

ceramic wheel bearings drag racing miniature ball bearings has a 8mm inner diameter, a 22mm outer diameter and a 7mm thickness.


Product Specification:

  • Model 608
  • Size: 8*22*7mm
  • Weight 0.012kg
  • Material Ceramic
See Price

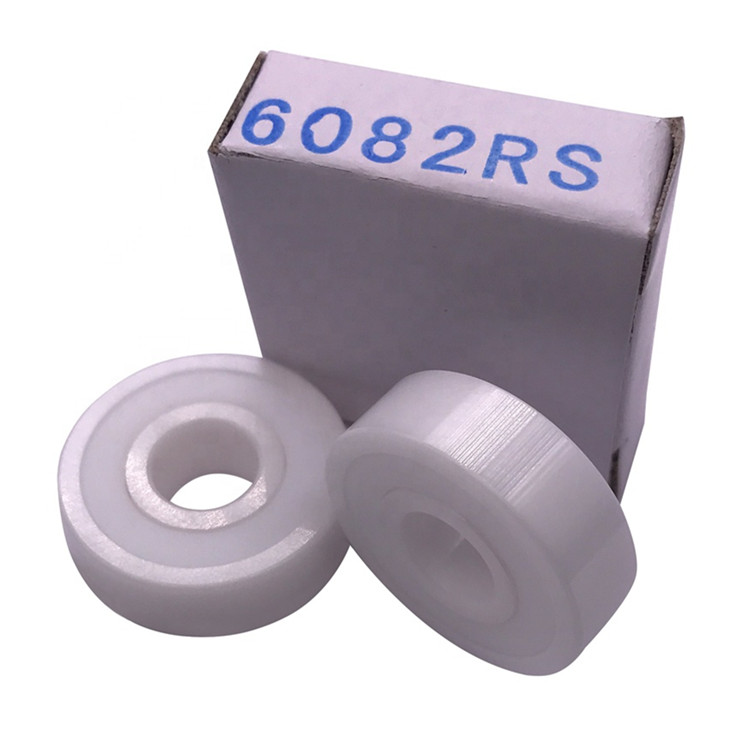

ceramic wheel bearings drag racing 608 longboard ball bearings 608-2RS

longboard ball bearings

1. Ceramic wheel bearings drag racing longboard ball bearings 608

 1:Ceramic bearing has high temperature resistance, cold resistance, wear resistance, corrosion resistance, resistance to magnetoelectricity insulation, since no oil lubrication, high speed and other characteristics.
2:Full ceramic bearing have excellence performance as special electrical and magnetism resistance, wear and corrosion resistance, lubrication and maintenance free when working, especially high and low- temperature application. etc. Could be used in awful environment and specially condition. The rings and balls made by full ceramic material: ZrO2, as a standard constructure, the cage made by PTFE, generally we also could make the cage with GFRPA66-25, PEEK, PI, AISISUS304, SUS316, Cu, etc.

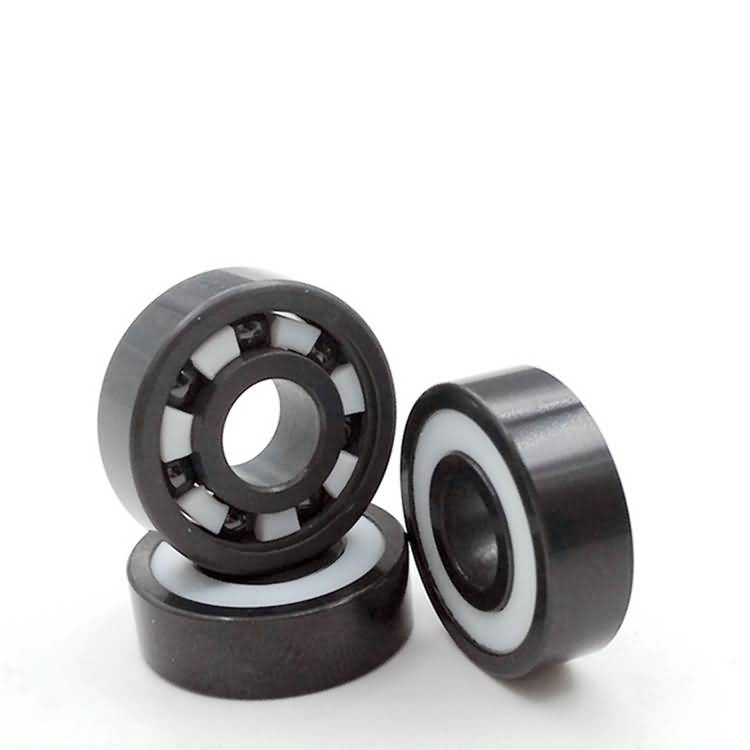

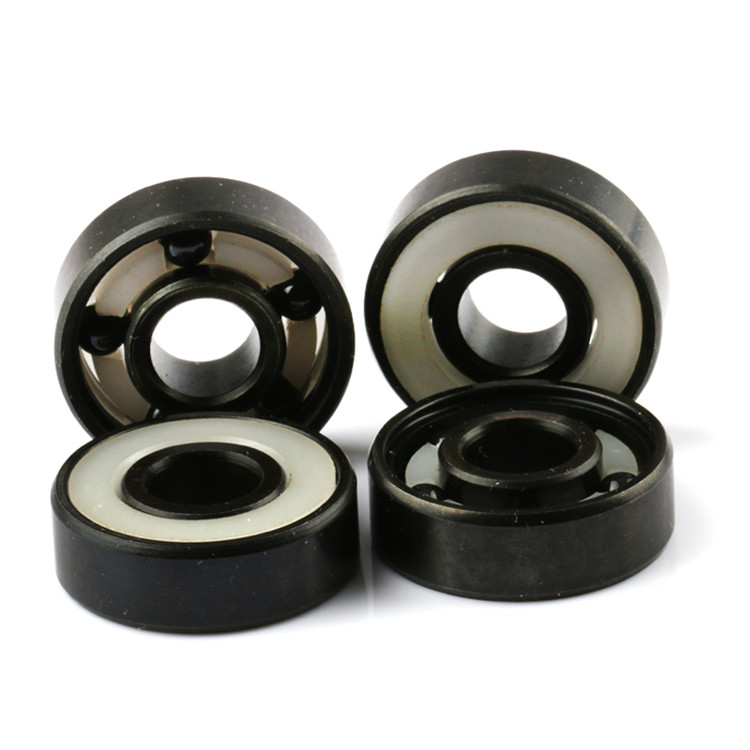

FULL CERAMIC BEARING

2. Applicable of ceramic wheel bearings drag racing longboard ball bearings:

1) Ceramic deep groove ball bearings,

2) Ceramic Angular contact ball bearings,

3) Ceramic Thrust ball bearings,

4) Ceramic Self-aligning ball bearings,

5) Ceramic insert bearings:  UC201 - UC220 ,

6) Hybrid ceramic bearings:  (rings in chrome steel or stainless steel, ball in ceramic of Si3N4 or ZrO2 material)
They can be used as high-speed bearings, high temperature bearings, corrosion-resistant bearings, shielded bearings, electrical insulation bearings and so on.

608 BEARING

FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for ceramic wheel bearings drag racing longboard ball bearings?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for ceramic wheel bearings drag racing 608? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for ceramic wheel bearings drag racing longboard ball bearings?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for ceramic wheel bearings drag racing longboard ball bearings?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for ceramic wheel bearings drag racing longboard ball bearings?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for ceramic wheel bearings drag racing longboard ball bearings?
A: Usually ≥1, According your demand.
9,Q: Will you check these e ceramic wheel bearings drag racing longboard ball bearings before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the ceramic wheel bearings drag racing longboard ball bearings?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Products name Ceramic bearings
Brand name LLH or OEM
Series 608
Material full ceramic
Quality

standard

ISO9001, ABEC-1(Z1V1)
Service Original service
Tolerance

Grades

ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
Noise Level EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4
Sealing/Shield Open, Z, ZZ,RS, 2RS,RZ,2RZ
Product

Advantage

A: HYIB bearing moves very Fast & Quiet, with very smooth hand feeling B:High precision, long life, low noise
C:high-end technologyD:good aftersales service
Package A: tube package+outer carton+pallets

B: single box+outer carton+pallet

C: tube package+middle box+outer carton+pallets

D: According to your’s requirement

Application Fan,Bike,Auto,Textile machine, Pump,Agricultural machinery,Machine tool…

high speed ceramic ball bearings

Item No. Boundary Dimensions(mm) Basic load ratings(Lbf) Weight(Lb.)
d D B Dynamic Static
OPEN ZZ/2RS Cr Cor
603 3 9 3 5 128.14 35.97 0.00198
604 4 12 4 4 218.06 80.93 0.00462
605 5 14 5 5 292.25 110.16 0.0077
606 6 17 6 6 508.07 166.36 0.01276
607 7 19 6 6 526.05 200.08 0.01672
608 8 22 7 7 741.87 303.49 0.0264
609 9 24 7 7 764.35 325.97 0.0352
623 3 10 4 4 143.88 49.46 0.0044
624 4 13 5 5 294.5 110.16 0.0066
625 5 16 5 5 395.66 152.87 0.0088
626 6 19 6 6 526.05 198.96 0.0176
627 7 22 7 7 753.11 314.73 0.0308
628 8 24 8 8 899.23 357.44 0.0352
629 9 26 8 8 1022.88 438.38 0.0418
633 3 13 5 5 292.25 110.16 0.0066
634 4 16 5 5 395.66 152.87 0.011
635 5 19 6 6 526.05 198.96 0.0176
636 6 22 7 7 741.87 303.49 0.0286
637 7 26 9 9 910.47 364.19 0.0528
638 8 28 9 9 1022.88 438.38 0.0638
639 9 30 10 10 1146.52 537.29 0.077
673 3 6 2 2.5 54.4 21.13 0.00044
674 4 7 2 2.5 60.47 38.22 0.000616
675 5 8 2 2.5 65.64 31.92 0.000704
676 6 10 2.5 3 119.15 53.95 0.00143
677 7 11 2.5 3 124.77 60.47 0.001474
678 8 12 2.5 3.5 129.26 66.99 0.00165
683 3 7 2 3 81.52 26.44 0.000726
684 4 9 2.5 4 136.59 48.47 0.001386
685 5 11 3 5 138.8 57.28 0.00242
686 6 13 3.5 5 231.33 88.12 0.00418
687 7 14 3.5 5 251.16 114.65 0.00462
688 8 16 4 5 283.26 132.64 0.00682
689 9 17 4 5 298.99 149.5 0.00704
693 3 8 3 4 125.89 42.71 0.001342
694 4 11 4 4 215.82 76.43 0.00374
695 5 13 4 4 296.75 110.16 0.00528
696 6 15 5 5 393.41 150.62 0.00858
697 7 17 5 5 359.69 159.61 0.01166

high quality ceramic bearings

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.precision ceramic bearings
