CSK20PP one way ball bearing with keyway Sprag Clutch bearing use in cars and any other machinery Widely used in car, vehicle, automobile cooling water pump, in textile machinery, engineering machinery, etc.

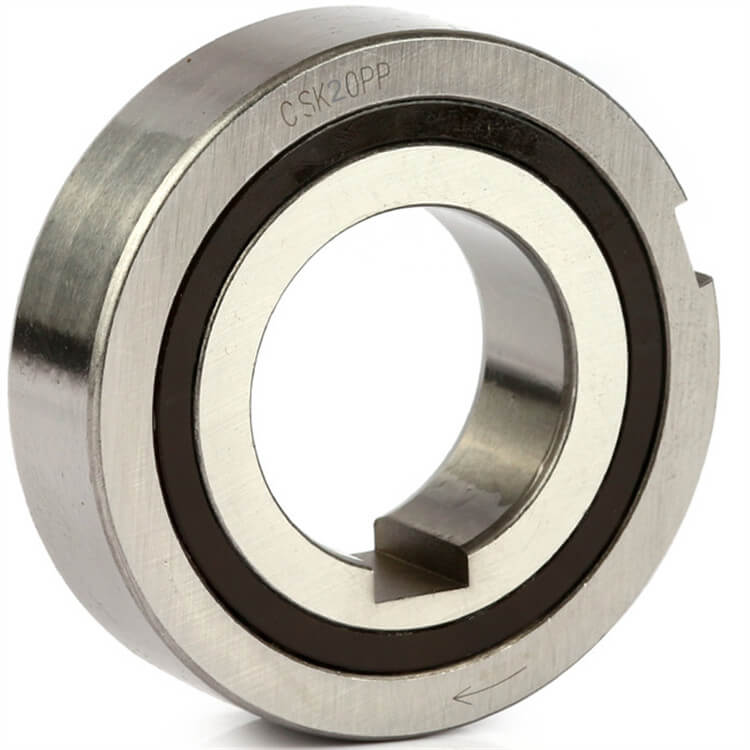

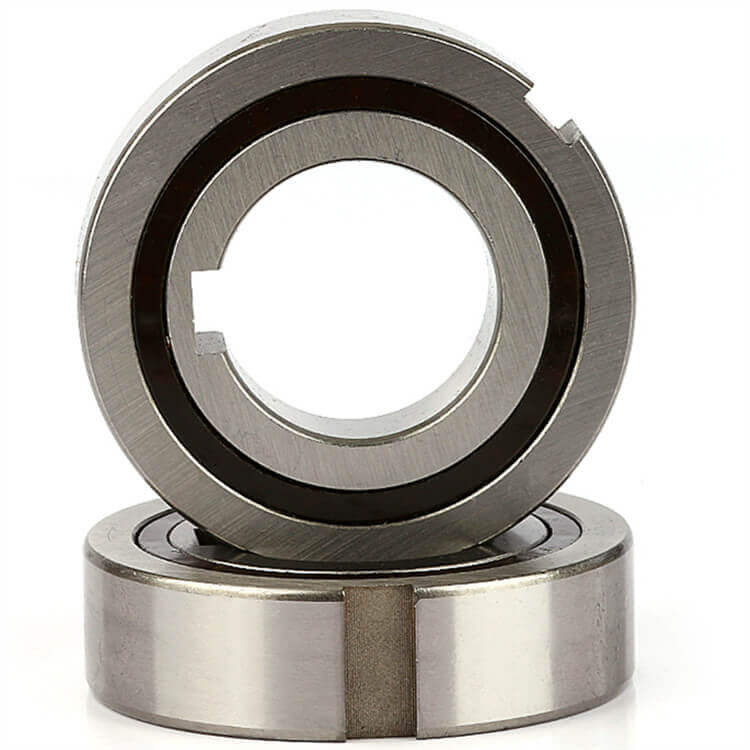

CSK20PP one way ball bearing with keyway Sprag Clutch bearing
Description of CSK20PP one way ball bearing with keyway Sprag Clutch bearing:
Brief introduction for clutch bearing：
One-way clutch bearing is free to rotate in one direction, while in the other direction on a bearing locked. One-way bearings inside the metal shell that contains lots of roller, needle or ball, and the rolling seat (hole) shape so that it can only scroll in one direction, while in the other direction will have great resistance.
clutch bearing are widely used in printing machinery, packing machinery, food machinery, two-speed gearboxes, electric roller, exercise equipment, automobile industry, fishing reel, Household appliances; Currency detector, etc.
Kind of One way clutch bearings：
1. CSK bearing is one way bearing with a sprag type.
2. CSK bearing has CSK..P, CSK..PP series.
3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).
4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.
5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.
6. One way clutch (overrunning clutch), GFR, MZ series.
CSK—P and CSK—PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race; CSK--PP features a keyway in both the inner and outer race. The Model CSK—P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc. The outer race is secured with a press fit to a N6 tolerance. The Model CSK—PP clutches have a keyway on both races and must be secured by customer supplied snap ring, set collar, spacer, etc
Features of one way clutch ball bearing：
1.High carrying capacity
2.Enough storage grease space
3.High limited speed
4.Long life
Types of one way clutch bearing：
HF, HFL, FC, FCB, RCB, RC, F, IWC, EWC, DC, CSK, CKB (B200), ASNU, CKA, FWD, NF, DZ, CKA, CKZ, MG, ASNU, UHF, GC, CKH, PB, CKY, CKF, NYD, CKS and so on.
Advantages of clutch bearings：
1.Excellent for high speeds
2.Good radial load capacity
3.Acceptable axial load capacity in both directions
4.Have low torque capacity at startup and running speeds
5.Can operate with low noise
6.Require little maintenance
One-way clutch bearing application:
One-way clutch bearings are widely used in printing machinery, packing machinery, food machinery, two-speed gearboxes, electric roller, exercise equipment, automobile industry, fishing reel, Household appliances; Currency detector, etc.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for clutch bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for clutch bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for clutch bearing?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need clutch bearing or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Product Name | CSK20PP one way ball bearing with keyway Sprag Clutch bearing |
| Material | hybrid ceramic, Si3N4 or ZrO2 ball , chrome steel or stainless steel ring |
| Brand | LLH |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
| Clearance | C0, C3 ,C5 |
| Package | carton package |
| Used | Machine,wheel hub |
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
| dynamic | static | |||||||||||
| d | TKN1) | nmax | D | L | b | t | C | C0 | TR | |||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| CSK..P | 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | ||
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
| CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..P-2RS | 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
| 15 | – | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
| 17 | – | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
| 20 | – | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
| 25 | – | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
| 30 | – | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
| 35 | – | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
| 40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |||
