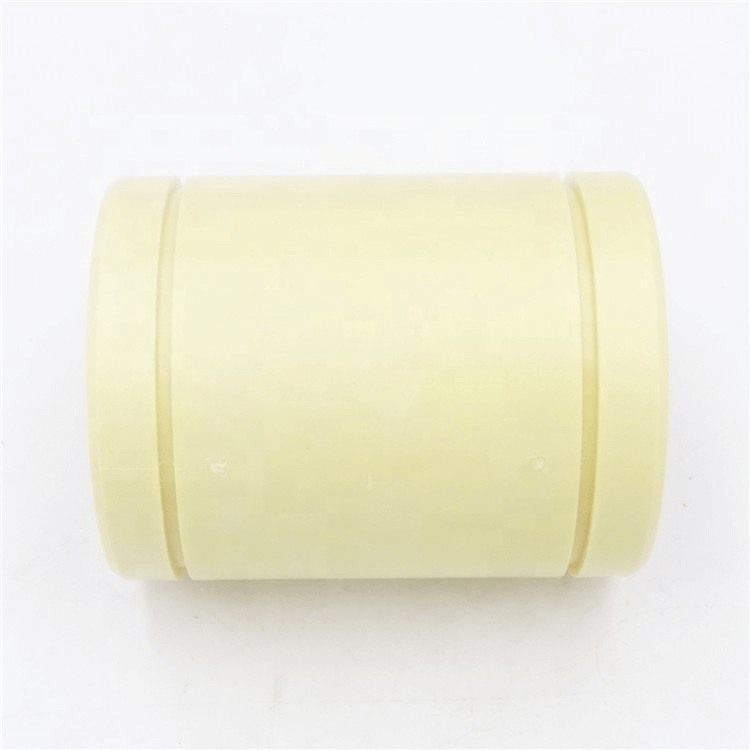

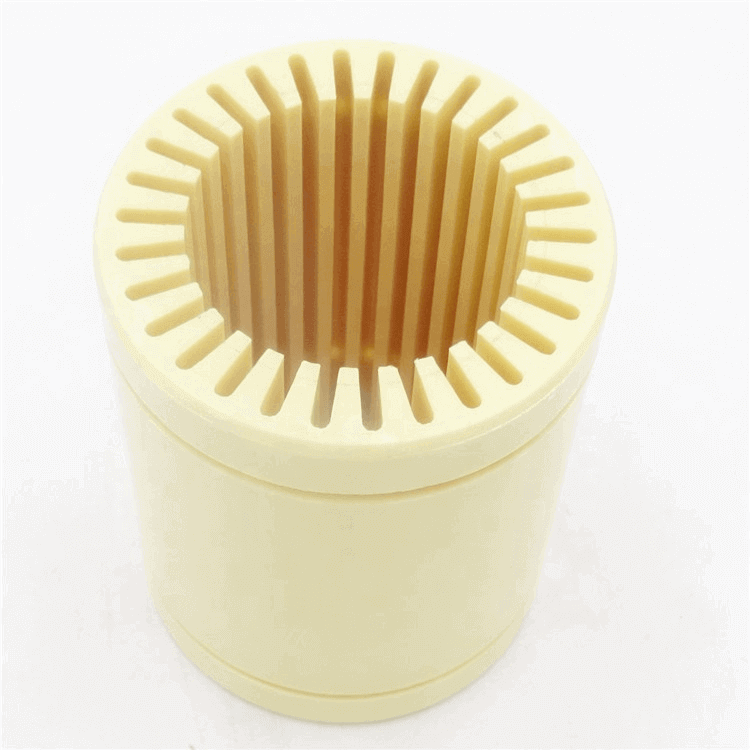

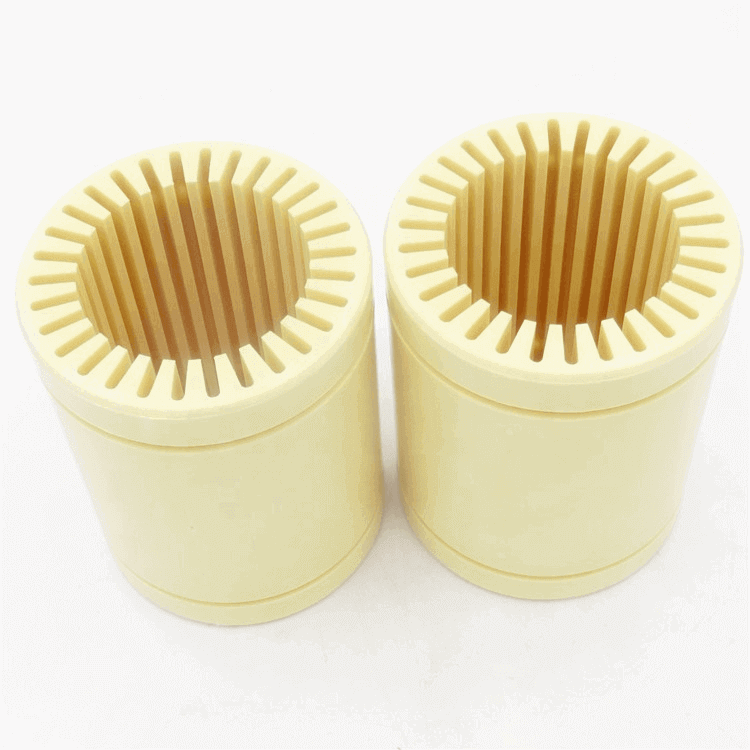

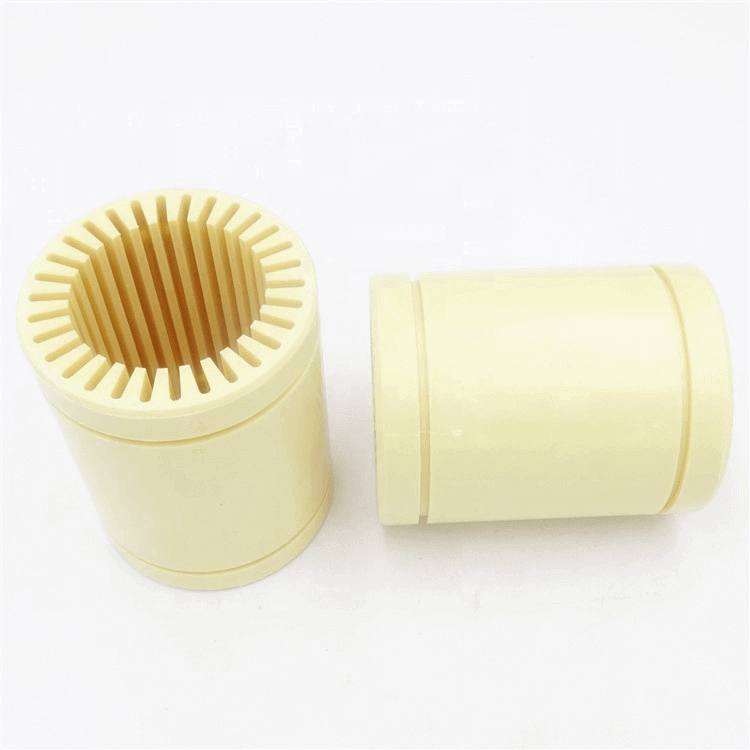

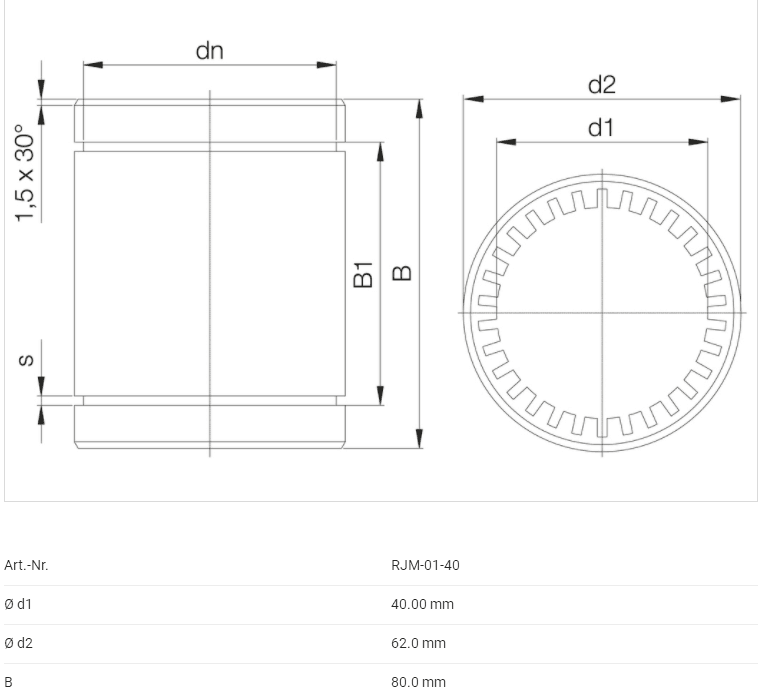

Custom plastic bearing 3d printer plastic linear bearing RJM-01-40 is precision plastic bearing,it is customized bearing,if you want other customize nonstandard bearings,pls also contact us to get more detail.
 |
Custom plastic bearing 3d printer plastic linear bearing RJM-01-40 is a low-cost linear motion system used with the cylindrical shaft for unlimited travel.The working load of such bearings is small due to the point contact of the ball and the shaft.The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.Custom plastic bearing 3d printer plastic linear bearing RJM-01-40 is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement. |
Types:
1.Standard type, clearance adjustale type, open type, extended type and general type linear bearings.
2.Flanged linear bearings can be divided into: round flange type, square flange type, oval flange type, oriented round flange type, oriented square flange type, oriented oval flange type and extended round flange type.
Models:
"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision miniature bearing
 |
 |
 |
 |
Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality. |
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for Custom plastic bearing 3d printer plastic linear bearing RJM-01-40?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Custom plastic bearing 3d printer plastic linear bearing RJM-01-40? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for Custom plastic bearing 3d printer plastic linear bearing RJM-01-40?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for Custom plastic bearing 3d printer plastic linear bearing RJM-01-40?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of linear bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with Custom plastic bearing 3d printer plastic linear bearing RJM-01-40?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need Custom plastic bearing 3d printer plastic linear bearing RJM-01-40 or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Bearing Brand | LLH |
| Bearing Material | Chrome Steel |
| Bearing Origin | China |
| Bearing Precision Grade | P0 P6 P5 P4 P2 |
| Samples | Acceptable |
| Features | 1.Best competitive price
2. Low nosie, high precision
3.Long life and stable service |
| MODEL NO. |
NUMBER OF BALL ROWS |
MAIN DIMENSIONS | BASIC LOAD RATING |
WEIGHT
g
|
||||||||||||
| INNER DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | W | c(kgf) | Co(kgf) | ||||||||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||||
| LM3 | 4 | 3 | 0-0.008 | 7 | 0-0.009 | 10 | 0-0.12 | |||||||||
| LM4 | 4 | 4 | 8 | 12 | 9 | 13 | 3 | |||||||||
| LM5 | 4 | 5 | 10 | 15 | 10.2 | 0-0.20 | 9.6 | 1.1 | 17 | 21 | 4 | |||||
| LM6UU | 4 | 6 | 0-0.009 | 12 | 0-0.011 | 17 | 0-0.20 | 13.5 | 11.5 | 1.1 | 21 | 27 | 6 | |||
| LM8S | 4 | 8 | 15 | 19 | 11.5 | 14.3 | 1.1 | 18 | 23 | 9 | ||||||
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 27 | 41 | 14 | ||||||
| LM10UU | 4 | 10 | 19 | 0-0.013 | 29 | 22 | 18 | 1.3 | 38 | 56 | 28 | |||||
| LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 1.3 | 42 | 61 | 32 | ||||||
| LM13UU | 4 | 13 | 23 | 32 | 23 | 22 | 1.3 | 52 | 79 | 38 | ||||||
| LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 79 | 120 | 74 | ||||||
| LM20UU | 5 | 20 | 0-0.010 | 32 | 0-0.016 | 42 | 30.5 | 30.5 | 1.6 | 88 | 140 | 80 | ||||
| LM25UU | 6 | 25 | 40 | 59 | 0-0.30 | 41 | 0-0.30 | 38 | 1.85 | 100 | 160 | 206 | ||||
| LM30UU | 6 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 160 | 280 | 240 | ||||||
| LM35UU | 6 | 35 | 0-0.012 | 52 | 0-0.019 | 70 | 49.5 | 49 | 2.1 | 170 | 320 | 370 | ||||
| LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 220 | 410 | 589 | ||||||
| LM50UU | 6 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 390 | 810 | 1480 | ||||||
| LM60UU | 6 | 60 | 0-0.015 | 90 | 0-0.022 | 110 | 85 | 86.5 | 3.15 | 480 | 1020 | 175 | ||||
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
