Double angular contact bearing 3056206 double row bearing have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e.simultaneously supporting radial and axial loads.

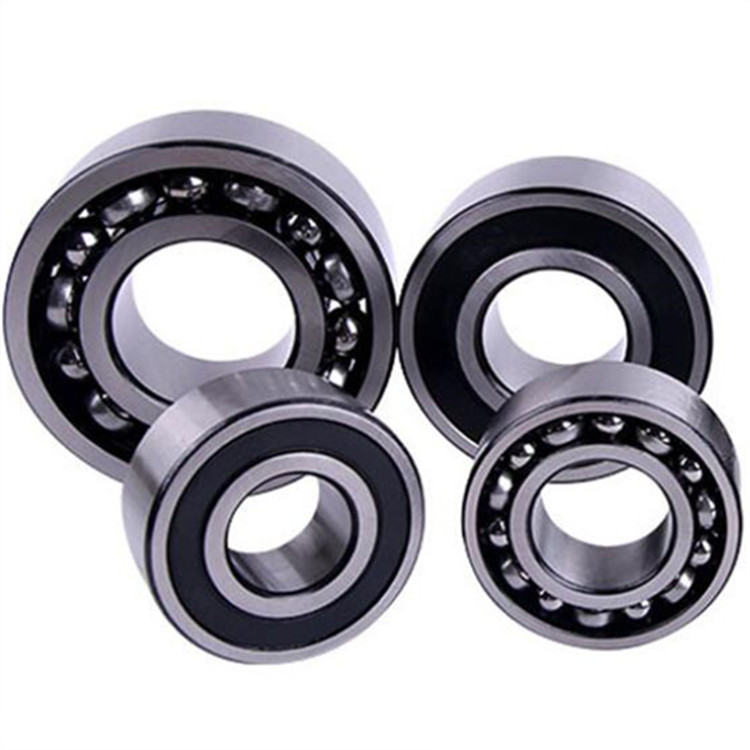

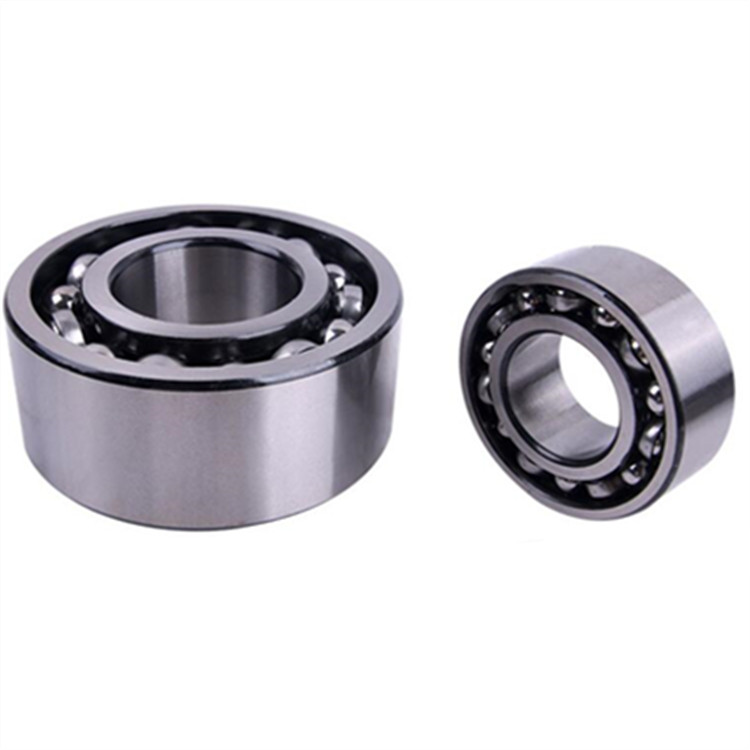

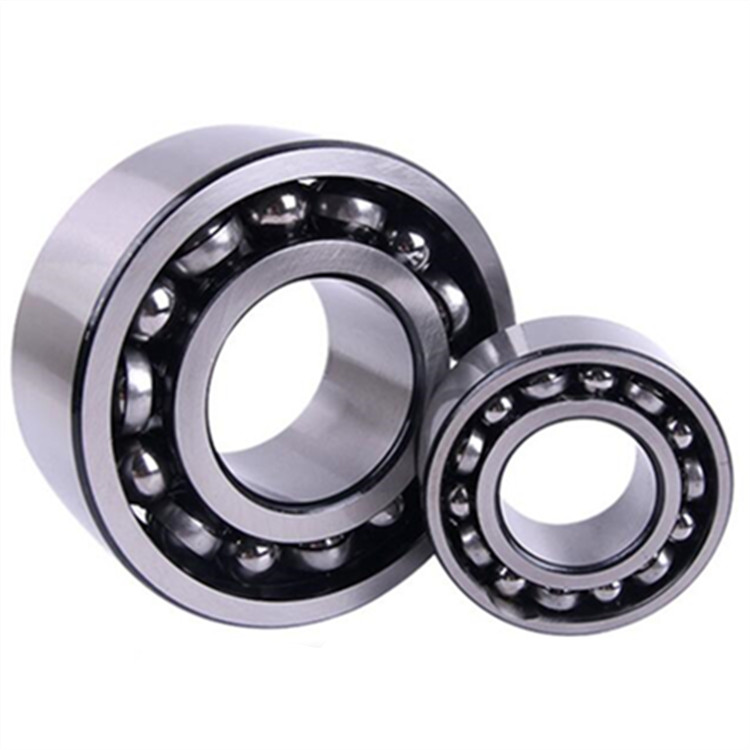

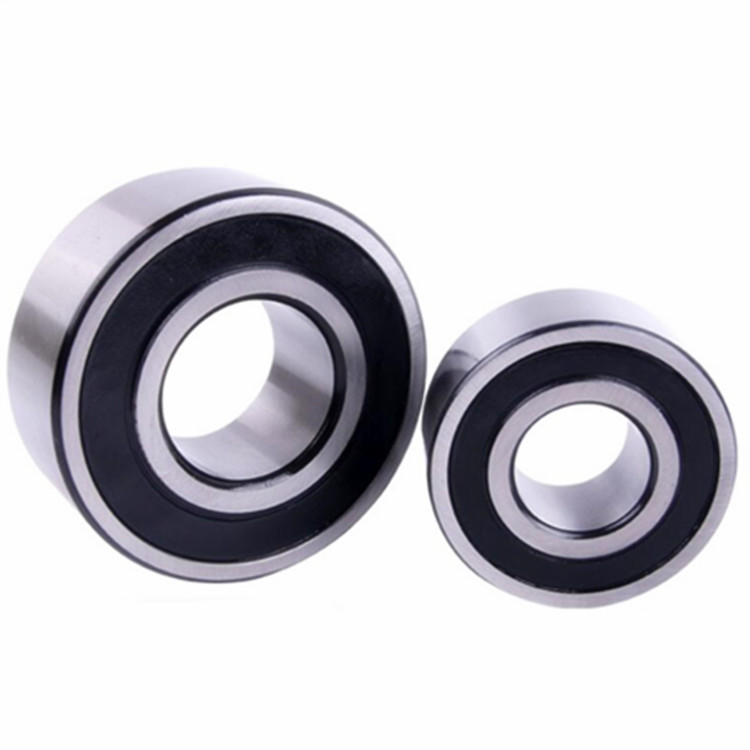

Double angular contact bearing 3056206 double row bearing
Brief introduction for Double angular contact bearing 3056206 double row bearing:
Double angular contact bearing 3056206 double row bearing used for bearing radial-axial combined loads or pure thrust loads,it is low friction,almost noiseless and high rolling speed.The axial load carrying capacity of Double angular contact bearing 3056206 double row bearing increases with increasing contact angle.The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
Working principle of Double angular contact bearing 3056206 double row bearing:
Double angular contact bearing 3056206 double row bearing uses axially asymmetric races An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race.Double angular contact bearing 3056206 double row bearing better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each.The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Double angular contact bearing 3056206 double row bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Double angular contact bearing 3056206 double row bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment ?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize Double angular contact bearing 3056206 double row bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of Double angular contact bearing 3056206 double row bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Double angular contact bearing 3056206 double row bearing or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
Material | Hybrid ceramic, Si3N4 or ZrO2 ball , chrome steel or stainless steel ring |
Brand | LLH or OEM |
Standard | DIN GB ISO JIS BA ANSI |
Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
Clearance | C0, C3 ,C5 |
Package | carton package |
Used | Machine |
Bearing No. | Dimensions (mm) | Weight (kg) | Bearing No. | Dimensions (mm) | Weight (kg) | ||||||
d | D | B | d | D | B | ||||||
7004C | 7004AC | 20 | 42 | 12 | 0.06 | 7212C | 7212AC | 60 | 110 | 22 | 0.80 |
7005C | 7005AC | 25 | 47 | 12 | 0.07 | 7213C | 7213AC | 65 | 120 | 23 | 1.00 |
7006C | 7006AC | 30 | 55 | 13 | 0.11 | 7214C | 7214AC | 70 | 125 | 24 | 1.10 |
7007C | 7007AC | 35 | 62 | 14 | 0.15 | 7215C | 7215AC | 75 | 130 | 25 | 1.20 |
7008C | 7008AC | 40 | 68 | 15 | 0.18 | 7216C | 7216AC | 80 | 140 | 26 | 1.45 |
7009C | 7009AC | 45 | 75 | 16 | 0.23 | 7217C | 7217AC | 85 | 150 | 28 | 1.80 |
7010C | 7010AC | 50 | 80 | 16 | 0.25 | 7218C | 7218AC | 90 | 160 | 30 | 2.25 |
7011C | 7011AC | 55 | 90 | 18 | 0.38 | 7219C | 7219AC | 95 | 170 | 32 | 2.70 |
7012C | 7012AC | 60 | 95 | 18 | 0.40 | 7220C | 7220AC | 100 | 180 | 34 | 3.25 |
7013C | 7013AC | 65 | 100 | 18 | 0.43 | 7221C | 7221AC | 105 | 190 | 36 | 3.85 |
7014C | 7014AC | 70 | 110 | 20 | 0.60 | 7222C | 7222AC | 110 | 200 | 38 | 4.55 |
7015C | 7015AC | 75 | 115 | 20 | 0.63 | 7224C | 7224AC | 120 | 215 | 40 | 5.40 |
7016C | 7016AC | 80 | 125 | 22 | 0.85 | 7304C | 7304AC | 20 | 52 | 15 | 0.15 |
7017C | 7017AC | 85 | 130 | 22 | 0.89 | 7305C | 7305AC | 25 | 62 | 17 | 0.23 |
7018C | 7018AC | 90 | 140 | 24 | 1.15 | 7306C | 7306AC | 30 | 72 | 19 | 0.35 |
7019C | 7019AC | 95 | 145 | 24 | 1.20 | 7307C | 7307AC | 35 | 80 | 21 | 0.47 |
7020C | 7020AC | 100 | 150 | 24 | 1.25 | 7308C | 7308AC | 40 | 90 | 23 | 0.66 |
7021C | 7021AC | 105 | 160 | 26 | 1.60 | 7309C | 7309AC | 45 | 100 | 25 | 0.86 |
7022C | 7022AC | 110 | 170 | 28 | 1.95 | 7310C | 7310AC | 50 | 110 | 27 | 1.08 |
7024C | 7024AC | 120 | 180 | 28 | 2.10 | 7311C | 7311AC | 55 | 120 | 29 | 1.42 |
7203C | 7203AC | 17 | 40 | 12 | 0.06 | 7312C | 7312AC | 60 | 130 | 31 | 1.71 |
7204C | 7204AC | 20 | 47 | 14 | 0.10 | 7313C | 7313AC | 65 | 140 | 33 | 2.23 |
7205C | 7205AC | 25 | 52 | 15 | 0.12 | 7314C | 7314AC | 70 | 150 | 35 | 2.67 |
7206C | 7206AC | 30 | 62 | 16 | 0.19 | 7315C | 7315AC | 75 | 160 | 37 | 3.10 |
7207C | 7207AC | 35 | 72 | 17 | 0.28 | 7316C | 7316AC | 80 | 170 | 39 | 3.60 |
7208C | 7208AC | 40 | 80 | 18 | 0.37 | 7317C | 7317AC | 85 | 180 | 41 | 4.38 |
7209C | 7209AC | 45 | 85 | 19 | 0.41 | 7318C | 7318AC | 90 | 190 | 43 | 5.17 |
7210C | 7210AC | 50 | 90 | 20 | 0.46 | 7319C | 7319AC | 95 | 200 | 45 | 6.69 |
7211C | 7211AC | 55 | 100 | 21 | 0.61 | 7320C | 7320AC | 100 | 215 | 47 | 7.60 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd.We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
