Drawn Cup Bearing HF0812 Bearing HF Series One Way Clutch Needle Roller Bearing

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Product Specification:

Model HF0812
Size 8*12*12
Brand LLH
Original China

See Price

Product Details
Description
Specification
Our factory

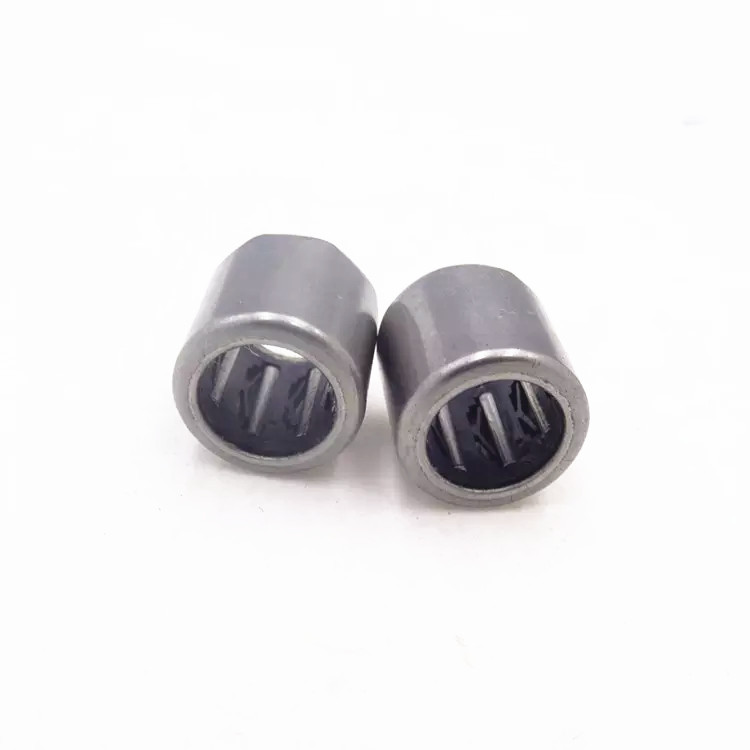

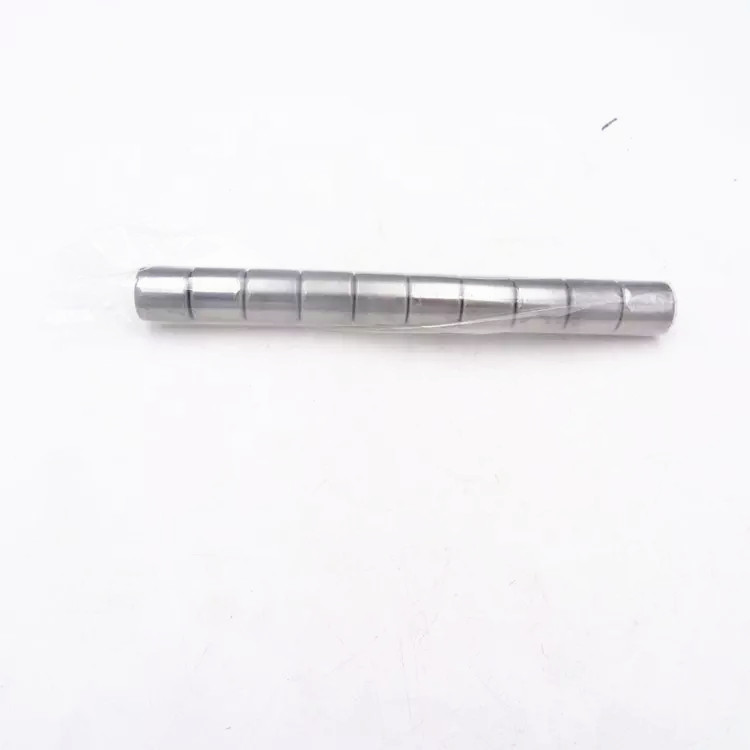

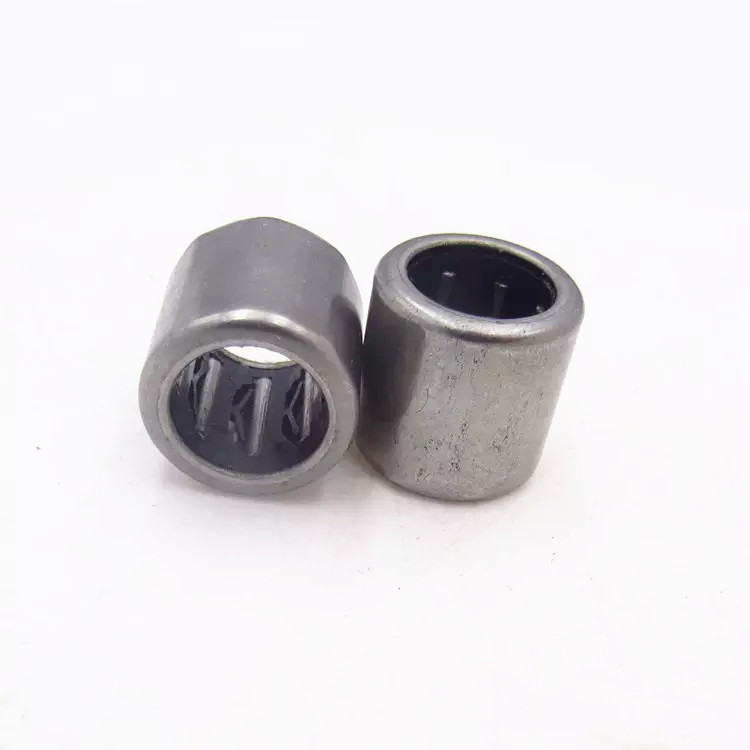

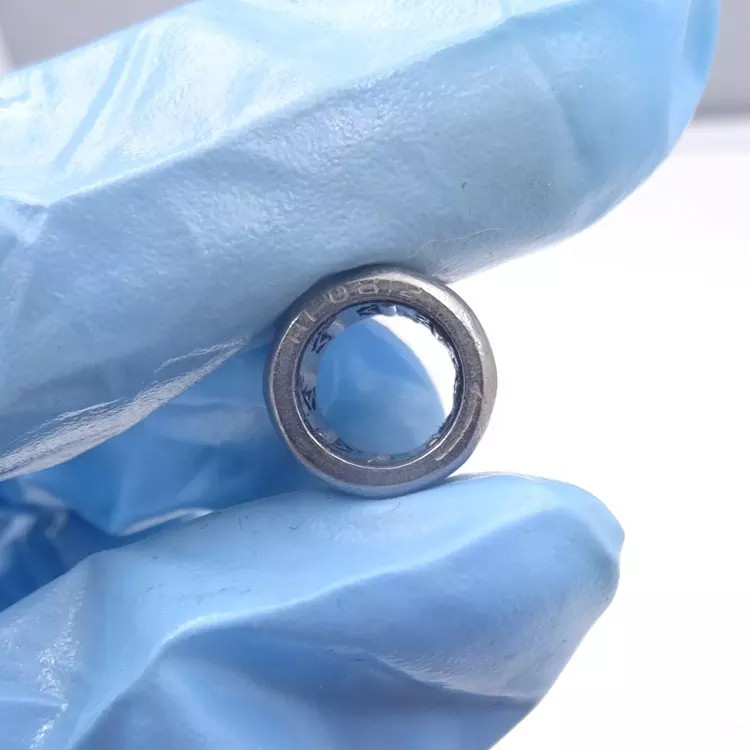

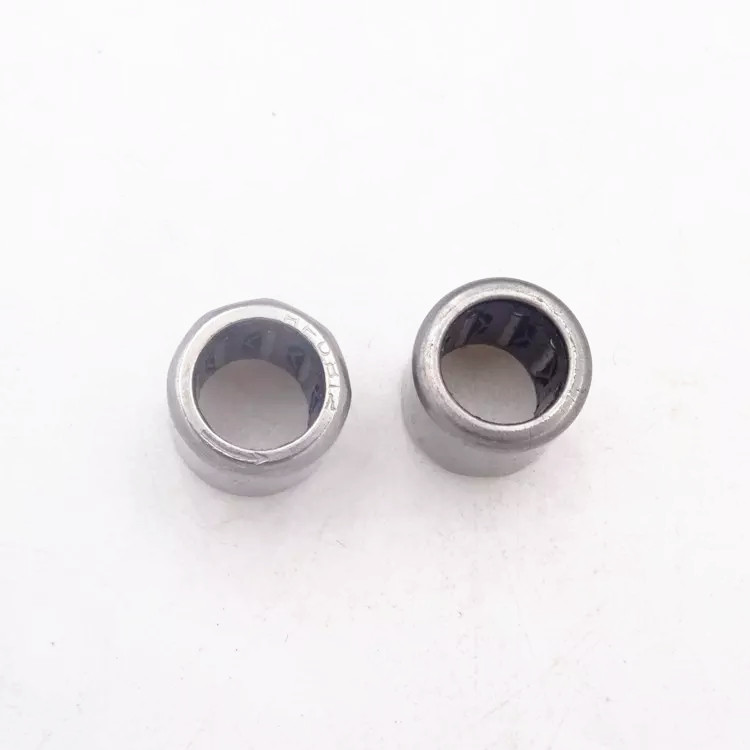

Drawn Cup Bearing HF0812 Bearing HF Series One Way Clutch Needle Roller Bearing

Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.

The drawn cup of hardened steel and the needle roller and cage assembly of these bearings form a non-separable unit.

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for drawn cup bearing HF0812 bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for drawn cup bearing HF0812 bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for drawn cup bearing HF0812 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for drawn cup bearing HF0812 bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of drawn cup bearing HF0812 bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

F_w	8 mm	Under roller diameter
D	12 mm	Outside diameter
C	12 mm	Width, outer ring

high speed bearing

Shaft Diameter	Bearing Designation		Mass Approx	Borndary Dimensions			Pemissible Torque Md	Limiting Speed		Suitable Drawn Cup Bearings
Shaft Diameter	Bearing Designation		Mass Approx	Fw	D	C	Pemissible Torque Md	Rotating Shaft Min-1	Rotatng Outer Ring Min-1
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm	rpm
3	HF0306KF		0.9	3	6.5	6	0.2	36000	7000	HK0306TN
4	HF0406KF	—	1	4	8	6	0.34	34000	8000	HK0408TN
4	HF0406KFR	—	1	4	8	6	0.1	34000	8000	HK0408TN
6	HF0608KF		2.8	6	10	8	1.5	20000	11000	HK0608
	HF0612KF	HF0612	3	6	10	12	1.76	23000	13000	HK0608
	HF0612KFR	HF0612R	3	6	10	12	1.76	23000	13000	HK0608
		HF061210	3.5	6	12	10	3	20000	13000	HK061208
8	HF0812KF	HF0812	3.5	8	12	12	3.15	17000	12000	HK0808
	HF0812KFR	HF0812R	3.5	8	12	12	4	17000	12000	HK0808
	—	HF061210	3.2	8	12	10	3	16000	12000	HK0808
	—	HF081410	3.6	8	14	10	4.6	15000	11000	HK081410
	—	HF081610	4.1	8	16	10	5.5	15000	11000	HK081610
	—	HF081412	4	8	14	12	5	16000	12000	HK081410
10	HF1012KF	HF1012	4	10	14	12	5.3	14000	11000	HK1010
10	HF1012KFR	HF1012R	4	10	14	12	1.5	14000	11000	HK1010
12	—	HF1216	11	12	18	16	12.2	11000	8000	HK1212
14	—	HF1416	13	14	20	16	17.3	9500	8000	HK1412
16	—	HF1616	14	16	22	16	20.5	8500	7500	HK1612
18	—	HF1816	16	18	24	16	24.1	7500	7500	HK1812
20	—	HF2016	17	20	26	16	28.5	7000	6500	HK2010
25	—	HF2520	30	25	32	20	66	5500	5500	HK2512
30	—	HF3020	36	30	37	20	90	4500	4500	HK3012
35	—	HF3520	40	35	42	20	121	3900	3900	HK3512

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd.We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
