dt bearings used for bearing radial-axial combined loads or pure thrust loads,it is low friction,almost noiseless and high rolling speed,load capacities are higher than deep groove ball bearing of same dimensions.

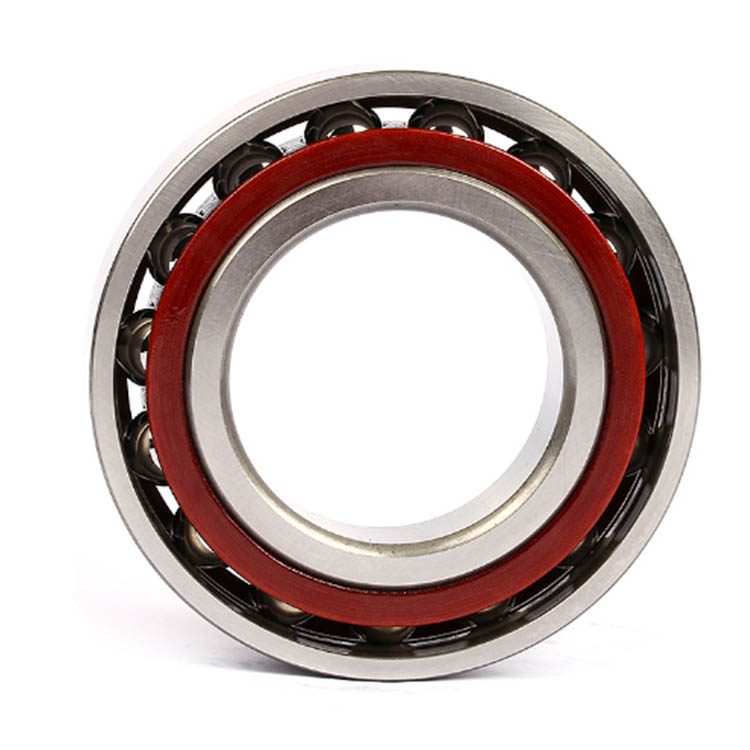

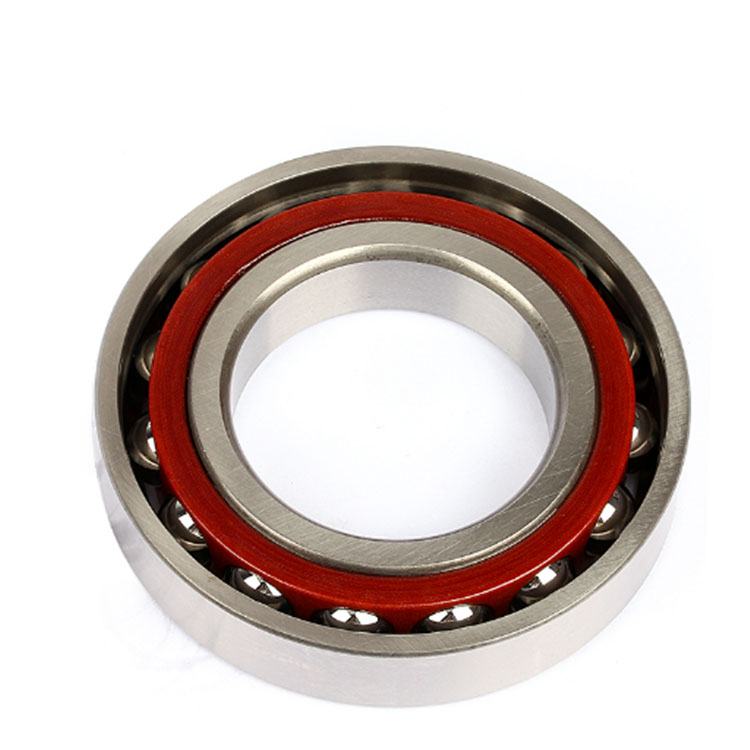

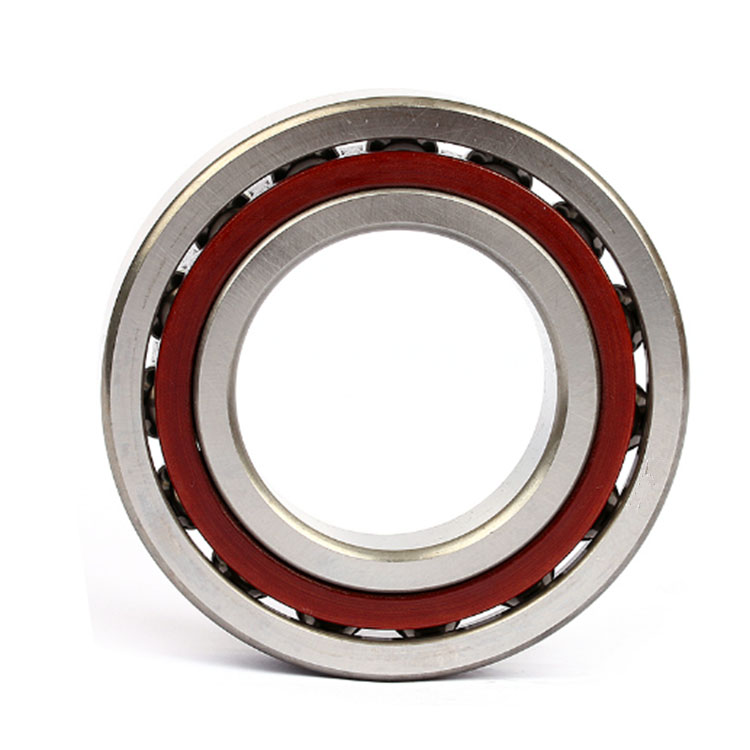

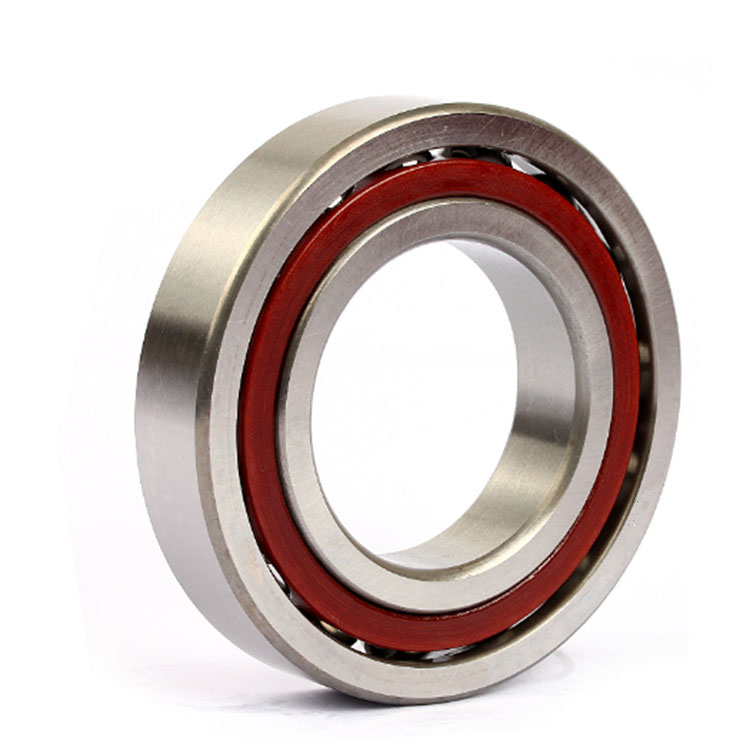

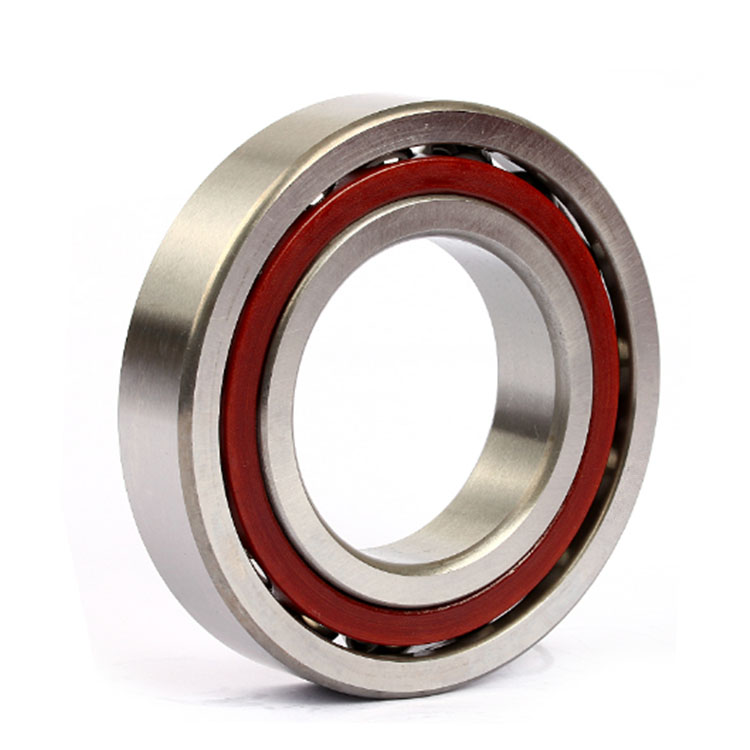

DT bearings single Row angular contact ball bearing 7214AC/DT bearing made in China
DT bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.
Working principle of DT bearings:
DT bearings uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race.
Features for DT bearings:
1.Load capacities are higher than deep groove ball bearing of same dimensions.
2.Used for bearing radial-axial combined loads or pure thrust loads.
3.Low operating friction and high limiting speed.
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for DT bearings 7214AC/DT bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for DT bearings 7214AC/DT bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for DT bearings 7214AC/DT bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of DT bearings 7214AC/DT bearing?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of your products ?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for DT bearings 7214AC/DT bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these thrust race bearing high speed thrust bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the DT bearings 7214AC/DT bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
Material | Chrome steel,ceramic or stainless steel ring |
Brand | LLH |
Standard | DIN GB ISO JIS BA ANSI |
Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
Clearance | C0, C3 ,C5 |
Package | carton package |
Used | Machine |
Bearing No. |
Dimensions (mm) | Weight (kg) | Bearing No. | Dimensions (mm) | Weight (kg) | ||||||
d | D | B | d | D | B | ||||||
7004C | 7004AC | 20 | 42 | 12 | 0.06 | 7212C | 7212AC | 60 | 110 | 22 | 0.80 |
7005C | 7005AC | 25 | 47 | 12 | 0.07 | 7213C | 7213AC | 65 | 120 | 23 | 1.00 |
7006C | 7006AC | 30 | 55 | 13 | 0.11 | 7214C | 7214AC | 70 | 125 | 24 | 1.10 |
7007C | 7007AC | 35 | 62 | 14 | 0.15 | 7215C | 7215AC | 75 | 130 | 25 | 1.20 |
7008C | 7008AC | 40 | 68 | 15 | 0.18 | 7216C | 7216AC | 80 | 140 | 26 | 1.45 |
7009C | 7009AC | 45 | 75 | 16 | 0.23 | 7217C | 7217AC | 85 | 150 | 28 | 1.80 |
7010C | 7010AC | 50 | 80 | 16 | 0.25 | 7218C | 7218AC | 90 | 160 | 30 | 2.25 |
7011C | 7011AC | 55 | 90 | 18 | 0.38 | 7219C | 7219AC | 95 | 170 | 32 | 2.70 |
7012C | 7012AC | 60 | 95 | 18 | 0.40 | 7220C | 7220AC | 100 | 180 | 34 | 3.25 |
7013C | 7013AC | 65 | 100 | 18 | 0.43 | 7221C | 7221AC | 105 | 190 | 36 | 3.85 |
7014C | 7014AC | 70 | 110 | 20 | 0.60 | 7222C | 7222AC | 110 | 200 | 38 | 4.55 |
7015C | 7015AC | 75 | 115 | 20 | 0.63 | 7224C | 7224AC | 120 | 215 | 40 | 5.40 |
7016C | 7016AC | 80 | 125 | 22 | 0.85 | 7304C | 7304AC | 20 | 52 | 15 | 0.15 |
7017C | 7017AC | 85 | 130 | 22 | 0.89 | 7305C | 7305AC | 25 | 62 | 17 | 0.23 |
7018C | 7018AC | 90 | 140 | 24 | 1.15 | 7306C | 7306AC | 30 | 72 | 19 | 0.35 |
7019C | 7019AC | 95 | 145 | 24 | 1.20 | 7307C | 7307AC | 35 | 80 | 21 | 0.47 |
7020C | 7020AC | 100 | 150 | 24 | 1.25 | 7308C | 7308AC | 40 | 90 | 23 | 0.66 |
7021C | 7021AC | 105 | 160 | 26 | 1.60 | 7309C | 7309AC | 45 | 100 | 25 | 0.86 |
7022C | 7022AC | 110 | 170 | 28 | 1.95 | 7310C | 7310AC | 50 | 110 | 27 | 1.08 |
7024C | 7024AC | 120 | 180 | 28 | 2.10 | 7311C | 7311AC | 55 | 120 | 29 | 1.42 |
7203C | 7203AC | 17 | 40 | 12 | 0.06 | 7312C | 7312AC | 60 | 130 | 31 | 1.71 |
7204C | 7204AC | 20 | 47 | 14 | 0.10 | 7313C | 7313AC | 65 | 140 | 33 | 2.23 |
7205C | 7205AC | 25 | 52 | 15 | 0.12 | 7314C | 7314AC | 70 | 150 | 35 | 2.67 |
7206C | 7206AC | 30 | 62 | 16 | 0.19 | 7315C | 7315AC | 75 | 160 | 37 | 3.10 |
7207C | 7207AC | 35 | 72 | 17 | 0.28 | 7316C | 7316AC | 80 | 170 | 39 | 3.60 |
7208C | 7208AC | 40 | 80 | 18 | 0.37 | 7317C | 7317AC | 85 | 180 | 41 | 4.38 |
7209C | 7209AC | 45 | 85 | 19 | 0.41 | 7318C | 7318AC | 90 | 190 | 43 | 5.17 |
7210C | 7210AC | 50 | 90 | 20 | 0.46 | 7319C | 7319AC | 95 | 200 | 45 | 6.69 |
7211C | 7211AC | 55 | 100 | 21 | 0.61 | 7320C | 7320AC | 100 | 215 | 47 | 7.6 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
