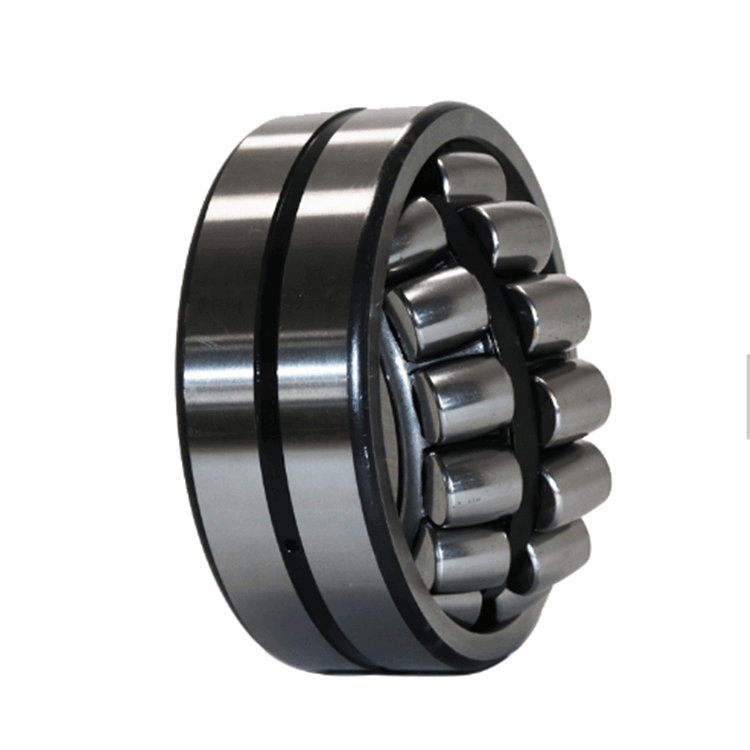

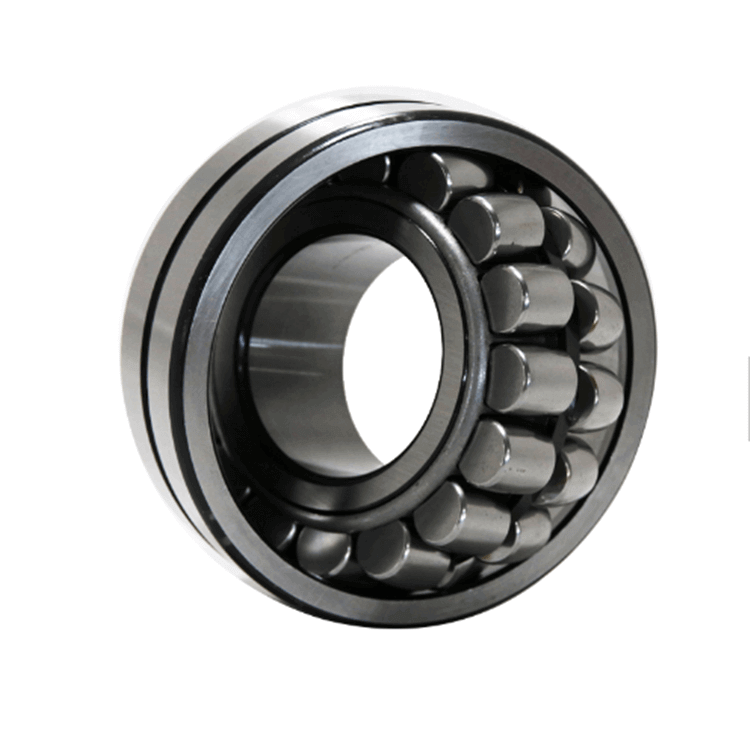

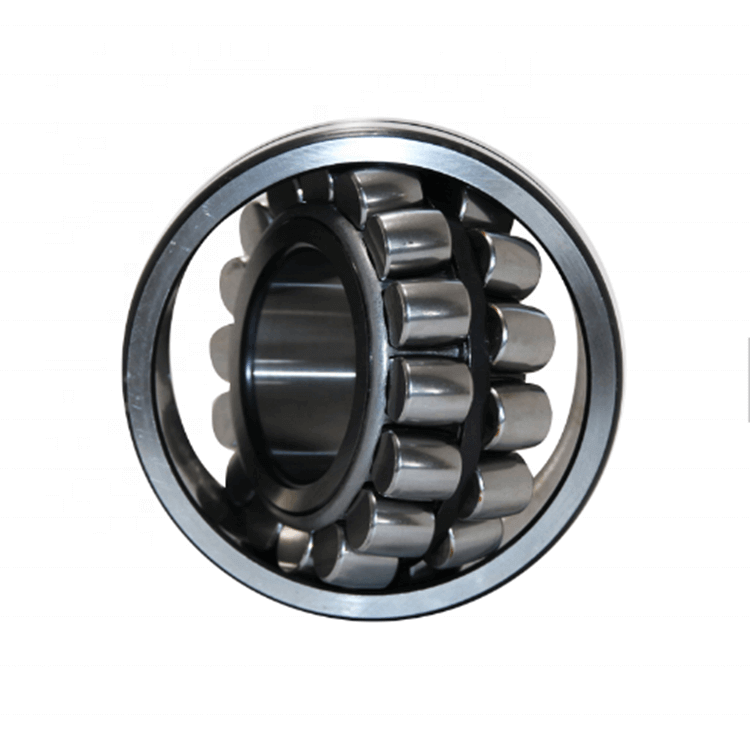

durable double row bearing China bearing factory 23984 double row bearing used machine

durable double row bearing designed with doube-row raceway inner ring,spherical raceway outer ring and the convex symmetrical rollers


Product Specification:

  • Structure Spherical
  • Type Roller
  • Brand Name LLH
  • Model Number 23984
See Price

durable double row bearing China bearing factory 23984 double row bearing used machine durable double row bearing factory

1.The Structure Type of durable double row bearing:

Spherical roller bearings divided into: cylindrical bore, tapered bore.Tapered bore taper 1:12, respectively, after the code for the K-aligning roller bearings and 1:30 post code for the K30-aligning roller bearings. Such bearings and shaft with a conical, axial movement of the inner ring of the bearing can be adjusted radial clearance.durable double row bearing manufacturer

2.The Features of durable double row bearing:

Spherical roller bearing also known as self-aligning roller bearing. Spherical roller bearings have two rows of rollers. This bearing mainly accommodate the radial load, and can accommodate the axial load from one direction at the same time, but not accommodate the pure axial load. Sherical roller bearings have very good loading capacity, especially for hevey load or vibrational load.

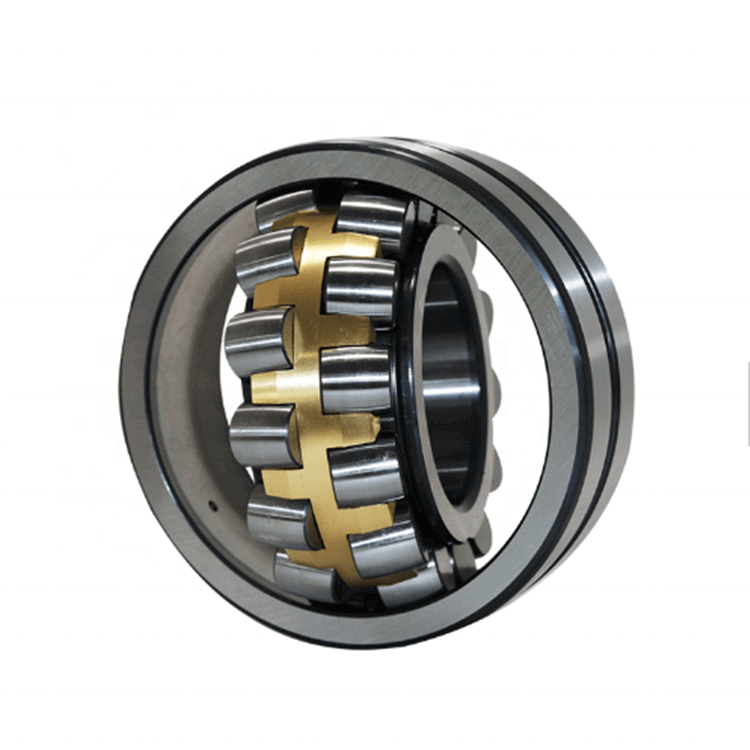

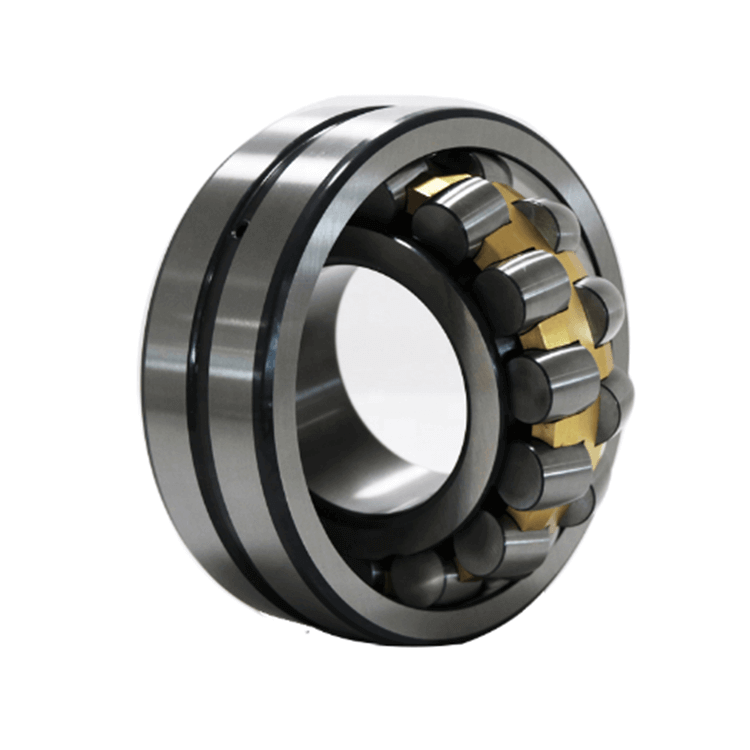

Spherical roller bearing use staming steel cage (the suffixed "E"), glass-fibre reinforced polyamide cage (the suffixed "TVPB") or machined brass cage (the suffixed "M") or stamping steel cage for vibratory applications (the suffixed JPA).
Spherical roller bearings mainly used to papermaking machinery, speed reducer, cruser, etc.23984 double row bearing

3.The Application of durable double row bearing:

Papermaking machinery, deceleration device, railway vehicle axle, rolling mill gear box bearing, rolling mill roller, crusher, vibrating screen, printing machinery, woodworking machinery, various industrial reducer, vertical seat-aligning bearing.23984 double row bearing supplier

FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for durable double row bearing 23984 double row bearing?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3,Q: Do you provide samples for durable double row bearing 23984 double row bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for durable double row bearing 23984 double row bearing?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price of durable double row bearing 23984 double row bearing?
A:  after we get your inquiry, usually within 2-6 hours. Urgent will be faster.

7,Q:How about your quality of your products ?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ for durable double row bearing 23984 double row bearing ?
A: Usually ≥1, According your demand.

9,Q: Will you check these durable double row bearing 23984 double row bearing before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if  you are not satisfied with the durable double row bearing 23984 double row bearing ?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Item Name Roller Bearing 23984
d 420mm
D 560mm
B 106mm
Bearing Weight 56.8kg
Precision P0,P6,P5,P4,P2
Material Chrome steel, Gcr15

high speed durable double row bearing

Bearings NO. d/mm D/mm B/mm C/kN C0/kN Weight/kg
22326 CC/W33 130 280 93 1120 1320 29
22326 CCJA/W33VA405 130 280 93 1120 1320 29
22326 CCK/W33 130 280 93 1120 1320 28.5
23028 CC/W33 140 210 53 465 680 6.55
23028 CCK/W33 140 210 53 465 680 6.35
24028 CC/W33 140 210 69 570 900 8.55
24028 CCK30/W33 140 210 69 570 900 8.4
23128 CC/W33 140 225 68 630 900 10.5
23128 CCK/W33 140 225 68 630 900 10
24128 CC/W33 140 225 85 765 1160 13.5
24128 CCK30/W33 140 225 85 765 1160 13.5
24128-2CS2/VT143 140 225 85 765 1160 13.5
22228 CC/W33 140 250 68 710 900 14
22228 CCK/W33 140 250 68 710 900 13.5
23228 CC/W33 140 250 88 915 1250 19
23228 CCK/W33 140 250 88 915 1250 18.5

high quality 23984 double row bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.

super precision 23984 double row bearing
