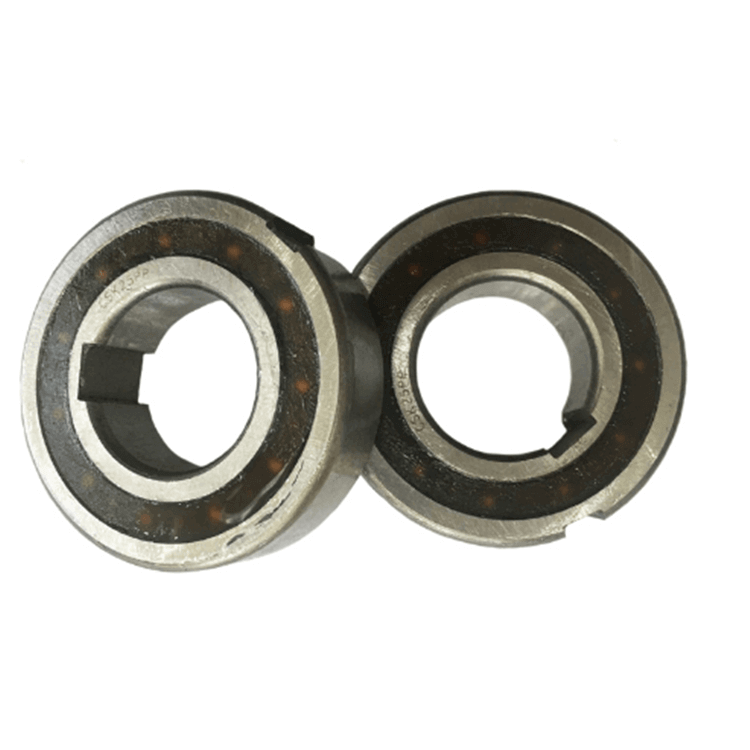

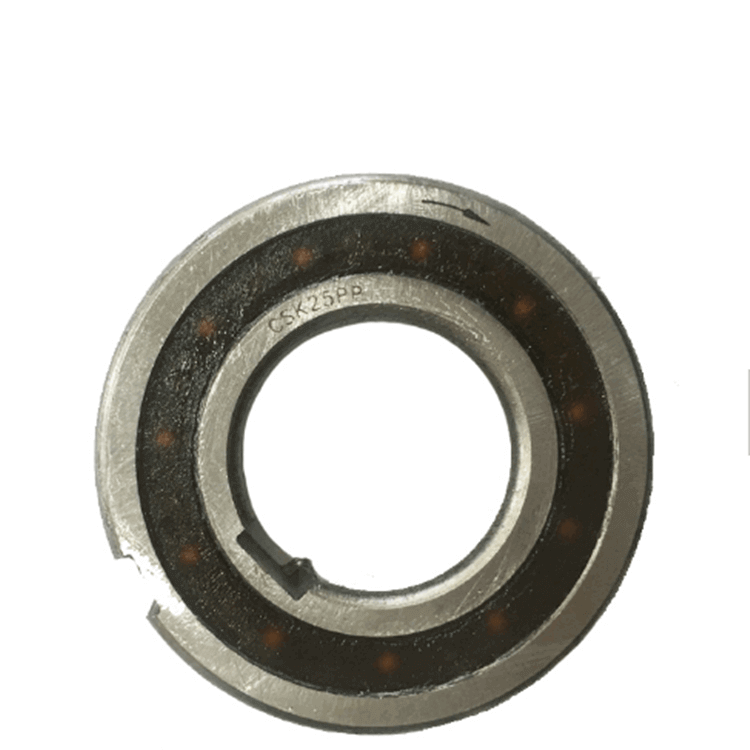

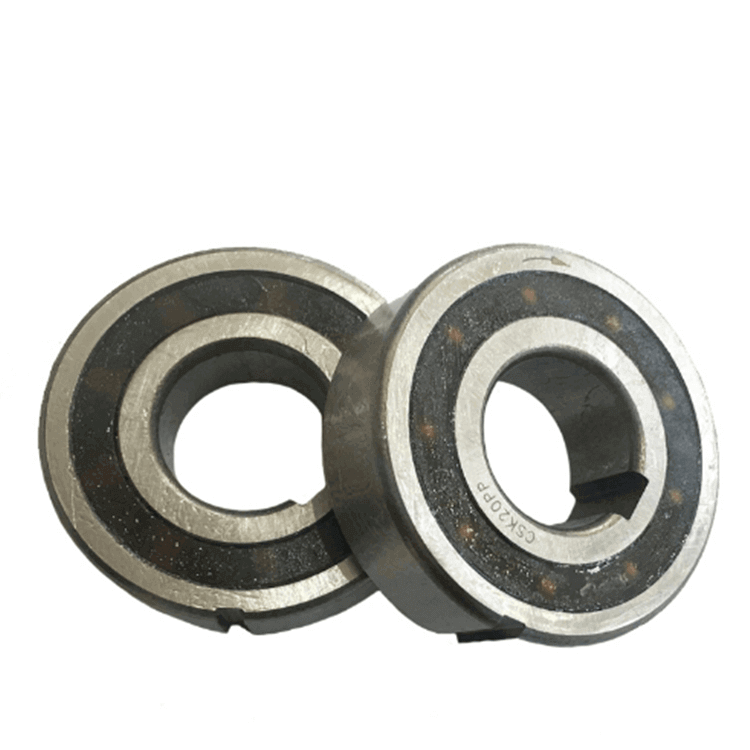

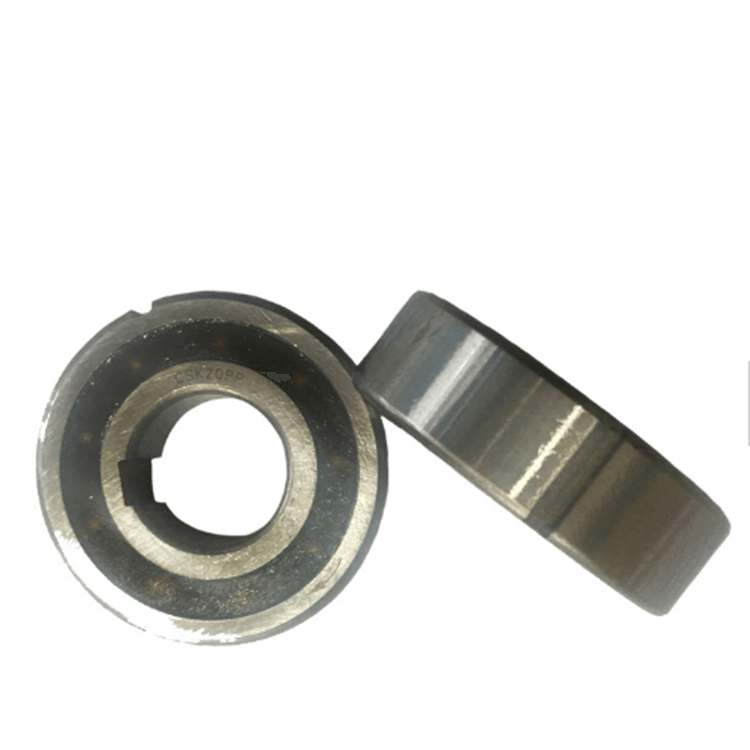

freewheel one way bearing csk series bearing are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction.
freewheel one way bearing high quality csk series bearing manufacturer
freewheel one way bearing csk series bearing is used extensively in remote controlledmodel car transmission systems and are assemblies that contain small cylindricalhardened steel pins that allow free movement of the shaft they rotate on in only onedirection. Bearing suppliers may also refer to them as clutch bearings.
freewheel one way bearing csk series bearing is a sprag type freewheel ,one of the most common overrunning clutch bearing, integrated into 6200 series ball bearing(except sizes 8 and 40), Also named OW BB KK etc.It provides you an one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space.It is bearing supported, filled grease lubricated and protected against dust larger than 0.3mm diameter.
Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified. Operating temperature range:-20°C to +100°C. Peaks up to +120°C are acceptable for short periods.
freewheel one way bearing csk series bearing include CSK ,CSK…P, CSK..PP type. CSK…P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race, The type of PP have a keyway on both inner race and outer race.
freewheel one way bearing csk series bearing have be used widely in washing machine, grass cutter, printing machine, textile machinery and food machinery etc.
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for freewheel one way bearing csk series bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for freewheel one way bearing csk series bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for freewheel one way bearing csk series bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of freewheel one way bearing csk series bearing?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of your products ?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for freewheel one way bearing csk series bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these freewheel one way bearing csk series bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the freewheel one way bearing csk series bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| Products Name | freewheel one way bearing high quality csk series bearing |
| Brand Name | LLH |
| Material | Stainless steel.Gcr15.carbon steel |
| Sealing | Open, Z, ZZ, RZ,2RZ,RS, 2RS |
| TYPE | keyway | Dimensions(mm) | Nominal torgue | weight | ||||
| GERMANY | JAPAN AND OTHER | d | D | B | N.m | KG | ||
| CSK8 | BB8 KK8 OW8 | CSK8P | CSK8PP | 8 | 22 | 9 | 2.5 | 0.015 |
| CSK10 | BB10 KK10 OW10 | CSK10P | CSK10PP | 10 | 30 | 9 | 5 | 0.032 |
| CSK12 | BB12 KK12 OW12 | CSK12P | CSK12PP | 12 | 32 | 10 | 10 | 0.04 |
| CSK15 | BB15 KK15 OW15 | CSK15P | CSK15PP | 15 | 35 | 11 | 30 | 0.05 |
| CSK17 | BB17 KK17 OW17 | CSK17P | CSK17PP | 17 | 40 | 12 | 48 | 0.07 |
| CSK20 | BB20 KK20 OW20 | CSK20P | CSK20PP | 20 | 47 | 14 | 60 | 0.11 |
| CSK25 | BB25 KK25 OW25 | CSK25P | CSK25PP | 25 | 52 | 15 | 80 | 0.14 |
| CSK30 | BB30 KK30 OW30 | CSK30P | CSK30PP | 30 | 62 | 16 | 100 | 0.21 |
| CSK35 | BB35 KK35 OW35 | CSK35P | CSK35PP | 35 | 72 | 17 | 123 | 0.3 |
| CSK40 | BB40 KK40 OW40 | CSK40P | CSK40PP | 40 | 18 | 22 | 260 | 0.5 |
