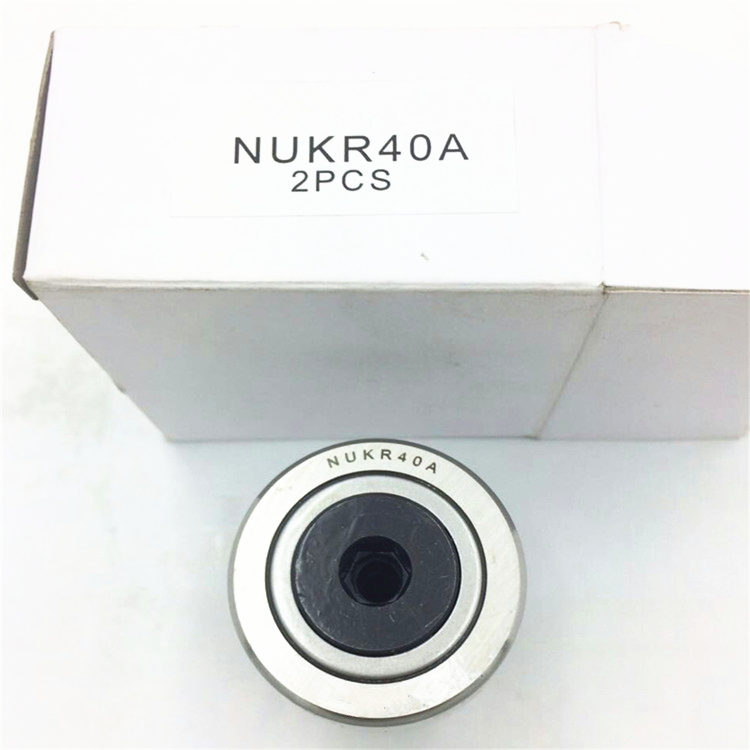

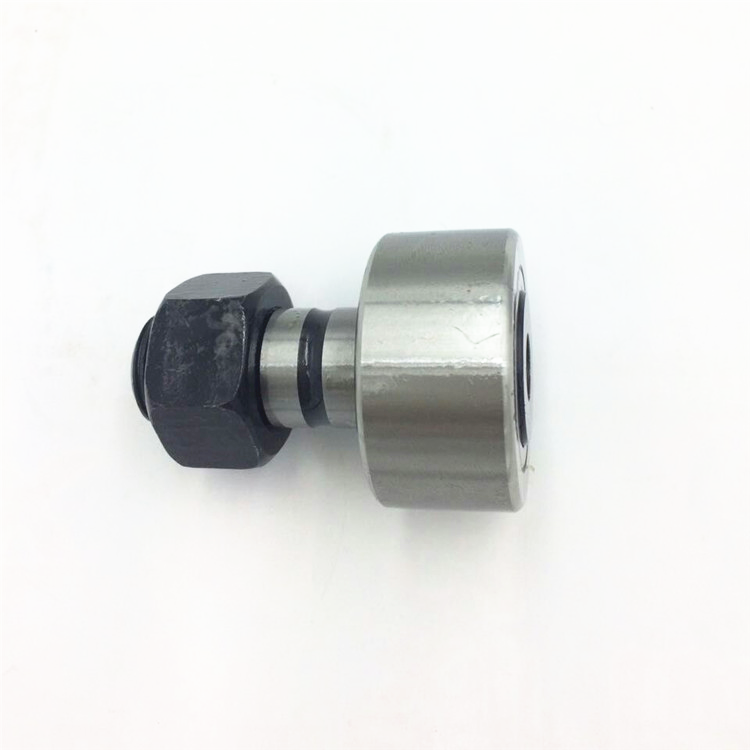

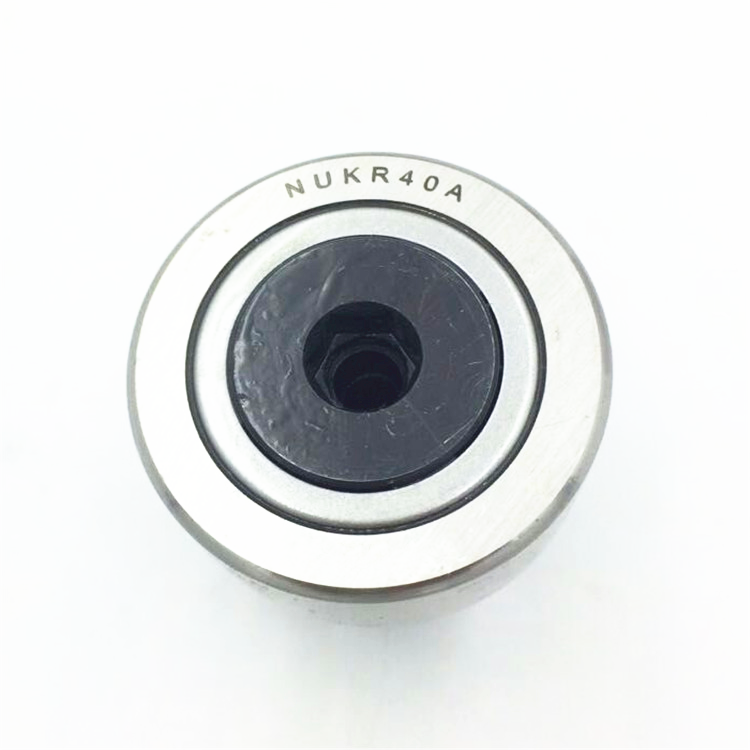

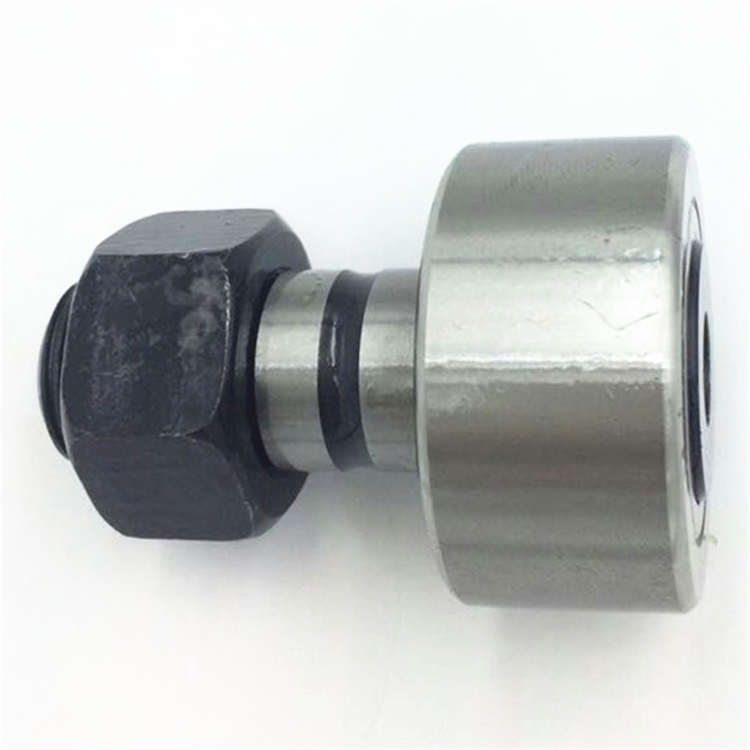

Heavy Duty Bearing NUKR40 stud roller cam follower bearing type

Heavy Duty Bearing NUKR40 stud roller cam follower bearing type

Heavy duty bearing NUKR40 adopts a full complement cylindrical roller bearing with a thick outer ring wall. The outer diameter surface of the roller has a cylindrical shape and an arc shape, which can be designed to match the raceway surface according to the application. With this outer ring, the rollers can roll directly on the raceway and can withstand heavier loads and shock loads.
Combined roller bearing consists of main roller, side roller, shaft head and cover plate

Features:
The heavy duty bearing NUKR40 is a sealed structure, filled with grease to provide long-term effective lubrication, and users can avoid lubrication. For harsh operating conditions, the channel can be designed to supplement the grease to improve the service life of the bearing

Types:
1.Standard type, clearance adjustale type, open type, extended type and general type linear bearings.
2.Flanged linear bearings can be divided into: round flange type, square flange type, oval flange type, oriented round flange type, oriented square flange type, oriented oval flange type and extended round flange type.

Composition of combined heavy duty bearing NUKR40:
1) Main roller
The main roller is the most important bearing body in a set of composite rollers. It mainly bears the vertical load and impact load, and has strong impact resistance, wear resistance and corrosion resistance. Since the main roller is a full complement roller bearing, it can also be used alone as a one-way bearing.
2) Side rollers
The side roller is the second bearing body in a set of composite rollers, which mainly bears the horizontal load, and also has strong impact resistance, wear resistance and corrosion resistance. The side rollers are designed with full needle rollers without inner ring, and a mandrel replaces the inner ring and the shaft head to connect and carry.
3) Shaft head
The shaft head is used as the connecting part of the composite roller and the machine equipment. Usually the shaft head head is designed to be chamfered, which is convenient for installation. The shaft head can be directly welded to the equipment, or the shaft head can be welded to the connection with a round hole. Then assemble the connection board and equipment on the board.
4) Cover plate
The function of the cover plate is to fix the side roller installed inside the shaft head and the main roller outside the shaft head with nuts and thread glue at the end of the shaft head.

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time forHeavy Duty Bearing NUKR40 stud roller cam follower bearing type?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Heavy Duty Bearing NUKR40 stud roller cam follower bearing type ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Heavy Duty Bearing NUKR40 stud roller cam follower bearing type?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for Heavy Duty Bearing NUKR40 stud roller cam follower bearing type?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of Heavy Duty Bearing NUKR40 stud roller cam follower bearing type?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!
