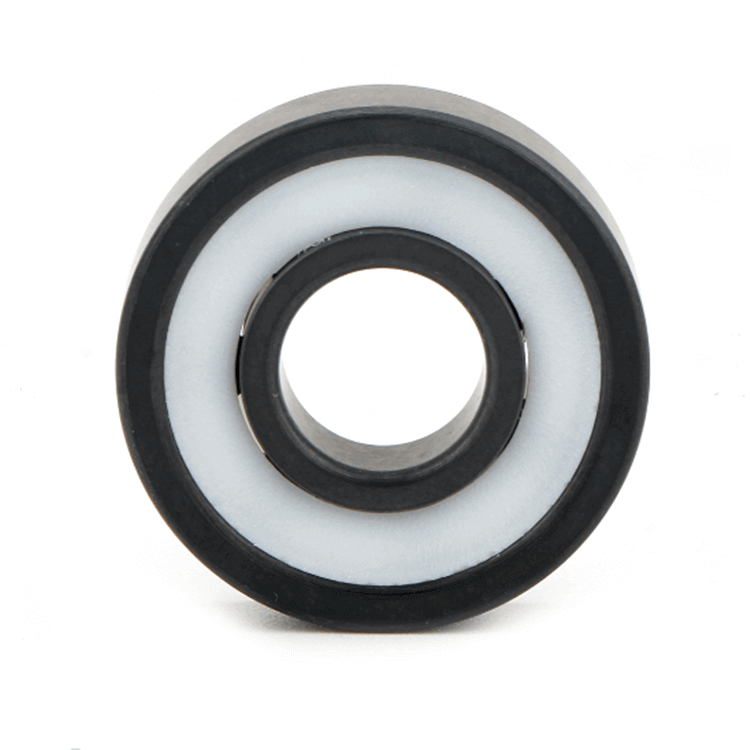

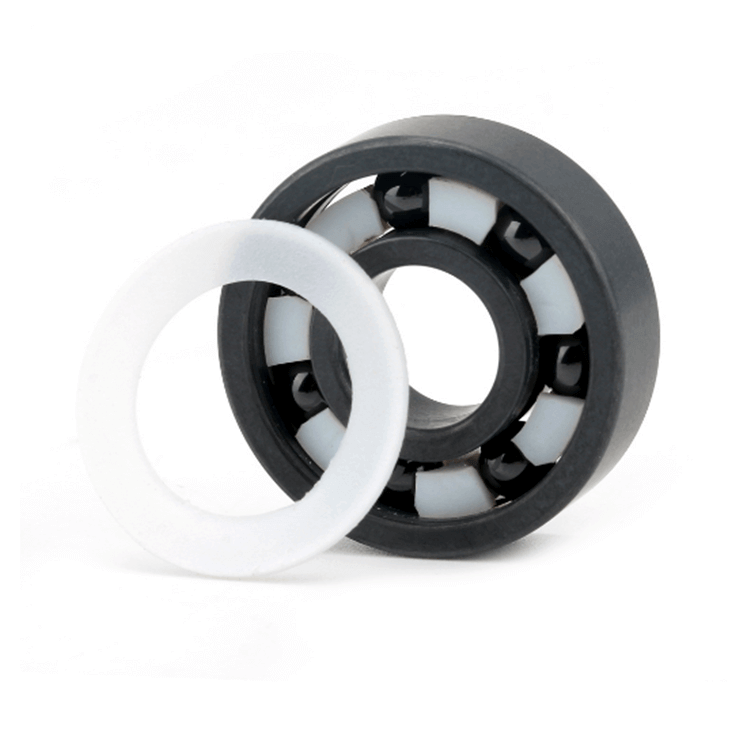

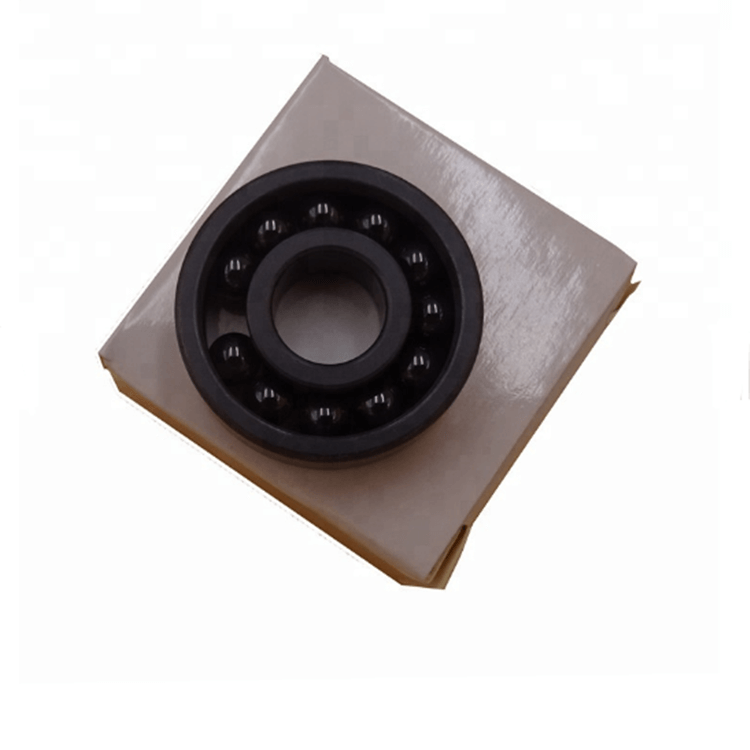

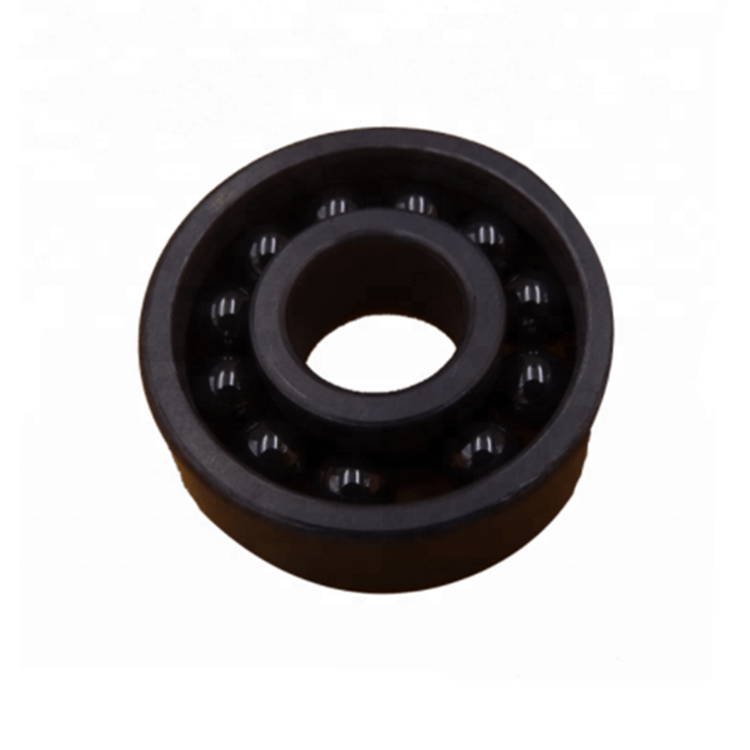

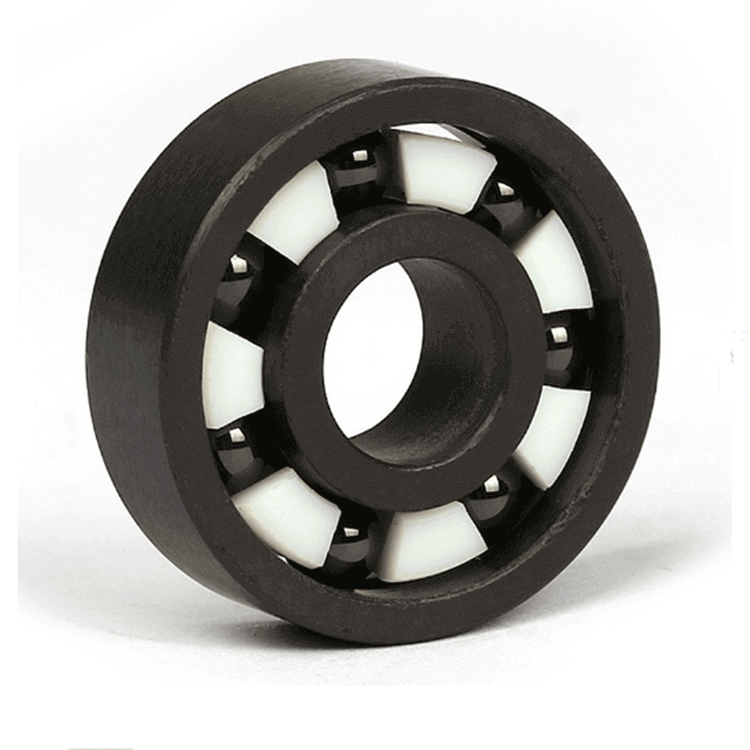

high speed ceramic ball bearings Skateboard Bearing abec 9 608 bearings for hand spinner figet toy

high speed ceramic ball bearings has the feature of corrosion resistance, the ceramic rolling bearing suitable for operation under harsh conditions covered corrosion media.


Product Specification:

  • Structure Deep Groove
  • Type Ball
  • Brand Name LLH or as your request
  • Model Number 608
See Price

high speed ceramic ball bearings Skateboard Bearing abec 9 608 bearings for hand spinner figet toyhigh speed ceramic ball bearings 608\

high speed ceramic ball bearings have excellence performance by virtue of the electricity and magnetism resistance, anti-corrosion, self-lubrication and maintenance, low noise, higher load capacity, high/low temperature resistance, etc. They are not stronger than steel but lighter. The lower friction than steel allows them to go faster with lower heat generated during the rotation. high speed ceramic ball bearings manufacturer

The advantages of high speed ceramic ball bearings:

1) The ceramic bearing has the feature of corrosion resistance, the ceramic rolling bearing suitable

     for operation under harsh conditions covered corrosion media.

2) Since the ceramic ball rolling has lower density than steel, so which is much lighter, so when you

     rotate the outer ring centrifugal effect can be reduced by 40% , thus greatly extended service life.

3) The expansion and contraction of the ceramic affected smaller than steel, and therefore the gap of

     the bearing is constant, the bearing allows the temperature changes more severe environment.

4) As the ceramic has higher modulus of elasticity than steel, when the force is not easy deformation,

     and therefore help to improve the operating speed and achieve high accuracy.supply high speed ceramic ball bearings

FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for high speed ceramic ball bearings abec 9 608 bearings?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3,Q: Do you provide samples forhigh speed ceramic ball bearings abec 9 608 bearings? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for high speed ceramic ball bearings abec 9 608 bearings?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price of high speed ceramic ball bearings abec 9 608 bearings?
A:  after we get your inquiry, usually within 2-6 hours. Urgent will be faster.

7,Q:How about your quality of high speed ceramic ball bearings abec 9 608 bearings?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ for high speed ceramic ball bearings abec 9 608 bearings?
A: Usually ≥1, According your demand.

9,Q: Will you check these high speed ceramic ball bearings abec 9 608 bearings before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if  you are not satisfied with the high speed ceramic ball bearings abec 9 608 bearings?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need high speed ceramic ball bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: 008618668903871
Wechat:GraceXu1234





supply high speed ceramic ball bearings

Products name Ceramic  bearing
Brand name LLH or OEM
Series 608
Material full ceramic
Quality

standard

ISO9001, ABEC-1(Z1V1)
Service Original service
Tolerance

Grades

ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
Noise Level EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4
Sealing/Shield Open, Z, ZZ,RS, 2RS,RZ,2RZ
Item No. Boundary Dimensions(mm) Basic load ratings(Lbf) Weight(Lb.)
d D B Dynamic Static
OPEN ZZ/2RS Cr Cor
603 3 9 3 5 128.14 35.97 0.00198
604 4 12 4 4 218.06 80.93 0.00462
605 5 14 5 5 292.25 110.16 0.0077
606 6 17 6 6 508.07 166.36 0.01276
607 7 19 6 6 526.05 200.08 0.01672
608 8 22 7 7 741.87 303.49 0.0264
609 9 24 7 7 764.35 325.97 0.0352
623 3 10 4 4 143.88 49.46 0.0044
624 4 13 5 5 294.5 110.16 0.0066
625 5 16 5 5 395.66 152.87 0.0088
626 6 19 6 6 526.05 198.96 0.0176
627 7 22 7 7 753.11 314.73 0.0308
628 8 24 8 8 899.23 357.44 0.0352
629 9 26 8 8 1022.88 438.38 0.0418
633 3 13 5 5 292.25 110.16 0.0066
634 4 16 5 5 395.66 152.87 0.011
635 5 19 6 6 526.05 198.96 0.0176
636 6 22 7 7 741.87 303.49 0.0286
637 7 26 9 9 910.47 364.19 0.0528
638 8 28 9 9 1022.88 438.38 0.0638
639 9 30 10 10 1146.52 537.29 0.077
673 3 6 2 2.5 54.4 21.13 0.00044
674 4 7 2 2.5 60.47 38.22 0.000616
675 5 8 2 2.5 65.64 31.92 0.000704
676 6 10 2.5 3 119.15 53.95 0.00143
677 7 11 2.5 3 124.77 60.47 0.001474
678 8 12 2.5 3.5 129.26 66.99 0.00165
683 3 7 2 3 81.52 26.44 0.000726
684 4 9 2.5 4 136.59 48.47 0.001386
685 5 11 3 5 138.8 57.28 0.00242
686 6 13 3.5 5 231.33 88.12 0.00418
687 7 14 3.5 5 251.16 114.65 0.00462
688 8 16 4 5 283.26 132.64 0.00682
689 9 17 4 5 298.99 149.5 0.00704
693 3 8 3 4 125.89 42.71 0.001342
694 4 11 4 4 215.82 76.43 0.00374
695 5 13 4 4 296.75 110.16 0.00528
696 6 15 5 5 393.41 150.62 0.00858
697 7 17 5 5 359.69 159.61 0.01166

high quality abec 9 608 bearings

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.

precision bearing abec 9 608 bearings
