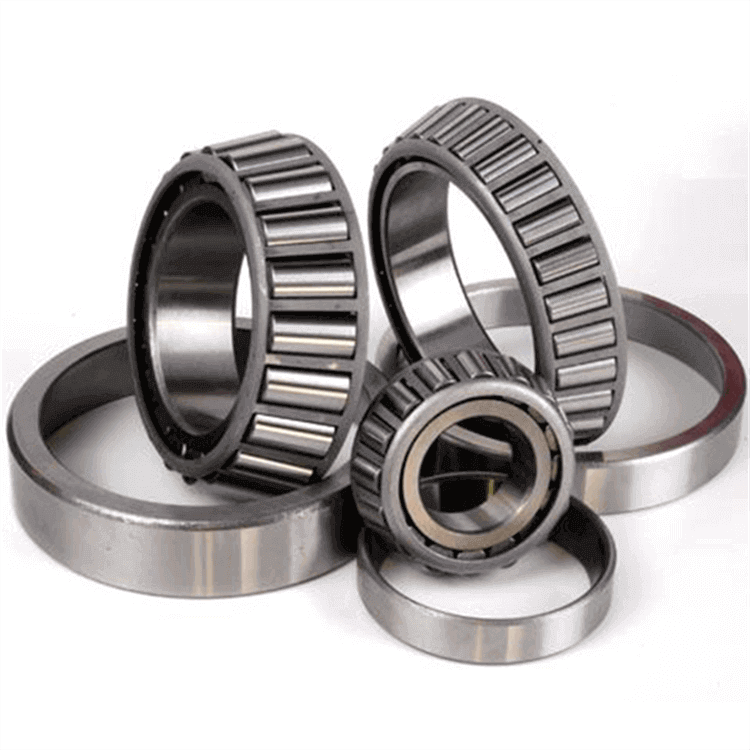

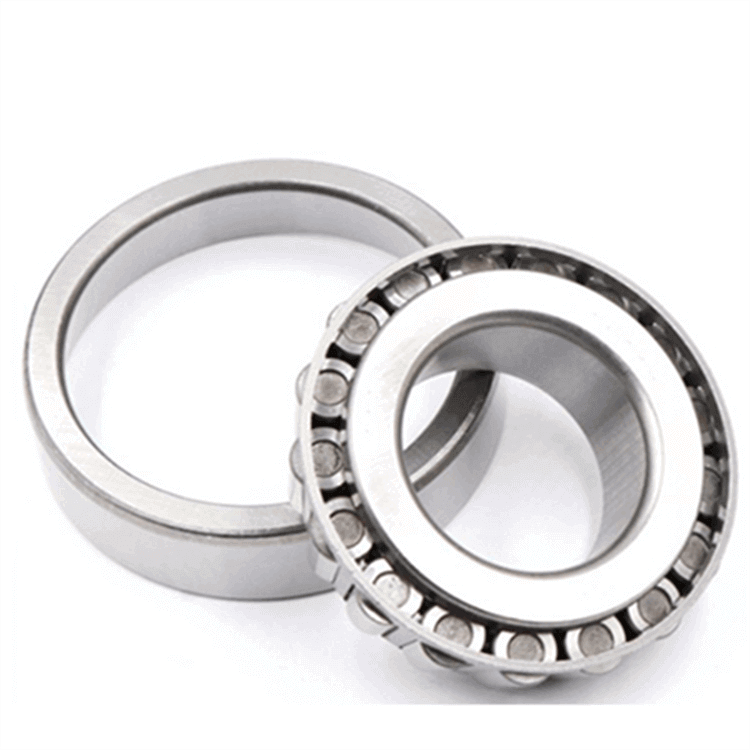

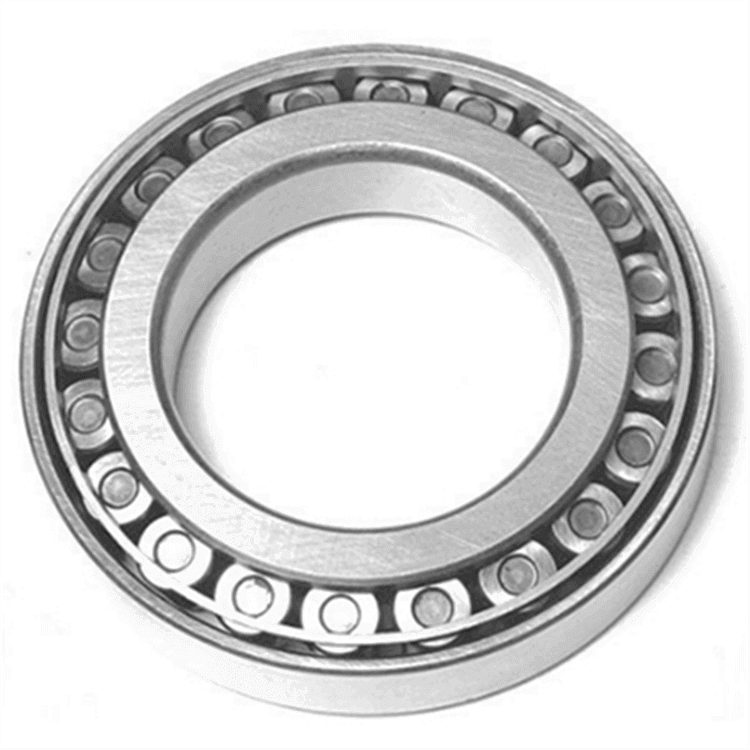

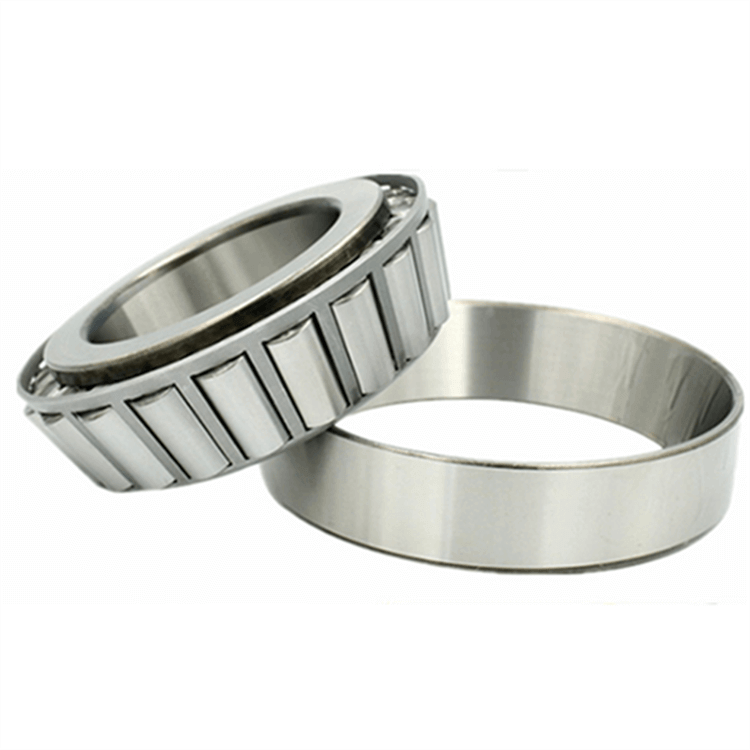

HM218248/HM218210 high quality inch taper roller bearing is designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.
HM218248/HM218210 high quality inch taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made. Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings. |
HM218248/HM218210 high quality inch taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.
Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.
HM218248/HM218210 high quality inch taper roller bearing have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.
Types:
1.Single-row tapered roller bearings
2.Double-row tapered roller bearings
3.Four-row tapered roller bearings
4.Double, four-row tapered roller bearings with multi-seal
Typical applications:
HM218248/HM218210 high quality inch taper roller bearing are widely applied to machine tool spindles, gear reduction units, automotive transaxles, transmissions, rolling mill, mining, metallurgical industry, plastic machinery, home appliances, electric motors, pumps, machinery and other automotive components.
Advantages:
1.high speed and high precision
2.long service lifetime
3.lowest noise and good performance
Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings.We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality. |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for HM218248/HM218210 high quality inch taper roller bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for HM218248/HM218210 high quality inch taper roller bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for HM218248/HM218210 high quality inch taper roller bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of HM218248/HM218210 high quality inch taper roller bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the HM218248/HM218210 high quality inch taper roller bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need HM218248/HM218210 high quality inch taper roller bearing or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
Lubrications | Oil or grease |
Hardness | HRC60-65 |
Clearance: | C0 C3 |
Precision: | ABEC 1 3 5 7 |
Brand | LLH |
Bearing Number | Boundary Dimensions(mm) | R | R1 | Cr | Cor | a | Mass | |||||
d | D | T | B | C | (KN) | (KN) | (mm) | (Kg) | ||||
32205 | 7505E | 25 | 52 | 19.25 | 18 | 15 | 1 | 1 | 36.7 | 46.3 | 22.3 | 0.174 |
32206 | 7506E | 30 | 62 | 21.25 | 20 | 17 | 1 | 1 | 51.8 | 63.7 | 15.6 | 0.287 |
32207 | 7507E | 35 | 72 | 24.25 | 23 | 19 | 1.5 | 1.5 | 70.6 | 89.5 | 17.9 | 0.445 |
32208 | 7508E | 40 | 80 | 24.75 | 23 | 19 | 1.5 | 1.5 | 77.9 | 97.2 | 18.9 | 0.532 |
32209 | 7509E | 45 | 85 | 24.75 | 23 | 19 | 1.5 | 1.5 | 80.7 | 104 | 20.1 | 0.573 |
32210 | 7510E | 50 | 90 | 24.75 | 23 | 19 | 1.5 | 1.5 | 82.8 | 107.6 | 21 | 0.626 |
32211 | 7511E | 55 | 100 | 26.75 | 25 | 21 | 2 | 1.5 | 108 | 142.3 | 22.8 | 0.853 |
32212 | 7512E | 60 | 110 | 29.75 | 28 | 24 | 2 | 1.5 | 132.8 | 179.6 | 25 | 1.17 |
32213 | 7513E | 65 | 120 | 32.75 | 31 | 27 | 2 | 1.5 | 160.9 | 221.7 | 27.3 | 1.55 |
32214 | 7514E | 70 | 125 | 33.25 | 31 | 27 | 2 | 1.5 | 168.5 | 237.1 | 28.8 | 1.64 |
32215 | 7515E | 75 | 130 | 33.25 | 31 | 27 | 2 | 1.5 | 170.3 | 242.1 | 30 | 1.74 |
32216 | 7516E | 80 | 140 | 35.25 | 33 | 28 | 2.5 | 2 | 198.1 | 279 | 31.4 | 2.13 |
32217 | 7517E | 85 | 150 | 38.5 | 36 | 30 | 2.5 | 2 | 226.7 | 324 | 33.9 | 2.68 |
32218 | 7518E | 90 | 160 | 42.5 | 40 | 34 | 2.5 | 2 | 269.8 | 395.5 | 36.8 | 3.44 |
32219 | 7519E | 95 | 170 | 45.5 | 43 | 37 | 3 | 2.5 | 302.5 | 448.4 | 39.2 | 4.24 |
32220 | 7520E | 100 | 180 | 49 | 46 | 39 | 3 | 2.5 | 341 | 512 | 41.9 | 5.1 |
32221 | 7521E | 105 | 190 | 53 | 50 | 43 | 3 | 2.5 | 381 | 579.2 | 45 | 6.26 |
32222 | 7522E | 110 | 200 | 56 | 53 | 46 | 3 | 2.5 | 431.7 | 666.3 | 47.3 | 7.43 |
32224 | 7524E | 120 | 215 | 61.5 | 58 | 50 | 3 | 2.5 | 477.7 | 758.1 | 52.3 | 9.26 |
32226 | 7526E | 130 | 230 | 67.75 | 64 | 54 | 4 | 3 | 551.7 | 888.7 | 56.6 | 11.4 |
32228 | 7528E | 140 | 250 | 71.75 | 68 | 58 | 4 | 3 | 643.7 | 1049.3 | 60.7 | 14.4 |
32306 | 7606E | 30 | 72 | 28.75 | 27 | 23 | 1.5 | 1.5 | 81.6 | 96.4 | 18.9 | 0.562 |
32307 | 7607E | 35 | 80 | 32.75 | 31 | 25 | 2 | 1.5 | 99 | 118.3 | 20.4 | 0.763 |
32308 | 7608E | 40 | 90 | 35.25 | 33 | 27 | 2 | 1.5 | 115.7 | 147.8 | 23.3 | 1.04 |
32309 | 7609E | 45 | 100 | 38.25 | 36 | 30 | 2 | 1.5 | 145.3 | 189.4 | 25.6 | 1.4 |
32310 | 7610E | 50 | 110 | 42.25 | 40 | 33 | 2.5 | 2 | 177.5 | 236.1 | 28.2 | 1.89 |
32311 | 7611E | 55 | 120 | 45.5 | 43 | 35 | 2.5 | 2 | 203 | 271.4 | 30.4 | 2.37 |
32312 | 7612E | 60 | 130 | 48.5 | 46 | 37 | 3 | 2.5 | 226.7 | 303 | 32 | 2.9 |
32313 | 7613E | 65 | 140 | 51 | 48 | 39 | 3 | 2.5 | 259.6 | 349.8 | 34.3 | 3.51 |
32314 | 7614E | 70 | 150 | 54 | 51 | 42 | 3 | 2.5 | 298.9 | 408.5 | 36.5 | 4.34 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd.We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
