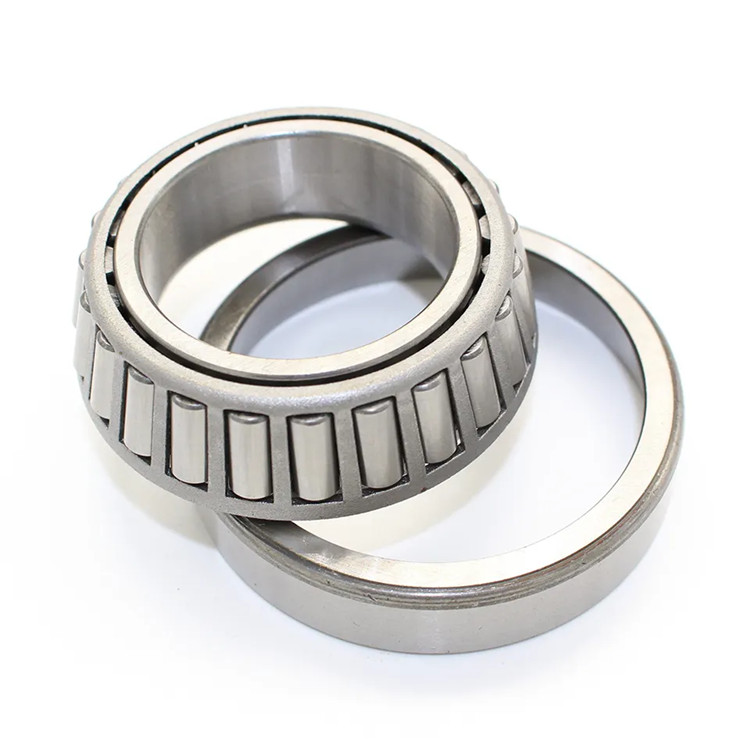

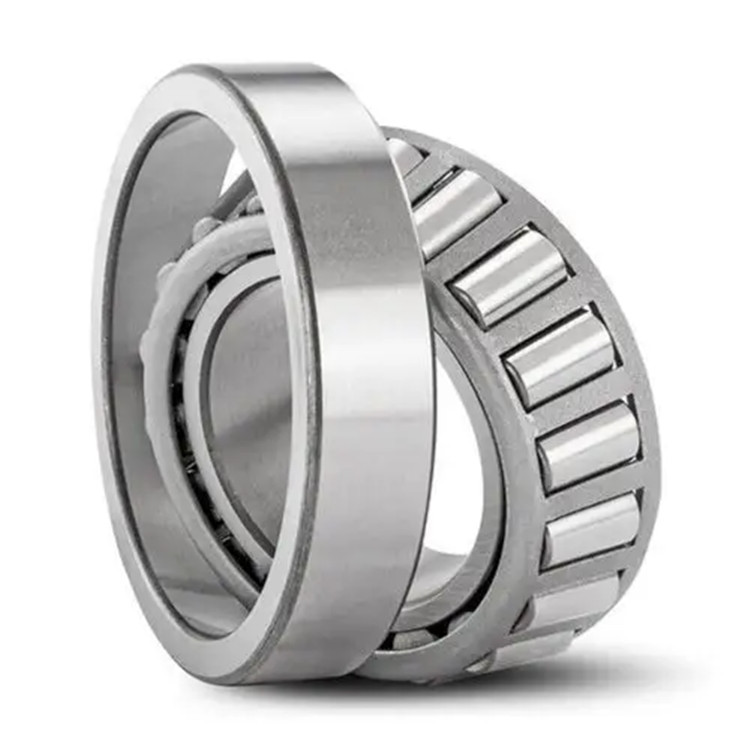

HM88648 HM88610 inch tapered roller bearing size 35.72*72.23*25.4mm
HM88648 HM88610 inch tapered roller bearing size 35.72*72.23*25.4mm
Tapered roller bearings belong to separate type bearings, and both the inner and outer rings of the bearings have tapered raceways. This type of bearing is divided into different structural types based on the number of rows of installed rollers, such as single row, double row, and four row tapered roller bearings. Single row tapered roller bearings can withstand radial loads and axial loads in a single direction. The bearing capacity depends on the raceway angle of the outer ring, and the larger the angle, the greater the bearing capacity.
The small cone angle mainly bears combined radial and axial loads, mainly radial loads. It is often used in pairs and installed in reverse. The inner and outer races can be installed separately, and the radial and axial clearance can be adjusted during installation and use.Tapered roller bearings belong to separate type bearings, and both the inner and outer rings of the bearings have tapered raceways. This type of bearing is divided into different structural types based on the number of rows of installed rollers, such as single row, double row, and four row tapered roller bearings. Single row tapered roller bearings can withstand radial loads and axial loads in a single direction. The bearing capacity depends on the raceway angle of the outer ring, and the larger the angle, the greater the bearing capacity.
Widely used in industries such as automobiles, rolling mills, mines, metallurgy, plastic machinery, etc.
1,Q: Are you trading company or manufacturer ?A: We are factory.
2,Q: How long is your delivery time for HM88648 HM88610 inch tapered roller bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for HM88648 HM88610 inch tapered roller bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for HM88648 HM88610 inch tapered roller bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for HM88648 HM88610 inch tapered roller bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for HM88648 HM88610 inch tapered roller bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of HM88648 HM88610 inch tapered roller bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of HM88648 HM88610 inch tapered roller bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processin
If need any type or brand bearings,don't forget to contact me!
Contact:Bella
Whatsapp:+8615315596312
Wechat/TEL:+8615318805907
email/skype:skf@llhbearing.com
Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.
Tapered roller bearings are more and more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robots, tools, machinery, cnc machine , automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry being.
|
Single-row Tapered Roller Bearings-Inch Series
|
|||||||||
|
Bearing No.
|
Bounday Dimensions
|
Weight
|
Dynamic
|
Static
|
|||||
|
d
|
D
|
T
|
B
|
C
|
R/r
|
w
|
Cr
|
Cor
|
|
|
mm
|
min
|
kg
|
KN
|
KN
|
|||||
|
LM102949/10
|
45.242
|
73.431
|
19.558
|
19.812
|
15.748
|
3.5/0.8
|
0.304
|
55.90
|
78.10
|
|
LM11749/10
|
17.463
|
39.878
|
13.843
|
14.605
|
10.688
|
1.3/1.3
|
0.0852
|
22.30
|
22.80
|
|
LM11949/10
|
19.050
|
45.237
|
15.494
|
16.637
|
12.065
|
1.3/1.3
|
0.121
|
29.00
|
30.30
|
|
M12649/10
|
21.430
|
50.005
|
17.526
|
18.288
|
13.970
|
1.3/1.3
|
0.170
|
39.80
|
40.60
|
|
LM12749/10
|
22.000
|
45.237
|
15.494
|
16.637
|
12.065
|
1.3/1.3
|
0.1170
|
27.80
|
33.40
|
|
L44649/10
|
26.988
|
50.292
|
14.224
|
14.732
|
10.668
|
3.5/1.0
|
0.1190
|
26.70
|
32.50
|
|
LM501349/10
|
41.275
|
73.431
|
19.558
|
19.812
|
14.732
|
3.5/0.8
|
0.3276
|
56.10
|
69.50
|
|
LM603049/11
|
45.242
|
77.788
|
19.842
|
19.842
|
15.080
|
3.5/0.8
|
0.355
|
57.50
|
73.50
|
|
M88043/10
|
30.162
|
68.262
|
22.225
|
22.225
|
17.462
|
2.3/1.5
|
0.398
|
56.10
|
71.00
|
|
M88048/10
|
33.338
|
68.262
|
22.225
|
22.225
|
17.462
|
0.8/1.5
|
0.3730
|
56.10
|
71.00
|
|
HM804848/10
|
48.412
|
95.250
|
30.163
|
29.370
|
23.020
|
2.3/3.3
|
0.9323
|
104.40
|
140.30
|
|
17887/17831
|
45.230
|
79.985
|
19.842
|
20.638
|
15.080
|
2.0/1.3
|
0.4010
|
62.20
|
79.30
|
|
33891/33821
|
52.388
|
95.250
|
27.783
|
28.575
|
22.225
|
3.5/2.3
|
0.8056
|
108.40
|
141.
|
other model bearing you may interested
30000 series : 30201, 30202, 30203, 30204, 30205, 30206, 30301, 30303, 30305, 30306, 30312, 30313 etc
31000 series :31307; 31312, 31313,31314, 31308, 31307,31308,31309, 31312,31313,31316
32000 series: 32022, 32210,32211,32212,32213,32215, 32218, 32219, 32220, 32309,32310,32311, 32312,32313,32314, 32317, 32314, 32317,32018,32217,32318, 32007,32010,32022,32028, 32032, 32210, 32211,32215, 32216, 32217, 32309 , 32310,32311,32312,32315,32317
33000 series; 33007,33006,33007,33008,33009,33010,33011,33012,33013,33014,33015,33016,33017,33018,
33019,33021,33022,33206,33207,33208,33209,33210,33211,33212,33214,33215,33216,33217,
33218,33219,33220,33221,33108,33109,33110,33111,33113,33114,33115,33116,33117,33118,
33119 and so on .
Jinan Maolei Bearing CO.,LTD is a professional bearing manufacturer and trade company. We have served more than 100 countries in the past 10 years, we can provide various kind of bearings with high quality,low price,short delivery time.
The product include deep groove ball bearing, self-aligning ball bearing, self-aligning roller bearing, cylindrical roller bearing, tapered roller bearing, insert bearing & pillow block bearing,needle bearing and etc.
We can offer customized service to meet customers’ requirements.
We welcome customers from all over the world to establish business relations and cooperate with us.
We committed to be your reliable bearing supplier.
