IKO Bearing LM8UU is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft.

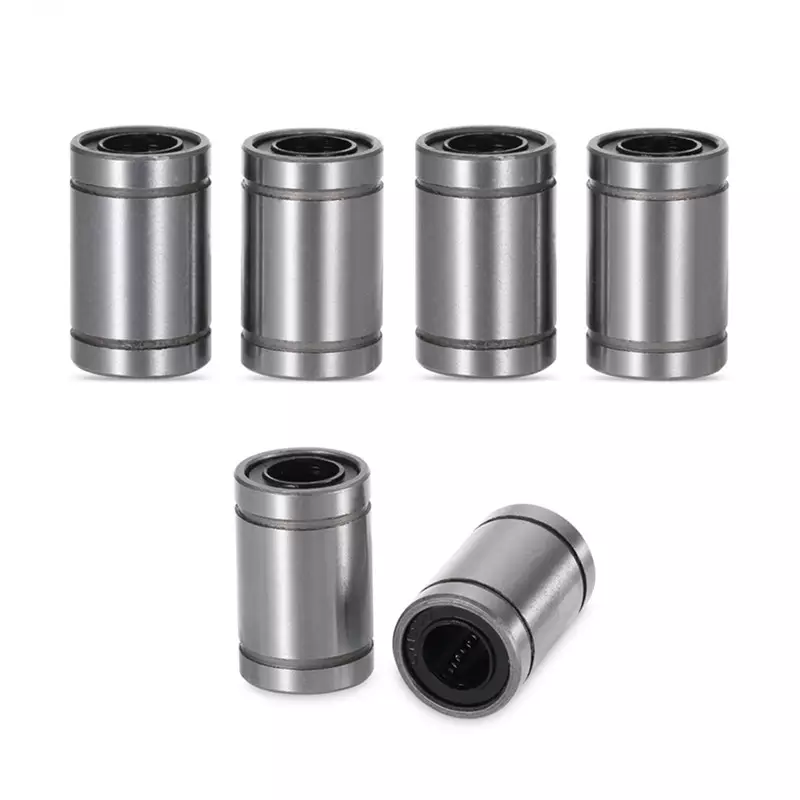

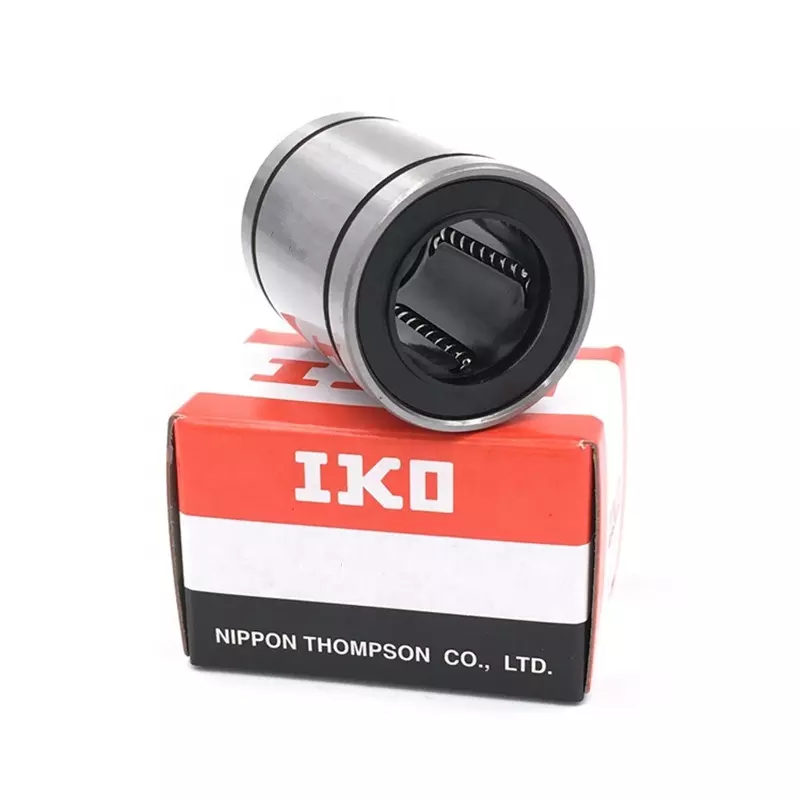

IKO Bearing LM8UU IKO Slide Motion Linear Shaft Bearing
Product Description
Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.
Features:
Linear bearing is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.
Types:
1.Standard type, clearance adjustale type, open type, extended type and general type linear bearings.
2.Flanged linear bearings can be divided into: round flange type, square flange type, oval flange type, oriented round flange type, oriented square flange type, oriented oval flange type and extended round flange type.
Models:
"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision miniature bearing
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for IKO bearing LM8UU ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for IKO bearing LM8UU? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q: When can I get the price for IKO bearing LM8UU?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
6,Q:How about your quality of IKO bearing LM8UU?
A: IKO bearing LM8UU is based on ISO and quality of bearing is the soul.
7, Q: What is the MOQ of IKO bearing LM8UU?
A: Usually ≥1,According your demand.
8,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
9, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Bella
Email: skf@llhbearing.com
Skype:skf@llhbearing.com
Whatsapp: +8615315596312
TEL/Wechat:+8615318805907
|
Product name |
IKO Bearing LM8UU |
|
Material |
Chrome Steel GCr15 |
|
Inner Diameter |
8mm |
| Outer Diameter |
15mm |
|
Dimension |
8mm*15mm*24mm |
|
Weight |
0.016kg/pc |
|
Bearing Feature |
1 Long life span 2 High rotating speed&Low noise |
|
Bearing Package |
Pallet,wooden case,commercial packaging or as customers’ requirement. |
|
Shipping |
by sea,by air,by Express |
|
Delivery time |
3-10 days depends on quantity needed |

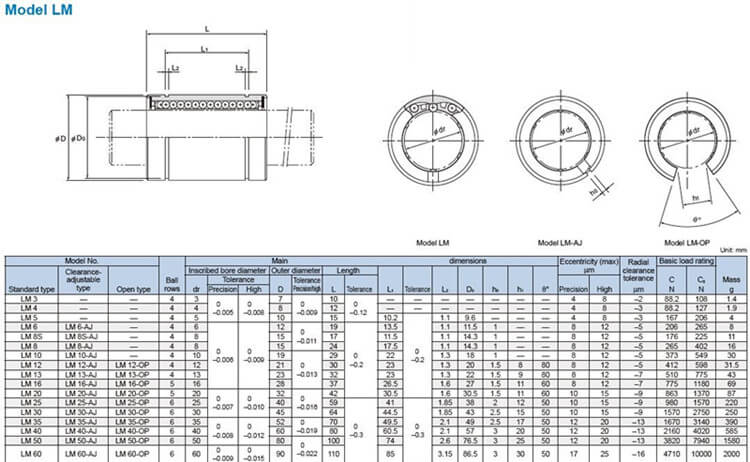

| MODEL NO. |
NUMBER OF BALL ROWS |
MAIN DIMENSIONS | BASIC LOAD RATING |
WEIGHT
g
|
||||||||||||
| INNER DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | W | c(kgf) | Co(kgf) | ||||||||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||||
| LM3 | 4 | 3 | 0
-0.008 |
7 | 0
-0.009 |
10 | 0
-0.12 |
|||||||||
| LM4 | 4 | 4 | 8 | 12 | 9 | 13 | 3 | |||||||||
| LM5 | 4 | 5 | 10 | 15 | 10.2 | 0
-0.20 |
9.6 | 1.1 | 17 | 21 | 4 | |||||
| LM6UU | 4 | 6 | 0
-0.009 |
12 | 0
-0.011 |
17 | 0
-0.20 |
13.5 | 11.5 | 1.1 | 21 | 27 | 6 | |||
| LM8S | 4 | 8 | 15 | 19 | 11.5 | 14.3 | 1.1 | 18 | 23 | 9 | ||||||
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 27 | 41 | 14 | ||||||
| LM10UU | 4 | 10 | 19 | 0
-0.013 |
29 | 22 | 18 | 1.3 | 38 | 56 | 28 | |||||
| LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 1.3 | 42 | 61 | 32 | ||||||
| LM13UU | 4 | 13 | 23 | 32 | 23 | 22 | 1.3 | 52 | 79 | 38 | ||||||
| LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 79 | 120 | 74 | ||||||
| LM20UU | 5 | 20 | 0
-0.010 |
32 | 0
-0.016 |
42 | 30.5 | 30.5 | 1.6 | 88 | 140 | 80 | ||||
| LM25UU | 6 | 25 | 40 | 59 | 0
-0.30 |
41 | 0
-0.30 |
38 | 1.85 | 100 | 160 | 206 | ||||
| LM30UU | 6 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 160 | 280 | 240 | ||||||
| LM35UU | 6 | 35 | 0
-0.012 |
52 | 0
-0.019 |
70 | 49.5 | 49 | 2.1 | 170 | 320 | 370 | ||||
| LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 220 | 410 | 589 | ||||||
| LM50UU | 6 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 390 | 810 | 1480 | ||||||
| LM60UU | 6 | 60 | 0
-0.015 |
90 | 0
-0.022 |
110 | 85 | 86.5 | 3.15 | 480 | 1020 | 1750 | ||||
