Insulated bearing 6319M ball bearing series is sprayed on the outer surface of the bearing with high quality plastic film, which has strong binding force with the base body and good insulation performance, which can avoid the electric corrosion of the bearing.
Insulated bearing 6319M ball bearing series
Insulated bearing 6319M ball bearing series can avoid the damage caused by electrical corrosion, so they are more reliable to operate in the motor than ordinary bearings.It is more cost effective and reliable than other insulation methods, such as shaft or shell insulation.
The process of Insulated bearing 6319M ball bearing series has been continuously improved, and in the insulating bearing, there is a coating of 100 p m thick on the surface of the outer or inner ring, which can withstand voltage up to 1000 V DC.The special spraying process can form a layer of uniform thickness and highly uniform adhesion, which can be further treated so that it can be free from the influence of moisture and humidity.
FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for Insulated bearing 6319M ball bearing series?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Insulated bearing 6319M ball bearing series? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for Insulated bearing 6319M ball bearing series?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of Insulated bearing 6319M ball bearing series?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Insulated bearing 6319M ball bearing series or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Brand | LLH or OEM |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
| Clearance | C0, C3 ,C5 |
| Package | carton package |
| Used | Machine |

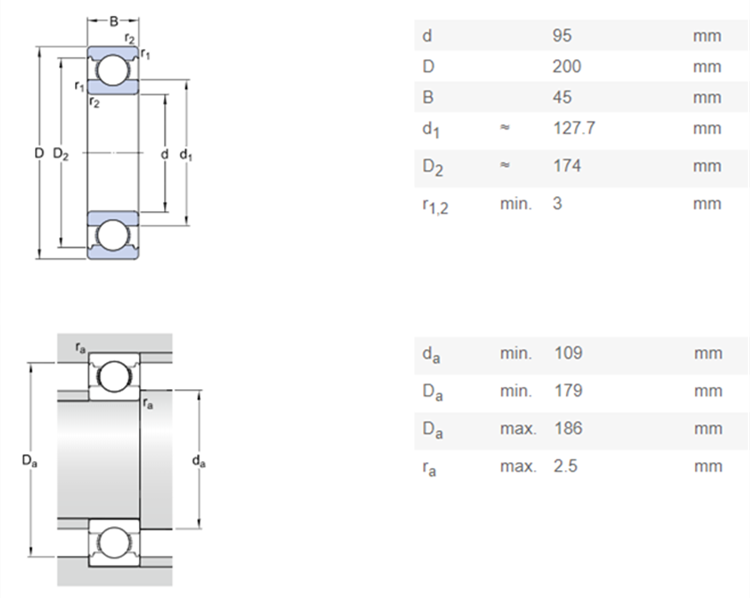

| Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | Mass | Designation | ||||
| dynamic | static | Reference speed | Limiting speed | ||||||
| d | D | B | C | C0 | Pu | ||||
| mm | kN | kN | r/min | kg | – | ||||
| 70 | 150 | 35 | 111 | 68 | 2,75 | 9500 | 6300 | 2,5 | 6314/C3VL0241 |
| 75 | 130 | 25 | 68,9 | 49 | 2,04 | 10000 | 6700 | 1,2 | 6215/C3VL0241 |
| 75 | 160 | 37 | 119 | 76,5 | 3 | 9000 | 5600 | 3,05 | 6315/C3VL0241 |
| 80 | 140 | 26 | 72,8 | 55 | 2,2 | 9500 | 6000 | 1,4 | 6216/C3VL0241 |
| 80 | 170 | 39 | 130 | 86,5 | 3,25 | 8500 | 5300 | 3,55 | 6316/C3VL0241 |
| 85 | 150 | 28 | 87,1 | 64 | 2,5 | 9000 | 5600 | 1,75 | 6217/C3VL0241 |
| 85 | 180 | 41 | 140 | 96,5 | 3,55 | 8000 | 5000 | 4,1 | 6317/C3VL0241 |
| 90 | 160 | 30 | 101 | 73,5 | 2,8 | 8500 | 5300 | 2,4 | 6218/C3VL0241 |
| 90 | 190 | 43 | 151 | 108 | 3,8 | 7500 | 4800 | 4,9 | 6318/C3VL0241 |
| 95 | 170 | 32 | 114 | 81,5 | 3 | 8000 | 5000 | 2,5 | 6219/C3VL0241 |
| 95 | 200 | 45 | 159 | 118 | 4,15 | 7000 | 4500 | 5,65 | 6319/C3VL0241 |
| 100 | 180 | 34 | 127 | 93 | 3,35 | 7500 | 4800 | 3,15 | 6220/C3VL0241 |
| 100 | 215 | 47 | 174 | 140 | 4,75 | 6700 | 4300 | 7 | 6320/C3VL0241 |
| 110 | 200 | 38 | 151 | 118 | 4 | 6700 | 4300 | 4,25 | 6222/C3VL0241 |
| 110 | 240 | 50 | 203 | 180 | 5,7 | 6000 | 3800 | 9,65 | 6322/C3VL0241 |
| 120 | 215 | 40 | 146 | 118 | 3,9 | 6300 | 4000 | 5,2 | 6224/C3VL0241 |
| 120 | 260 | 55 | 208 | 186 | 5,7 | 5600 | 3400 | 12,5 | 6324/C3VL2071 |
| 130 | 230 | 40 | 156 | 132 | 4,15 | 5600 | 3600 | 5,75 | 6226/C3VL2071 |
| 130 | 280 | 58 | 229 | 216 | 6,3 | 5000 | 3200 | 15,2 | 6326/C3VL2071 |
| 140 | 300 | 62 | 251 | 245 | 7,1 | 4800 | 3000 | 18,5 | 6328/C3VL2071 |
| 150 | 270 | 45 | 174 | 166 | 4,9 | 5000 | 3200 | 9,8 | 6230/C3VL2071 |
