Insulated bearings china brand bearing 6220 M/C3VL0241 can avoid the damage caused by electrical corrosion, so they are more reliable to operate in the motor than ordinary bearings.It is more cost effective and reliable than other insulation methods, such as shaft or shell insulation.
Insulated bearings china brand bearing 6220 M/C3VL0241

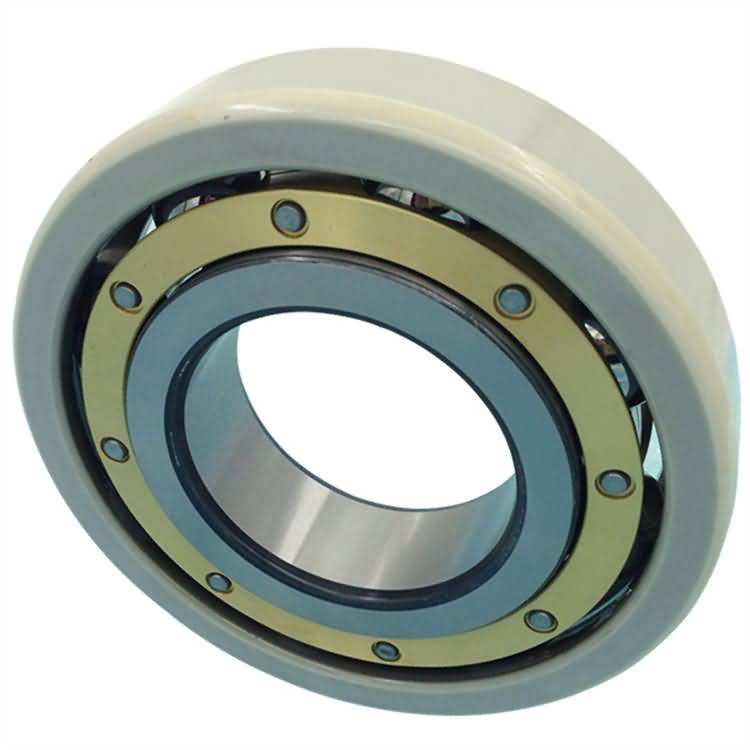

Insulated bearings china brand bearing 6220 M/C3VL0241 adopts special spraying technology, and it is sprayed on the outer surface of the bearing with high quality plastic film, which has strong binding force with the base body and good insulation performance, which can avoid the electric corrosion of the bearing caused by induction current, prevent the damage of current to the grease,rolling body and raceway,and improve the service life of the bearing.
Characteristics for Insulated bearings china brand bearing 6220 M/C3VL0241:
The process of Insulated bearings china brand bearing 6220 M/C3VL0241 has been continuously improved, and in the insulating bearing, there is a coating of 100 p m thick on the surface of the outer or inner ring, which can withstand voltage up to 1000 V DC.The special spraying process can form a layer of uniform thickness and highly uniform adhesion, which can be further treated so that it can be free from the influence of moisture and humidity.
FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for Insulated bearings china brand bearing 6220 M/C3VL0241?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Insulated bearings china brand bearing 6220 M/C3VL0241? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for Insulated bearings china brand bearing 6220 M/C3VL0241?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of Insulated bearings china brand bearing 6220 M/C3VL0241?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Insulated bearings china brand bearing 6220 M/C3VL0241 or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Product Name | Insulated bearings china brand bearing 6220 M/C3VL0241 |
| Material | hybrid ceramic, Si3N4 or ZrO2 ball , chrome steel or stainless steel ring |
| Brand | LLH or OEM |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
| Clearance | C0, C3 ,C5 |
| Package | carton package |
| Used | Machine |
| Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | Mass | Designation | ||||
| dynamic | static | Reference speed | Limiting speed | ||||||
| d | D | B | C | C0 | Pu | ||||
| mm | kN | kN | r/min | kg | – | ||||
| 70 | 150 | 35 | 111 | 68 | 2,75 | 9500 | 6300 | 2,5 | 6314/C3VL0241 |
| 75 | 130 | 25 | 68,9 | 49 | 2,04 | 10000 | 6700 | 1,2 | 6215/C3VL0241 |
| 75 | 160 | 37 | 119 | 76,5 | 3 | 9000 | 5600 | 3,05 | 6315/C3VL0241 |
| 80 | 140 | 26 | 72,8 | 55 | 2,2 | 9500 | 6000 | 1,4 | 6216/C3VL0241 |
| 80 | 170 | 39 | 130 | 86,5 | 3,25 | 8500 | 5300 | 3,55 | 6316/C3VL0241 |
| 85 | 150 | 28 | 87,1 | 64 | 2,5 | 9000 | 5600 | 1,75 | 6217/C3VL0241 |
| 85 | 180 | 41 | 140 | 96,5 | 3,55 | 8000 | 5000 | 4,1 | 6317/C3VL0241 |
| 90 | 160 | 30 | 101 | 73,5 | 2,8 | 8500 | 5300 | 2,4 | 6218/C3VL0241 |
| 90 | 190 | 43 | 151 | 108 | 3,8 | 7500 | 4800 | 4,9 | 6318/C3VL0241 |
| 95 | 170 | 32 | 114 | 81,5 | 3 | 8000 | 5000 | 2,5 | 6219/C3VL0241 |
| 95 | 200 | 45 | 159 | 118 | 4,15 | 7000 | 4500 | 5,65 | 6319/C3VL0241 |
| 100 | 180 | 34 | 127 | 93 | 3,35 | 7500 | 4800 | 3,15 | 6220/C3VL0241 |
| 100 | 215 | 47 | 174 | 140 | 4,75 | 6700 | 4300 | 7 | 6320/C3VL0241 |
| 110 | 200 | 38 | 151 | 118 | 4 | 6700 | 4300 | 4,25 | 6222/C3VL0241 |
| 110 | 240 | 50 | 203 | 180 | 5,7 | 6000 | 3800 | 9,65 | 6322/C3VL0241 |
| 120 | 215 | 40 | 146 | 118 | 3,9 | 6300 | 4000 | 5,2 | 6224/C3VL0241 |
| 120 | 260 | 55 | 208 | 186 | 5,7 | 5600 | 3400 | 12,5 | 6324/C3VL2071 |
| 130 | 230 | 40 | 156 | 132 | 4,15 | 5600 | 3600 | 5,75 | 6226/C3VL2071 |
| 130 | 280 | 58 | 229 | 216 | 6,3 | 5000 | 3200 | 15,2 | 6326/C3VL2071 |
| 140 | 300 | 62 | 251 | 245 | 7,1 | 4800 | 3000 | 18,5 | 6328/C3VL2071 |
| 150 | 270 | 45 | 174 | 166 | 4,9 | 5000 | 3200 | 9,8 | 6230/C3VL2071 |
| 150 | 320 | 65 | 276 | 285 | 7,8 | 4300 | 2800 | 23 | 6330/C3VL2071 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
