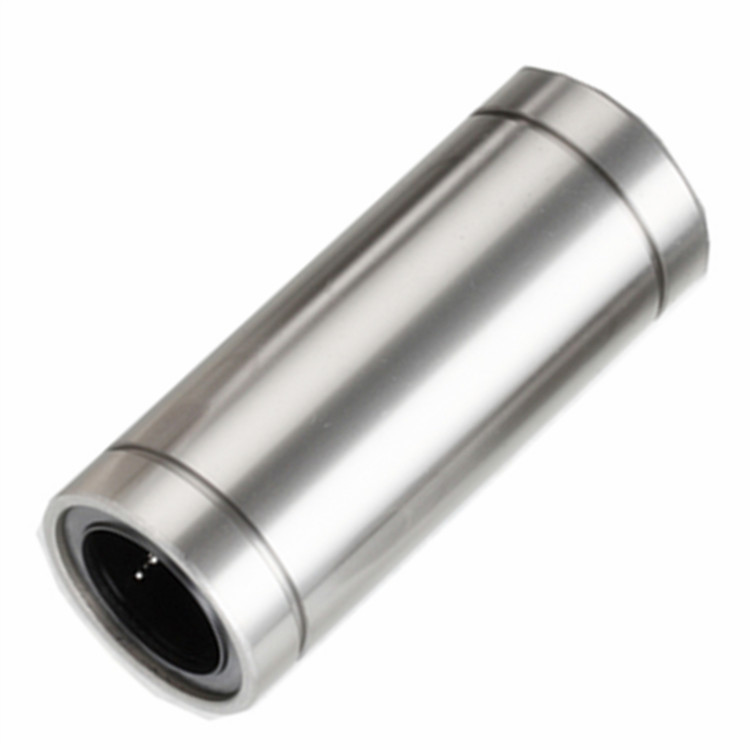

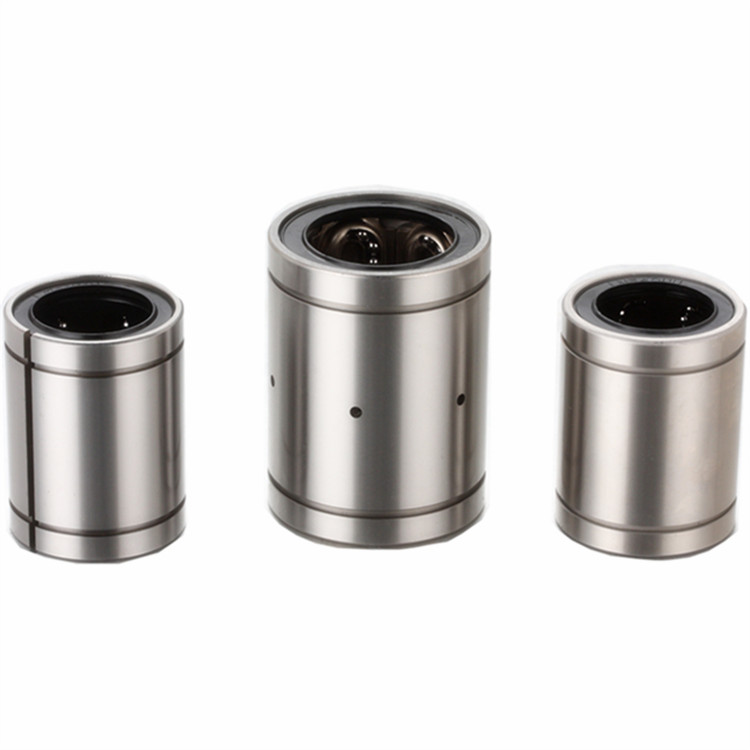

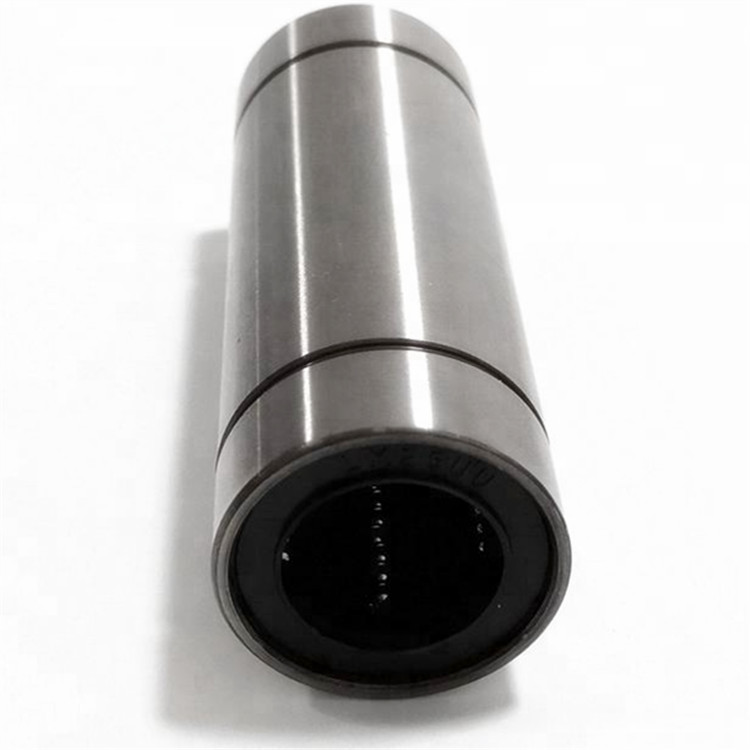

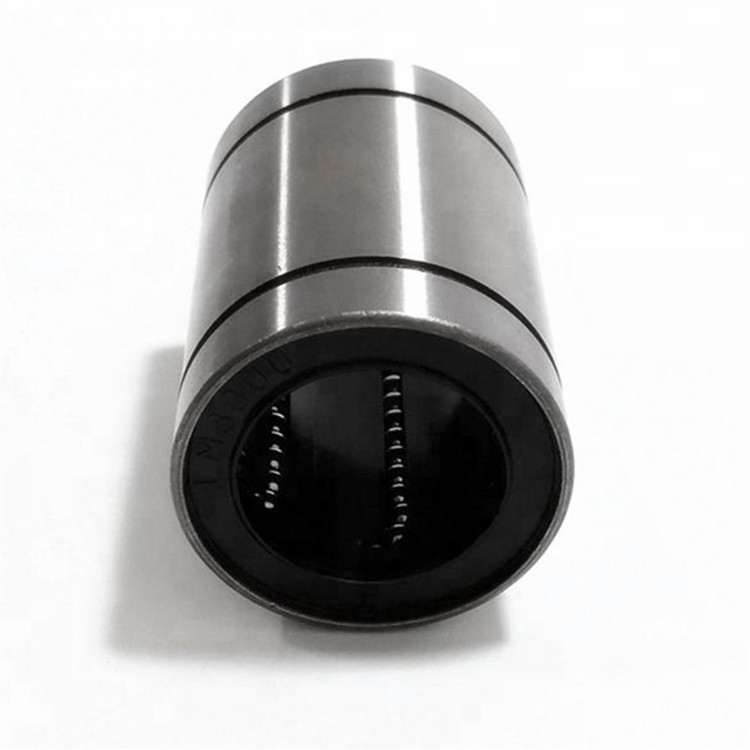

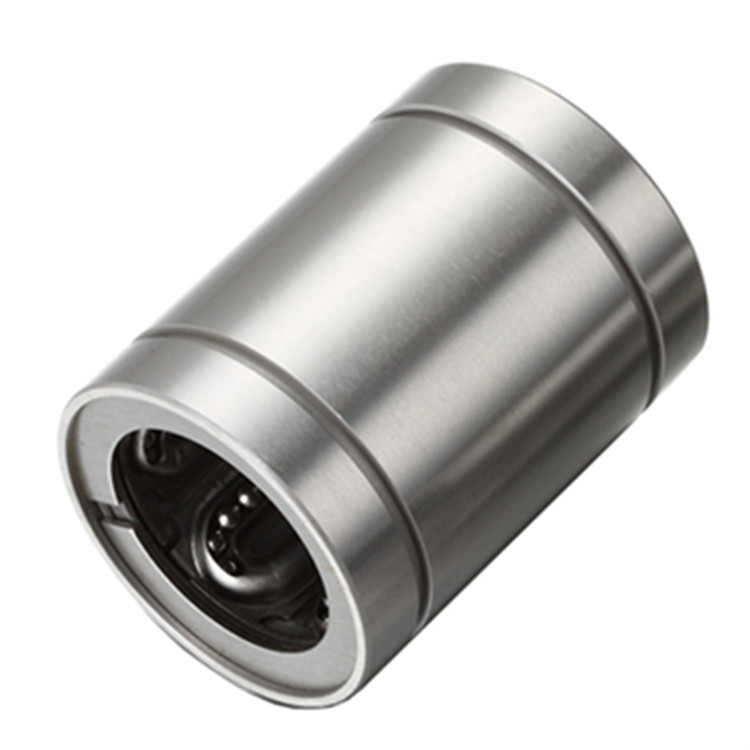

Linear rail 8mm homemade linear bearing LM8UU are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device,such as precision equipment, as well as multi-axis machine tools, press, tool grinder,automatic gas cutting machine,printer.
Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm
Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.
Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm Features
1. enable high precision linear motion on round shafts
2. sustain heavy loads with low noise and high stiffness
3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Linear rail 8mm homemade linear bearing LM8UUlinear rail 8mm or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Bearing Brand | LLH |
| Bearing Material | Chrome Steel |
| Bearing Origin | China |
| Bearing Precision Grade | P0 P6 P5 P4 P2 |
| Samples | Acceptable |
| Features | 1.Best competitive price
2. Low nosie, high precision 3.Long life and stable service |
| MODEL NO. |
NUMBER OF BALL ROWS |
MAIN DIMENSIONS | BASIC LOAD RATING |
WEIGHT
g
|
||||||||||||
| INNER DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | W | c(kgf) | Co(kgf) | ||||||||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||||
| LM3 | 4 | 3 | 0-0.008 | 7 | 0-0.009 | 10 | 0-0.12 | |||||||||
| LM4 | 4 | 4 | 8 | 12 | 9 | 13 | 3 | |||||||||
| LM5 | 4 | 5 | 10 | 15 | 10.2 | 0-0.20 | 9.6 | 1.1 | 17 | 21 | 4 | |||||
| LM6UU | 4 | 6 | 0-0.009 | 12 | 0-0.011 | 17 | 0-0.20 | 13.5 | 11.5 | 1.1 | 21 | 27 | 6 | |||
| LM8S | 4 | 8 | 15 | 19 | 11.5 | 14.3 | 1.1 | 18 | 23 | 9 | ||||||
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 27 | 41 | 14 | ||||||
| LM10UU | 4 | 10 | 19 | 0-0.013 | 29 | 22 | 18 | 1.3 | 38 | 56 | 28 | |||||
| LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 1.3 | 42 | 61 | 32 | ||||||
| LM13UU | 4 | 13 | 23 | 32 | 23 | 22 | 1.3 | 52 | 79 | 38 | ||||||
| LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 79 | 120 | 74 | ||||||
| LM20UU | 5 | 20 | 0-0.010 | 32 | 0-0.016 | 42 | 30.5 | 30.5 | 1.6 | 88 | 140 | 80 | ||||
| LM25UU | 6 | 25 | 40 | 59 | 0-0.30 | 41 | 0-0.30 | 38 | 1.85 | 100 | 160 | 206 | ||||
| LM30UU | 6 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 160 | 280 | 240 | ||||||
| LM35UU | 6 | 35 | 0-0.012 | 52 | 0-0.019 | 70 | 49.5 | 49 | 2.1 | 170 | 320 | 370 | ||||
| LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 220 | 410 | 589 | ||||||
| LM50UU | 6 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 390 | 810 | 1480 | ||||||
| LM60UU | 6 | 60 | 0-0.015 | 90 | 0-0.022 | 110 | 85 | 86.5 | 3.15 | 480 | 1020 | 175 | ||||
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
