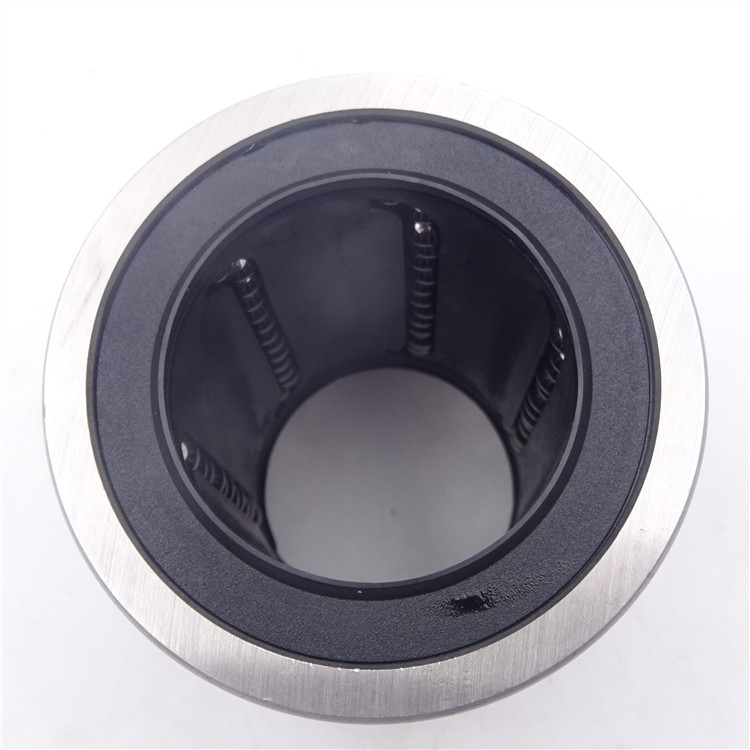

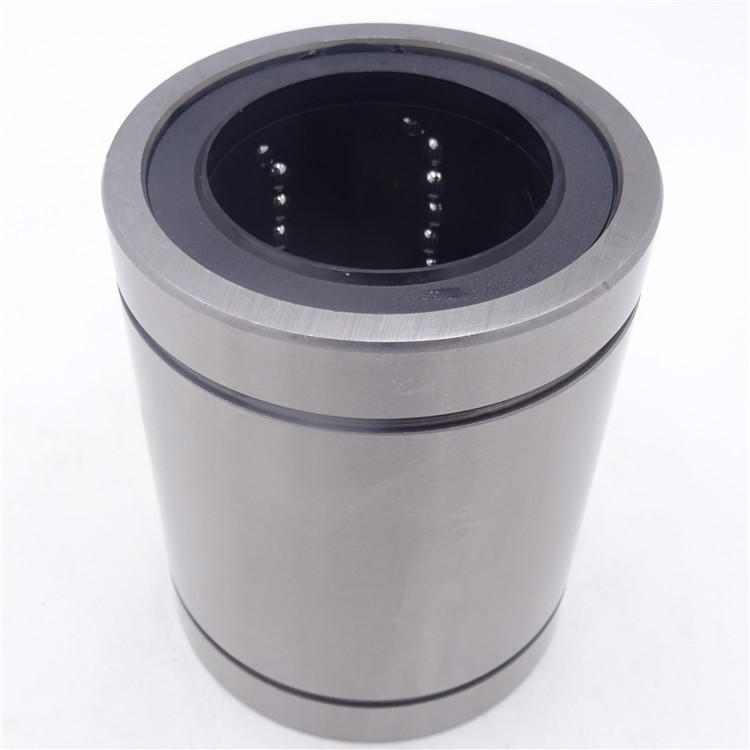

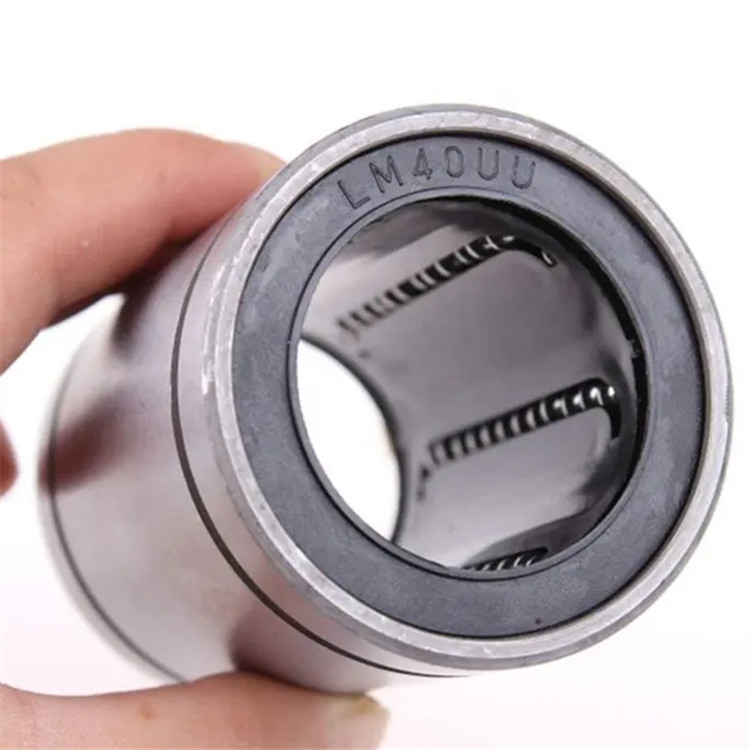

LM 40 uu linear motion bearing miniature linear bearings used in end supported applications, where spanning or bridging a gap is required.They have the greatest range of industrial application.However, care must be taken to select a shaft diameter to minimizes deflection. Precisely ground bearing track and plastic retainers provide smooth and quiet performance. Seals at both ends keep out contaminants and retain lubrication giving maximum travel life.
 |
LM 40 uu linear motion bearing miniature linear bearings can be divided into rolling-element bearings and plane bearings.The former has the characteristics of smooth motion, low friction,high rigidity and long life.It is quite easy to maintain and replace these products. |
 |
 |
 |
 |
 |
 |
 |
 |
Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for LM 40 uu linear motion bearing miniature linear bearings?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for LM 40 uu linear motion bearing miniature linear bearings? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for LM 40 uu linear motion bearing miniature linear bearings?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for LM 40 uu linear motion bearing miniature linear bearings?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of linear bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with LM 40 uu linear motion bearing miniature linear bearings?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need LM 40 uu linear motion bearing miniature linear bearings or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Bearing Brand | LLH |
| Bearing Material | Chrome Steel |
| Bearing Origin | China |
| Bearing Precision Grade | P0 P6 P5 P4 P2 |
| Samples | Acceptable |
| Features | 1.Best competitive price
2. Low nosie, high precision 3.Long life and stable service |
| MODEL NO. |
NUMBER OF BALL ROWS |
MAIN DIMENSIONS | BASIC LOAD RATING |
WEIGHT
g
|
||||||||||||
| INNER DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | W | c(kgf) | Co(kgf) | ||||||||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||||
| LM3 | 4 | 3 | 0-0.008 | 7 | 0-0.009 | 10 | 0-0.12 | |||||||||
| LM4 | 4 | 4 | 8 | 12 | 9 | 13 | 3 | |||||||||
| LM5 | 4 | 5 | 10 | 15 | 10.2 | 0-0.20 | 9.6 | 1.1 | 17 | 21 | 4 | |||||
| LM6UU | 4 | 6 | 0-0.009 | 12 | 0-0.011 | 17 | 0-0.20 | 13.5 | 11.5 | 1.1 | 21 | 27 | 6 | |||
| LM8S | 4 | 8 | 15 | 19 | 11.5 | 14.3 | 1.1 | 18 | 23 | 9 | ||||||
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 27 | 41 | 14 | ||||||
| LM10UU | 4 | 10 | 19 | 0-0.013 | 29 | 22 | 18 | 1.3 | 38 | 56 | 28 | |||||
| LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 1.3 | 42 | 61 | 32 | ||||||
| LM13UU | 4 | 13 | 23 | 32 | 23 | 22 | 1.3 | 52 | 79 | 38 | ||||||
| LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 79 | 120 | 74 | ||||||
| LM20UU | 5 | 20 | 0-0.010 | 32 | 0-0.016 | 42 | 30.5 | 30.5 | 1.6 | 88 | 140 | 80 | ||||
| LM25UU | 6 | 25 | 40 | 59 | 0-0.30 | 41 | 0-0.30 | 38 | 1.85 | 100 | 160 | 206 | ||||
| LM30UU | 6 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 160 | 280 | 240 | ||||||
| LM35UU | 6 | 35 | 0-0.012 | 52 | 0-0.019 | 70 | 49.5 | 49 | 2.1 | 170 | 320 | 370 | ||||
| LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 220 | 410 | 589 | ||||||
| LM50UU | 6 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 390 | 810 | 1480 | ||||||
| LM60UU | 6 | 60 | 0-0.015 | 90 | 0-0.022 | 110 | 85 | 86.5 | 3.15 | 480 | 1020 | 175 | ||||
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
