Joint bearings have the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning, and good lubrication.

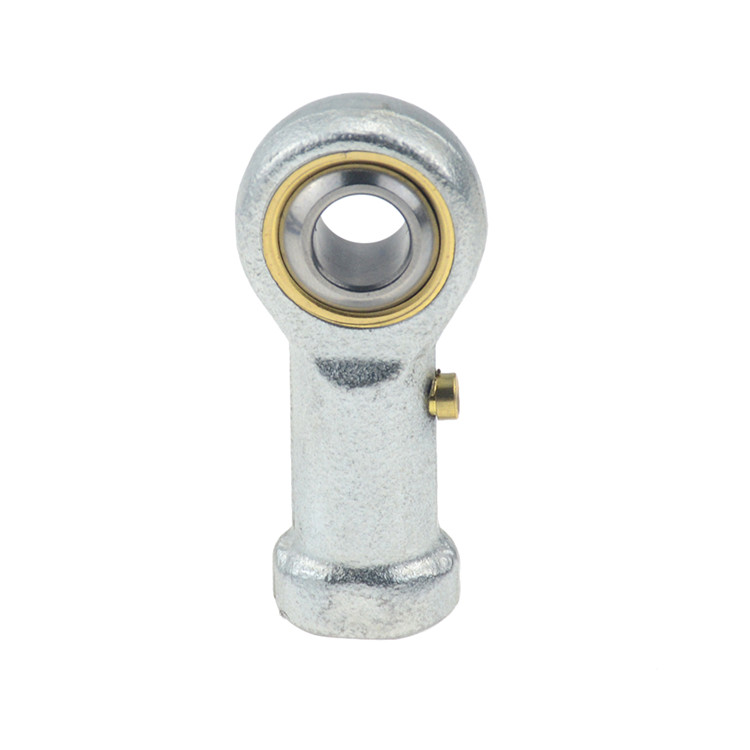

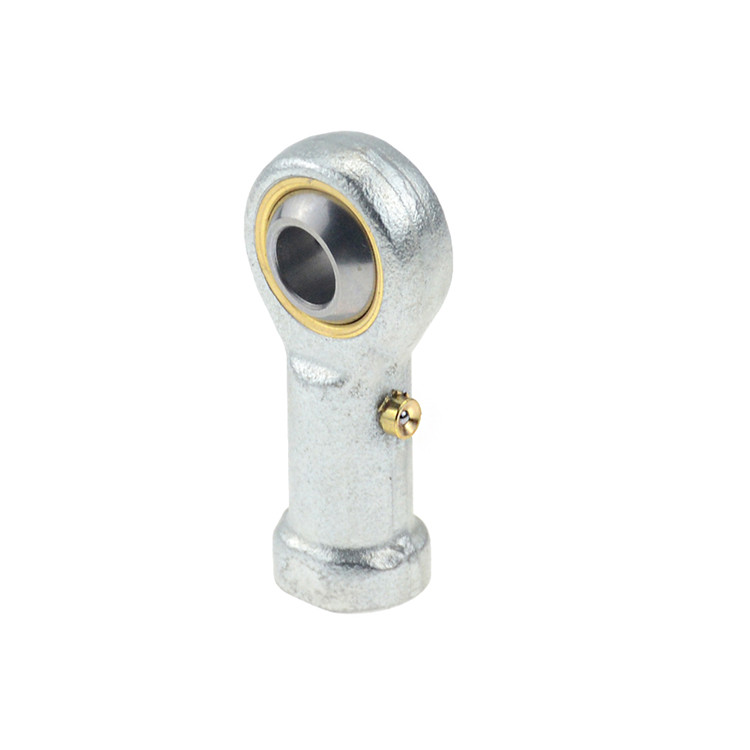

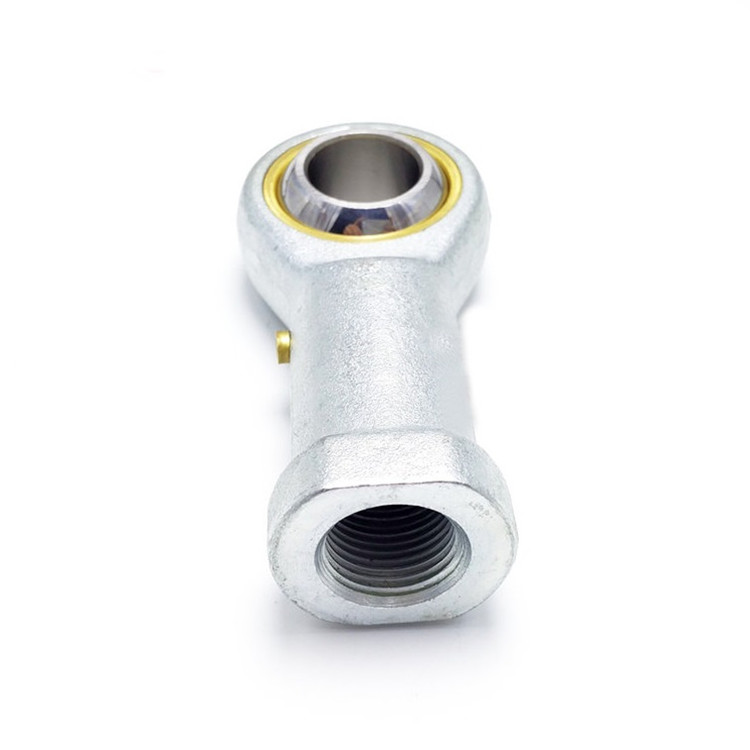

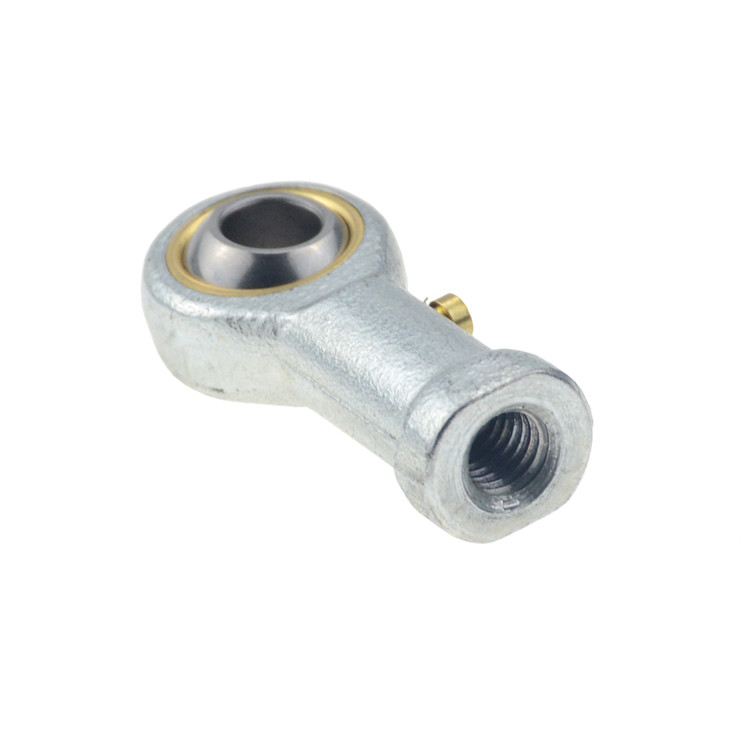

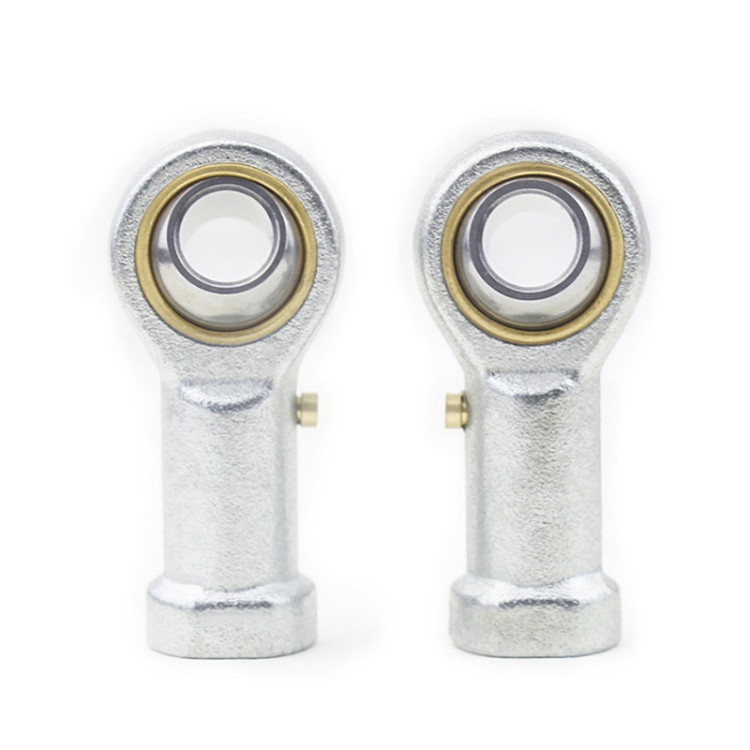

m10 rod end PHS10 precision rod end bearing
Joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.
It is widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.
it is generally used in low speed of swing motion, the angular motion, can bear larger load, can bear radial load, axial load or the joint of the radial, axial load.
1. Bearings with a stretching rod, stretching with right or left-hand male thread.
2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.
3. Rod ends permissible operating temperature, are available on - 30 °C to + 80 °C temperature range of use, and keep the right to bear ability.
 |
 |
 |
 |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for m10 rod end PHS10 precision rod end bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for m10 rod end PHS10 precision rod end bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for m10 rod end PHS10 precision rod end bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of m10 rod end PHS10 precision rod end bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your m10 rod end PHS10 precision rod end bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with m10 rod end PHS10 precision rod end bearing?
A: If have any problem,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me!Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
| New Designations : | PHS10 | |
| Main demensions : | 10x26x17 | Bore Dia × Outside Dia × Width Dia (mm) |
| ID : | 10 mm | Inside diameter/Bore size |
| OD : | 26 mm | Outside diameter |
| W : | 17 m | Thickness/high/width |
| M : | 0.077kg | Weight, Mass |
| CODE | Dimension(mm) | Load ratings KN |
Weight | ||||||||||||||
| d | d3 6H | B | C1 | W | L3 min | d2 | L4 | h1 | L5 | d4 | d5 | d1 | α≈ | dyn. Cd | stat. Cs | KG | |
| PHS4 | 4 | M4x0.7 | 7 | 5.25 | 8 | 8 | 14 | 31 | 24 | 4 | 8 | 9.5 | 6.5 | 13 | 3 | 5 | 0.009 |
| PHS5 | 5 | M5×0.8 | 8 | 6 | 9 | 10 | 16 | 35 | 27 | 4 | 8.5 | 11 | 7.7 | 13 | 3.25 | 5.7 | 0.016 |
| PHS6 | 6 | M6×1.0 | 9 | 6.75 | 11 | 12 | 18 | 39 | 30 | 5 | 10 | 13 | 8.96 | 13 | 4.3 | 7.2 | 0.022 |
| PHS8 | 8 | M8×1.25 | 12 | 9 | 14 | 16 | 22 | 47 | 36 | 5 | 12.5 | 16 | 10.4 | 14 | 7.2 | 11.6 | 0.047 |
| PHS10 | 10 | M10×1.5 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15 | 19 | 12.9 | 13 | 10 | 14.5 | 0.077 |
| PHS12 | 12 | M12×1.75 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 15.4 | 13 | 13.4 | 17 | 0.1 |
| PHS14 | 14 | M14×2.0 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20 | 25 | 16.9 | 16 | 17 | 24 | 0.16 |
| PHS16 | 16 | M16×2.0 | 21 | 15 | 22 | 28 | 40 | 84 | 64 | 8 | 22 | 27 | 19.4 | 15 | 21.6 | 28.5 | 0.22 |
| PHS18 | 18 | M18×1.5 | 23 | 16.5 | 27 | 32 | 44 | 93 | 71 | 10 | 25 | 31 | 21.9 | 15 | 26 | 42.5 | 0.32 |
| PHS20 | 20 | M20×1.5 | 25 | 18 | 30 | 33 | 50 | 102 | 77 | 10 | 27.5 | 34 | 24.4 | 14 | 31.5 | 42.5 | 0.42 |
| PHS22 | 22 | M22×1.5 | 28 | 20 | 32 | 37 | 54 | 111 | 84 | 12 | 30 | 38 | 25.8 | 15 | 47.5 | 68 | 0.54 |
| PHS25 | 25 | M24×2.0 | 31 | 22 | 36 | 42 | 60 | 124 | 94 | 12 | 33.5 | 42 | 29.6 | 15 | 47.5 | 68 | 0.73 |
| PHS28 | 28 | M27×2.0 | 35 | 24 | 41 | 48 | 66 | 136 | 103 | 14 | 37 | 46 | 32.3 | 15 | 58 | 75.5 | 0.98 |
| PHS30 | 30 | M30×2.0 | 37 | 25 | 41 | 51 | 70 | 145 | 110 | 15 | 40 | 50 | 34.8 | 17 | 64 | 88 | 1.1 |
