M86649 M86610 bearing SET309 M86649/M86610 Inch Size Tapered Roller Bearing

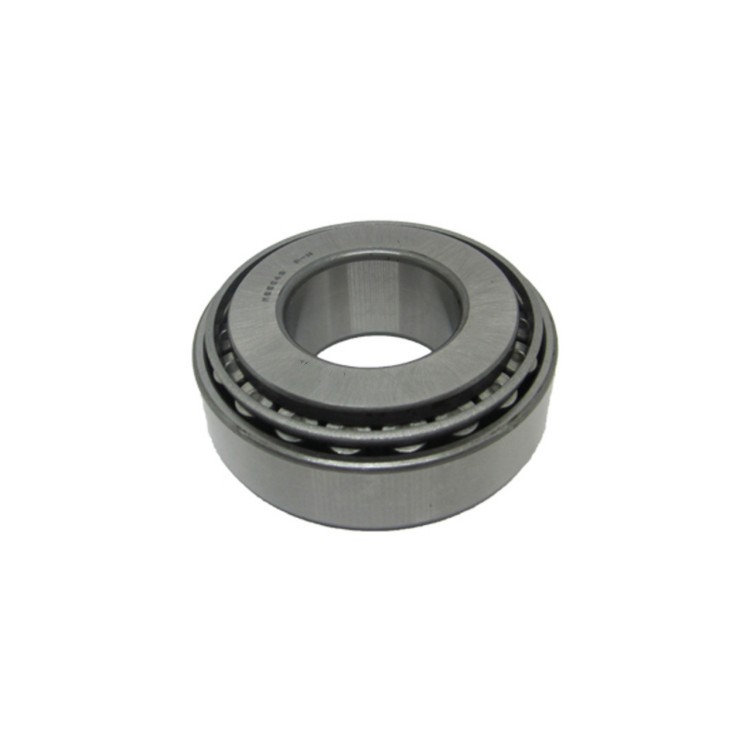

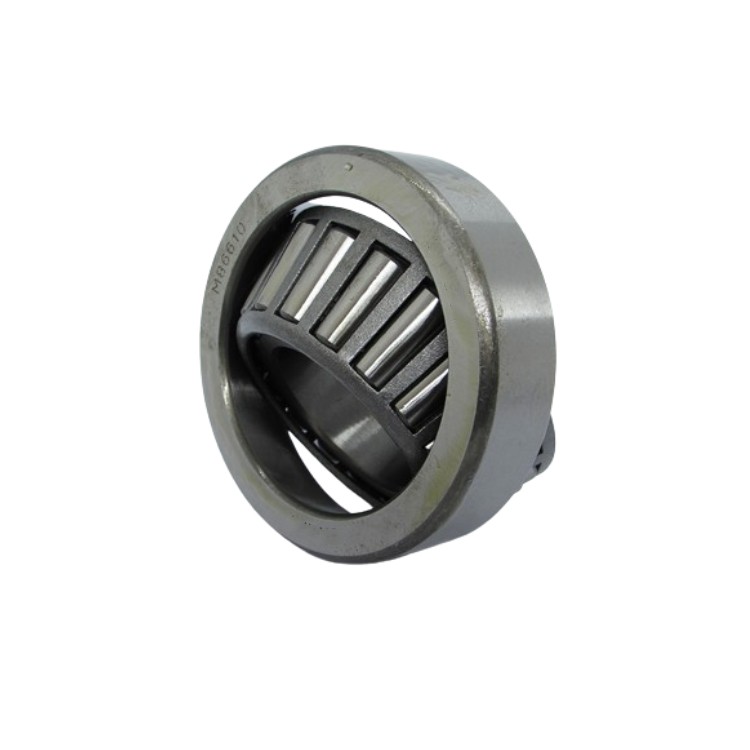

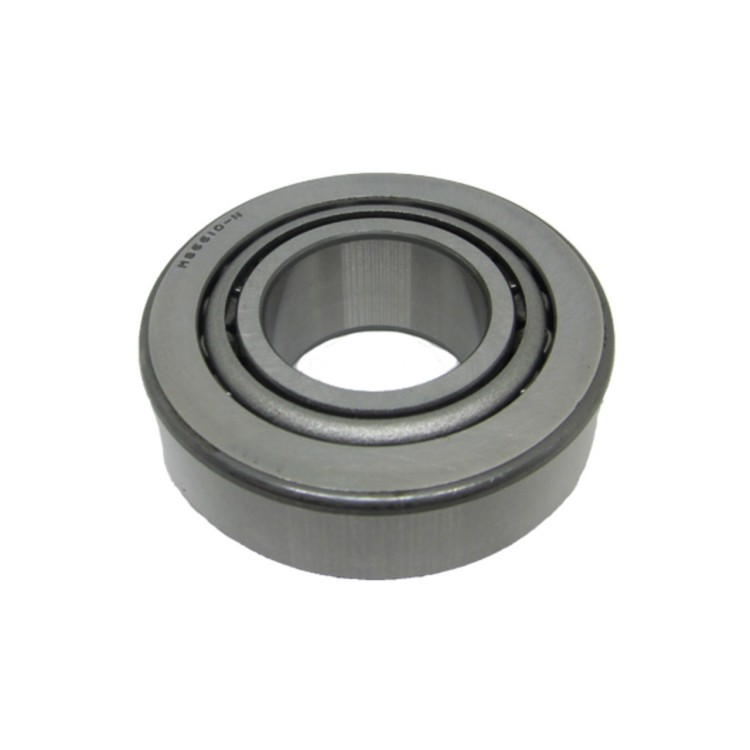

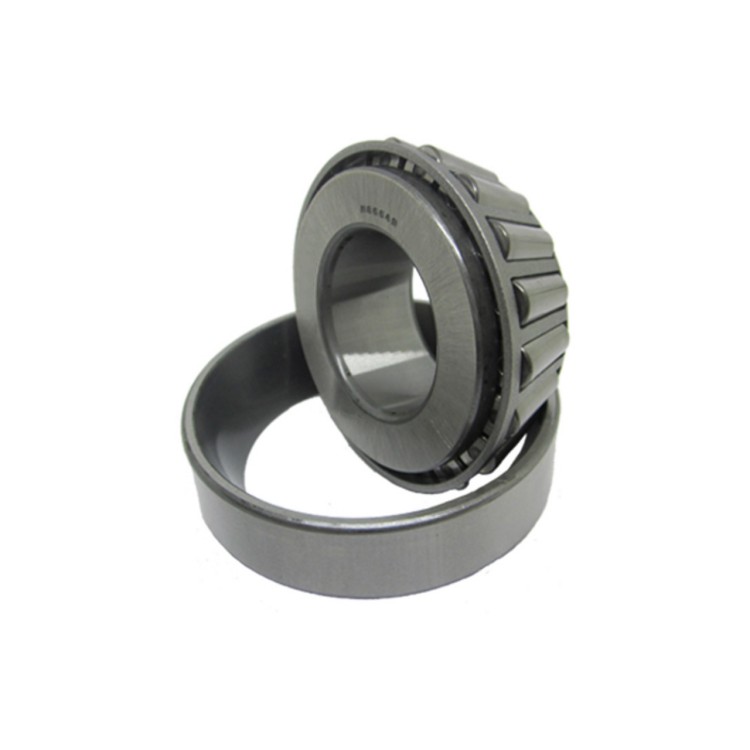

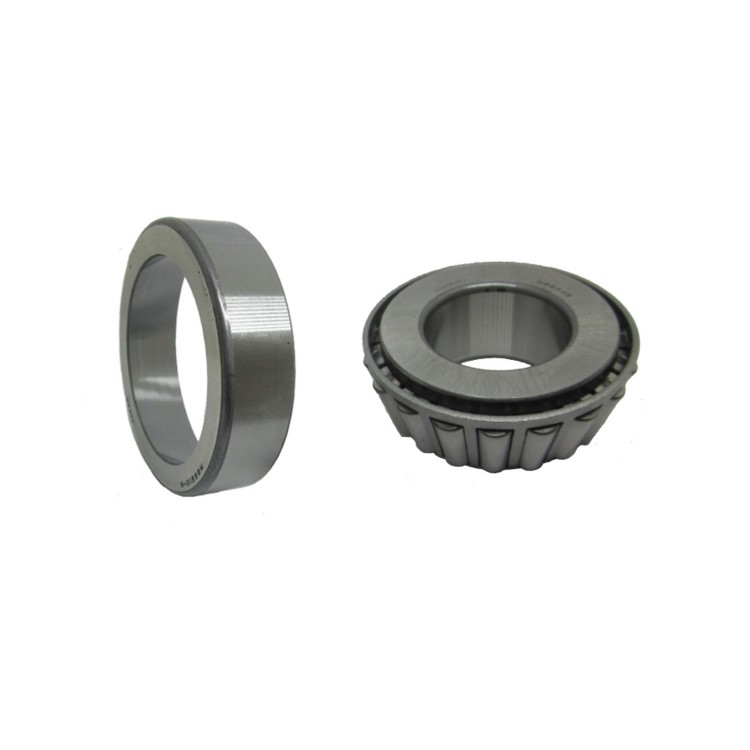

M86649 M86610 bearing consist of a two piece cup and cone assembly. The outer ring makes up the cup and the inner ring, rollers, and cage assembly make the cone. These parts of the bearing are detachable, the cone assembly is narrower in one end and the races are built with one side narrower as well to match the rollers. This design makes this bearing capable of supporting heavy loads in both axial and radial directions. Our M86649 M86610 bearing is ideal for environments where high speed and heavy loads occur, and low friction is needed.
M86649 M86610 bearing is designed for many applications such as Gearboxes, Hoisting Equipment, Rolling Mills, Mining Industry Machines, Steer axle, Drive axles, Pusher axles, Tag axles, Engines, and Propellers.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for m86649 m86610 bearing?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for m86649 m86610 bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for m86649 m86610 bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of m86649 m86610 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check sbr20luu before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me! Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
| d – Bore | 1 3/16 in
30.163 mm |
| D – Cup Outer Diameter | 2.5312 in
64.292 mm |
| B – Cone Width | 0.8438 in
21.433 mm |
| C – Cup Width | 0.6563 in
16.670 mm |
| T – Bearing Width | 0.8438 in
21.433 mm |
|
item
|
size(mm)
|
weight(kg)
|
||
|
d
|
D
|
B
|
||
|
09067/09195
|
19.05
|
49.225
|
18.034
|
0.1804
|
|
09081/09195
|
20.625
|
49.225
|
19.845
|
0.1555
|
|
LM11749/LM11710
|
17.462
|
39.878
|
13.843
|
0.083
|
|
LM11949/LM11910
|
19.05
|
45.237
|
15.494
|
0.125
|
|
M12649/M12610
|
21.43
|
50.005
|
17.526
|
0.174
|
|
LM12749/LM1270
|
21.43
|
45.237
|
15.494
|
0.118
|
|
LM12749/LM1270
|
22
|
45.237
|
15.494
|
0.116
|
|
LM12749/LM1271
|
22
|
45.975
|
15.494
|
0.121
|
|
14125A/14276
|
31.75
|
69.012
|
19.845
|
0.354
|
|
14137A/14276
|
34.925
|
69.012
|
19.845
|
0.331
|
|
14138A/14276
|
34.925
|
69.012
|
19.845
|
0.329
|
|
25877/25821
|
34.925
|
73.025
|
23.812
|
0.473
|
|
25880/25821
|
36.487
|
73.025
|
23.812
|
0.458
|
|
2785/2720
|
33.338
|
73.025
|
23.812
|
0.544
|
|
2788/2720
|
38.1
|
76.2
|
23.813
|
0.499
|
|
2788/2729
|
38.1
|
76.2
|
23.813
|
0.503
|
|
2790/2720
|
33.338
|
76.2
|
23.812
|
0.549
|
|
2790/2729
|
33.338
|
76.2
|
23.812
|
0.555
|
|
28580/28521
|
50.8
|
92.075
|
24.608
|
0.707
|
|
28584/28521
|
52.388
|
92.075
|
24.608
|
0.682
|
|
28985/28920
|
60.325
|
101.6
|
25.4
|
0.81
|
|
29590/28522
|
66.675
|
107.95
|
25.4
|
0.874
|
|
29685/29620
|
73.025
|
112.712
|
25.4
|
0.893
|
|
LM29749/LM29710
|
38.1
|
65.088
|
18.034
|
0.239
|
|
HM518445/HM518410
|
88.9
|
152.4
|
39.688
|
2.886
|
|
575/572
|
76
|
139.992
|
36.512
|
2.398
|
|
593/592A
|
88.9
|
152.4
|
39.688
|
2.79
|
|
593/593A
|
95.25
|
152.4
|
39.688
|
2.53
|
|
598A/592A
|
92.075
|
152.4
|
39.688
|
2.65
|
|
580/572
|
82.55
|
139.992
|
36.512
|
2.178
|
|
LM603049/LM603011
|
45.242
|
77.788
|
19.842
|
0.368
|
|
LM603049/LM603012
|
46.242
|
77.788
|
21.43
|
0.386
|
|
L610549/L610510
|
63.5
|
94.458
|
19.05
|
0.46
|
|
LM67048/LM67010
|
31.75
|
59.131
|
15.875
|
0.189
|
|
14138A/14276
|
34.925
|
69.012
|
19.845
|
0.329
|
