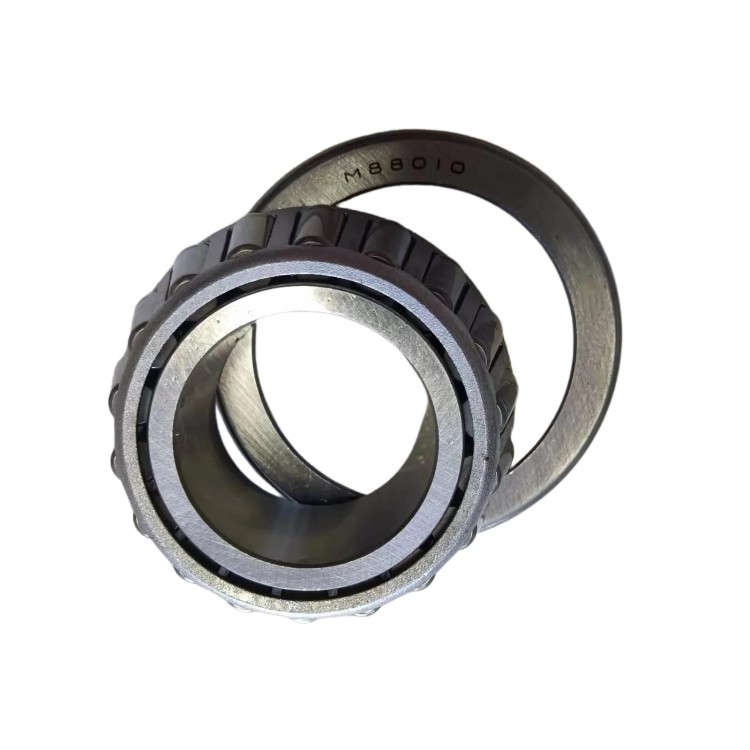

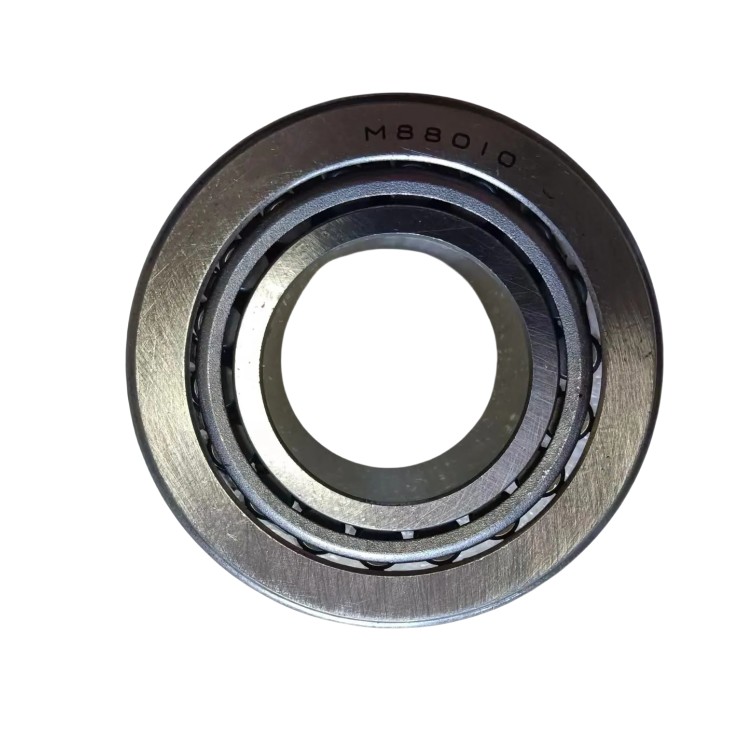

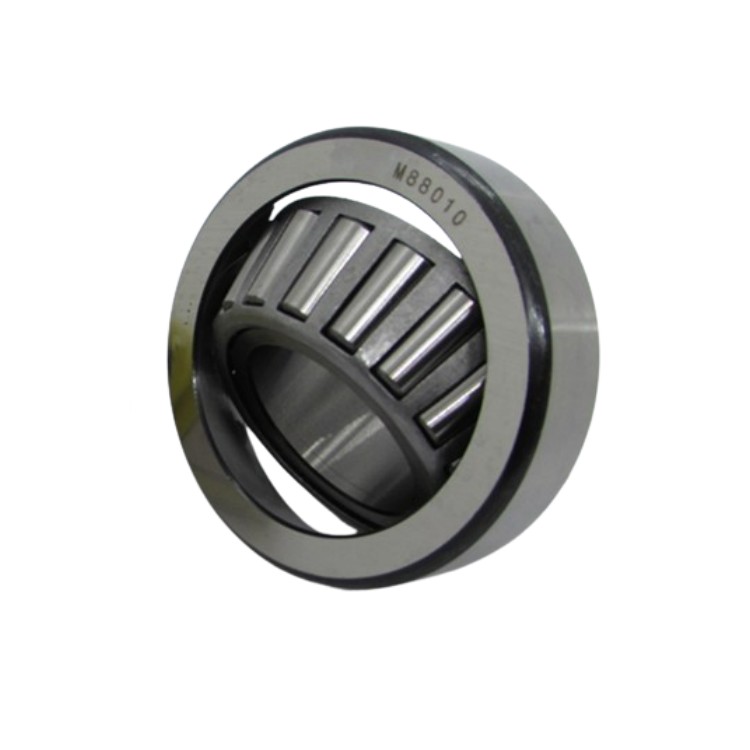

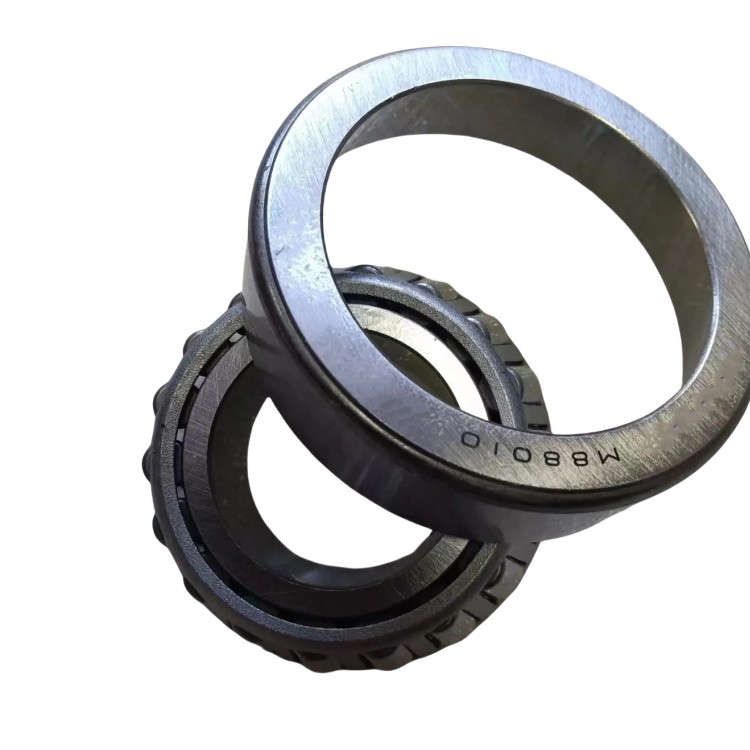

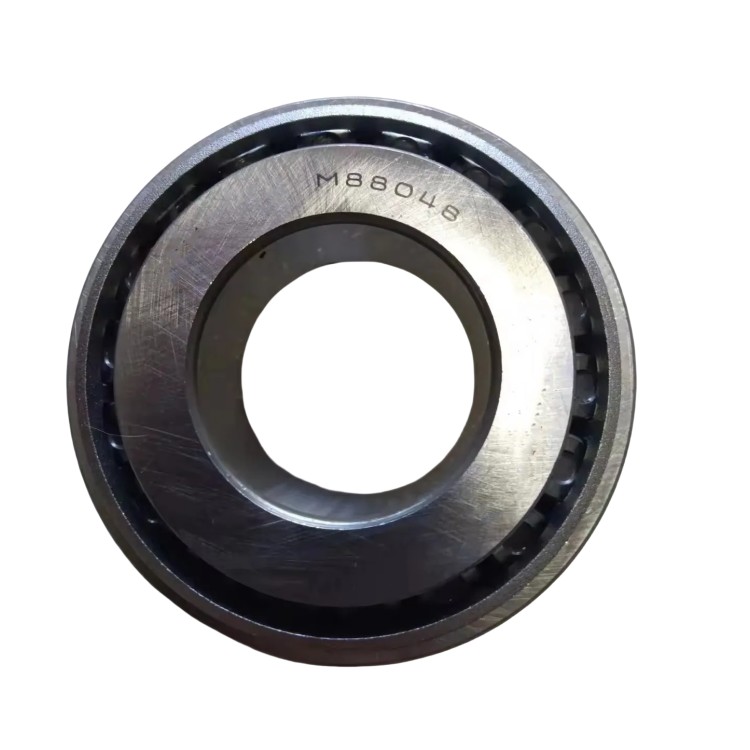

M88048 M88010 inch size tapered roller bearing M88048/10 SET63 size 33.338x68.262x22.225mm
The M88048/M88010 is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.
The M88048/M88010 is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for m88048 m88010 bearing?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for m88048 m88010 bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for m88048 m88010 bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of m88048 m88010 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check m88048 m88010 before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me! Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
| d – Internal diameter | 33,338 mm |
| D – External diameter | 68,262 mm |
| B – Bearing/Inner ring width | 22,225 mm |
| C – Outer ring width | 17,462 mm |
| T – Total width | 22,225 mm |
| d1 – External diameter inner ring | 52,5 mm |
| a – Charge load application point | 19,325 mm |
| Mass | 0,379 kg |
|
item
|
size(mm)
|
weight(kg)
|
||
|
d
|
D
|
B
|
||
|
09067/09195
|
19.05
|
49.225
|
18.034
|
0.1804
|
|
09081/09195
|
20.625
|
49.225
|
19.845
|
0.1555
|
|
LM11749/LM11710
|
17.462
|
39.878
|
13.843
|
0.083
|
|
LM11949/LM11910
|
19.05
|
45.237
|
15.494
|
0.125
|
|
M12649/M12610
|
21.43
|
50.005
|
17.526
|
0.174
|
|
LM12749/LM1270
|
21.43
|
45.237
|
15.494
|
0.118
|
|
LM12749/LM1270
|
22
|
45.237
|
15.494
|
0.116
|
|
LM12749/LM1271
|
22
|
45.975
|
15.494
|
0.121
|
|
14125A/14276
|
31.75
|
69.012
|
19.845
|
0.354
|
|
14137A/14276
|
34.925
|
69.012
|
19.845
|
0.331
|
|
14138A/14276
|
34.925
|
69.012
|
19.845
|
0.329
|
|
25877/25821
|
34.925
|
73.025
|
23.812
|
0.473
|
|
25880/25821
|
36.487
|
73.025
|
23.812
|
0.458
|
|
2785/2720
|
33.338
|
73.025
|
23.812
|
0.544
|
|
2788/2720
|
38.1
|
76.2
|
23.813
|
0.499
|
|
2788/2729
|
38.1
|
76.2
|
23.813
|
0.503
|
|
2790/2720
|
33.338
|
76.2
|
23.812
|
0.549
|
|
2790/2729
|
33.338
|
76.2
|
23.812
|
0.555
|
|
28580/28521
|
50.8
|
92.075
|
24.608
|
0.707
|
|
28584/28521
|
52.388
|
92.075
|
24.608
|
0.682
|
|
28985/28920
|
60.325
|
101.6
|
25.4
|
0.81
|
|
29590/28522
|
66.675
|
107.95
|
25.4
|
0.874
|
|
29685/29620
|
73.025
|
112.712
|
25.4
|
0.893
|
|
LM29749/LM29710
|
38.1
|
65.088
|
18.034
|
0.239
|
|
HM518445/HM518410
|
88.9
|
152.4
|
39.688
|
2.886
|
|
575/572
|
76
|
139.992
|
36.512
|
2.398
|
|
593/592A
|
88.9
|
152.4
|
39.688
|
2.79
|
|
593/593A
|
95.25
|
152.4
|
39.688
|
2.53
|
|
598A/592A
|
92.075
|
152.4
|
39.688
|
2.65
|
|
580/572
|
82.55
|
139.992
|
36.512
|
2.178
|
|
LM603049/LM603011
|
45.242
|
77.788
|
19.842
|
0.368
|
|
LM603049/LM603012
|
46.242
|
77.788
|
21.43
|
0.386
|
|
L610549/L610510
|
63.5
|
94.458
|
19.05
|
0.46
|
|
LM67048/LM67010
|
31.75
|
59.131
|
15.875
|
0.189
|
|
14138A/14276
|
34.925
|
69.012
|
19.845
|
0.329
|
