Linear bearing is a low-cost production of linear motion system, for unlimited travel in conjunction with the cylinder axis.As was carrying the ball point contact with the shaft, so use small loads. Linear bearing with minimal friction ball rotation, so that it can be smooth precision movement.

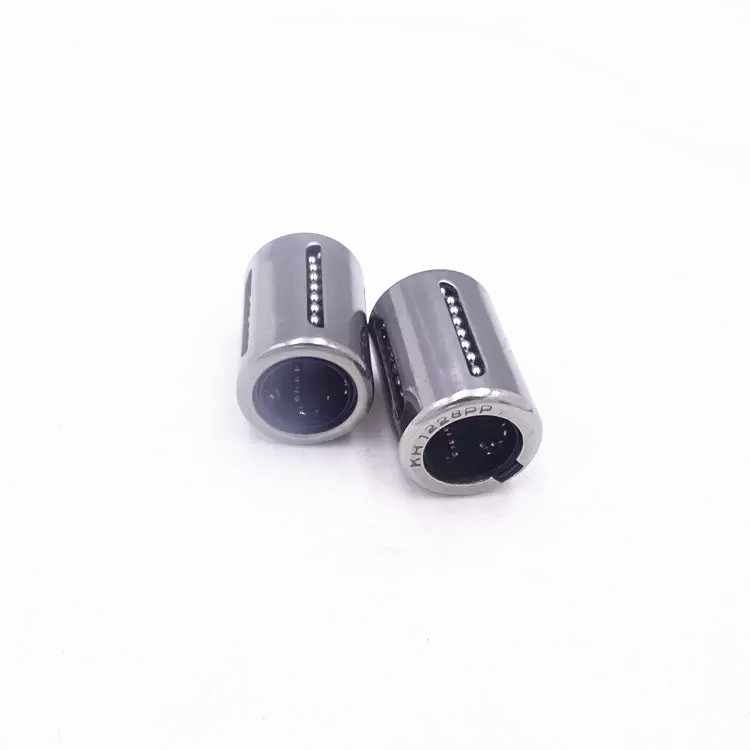

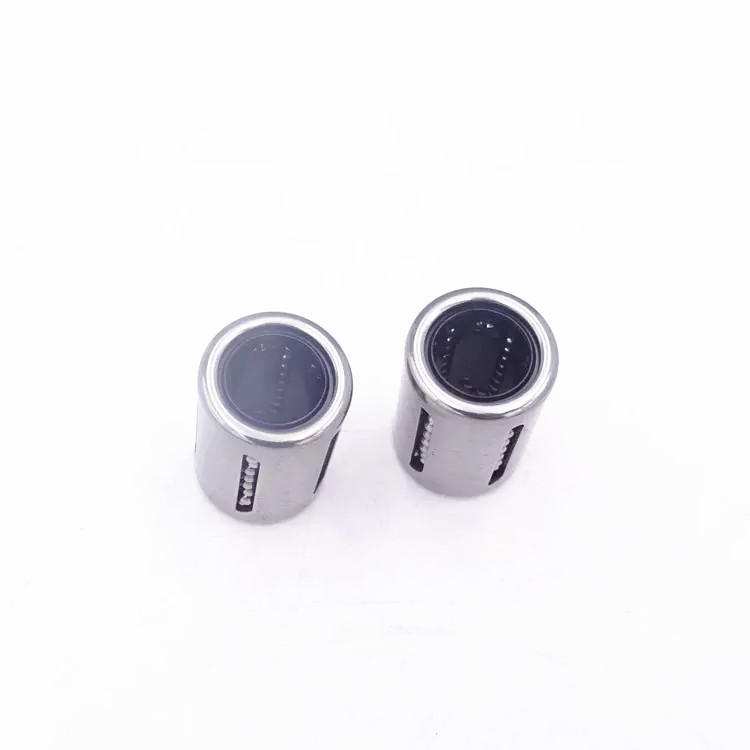

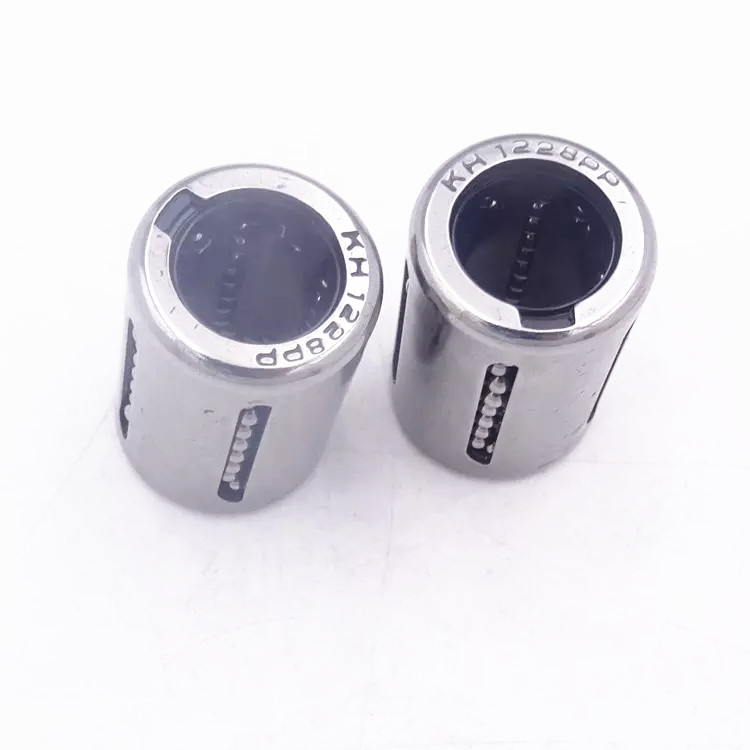

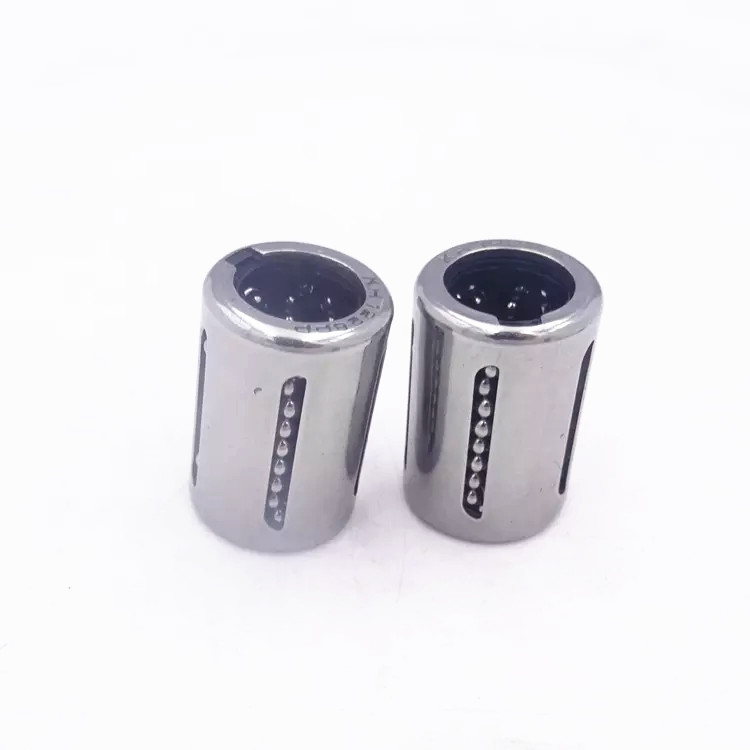

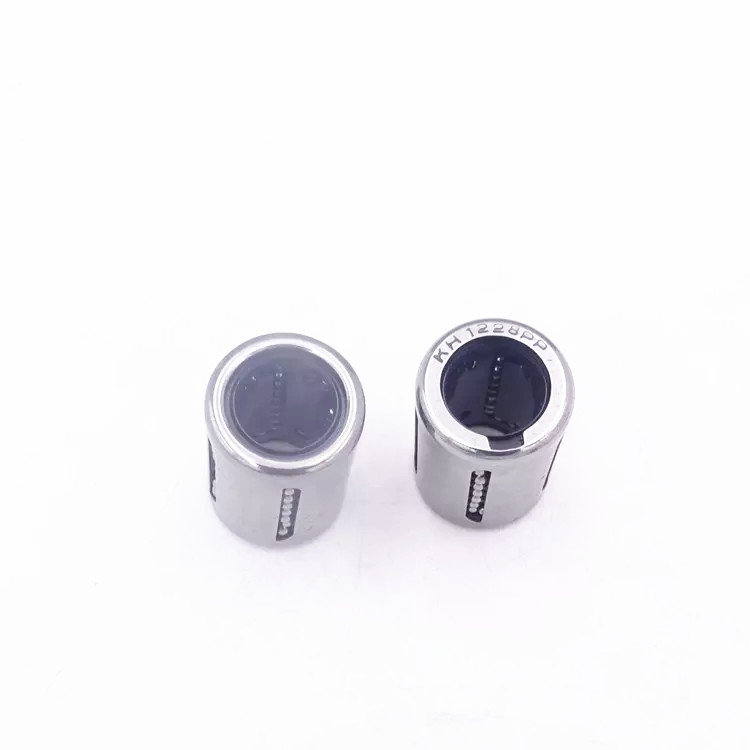

metric linear bearings KH1228PP linear bearing 12x19x28mm
Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.
Features:
Linear bearing is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.
Types:
1.Standard type, clearance adjustale type, open type, extended type and general type linear bearings.
2.Flanged linear bearings can be divided into: round flange type, square flange type, oval flange type, oriented round flange type, oriented square flange type, oriented oval flange type and extended round flange type.
Models:
"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision miniature bearing
 |
 |
 |
 |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for metric linear bearings KH1228PP linear bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for types of metric linear bearings KH1228PP linear bearing?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for types of metric linear bearings KH1228PP linear bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of types of metric linear bearings KH1228PP linear bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your types of metric linear bearings KH1228PP linear bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with types of metric linear bearings KH1228PP linear bearing?
A: If have any problem,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me!Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
| Product Name | KH series Linear motion ball bearing KH1228PP |
| Model Number | KH1228PP |
| Inner Diameter | 12MM |
| Outer Diameter | 19mm |
| Breadth | 28mm |
| Product Material | Chrome steel |
| Precision Grade | P0 P6 P5 P4 P2 are all available |
| ODEL NO. | NUMBER OF | WEIGHT | MAIN DIMENSIONS | ||
| BALL ROWS | |||||
| d | D | B | |||
| KH0824 | 4 | 11.3 | 8 | 15 | 24 |
| KH1026 | 4 | 14.4 | 10 | 17 | 26 |
| KH1228 | 5 | 18.1 | 12 | 19 | 28 |
| KH1428 | 5 | 20.6 | 14 | 21 | 28 |
| KH1630 | 5 | 27.2 | 16 | 24 | 30 |
| KH2030 | 6 | 32.7 | 20 | 28 | 30 |
| KH2540 | 6 | 66 | 25 | 35 | 40 |
| KH3050 | 7 | 95 | 30 | 40 | 50 |
| KH4060 | 8 | 180 | 40 | 52 | 60 |
| KH5070 | 9 | 250 | 50 | 62 | 70 |
