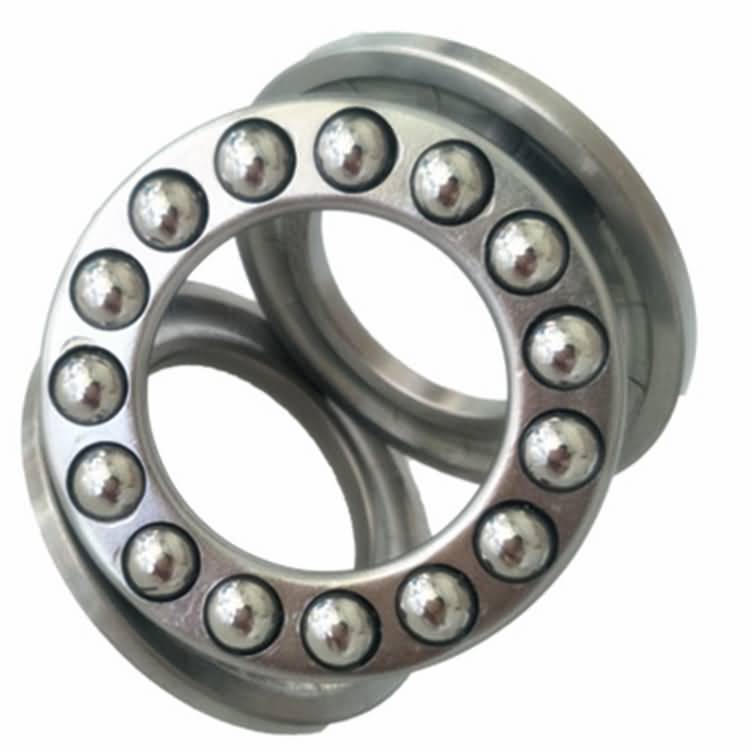

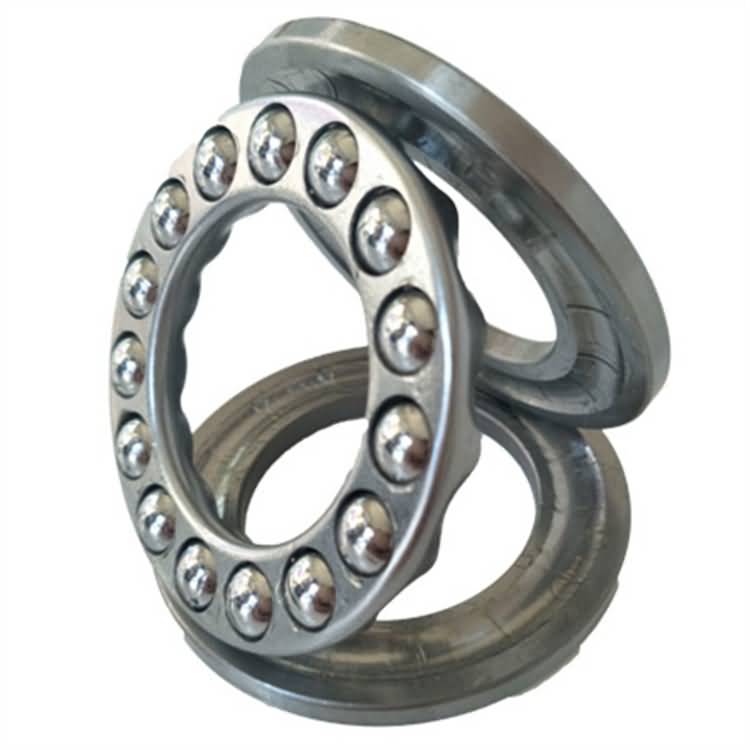

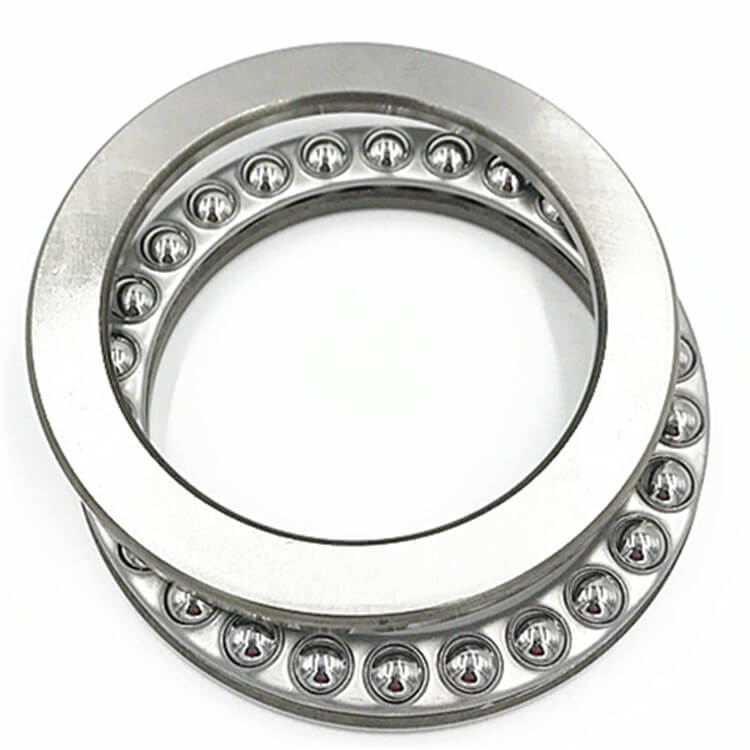

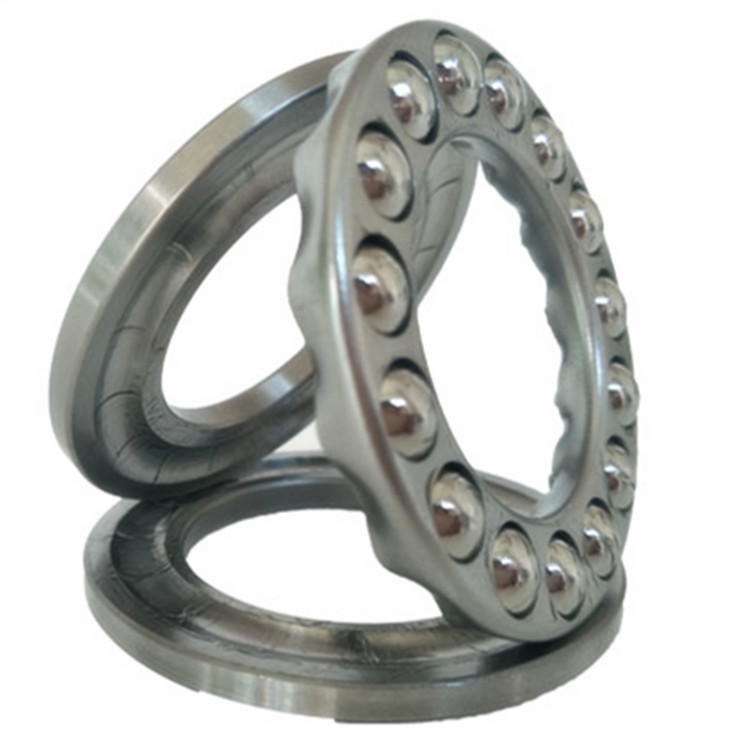

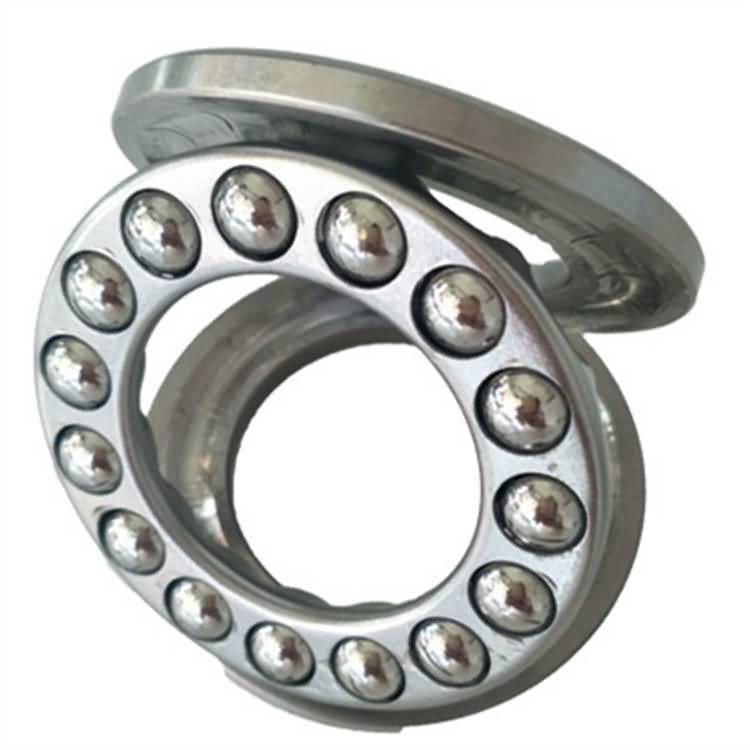

Miniature thrust ball bearing 51111 thrust bearing are produced as single direction or double direction thrust ball bearings.They are designed to accommodate axial loads only and must not be subjected to any radial load.
Miniature thrust ball bearing 51111 thrust bearing
Discription of Miniature thrust ball bearing 51111 thrust bearing:
Miniature thrust ball bearing 51111 thrust bearing are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Miniature thrust ball bearing 51111 thrust bearing are separable, the shaft washer,housing washer(s), ball and cage assembly can be mounted separately.Shaft washers have a ground bore to enable an interference fit.The bore of the housing washer is turned and always larger than the shaft washer bore.
Specifications for Miniature thrust ball bearing 51111 thrust bearing:
1. Thrust ball bearing Equipped with one-way, two-way two types
2. In order to allow installation error, either one-way or two-way, can choose spherical self-aligning spherical seat cushion type or with spherical seat type.
3. High quality steel - used can extend bearing life highest 80% super clean steel
Application of Miniature thrust ball bearing 51111 thrust bearing:
1.Miniature thrust ball bearing 51111 thrust bearing should use close to the radial bearing, in order to prevent the effect of shafts deflection.
2.When using big size ball bearings on a horizontal shaft, preload should be implemented to prevent the clearance between housing washer and balls.
3.Under the inevitable circumstances of shaft deflection and misalignment, aligning seat washer should be applied.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Miniature thrust ball bearing 51111 thrust bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Miniature thrust ball bearing 51111 thrust bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for Miniature thrust ball bearing 51111 thrust bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Miniature thrust ball bearing 51111 thrust bearing or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
Product Name | Miniature thrust ball bearing 51111 thrust bearing |
Material | chrome steel or stainless steel ,hybrid ceramic, |
Brand | LLH or OEM |
Standard | DIN GB ISO JIS BA ANSI |
Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
Clearance | C0, C3 ,C5 |
Package | carton package |
Used | Machine |
Model |
DIA (mm) | Weight (kg) | |||
d | d1 | D | H | ||
52202 | 15 | 10 | 32 | 26 | 0.085 |
52204 | 20 | 15 | 40 | 26 | 0.144 |
52205 | 25 | 20 | 47 | 28 | 0.23 |
52206 | 30 | 25 | 52 | 29 | 0.26 |
52207 | 35 | 30 | 62 | 34 | 0.405 |
52208 | 40 | 30 | 68 | 36 | 0.54 |
52209 | 45 | 35 | 73 | 37 | 0.64 |
52210 | 50 | 40 | 78 | 39 | 0.71 |
52211 | 55 | 45 | 90 | 45 | 1.12 |
52212 | 60 | 50 | 95 | 46 | 1.15 |
52213 | 65 | 55 | 100 | 47 | 1.36 |
52214 | 70 | 55 | 105 | 47 | 1.52 |
52215 | 75 | 60 | 110 | 47 | 1.6 |
52216 | 80 | 64 | 115 | 48 | 1.73 |
52217 | 85 | 70 | 125 | 55 | 2.22 |
52218 | 90 | 75 | 135 | 62 | 3.14 |
52220 | 100 | 85 | 150 | 67 | 4.2 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
