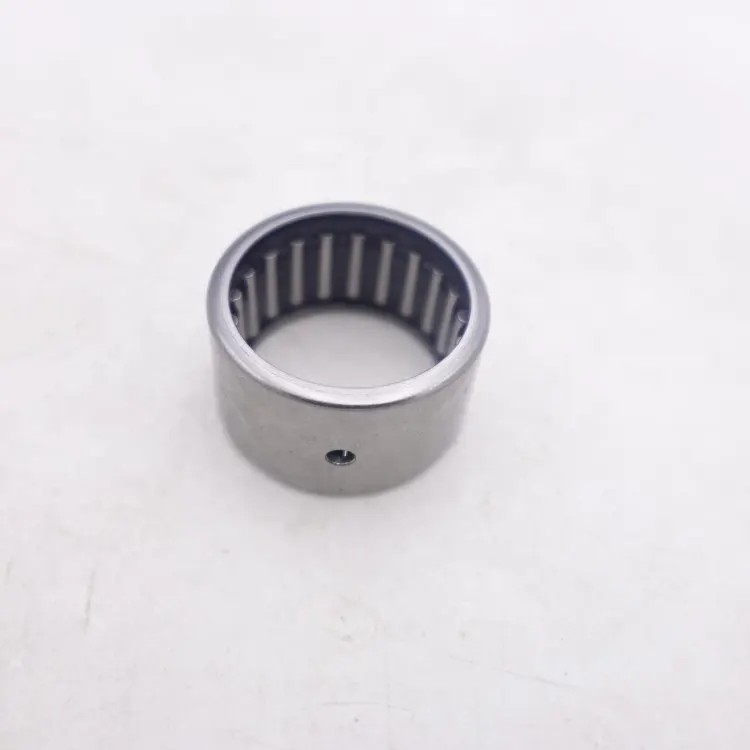

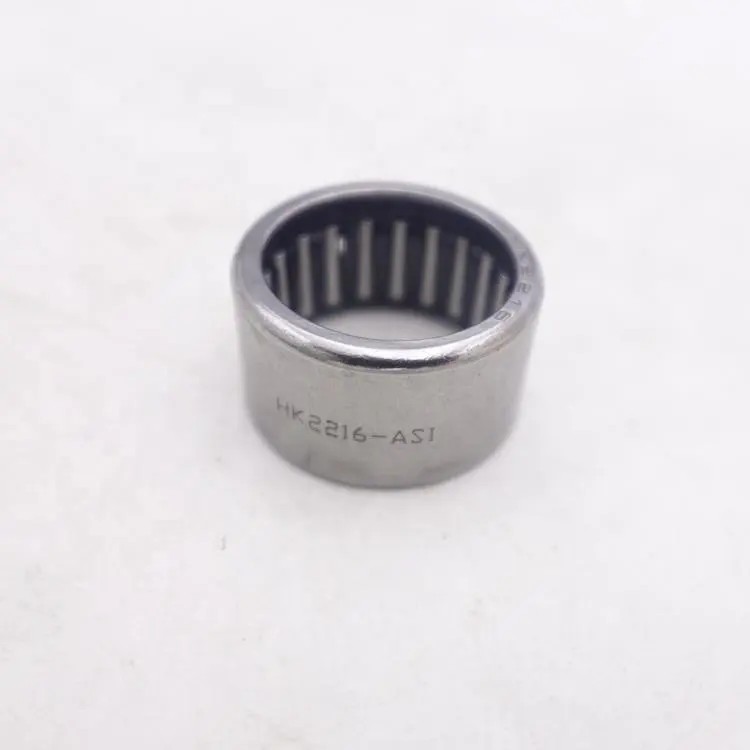

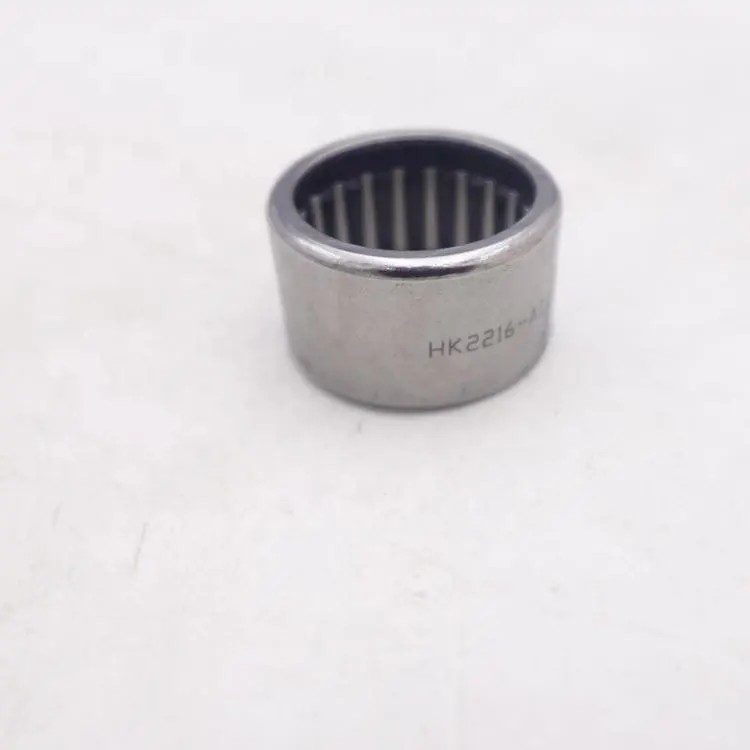

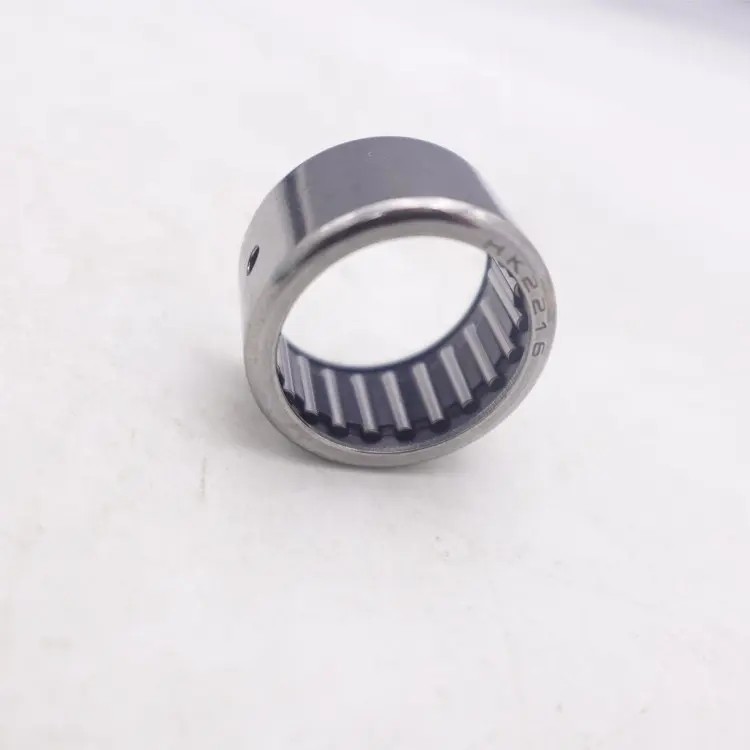

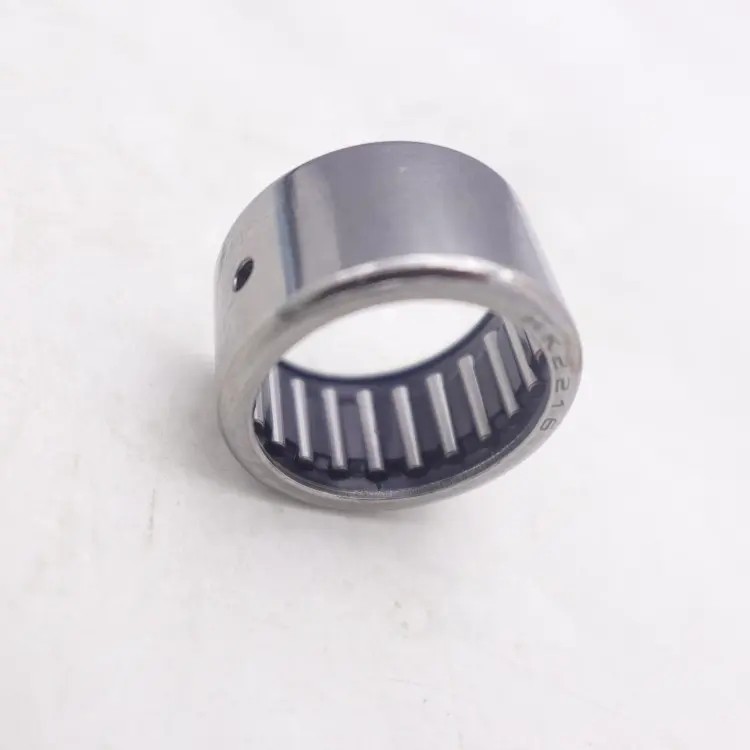

needle bearing hk 2216 with oil hole HK2216-ASI needle roller bearing size 22x28x16mm
Needle bearings are a standard element of a rotational motion system. Needle bearings are used in applications where high load capacity, high precision and small overall dimensions are required. Nadella offers a big range of needle bearings. The strength of Nadella’s production consists also in the ability of producing special items at a reasonable price. Every bearing contains the long experience acquired from Nadella through decades of design.
application.
· Needle bushes, full complement retained or with cage
· Needle cages
· Bearings with cage guided needles
· Full complement needle bearings
· Needle rollers - Rollers and cam followers
· Thrust bearings with needles and with rollers
· Combined bearings with needles (RAX)
· Precision combined bearings with adjustable preload
· Sealing rings
Design Attributes
· Integral seals
· Side flanges (or separate end washers)
· Inner rings
· Oil holes
· Single or double caged sets (or full complement) of rollers
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for needle bearing hk 2216?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for needle bearing hk 2216? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for needle bearing hk 2216?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of needle bearing hk 2216?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for needle bearing hk 2216?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the needle bearing hk 2216?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
Fw |
22 mm
|
Diameter under rollers |
---|---|---|
D |
28 mm
|
Outside diameter |
C |
16 mm
|
Width |
r |
min.0.8 mm
|
Chamfer dimension drawn cup (outer ring) |
item | old Item | d | D | h |
(mm) | (mm) | |||
HK0408 | 37941/4 | 4 | 8 | 8 |
HK0509 | 47941/5 | 5 | 9 | 9 |
HK0608 | 37941/6 | 6 | 10 | 8 |
HK0609 | 47941/6 | 6 | 10 | 9 |
HK0709 | 47941/7 | 7 | 11 | 9 |
HK0808 | 37941/8 | 8 | 12 | 8 |
HK0810 | 57941/8 | 8 | 12 | 10 |
HK0910 | 57941/9 | 9 | 13 | 10 |
HK0912 | 67941/9 | 9 | 13 | 12 |
HK1010 | 57941/10 | 10 | 14 | 10 |
HK1012 | 67941/10 | 10 | 14 | 12 |
HK1210 | 57941/12 | 12 | 16 | 10 |
HK1412 | 37941/14 | 14 | 20 | 12 |
HK1416 | 57941/14 | 14 | 20 | 16 |
HK1512 | 37941/15 | 15 | 21 | 12 |
HK1516 | 57941/15 | 15 | 21 | 16 |
HK1612 | 37941/16 | 16 | 22 | 12 |
HK1616 | 57941/16 | 16 | 22 | 16 |
HK1712 | 37941/17 | 17 | 23 | 12 |
HK1812 | 37941/18 | 18 | 24 | 12 |
HK1816 | 57941/18 | 18 | 24 | 16 |
HK2010 | 27941/20 | 20 | 26 | 10 |
HK2012 | 37941/20 | 20 | 26 | 12 |
HK2016 | 57941/20 | 20 | 26 | 16 |
HK2210 | 27941/22 | 22 | 28 | 10 |
HK2212 | 37941/22 | 22 | 28 | 12 |
HK2216 | 57941/22 | 22 | 28 | 16 |
HK2512 | 27941/25 | 25 | 32 | 12 |
HK2516 | 47941/25 | 25 | 32 | 16 |
HK2520 | 67941/25 | 25 | 32 | 20 |
HK2816 | 47941/28 | 28 | 35 | 16 |
HK2820 | 67941/28 | 28 | 35 | 20 |
HK3012 | 27941/30 | 30 | 37 | 12 |
HK3016 | 47941/30 | 30 | 37 | 16 |
HK3020 | 67941/30 | 30 | 37 | 20 |
HK3512 | 27941/35 | 35 | 42 | 12 |
HK3520 | 67941/35 | 35 | 42 | 20 |
HK4012 | 27941/40 | 40 | 47 | 12 |
HK4020 | 67941/40 | 40 | 47 | 20 |
HK4512 | 27941/45 | 45 | 52 | 12 |
