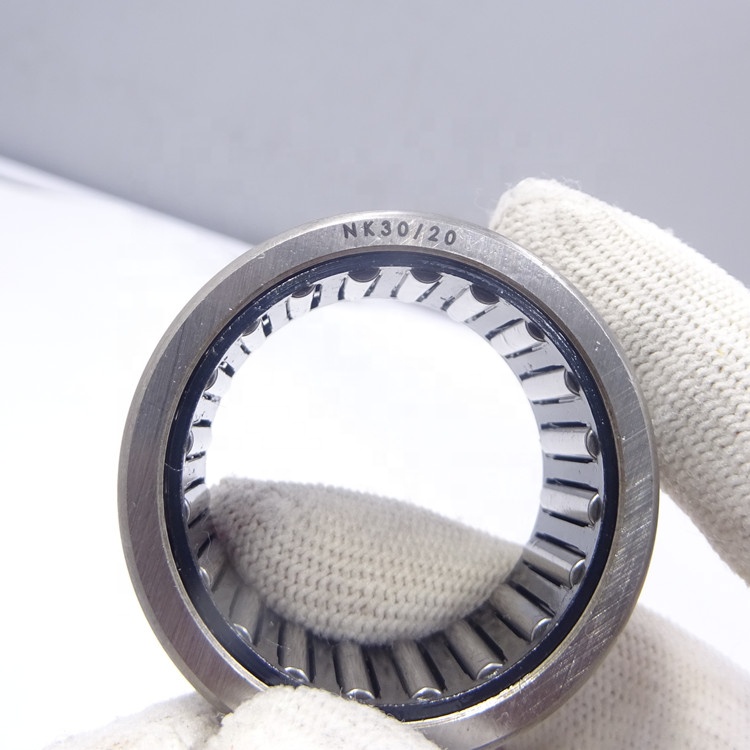

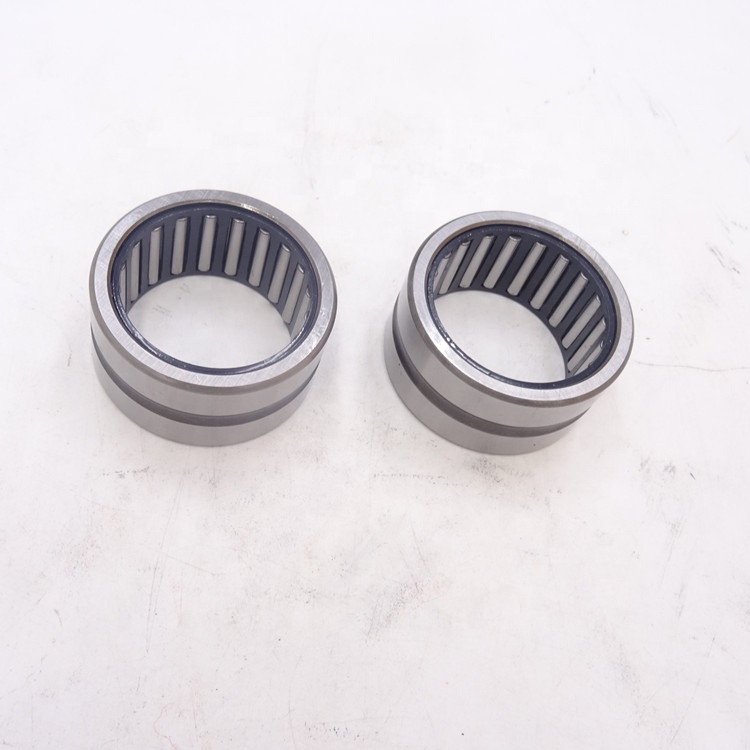

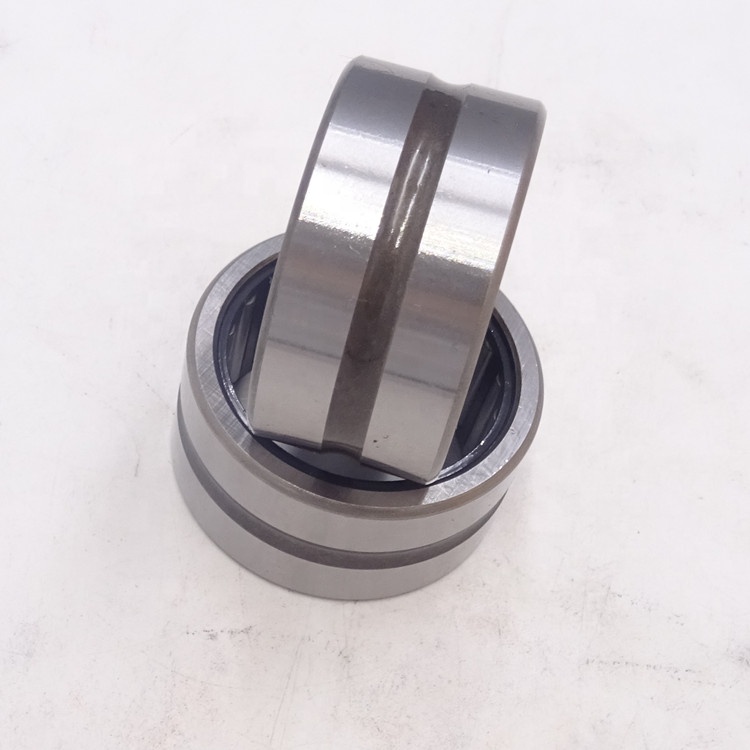

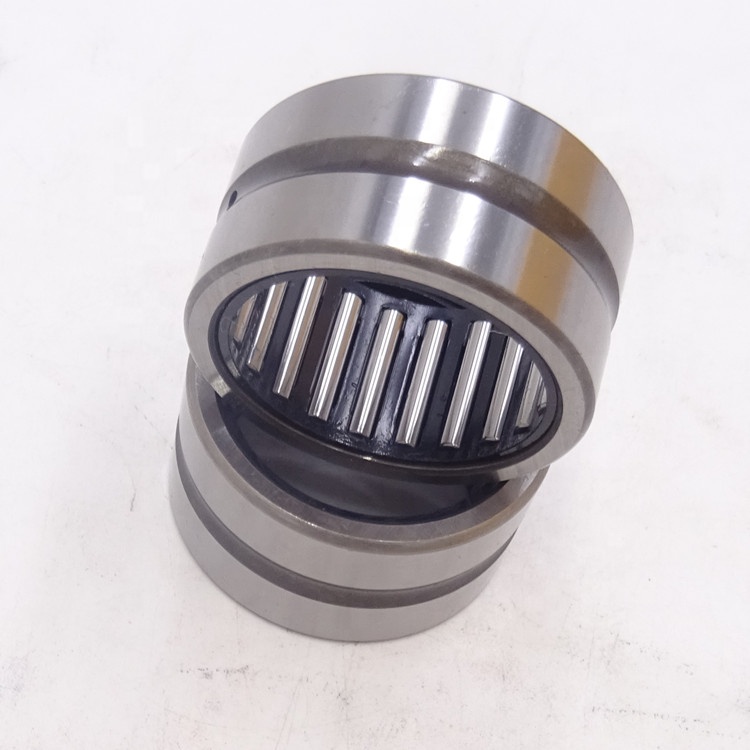

NK 30 20 bearing NK30/20 needle roller bearings size 30x40x20mm
The nk 30 20 bearing is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 30x40x20mm.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for nk 30 20 bearing?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for nk 30 20 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nk 30 20 bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of nk 30 20 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for nk 30 20 bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me! Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
Fw |
30 mm
|
Diameter under rollers |
---|---|---|
D |
40 mm
|
Outside diameter |
C |
20 mm
|
Width |
r1,2 |
min.0.3 mm
|
Chamfer dimension outer ring |
Model Number | Size(mm) | Model Number | Size(mm) |
NK06/10 | 6x12x10 | NK22/16 | 22x30x16 |
NK06/12 | 6x12x12 | NK22/20 | 22x30x20 |
NK08/10 | 8x15x10 | NK24/16 | 24x32x16 |
NK08/12 | 8x15x12 | NK24/20 | 24x32x20 |
NK09/12 | 9x15x12 | NK25/16 | 25x33x16 |
NK12/12 | 12x19x12 | NK25/18 | 25x33x18 |
NK15/12 | 15x23x12 | NK25/20 | 25x33x20 |
NK15/16 | 15x23x16 | NK25/30 | 25x33x30 |
NK15/20 | 15x23x20 | NK26/16 | 26x34x16 |
NK16/16 | 16x24x16 | NK26/20 | 26x34x20 |
NK16/20 | 16x24x20 | NK28/20 | 28x37x20 |
NK17/16 | 17x25x16 | NK28/30 | 28x37x30 |
NK17/20 | 17x25x20 | NK29/20 | 29x38x20 |
NK18/16 | 18x26x16 | NK29/30 | 29x38x30 |
NK18/20 | 18x42x20 | NK30/20 | 30x40x20 |
NK19/16 | 19x27x16 | NK30/30 | 30x40x30 |
NK19/20 | 19x27x20 | NK32/20 | 32x43x20 |
NK20/16 | 20x28x16 | NK32/30 | 32x43x30 |
NK20/20 | 20x28x20 | NK35/20 | 35x45x20 |
NK21/16 | 21x29x16 | NK35/30 | 35x45x30 |
NK21/20 | 21x29x20 | NK37/20 | 37x47x20 |
NK37/30 | 37x47x30 | NK38/20 | 38x48x20 |
NK38/30 | 38x48x30 | NK40/20 | 40x50x20 |
