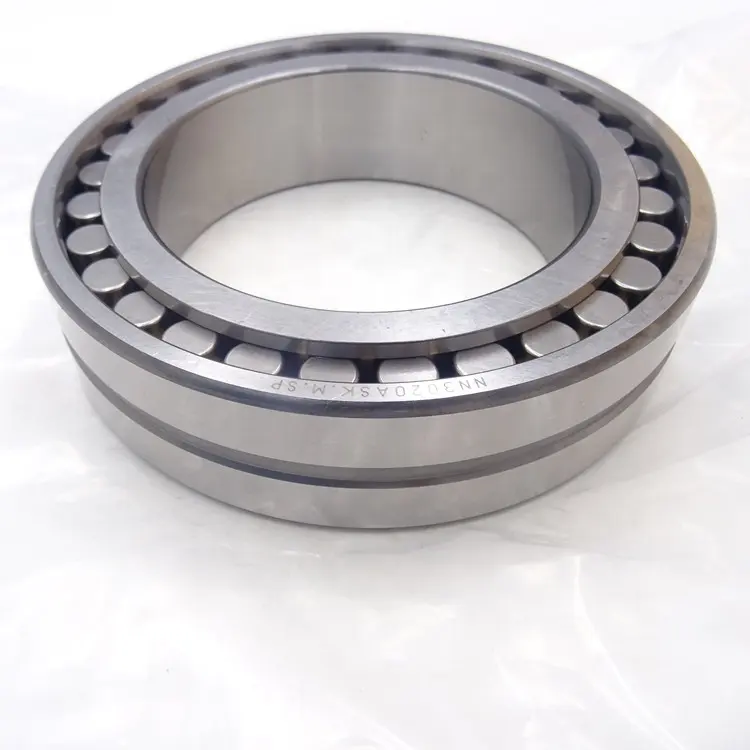

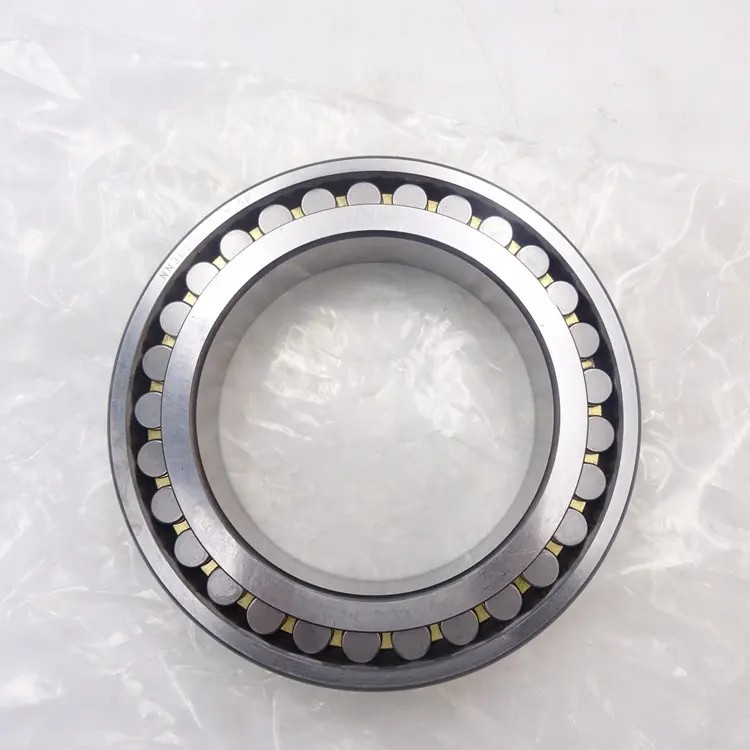

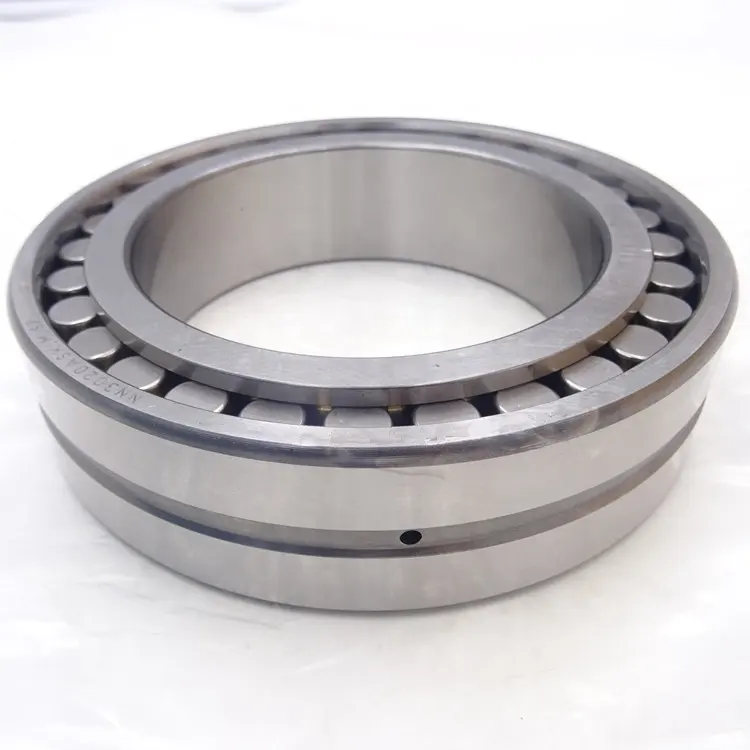

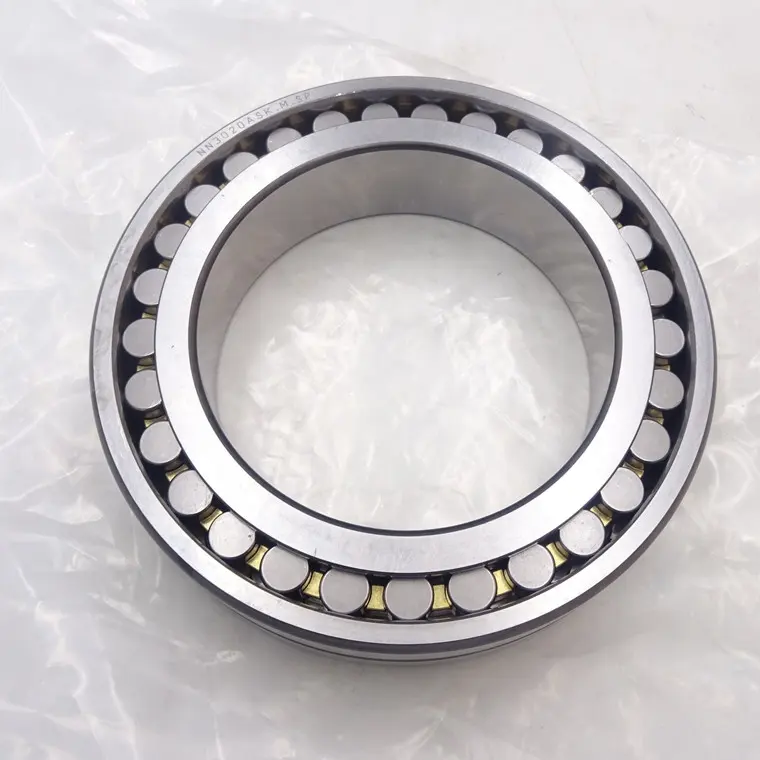

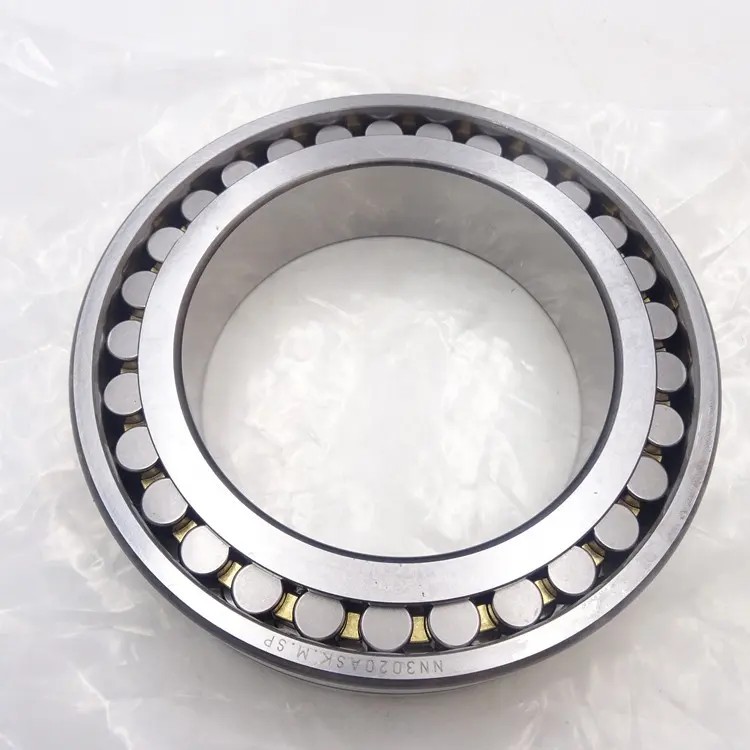

NN3020K bearing NN3020ASK.M.SP Double Row Cylindrical Roller Bearings Size 100x150x37mm
Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for nn3020k bearing?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for nn3020k bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nn3020 bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of nn3020k bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for nn3020k bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| d | 100 mm | Bore diameter |
|---|---|---|
| D | 150 mm | Outside diameter |
| B | 37 mm | Width |
| d1 | 119.4 mm | Shoulder diameter inner ring (NN design) |
| E | 137 mm | Raceway diameter outer ring (NN design) |
| r1,2 | min.1.5 mm | Chamfer dimension outer ring |
| r3,4 | min.1 mm | Chamfer dimension inner ring (bearing with tapered bore) |
| s | max.2 mm | Permissible axial displacement from the normal position of one bearing ring relative to the other (all) |
| Principal dimensions | Basic load ratings | Attainable speeds | Designation | ||||
| dynamic | static | Grease lubrication | Oil-air lubrication | ||||
| d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | |
| 30 | 55 | 19 | 30.8 | 37.5 | 17000 | 19000 | NN 3006 KTN/SP |
| 30 | 55 | 19 | 30.8 | 37.5 | 17000 | 19000 | NN 3006 TN/SP |
| 35 | 62 | 20 | 39.1 | 50 | 14000 | 16000 | NN 3007 K/SP |
| 35 | 62 | 20 | 39.1 | 50 | 14000 | 16000 | NN 3007/SP |
| 40 | 68 | 21 | 42.9 | 56 | 13000 | 15000 | NN 3008 KTN/SP |
| 40 | 68 | 21 | 42.9 | 56 | 13000 | 15000 | NN 3008 TN/SP |
| 45 | 75 | 23 | 50.1 | 65.5 | 12000 | 14000 | NN 3009 KTN/SP |
| 45 | 75 | 23 | 50.1 | 65.5 | 12000 | 14000 | NN 3009 TN/SP |
| 50 | 80 | 23 | 52.8 | 73.5 | 11000 | 13000 | NN 3010 KTN/SP |
| 50 | 80 | 23 | 52.8 | 73.5 | 11000 | 13000 | NN 3010 TN/SP |
| 55 | 90 | 26 | 69.3 | 96.5 | 10000 | 12000 | NN 3011 KTN/SP |
| 55 | 90 | 26 | 69.3 | 96.5 | 10000 | 12000 | NN 3011 TN/SP |
| 60 | 95 | 26 | 73.7 | 106 | 9500 | 11000 | NN 3012 KTN/SP |
| 60 | 95 | 26 | 73.7 | 106 | 9500 | 11000 | NN 3012 TN/SP |
