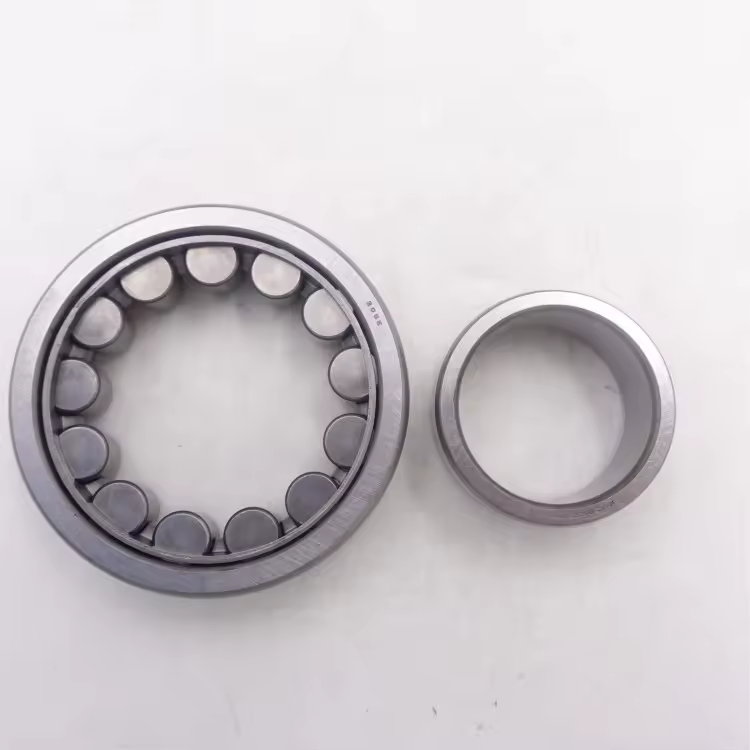

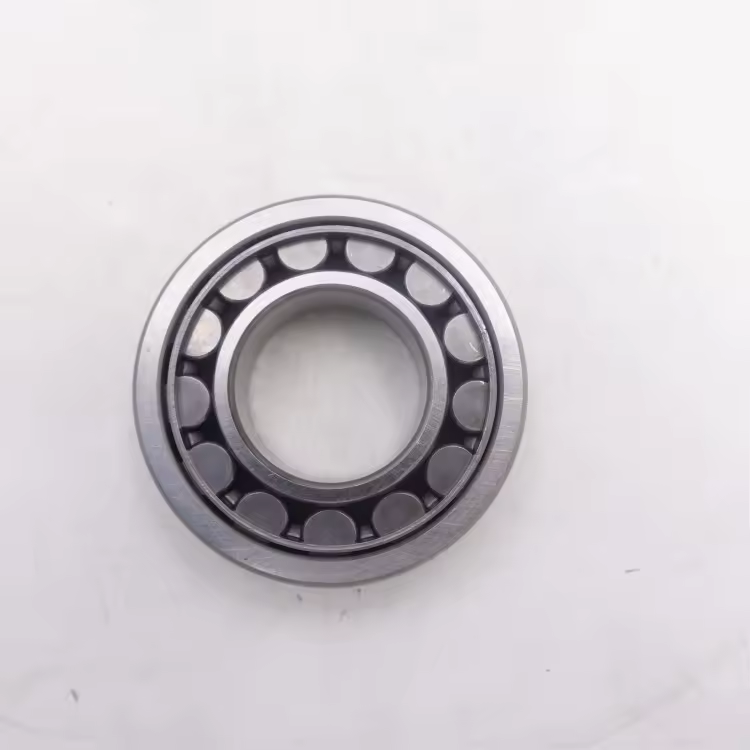

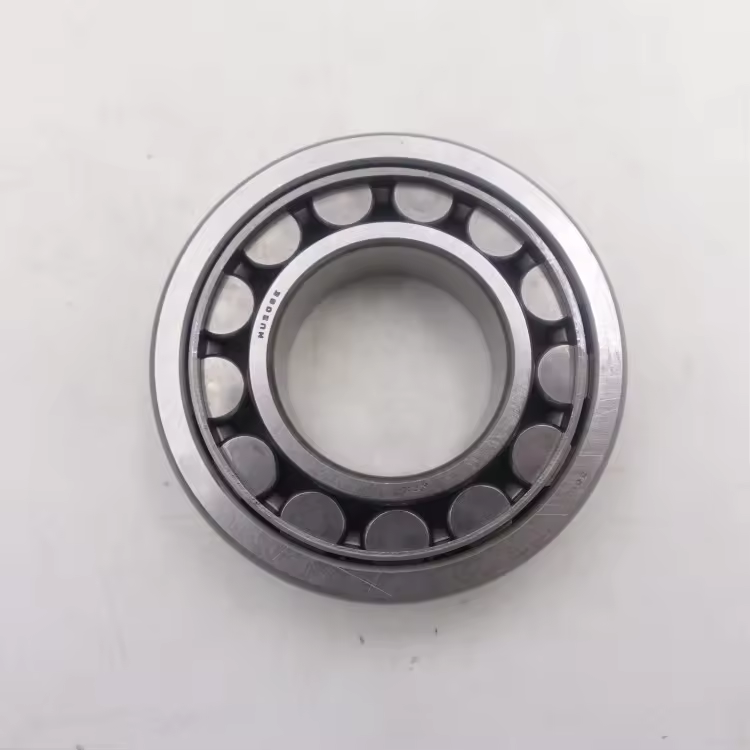

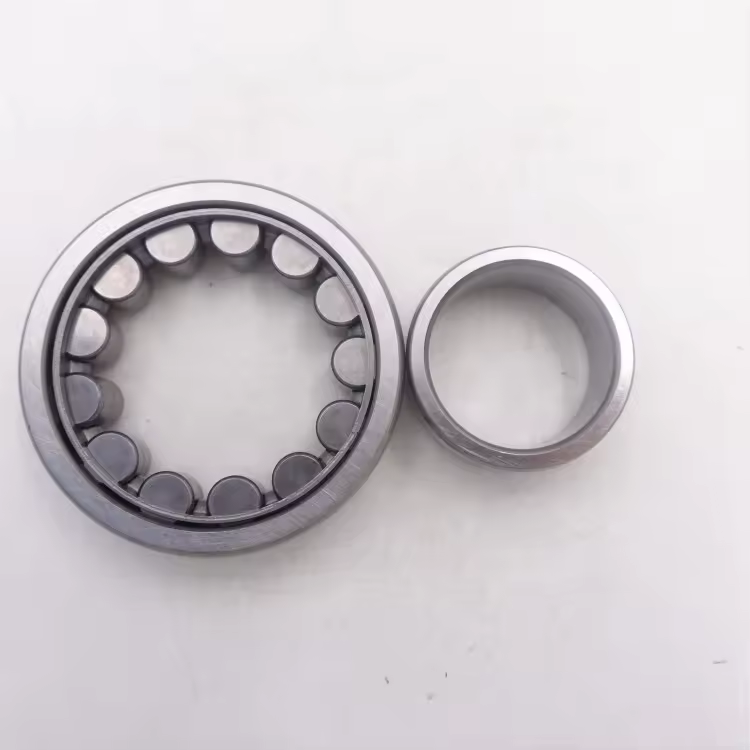

NU 206 bearing NU206EW cylindrical roller bearing with steel cage
1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.
Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
There are different types designated NU, NJ, NUP, N, NF for single-row bearings, and NNU, NN for double-row bearings depending on the design or absence of side ribs.
Features
Single row Cylindrical Roller Bearing with brass, ring guided cage. These EM series Cylindrical roller bearings have higher load carrying capacity, lower noise and superior cage strength than the ordinary type.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for nu 206 bearing?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for nu 206 bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nu 206 bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of nu 206 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check nu 206 bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing
| If you need any brand bearings or any models of bearings, please contact me! Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
| d |
30 mm
|
Bore diameter |
|---|---|---|
| D |
62 mm
|
Outside diameter |
| B |
16 mm
|
Width |
| D1 |
≈52.08 mm
|
Shoulder diameter of outer ring |
| F |
37.5 mm
|
Raceway diameter of inner ring |
| Bearing number | d | D | B | C | C0 |
| NUP203 ECP | 17 | 40 | 12 | 17,2 | 14,3 |
| NUP2203 ECP | 17 | 40 | 16 | 23,8 | 21,6 |
| NUP204 ECML | 20 | 47 | 14 | 28,5 | 22 |
| NUP204 ECPHA | 20 | 47 | 14 | 28,5 | 22 |
| NUP204 ECP | 20 | 47 | 14 | 28,5 | 22 |
| NUP304 ECP | 20 | 52 | 15 | 35,5 | 26 |
| NUP2304 ECP | 20 | 52 | 21 | 47,5 | 38 |
| NUP205 ECP | 25 | 52 | 15 | 32,5 | 27 |
| NUP205 ECML | 25 | 52 | 15 | 32,5 | 27 |
| NUP2205 ECP | 25 | 52 | 18 | 39 | 34 |
| NUP305 ECML | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP305 ECJ | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP305 ECP | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP2305 ECP | 25 | 62 | 24 | 64 | 55 |
| NUP2305 ECML | 25 | 62 | 24 | 64 | 55 |
| NUP206 ECML | 30 | 62 | 16 | 44 | 36,5 |
| NUP206 ECP | 30 | 62 | 16 | 44 | 36,5 |
| NUP2206 ECP | 30 | 62 | 20 | 55 | 49 |
| NUP306 ECP | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECJ | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECM | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECML | 30 | 72 | 19 | 58,5 | 48 |
| NUP2306 ECML | 30 | 72 | 27 | 83 | 75 |
| NUP2306 ECP | 30 | 72 | 27 | 83 | 75 |
| NUP207 ECJ | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECML | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECP | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECM | 35 | 72 | 17 | 56 | 48 |
| NUP2207 ECP | 35 | 72 | 23 | 69,5 | 63 |
| NUP307 ECP | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECJ | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECM | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECML | 35 | 80 | 21 | 75 | 63 |
| NUP2307 ECP | 35 | 80 | 31 | 106 | 98 |
| NUP208 ECJ | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECML | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECM | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECP | 40 | 80 | 18 | 62 | 53 |
| NUP2208 ECP | 40 | 80 | 23 | 81,5 | 75 |
| NUP2208 ECJ | 40 | 80 | 23 | 81,5 | 75 |
| NUP308 ECM | 40 | 90 | 23 | 93 | 78 |
| NUP308 ECP | 40 | 90 | 23 | 93 | 78 |
| NUP308 ECML | 40 | 90 | 23 | 93 | 78 |
| NUP2308 ECML | 40 | 90 | 33 | 129 | 120 |
| NUP2308 ECM | 40 | 90 | 33 | 129 | 120 |
| NUP2308 ECP | 40 | 90 | 33 | 129 | 120 |
| NUP209 ECJ | 45 | 85 | 19 | 69,5 | 64 |
