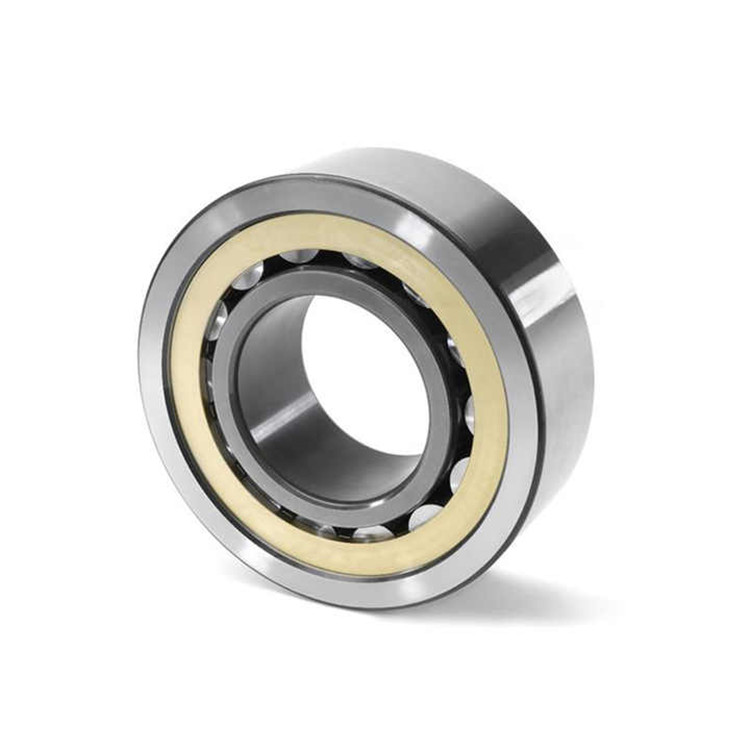

NU 214 Bearing Low Friction Cylindrical Roller Bearings NU214
NU 214 Bearing Low Friction Cylindrical Roller Bearings NU214
The cylindrical roller and raceway are linear contact bearings. It has a large load capacity and mainly bears radial loads. According to the presence or absence of retaining edges on the ring, there are single row cylindrical roller bearings such as NU, NJ, NUP, N, NF, and double row cylindrical roller bearings such as NNU and NN. This bearing is a separable structure with inner and outer rings.
Cylindrical roller bearings without retaining edges on the inner or outer ring can move relative to the axial direction, making them suitable for use as free end bearings. A cylindrical roller bearing with double retaining edges on one side of the inner and outer rings, and a single retaining edge on the other side of the ring, which can withstand a certain degree of axial load in one direction. Generally, steel plate stamped cages or copper alloy solid cages are used. But there is also a portion that uses polyamide formed cages
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for NU 214 Bearing?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for NU 214 Bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for NU 214 Bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of NU 214 Bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for NU 214 Bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand or any models bearings , please contact me!
Contact: Bella
Email/Skype: skf@llhbearing.com
TEL/Wechat:008615318805907
Whatsapp: 008615315596312
Product Name
|
NU 214 Cylindrical Roller Bearing NU214
|
Model
|
NU214
|
Size
|
70x125x24mm
|
Type
|
Cylindrical Roller Bearing
|
Model number | Old Model | ID | OD | B | Cr | Cor | Limiting Speeds(rpm) | Limiting Speeds(rpm) |
(mm) | (mm) | (mm) | (kN) | (kN) | Grease(r/min) | OIL (r/min) | ||
NU202 | 32202 | 15 | 35 | 11 | 7.98 | 5.5 | 15000 | 19000 |
NU203 | 32203 | 17 | 40 | 12 | 9.12 | 7 | 14000 | 18000 |
NU303 | – | 17 | 47 | 14 | 12.8 | 10.8 | 13000 | 17000 |
NU1004 | – | 20 | 42 | 12 | 10.5 | 9.2 | 13000 | 17000 |
NU204E | 32504E | 20 | 47 | 14 | 25.8 | 24 | 12000 | 16000 |
NU2204E | 32204E | 20 | 47 | 18 | 30.8 | 30 | 12000 | 16000 |
NU3O4E | – | 20 | 52 | 15 | 29 | 25.5 | 11000 | 15000 |
NU2304E | 32604E | 20 | 52 | 21 | 39.2 | 37.5 | 10000 | 14000 |
NU1005 | 32105 | 25 | 47 | 12 | 11 | 10.2 | 11000 | 15000 |
NU205E | 32205E | 25 | 52 | 15 | 27.5 | 26.8 | 11000 | 14000 |
NU2205E | 32505E | 25 | 52 | 18 | 32.8 | 33.8 | 11000 | 14000 |
NU305E | 32305E | 25 | 62 | 17 | 38.5 | 35.8 | 9000 | 12000 |
NU2305E | 32605E | 25 | 62 | 24 | 53.2 | 54.5 | 9000 | 12000 |
NU1006 | 32106 | 30 | 55 | 13 | 13 | 12.8 | 9500 | 12000 |
NU206E | 32206E | 30 | 62 | 16 | 36 | 35.5 | 8500 | 11000 |
NU2206E | 32506E | 30 | 62 | 20 | 45.5 | 48 | 8500 | 11000 |
NU306E | 32306E | 30 | 72 | 19 | 49.2 | 48.2 | 8000 | 10000 |
NU2306E | 32606E | 30 | 72 | 27 | 70 | 75.5 | 8000 | 10000 |
NU406 | 32406 | 30 | 90 | 23 | 57.2 | 53 | 7000 | 9000 |
NU1007 | 32107 | 35 | 62 | 14 | 19.5 | 18.8 | 8500 | 11000 |
NU207E | 32207E | 35 | 72 | 17 | 46.5 | 48 | 7500 | 9500 |
NU2207E | 32507E | 35 | 72 | 23 | 57.5 | 63 | 7500 | 9500 |
NU307E | 32307E | 35 | 80 | 21 | 62 | 63.2 | 7000 | 9000 |
NU2307E | 32607E | 35 | 80 | 31 | 87.5 | 98.2 | 7000 | 9000 |
NU407 | 32407 | 35 | 100 | 25 | 70.8 | 68.2 | 6000 | 7500 |
NU1008 | 32108 | 40 | 68 | 15 | 21.2 | 22 | 7500 | 9500 |
NU208E | 32208E | 40 | 80 | 18 | 51.5 | 53 | 7000 | 9000 |
NU2208E | 32508E | 40 | 80 | 23 | 67.5 | 75.2 | 7000 | 9000 |
NU308E | 32308E | 40 | 90 | 23 | 76.8 | 77.8 | 6300 | 8000 |
NU2308E | 32608E | 40 | 90 | 33 | 105 | 118 | 6300 | 8000 |
NU408 | 32408 | 40 | 110 | 27 | 90.5 | 89.8 | 5600 | 7000 |
NU1009 | 32109 | 45 | 75 | 16 | 23.2 | 23.8 | 6500 | 8500 |
NU209E | 32209E | 45 | 85 | 19 | 58.5 | 63.8 | 6300 | 8000 |
NU2209E | 32509E | 45 | 85 | 23 | 71 | 82 | 6300 | 8000 |
NU2309E | 32609E | 45 | 100 | 36 | 130 | 152 | 5600 | 7000 |
NU400 | – | 45 | 120 | 29 | 102 | 100 | 5000 | 6300 |
NU1010 | 32110 | 50 | 80 | 16 | 25 | 27.5 | 6300 | 8000 |
NU210E | 32210E | 50 | 90 | 20 | 61.2 | 69.2 | 6000 | 7500 |
