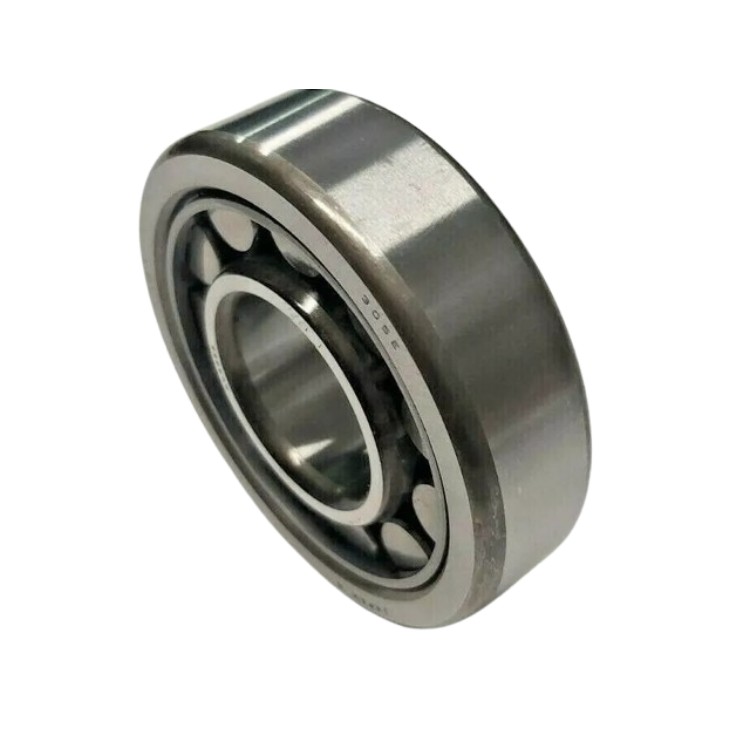

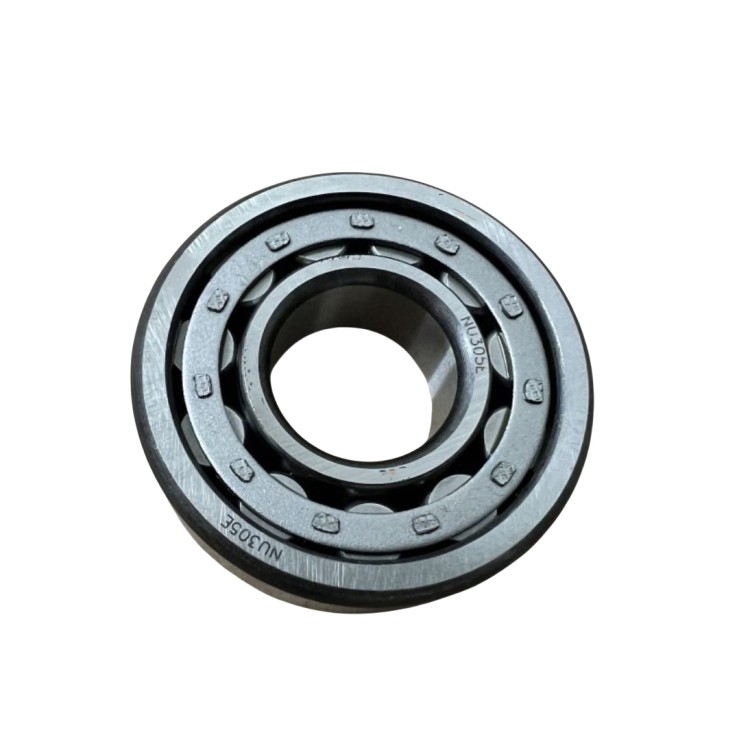

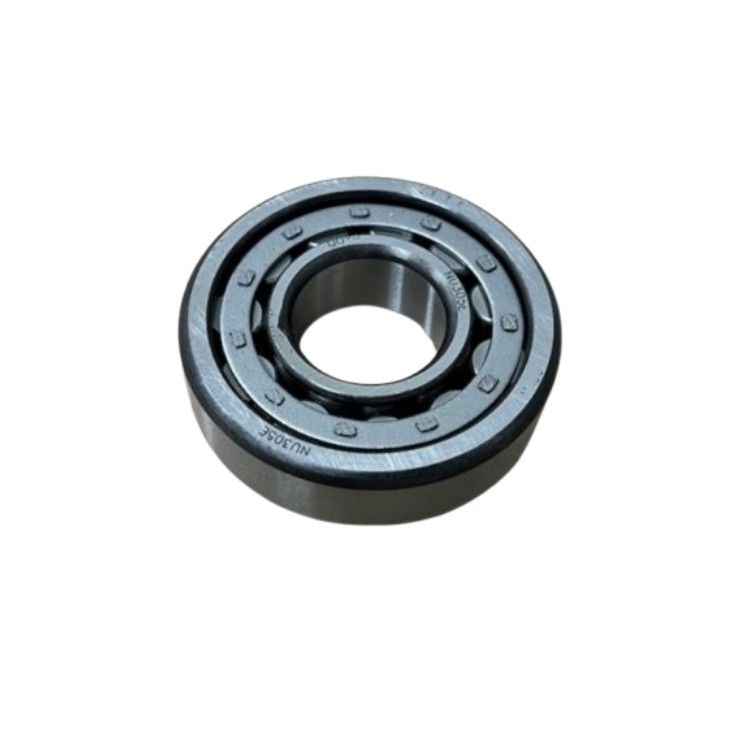

NU 305 cylindrical roller bearing with brass cage NU305M NU305ECM NU305EM

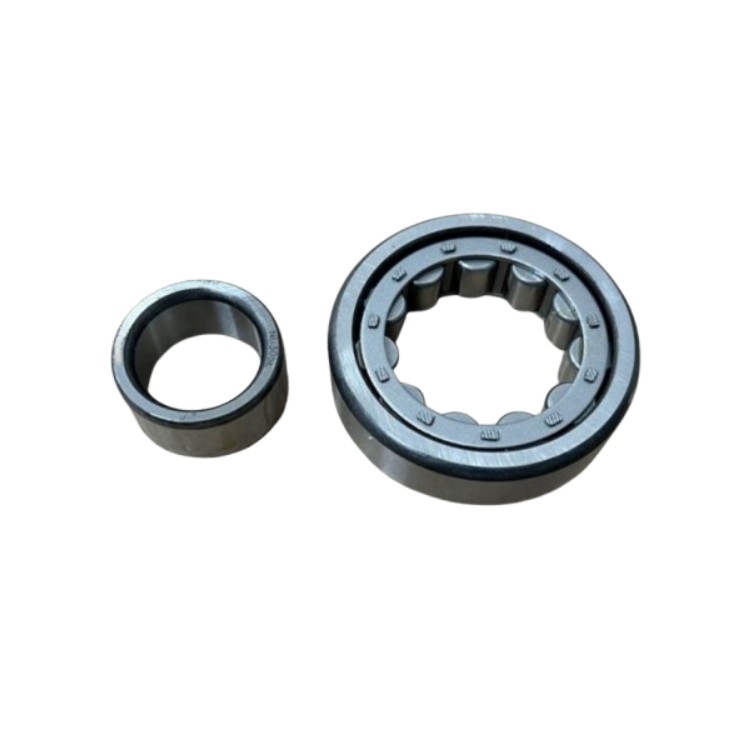

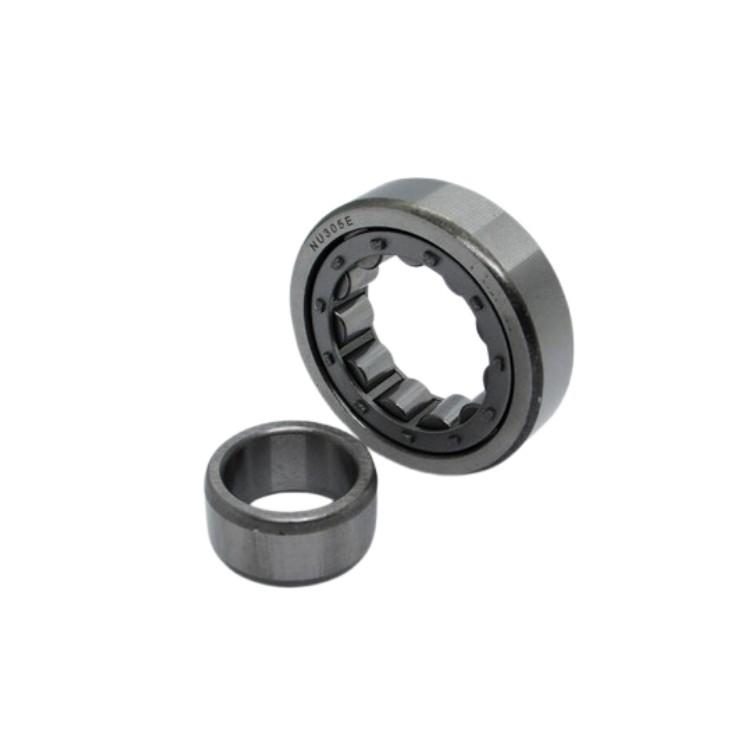

NU 305 M is a Cylindrical Roller Bearing with an inner ring, two integral flanges and a fully removable outer ring. Axial displacement of the shaft with respect to the housing can be accommodated in both directions. This bearing features a brass solid retainer, and surface finished roller ends. NU 305 M is manufactured with integral flanges which help reduce friction and improve lubrication. NU 305 M is capable of accommodating heavy radial loads at high speeds and has been pre-lubricated with light oil, ensuring it is ready for use upon arrival.
NU 305 M Cylindrical Roller Bearings are used in a variety of applications. Examples include Mining, Petroleum Production, Power Generation, Power Transmission, Cement Processing, Aggregate Crushing, and Metal Recycling.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for nj220?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for nj220? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for nj220?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nj220?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of nj220?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| d |
25 mm
|
Bore diameter |
|---|---|---|
| D |
62 mm
|
Outside diameter |
| B |
17 mm
|
Width |
| D1 |
≈50.25 mm
|
Shoulder diameter of outer ring |
| F |
34 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
| r3,4 |
min.1.1 mm
|
Chamfer dimension |
| s |
max.1.3 mm
|
Permissible axial displacement |
| Bearing number | d | D | B | C | C0 |
| NUP203 ECP | 17 | 40 | 12 | 17,2 | 14,3 |
| NUP2203 ECP | 17 | 40 | 16 | 23,8 | 21,6 |
| NUP204 ECML | 20 | 47 | 14 | 28,5 | 22 |
| NUP204 ECPHA | 20 | 47 | 14 | 28,5 | 22 |
| NUP204 ECP | 20 | 47 | 14 | 28,5 | 22 |
| NUP304 ECP | 20 | 52 | 15 | 35,5 | 26 |
| NUP2304 ECP | 20 | 52 | 21 | 47,5 | 38 |
| NUP205 ECP | 25 | 52 | 15 | 32,5 | 27 |
| NUP205 ECML | 25 | 52 | 15 | 32,5 | 27 |
| NUP2205 ECP | 25 | 52 | 18 | 39 | 34 |
| NUP305 ECML | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP305 ECJ | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP305 ECP | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP2305 ECP | 25 | 62 | 24 | 64 | 55 |
| NUP2305 ECML | 25 | 62 | 24 | 64 | 55 |
| NUP206 ECML | 30 | 62 | 16 | 44 | 36,5 |
| NUP206 ECP | 30 | 62 | 16 | 44 | 36,5 |
| NUP2206 ECP | 30 | 62 | 20 | 55 | 49 |
| NUP306 ECP | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECJ | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECM | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECML | 30 | 72 | 19 | 58,5 | 48 |
| NUP2306 ECML | 30 | 72 | 27 | 83 | 75 |
| NUP2306 ECP | 30 | 72 | 27 | 83 | 75 |
| NUP207 ECJ | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECML | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECP | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECM | 35 | 72 | 17 | 56 | 48 |
| NUP2207 ECP | 35 | 72 | 23 | 69,5 | 63 |
| NUP307 ECP | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECJ | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECM | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECML | 35 | 80 | 21 | 75 | 63 |
| NUP2307 ECP | 35 | 80 | 31 | 106 | 98 |
| NUP208 ECJ | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECML | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECM | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECP | 40 | 80 | 18 | 62 | 53 |
| NUP2208 ECP | 40 | 80 | 23 | 81,5 | 75 |
| NUP2208 ECJ | 40 | 80 | 23 | 81,5 | 75 |
| NUP308 ECM | 40 | 90 | 23 | 93 | 78 |
| NUP308 ECP | 40 | 90 | 23 | 93 | 78 |
| NUP308 ECML | 40 | 90 | 23 | 93 | 78 |
| NUP2308 ECML | 40 | 90 | 33 | 129 | 120 |
| NUP2308 ECM | 40 | 90 | 33 | 129 | 120 |
| NUP2308 ECP | 40 | 90 | 33 | 129 | 120 |
| NUP209 ECJ | 45 | 85 | 19 | 69,5 | 64 |
