The roller and raceway surface of Cylindrical Roller Bearing is line contact, so the bearing has high carrying radial load capacity, applicable to carrying heavy load and shock load

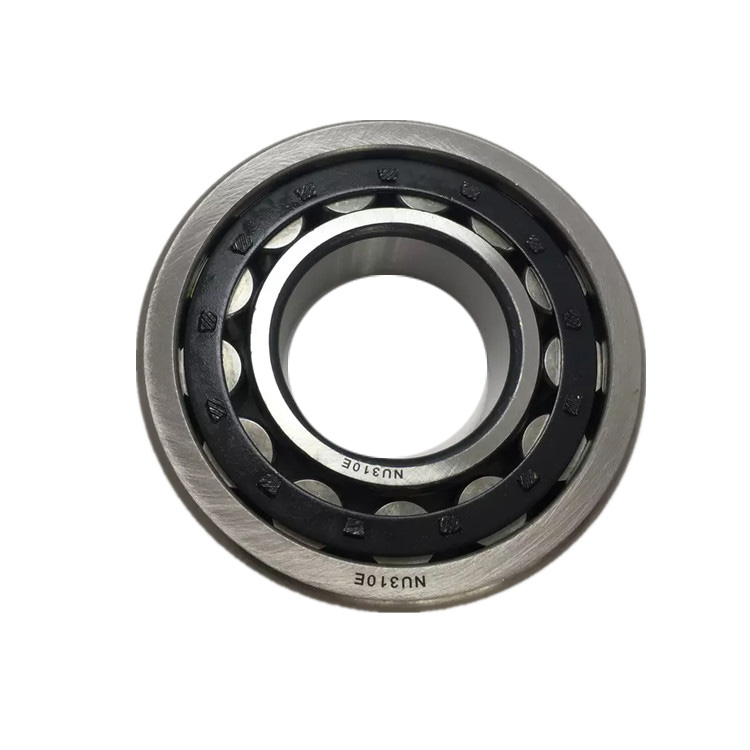

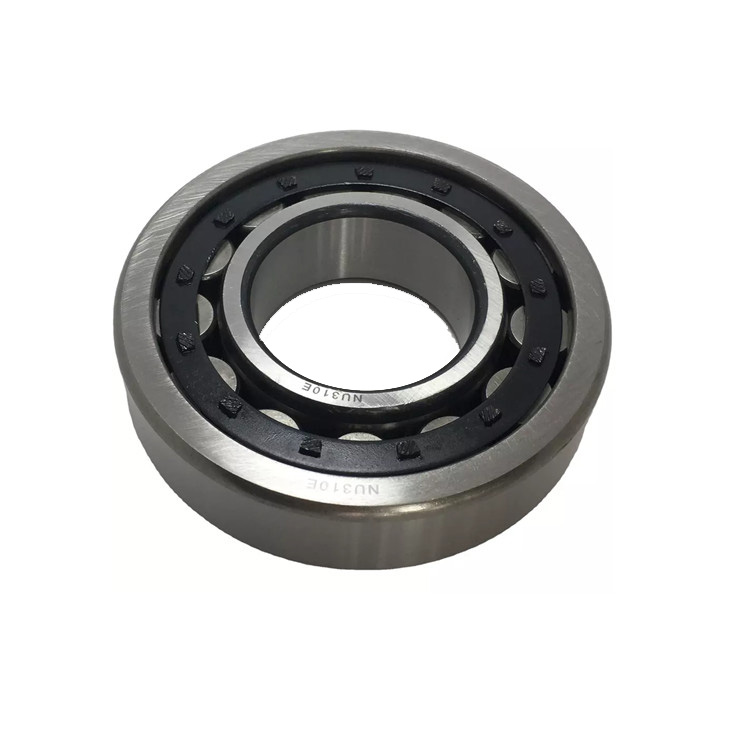

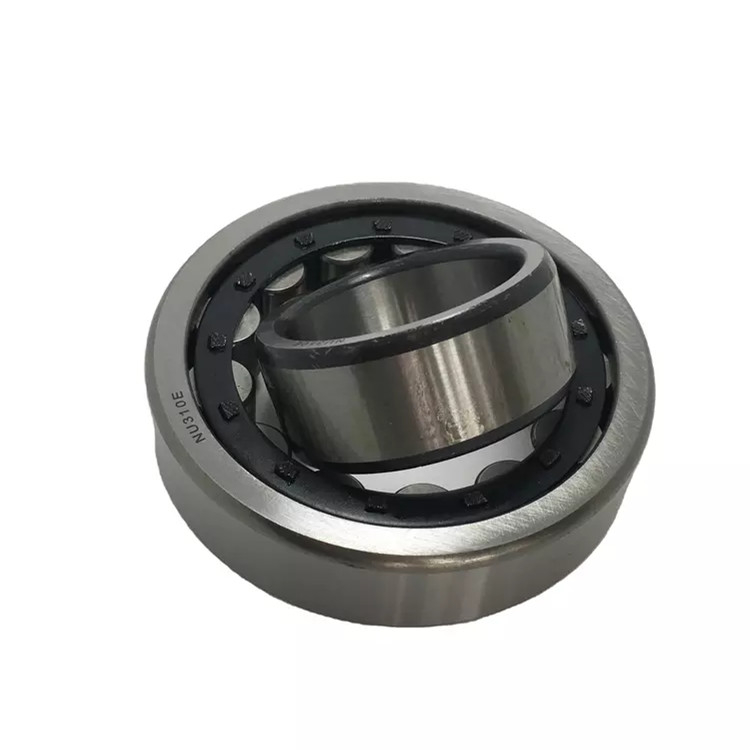

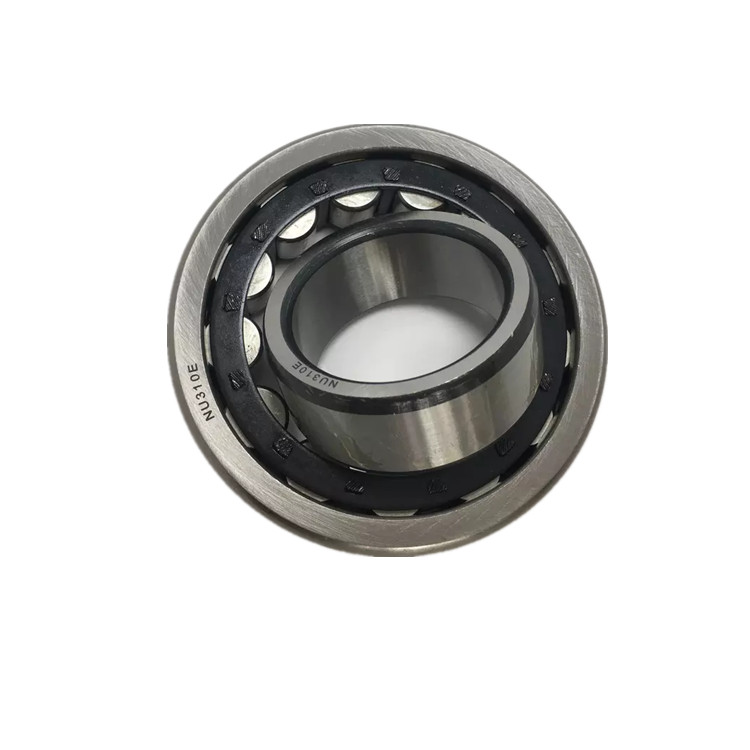

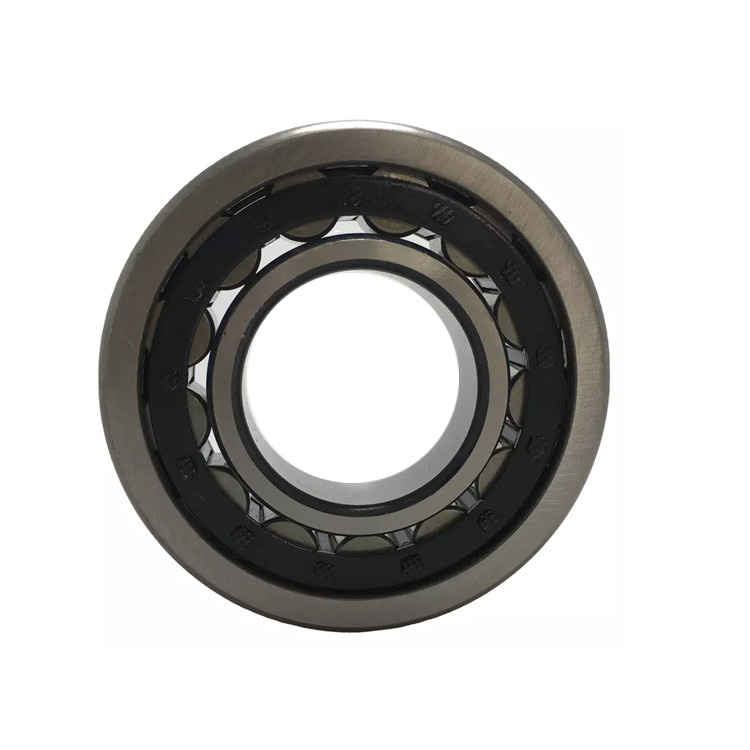

NU bearing NU310 cylindrical roller bearing NU310E NU310ECJ
Cylindrical roller bearing is separable bearing whose inner ring and outer ring is separate. It can bear large radial load and can work under high speed operations. According to whether there is guard on the ring or not, cylindrical roller bearing can be divided into single row bearing like N, NU, NUP, NF, NJ series and double row bearing such as NNU,NN series.
NU bearing is single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.
Applications:
Large and medium-sized motor, locomotives, spindle, internal combustion engines, generators, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for nu bearing nu310?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for nu bearing nu310? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for nu bearing nu310?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nu bearing nu310?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of nu bearing nu310?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
d |
50 mm
|
Bore diameter |
---|---|---|
D |
110 mm
|
Outside diameter |
B |
27 mm
|
Width |
D1 |
≈91.4 mm
|
Shoulder diameter of outer ring |
F |
65 mm
|
Raceway diameter of inner ring |
r1,2 |
min.2 mm
|
Chamfer dimension |
r3,4 |
min.2 mm
|
Chamfer dimension |
s |
max.1.9 mm
|
Permissible axial displacement |
MODEL
|
SIZE
|
MODEL
|
SIZE
|
|
NU2210ETN1
|
50*90*23mm
|
|
NUP311NM
|
55*120*29mm
|
NUP2210M
|
50*90*23mm
|
|
NUP311ERNF1
|
55*120*29mm
|
NU2210
|
50*90*23mm
|
|
NUP311EM
|
55*120*29mm
|
NUP2210
|
50*90*23mm
|
|
NU311M/YA4
|
55*120*29mm
|
NUP2210EM
|
50*90*23mm
|
|
NU311M/C3
|
55*120*29mm
|
NUP2210EF1
|
50*90*23mm
|
|
NU311EM
|
55*120*29mm
|
NU2210EM
|
50*90*23mm
|
|
NU311EF1
|
55*120*29mm
|
NU2210EF1
|
50*90*23mm
|
|
NU311/C3
|
55*120*29mm
|
NU310E
|
50*110*27mm
|
|
NU311M/C2
|
55*120*29mm
|
NUP310E
|
50*110*27mm
|
|
NUP311-E-TVP2
|
55*120*29mm
|
NU310
|
50*110*27mm
|
|
NU2311E
|
55*120*43mm
|
NU310ETN1
|
50*110*27mm
|
|
NUP2311E
|
55*120*43mm
|
NU310M
|
50*110*27mm
|
|
NU2311M
|
55*120*43mm
|
NU310M/S0
|
50*110*27mm
|
|
NUP2311M
|
55*120*43mm
|
NUP310
|
50*110*27mm
|
|
NU2311
|
55*120*43mm
|
NUP310NV/RO1S0
|
50*110*27mm
|
|
NUP2311
|
55*120*43mm
|
NUP310ENV
|
50*110*27mm
|
|
NU2311EM
|
55*120*43mm
|
NUP310NV/C3YA
|
50*110*27mm
|
|
NUP2311EF1
|
55*120*43mm
|
NUP310NV/C3R
|
50*110*27mm
|
|
NU411
|
55*140*33mm
|
NUP310N/YA
|
50*110*27mm
|
|
NU411M
|
55*140*33mm
|
NUP310M
|
50*110*27mm
|
|
NUP411
|
55*140*33mm
|
NUP310ENV/C3
|
50*110*27mm
|
|
NUP411M
|
55*140*33mm
|
NUP310ENF1
|
50*110*27mm
|
|
NU411M/C4
|
55*140*33mm
|
NUP310EN
|
50*110*27mm
|
|
NU411M/C3
|
55*140*33mm
|
NUP310EM
|
50*110*27mm
|
|
RNU1010M
|
57.5*80*16mm
|
NU310M/S1
|
50*110*27mm
|
|
RNU309M
|
58.5*100*25mm
|
NU310M/C3
|
50*110*27mm
|
|
RNU309EM
|
58.5*100*25mm
|
NU310EM
|
50*110*27mm
|
|
RNU2309
|
58.5*100*36mm
|
NU310/C3YA
|
50*110*27mm
|
|
RNU2309M
|
58.5*100*36mm
|
NU310/C3
|
50*110*27mm
|
|
RNU6/59.422V/P6
|
59*90*23mm
|
NU310/Z1
|
50*110*27mm
|
|
RNU210EM
|
59.5*90*20mm
|
NU310/C2
|
50*110*27mm
|
|
NU1012
|
60*95*18mm
|
NU310M/C3S0
|
50*110*27mm
|
|
NU1012M
|
60*95*18mm
|
NUP310-E-TVP2
|
50*110*27mm
|
|
NU1012E
|
60*95*18mm
|
NU2310E
|
50*110*40mm
|
|
NU212E
|
60*110*22mm
|
NUP2310E
|
50*110*40mm
|
|
NUP212E
|
60*110*22mm
|
NU2310M
|
50*110*40mm
|
|
NU212
|
60*110*22mm
|
NUP2310F1/YA4
|
50*110*40mm
|
|
NU212M
|
60*110*22mm
|
NUP2310M/YA4
|
50*110*40mm
|
|
NU212ETN1
|
60*110*22mm
|
NU2310
|
50*110*40mm
|
|
NU212M/P6S0
|
60*110*22mm
|
NUP2310
|
50*110*40mm
|
|
NU212Q/P6S0
|
60*110*22mm
|
NUP2310M
|
50*110*40mm
|
|
NUP212M
|
60*110*22mm
|
NUP2310F1/YA4
|
50*110*40mm
|
|
NUP212
|
60*110*22mm
|
NUP2310EMA
|
50*110*40mm
|
|
NUP212EM
|
60*110*22mm
|
NU2310M/YA4
|
50*110*40mm
|
|
NU212Q1/S0
|
60*110*22mm
|
NU2310M/P62
|
50*110*40mm
|
|
NU212M/P63S0
|
60*110*22mm
|
NU2310M/C4
|
50*110*40mm
|
|
NU212M/C4
|
60*110*22mm
|
NU2310M/C3
|
50*110*40mm
|
|
NU212M/C3
|
60*110*22mm
|
NU2310M/C2
|
50*110*40mm
|
|
NU212EM
|
60*110*22mm
|
NU2310EM
|
50*110*40mm
|
|
NU2212E
|
60*110*28mm
|
NU2310EF1
|
50*110*40mm
|
|
NUP2212E
|
60*110*28mm
|
NU410
|
50*130*31mm
|
|
NU2212M
|
60*110*28mm
|
NUP410
|
50*130*31mm
|
|
NUP2212M
|
60*110*28mm
|
NU410M
|
50*130*31mm
|
|
NU2212
|
60*110*28mm
|
NUP410M
|
50*130*31mm
|
|
NUP2212
|
60*110*28mm
|
NU410NM
|
50*130*31mm
|
|
NUP2212EMA
|
60*110*28mm
|
NU410F1
|
50*130*31mm
|
|
NUP2212EM
|
60*110*28mm
|
RNU308EM/P6
|
52*90*23mm
|
|
NU2212EMA
|
60*110*28mm
|
RNU308EM/P5
|
52*90*23mm
|
|
NU2212EM
|
60*110*28mm
|
RNU308EM
|
52*90*23mm
|
|
NU312E
|
60*130*31mm
|
RNU1009M
|
52.5*75*16mm
|
|
NUP312E
|
60*130*31mm
|
RNU308M
|
53.5*90*23mm
|
|
NU312
|
60*130*31mm
|
RNU308M/P5
|
53.5*90*23mm
|
|
NU312M
|
60*130*31mm
|
RNU308E
|
53.5*90*23mm
|
|
NU312ETN1
|
60*130*31mm
|
RNU209EM
|
54.5*85*19mm
|
|
NUP312M
|
60*130*31mm
|
RNU209
|
55*85*19mm
|
|
NUP312EN
|
60*130*31mm
|
NU1011
|
55*90*18mm
|
|
NUP312
|
60*130*31mm
|
NU1011M
|
55*90*18mm
|
|
NUP312ENV
|
60*130*31mm
|
NU211E
|
55*100*21mm
|
|
NUP312EM
|
60*130*31mm
|
NUP211E
|
55*100*21mm
|
|
NUP312EF1
|
60*130*31mm
|
NU211
|
55*100*21mm
|
|
NUP312E/C9
|
60*130*31mm
|
NU211M
|
55*100*21mm
|
|
NU312Q1/S0
|
60*130*31mm
|
NU211ETN1
|
55*100*21mm
|
|
NU312Q1/P63S0
|
60*130*31mm
|
NUP211
|
55*100*21mm
|
|
NU312Q1
|
60*130*31mm
|
NUP211M
|
55*100*21mm
|
|
NU312M/P63S0
|
60*130*31mm
|
NUP211EM
|
55*100*21mm
|
|
NU312M/C5
|
60*130*31mm
|
NU211EM
|
55*100*21mm
|
|
NU312M/C3
|
60*130*31mm
|
NU211/C2
|
55*100*21mm
|
|
NU312EM
|
60*130*31mm
|
NU211/C3
|
55*100*21mm
|
|
NU312E/Z1
|
60*130*31mm
|
NU211/P6
|
55*100*21mm
|
|
NU312/C3
|
60*130*31mm
|
NU2211E
|
55*100*25mm
|
|
NU321EF1
|
60*130*31mm
|
NUP2211E
|
55*100*25mm
|
|
NU312/P63S0
|
60*130*31mm
|
NU2211M
|
55*100*25mm
|
|
NU312/P63S1
|
60*130*31mm
|
NU2211ETN1
|
55*100*25mm
|
|
NU312/S1
|
60*130*31mm
|
NUP2211M
|
55*100*25mm
|
|
NU312Q1/P53S0
|
60*130*31mm
|
NU2211
|
55*100*25mm
|
|
NU312Q1/P63S1
|
60*130*31mm
|
NUP2211
|
55*100*25mm
|
|
NUP312-E-TVP2
|
60*130*31mm
|
NUP2211EM
|
55*100*25mm
|
|
NU312ECP
|
60*130*31mm
|
NU2211ETN1
|
55*100*25mm
|
|
NU2312E
|
60*130*46mm
|
NU2211EM
|
55*100*25mm
|
|
NUP2312E
|
60*130*46mm
|
NU311E
|
55*120*29mm
|
|
NU2312
|
60*130*46mm
|
NUP311E
|
55*120*29mm
|
|
NU2312M
|
60*130*46mm
|
NU311
|
55*120*29mm
|
|
NUP2312
|
60*130*46mm
|
NU311ETN1
|
55*120*29mm
|
|
NUP2312M
|
60*130*46mm
|
NU311M
|
55*120*29mm
|
|
NU2312EM
|
60*130*46mm
|
NUP311M
|
55*120*29mm
|
|
NU2312L1
|
60*130*46mm
|
NUP311N/YA
|
55*120*29mm
|
|
NU412
|
60*150*35mm
|
NUP311EN
|
55*120*29mm
|
|
NUP412
|
60*150*35mm
|
NUP311
|
55*120*29mm
|
|
NU412M
|
60*150*35mm
|
NUP311NV/C3
|
55*120*29mm
|
|
NUP412F1
|
60*150*35mm
|
