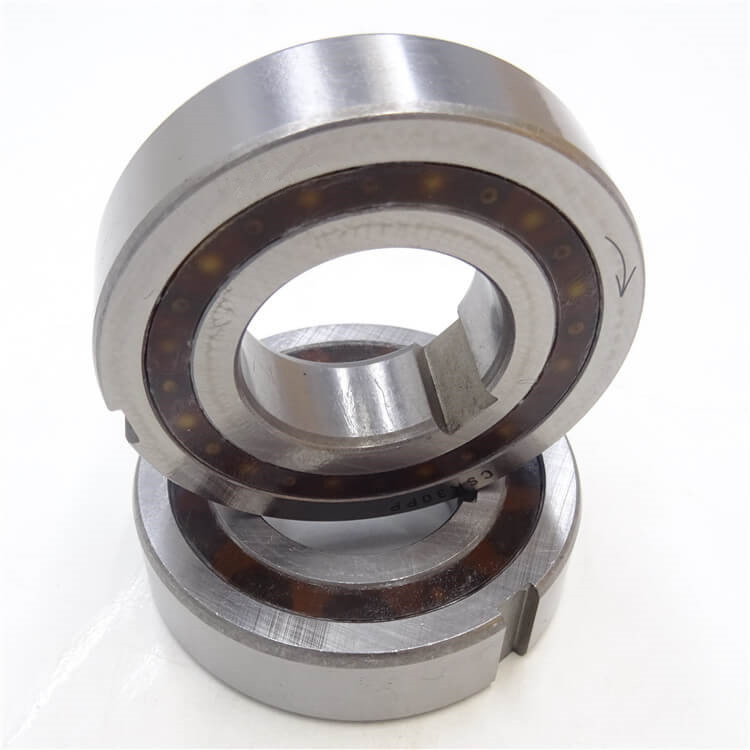

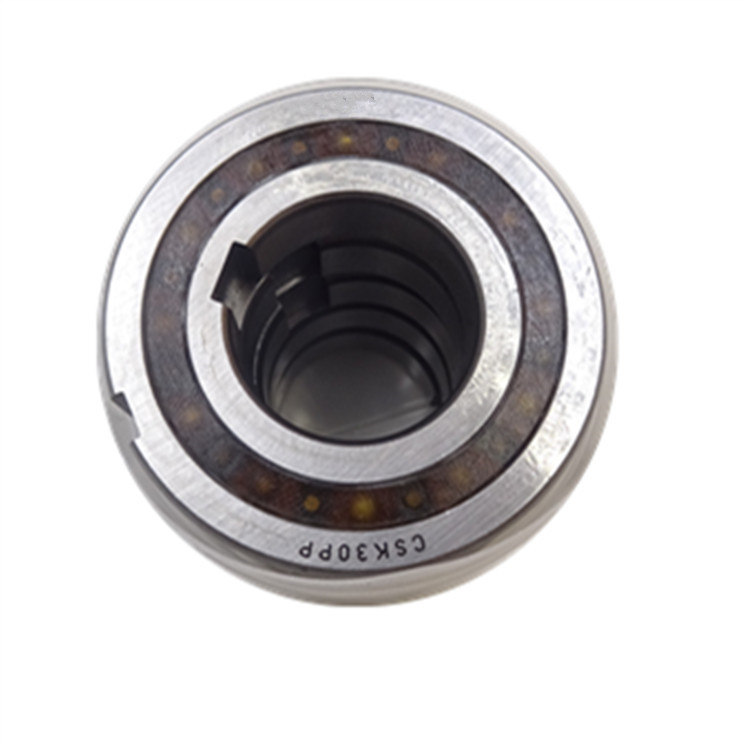

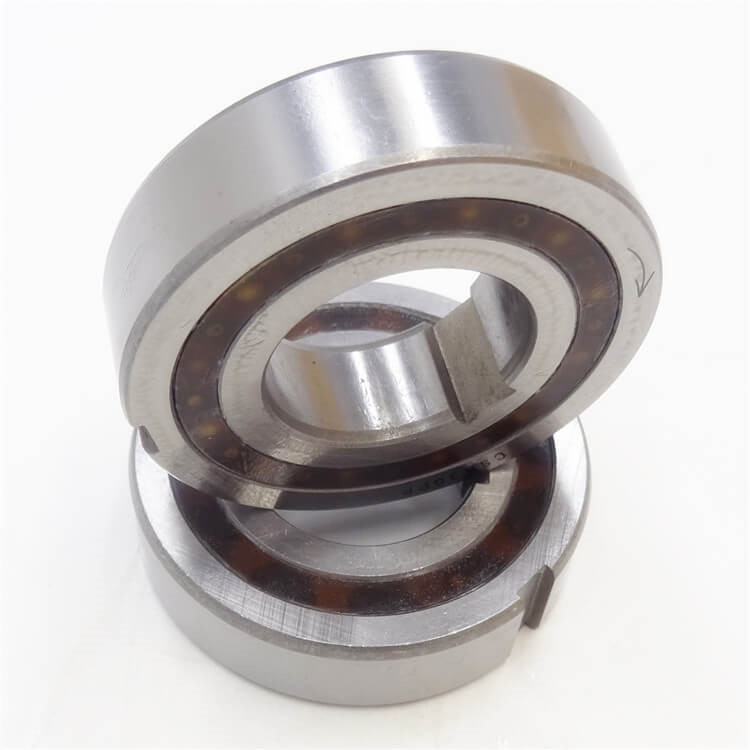

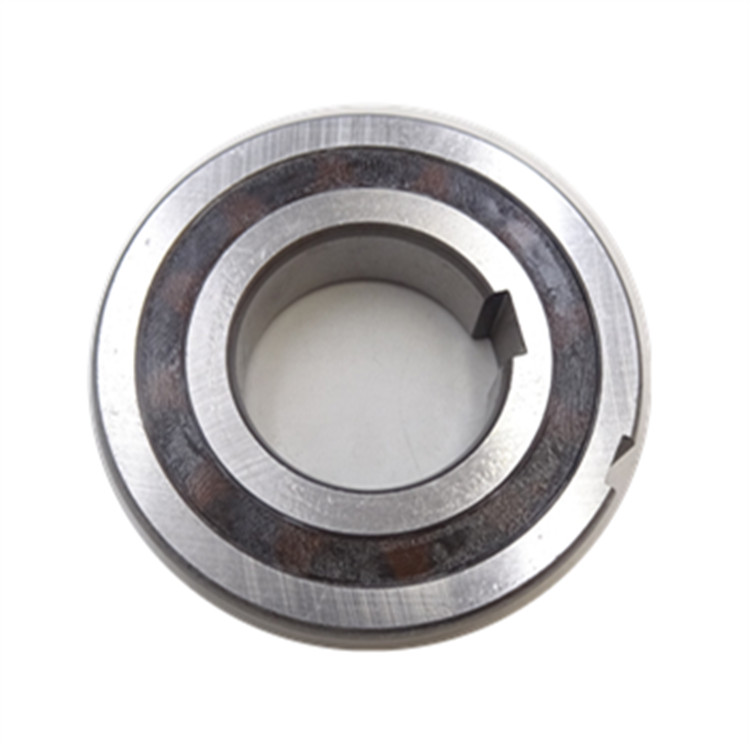

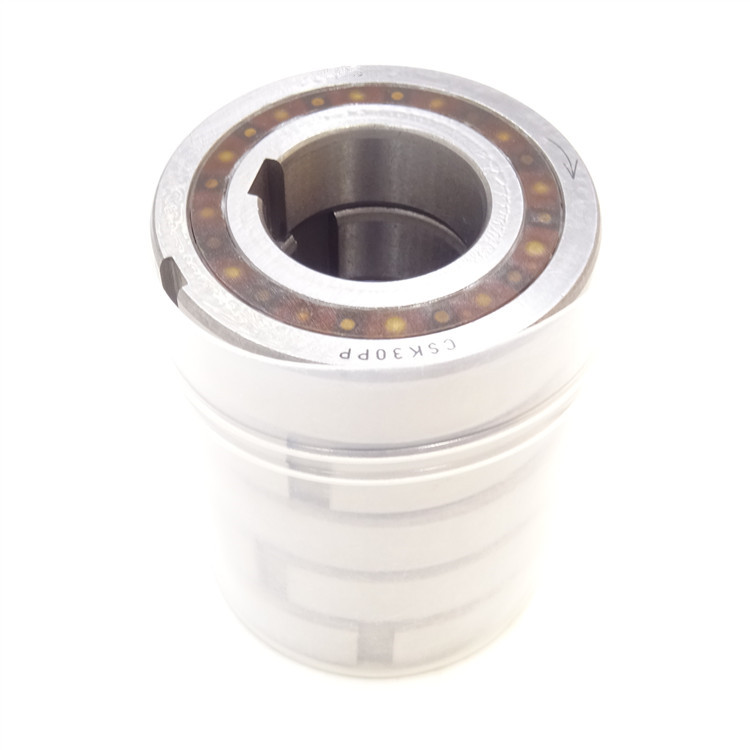

One way bearing with keyway csk 30 pp bearing

One way bearing with keyway csk 30 pp bearing is free to rotate in one direction, while in the other direction on a bearing locked. One-way bearings inside the metal shell that contains lots of roller, needle or ball, and the rolling seat (hole) shape so that it can only scroll in one direction, while in the other direction will have great resistance.


Product Specification:

  • Model csk30pp
  • Origin China
See Price

One way bearing with keyway csk 30 pp bearing

one way bearing with keyway

precision one way bearing with keyway

Kind of One way bearing with keyway csk 30 pp bearing:
1. CSK bearing is one way bearing with a sprag type.
2. CSK bearing has CSK..P, CSK..PP series.
3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).
4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.
5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.
6. One way clutch (overrunning clutch), GFR, MZ series.

one way bearing with keyway

one way bearing with keyway

Features of One way bearing with keyway csk 30 pp bearing:

1.High carrying capacity

2.Enough storage grease space

3.High limited speed

4.Long life

csk 30 pp bearing

FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for One way bearing with keyway csk 30 pp bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for One way bearing with keyway csk 30 pp bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for One way bearing with keyway csk 30 pp bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of One way bearing with keyway csk 30 pp bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your One way bearing with keyway csk 30 pp bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need One way bearing with keyway csk 30 pp bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Brand LLH
Standard DIN GB ISO JIS BA ANSI
Grade ABEC-3 ABEC-5 , ABEC-7, ABEC-9
Clearance C0, C3 ,C5
Package carton package
Used Machine,wheel hub



csk 30 pp bearing

Type   Size  Bearing series                Bearing loads Weight   Drag torque
dynamic static
d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
CSK..P  12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 325 3000 80 22 15.54 12.25 0.5 7
CSK..PP  15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS        12 9.3 10000 32 14 6.1 2.77 0.05 3
15 17 8400 35 16 7.4 3.42 0.07 4
17 30 7350 40 17 7.9 3.8 0.09 5.6
20 50 6000 47 19 9.4 4.46 0.145 6
25 85 5200 52 20 10.7 5.46 0.175 6
30 138 4200 62 21 11.7 6.45 0.27 7.5
35 175 3600 72 22 12.6 7.28 0.4 8.2
40 325 3000 80 27 15.54 12.25 0.6 10

high quality csk 30 pp bearing
