pillow block bearings manufacturers plummer block widely used in Paper machines, conveyor equipment, rotary kilns, drums, tube mills, converters, large electrical machines, rail vehicles,etc.

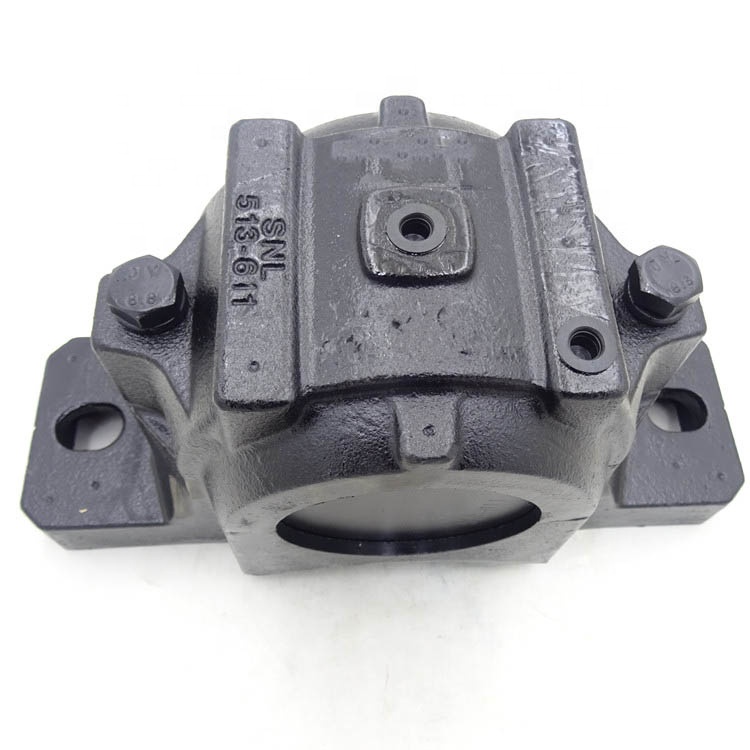

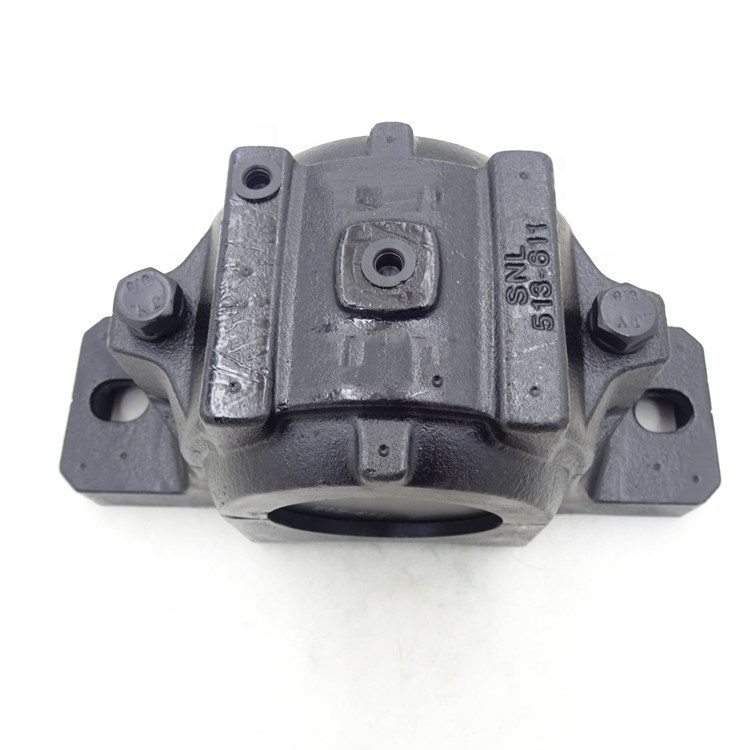

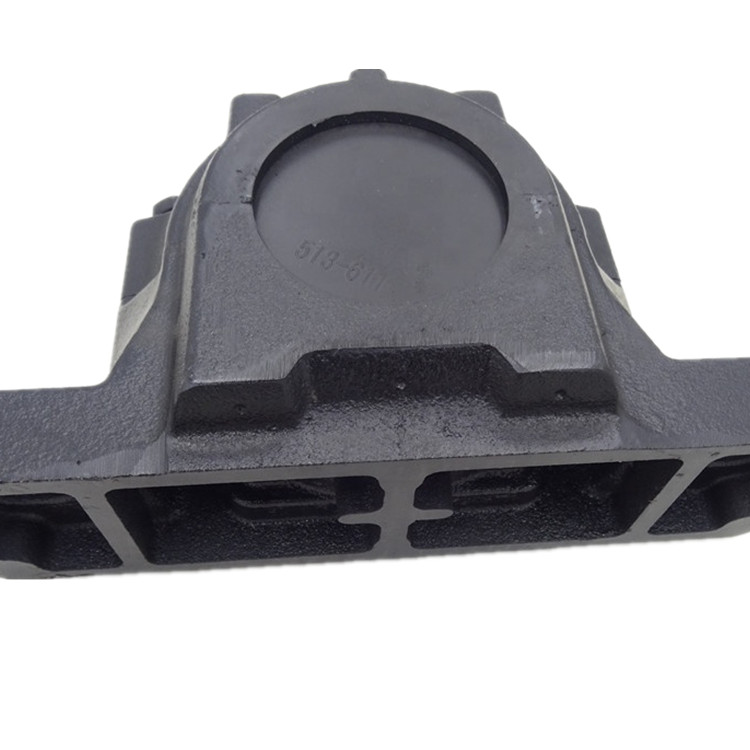

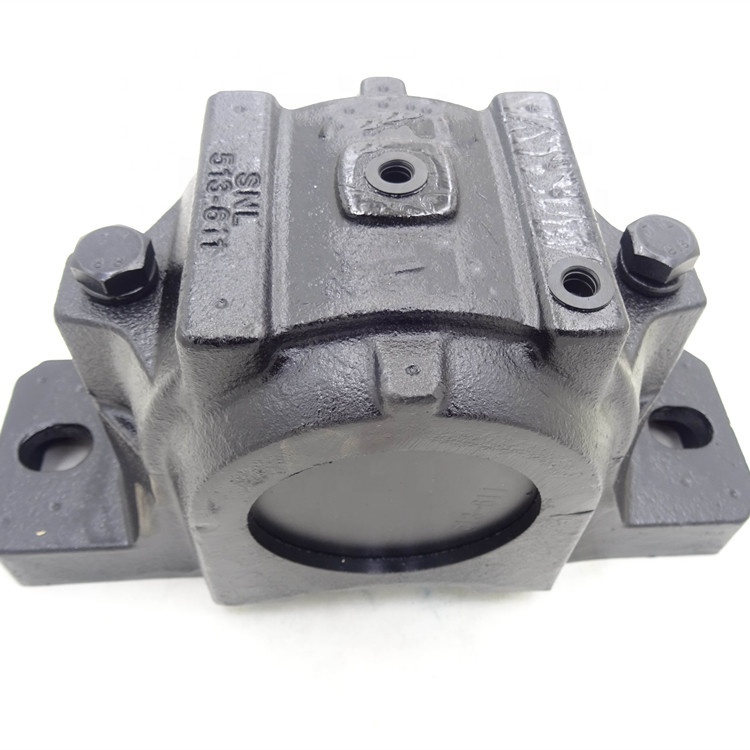

pillow block bearings manufacturers SNL513-611 plummer block manufacturers
pillow block bearings manufacturers SNL513-611 plummer block housing for bearings on adapter sleeve are typically used with self-aligning ball bearings, spherical roller bearings or CARB toroidal roller bearings fitted on straight or stepped shafts; the bearings can be mounted on adapter or withdrawal sleeves or directly on cylindrical shaft seats. These housings can also be used with other bearing types if they are within the correct Dimension Series.SNL plummer block housings set enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.
pillow block bearings manufacturers SNL plummer block housings are made of grey cast iron. For applications where the strength of grey cast iron is inadequate, dimensionally equivalent housings made of spheroidal graph-ite cast iron can be supplied. These housings are only available with four cast attachment bolt holes (series FSNLD) or without any holes in the base (series SSNLD).
FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for pillow block bearings manufacturers SNL513-611 plummer block manufacturers?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for pillow block bearings manufacturers SNL513-611 plummer block manufacturers? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for pillow block bearings manufacturers SNL513-611 plummer block manufacturers?
A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for pillow block bearings manufacturers SNL513-611 plummer block manufacturers?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for pillow block bearings manufacturers SNL513-611 plummer block manufacturers?
A: Usually ≥1, According your demand.
9,Q: Will you check these pillow block bearings manufacturers SNL513-611 plummer block manufacturers before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the pillow block bearings manufacturers SNL513-611 plummer block manufacturers?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
Product Name
|
SNL513-611
|
Material
|
Stainless steel bearings, bearing steel, chrome steel, carbon steel
|
Precision
|
P0-P6-P5-P4-P2
|
Seal
|
Z,ZZ.2RS,RS,open
|
Using
|
Agricultural machinery ,construction machinery,engineering machinery,household appliances,internal combustion engines
|
Housing NO. |
Shaft dia d1(mm) |
Dimensions(mm) | Housing Weightt (kg) |
Seals | Bearing NO. |
||||||||||||
A1 | H | H1 | H2 | J | L | N | N1 | G | Ca | Da | |||||||
NO. | QTY | ||||||||||||||||
SNL505 | 20 | 46 | 74 | 40 | 19 | 130 | 165 | 20 | 15 | 12 | 25 | 52 | 1.9 | TSNG505 TSNS505 |
1205K | FR52x3.5 | 2 |
SNL506-605 | 25 | 52 | 89 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | 32 | 62 | 2.2 | TSNG506 TSNS506 |
1206K | FR62x6 | 2 |
SNL507-606 | 30 | 52 | 93 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | 34 | 72 | 2.4 | TSNG507 TSNS507 |
1207K | FR72x5.5 | 2 |
SNL508-607 | 35 | 60 | 108 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 39 | 80 | 3.2 | TSNG508 TSNS508 |
1208K | FR80x8 | 2 |
SNL509 | 40 | 60 | 109 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 30 | 85 | 3.5 | TSNG509 TSNS509 |
1209K | FR85x3.5 | 2 |
SNL510-608 | 45 | 60 | 113 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 41 | 90 | 3.85 | TSNG510 TSNS510 |
1210K | FR90x9 | 2 |
SNL511-609 | 50 | 70 | 128 | 70 | 28 | 210 | 255 | 24 | 18 | 16 | 44 | 100 | 5.4 | TSNG511 TSNS511 |
1211K | FR100x9.5 | 2 |
SNL512-610 | 55 | 70 | 134 | 70 | 30 | 210 | 255 | 24 | 18 | 16 | 48 | 110 | 6.7 | TSNG512 TSNS512 |
1212K | FR110x10 | 2 |
SNL513-611 | 60 | 80 | 149 | 80 | 30 | 230 | 275 | 24 | 18 | 16 | 51 | 120 | 7.9 | TSNG513 TSNS513 |
1213K | FR120x10 | 2 |
SNL515-612 | 65 | 80 | 155 | 80 | 30 | 230 | 280 | 24 | 18 | 16 | 56 | 130 | 9.7 | TSNG515 TSNS515 |
1215K | FR130x12.5 | 2 |
SNL516-613 | 70 | 90 | 177 | 95 | 32 | 260 | 315 | 28 | 22 | 20 | 58 | 140 | 11.5 | TSNG516 TSNS516 |
1216K | FR140x12.5 | 2 |
SNL517 | 75 | 90 | 183 | 95 | 32 | 260 | 320 | 28 | 22 | 20 | 61 | 150 | 12.8 | TSNG517 TSNS517 |
1217K | FR150x12.5 | 2 |
SNL518-615 | 80 | 100 | 194 | 100 | 35 | 290 | 345 | 28 | 22 | 20 | 65 | 160 | 15.4 | TSNG518 TSNS518 |
1218K 22218K |
FR160x12.5 FR160x6.25 |
2 2 |
SNL519-616 | 85 | 100 | 212 | 112 | 35 | 290 | 345 | 28 | 22 | 20 | 68 | 170 | 16.4 | TSNG519 TSNS519 |
1219K | FR170x12.5 | 2 |
SNL520-617 | 90 | 110 | 218 | 112 | 40 | 320 | 380 | 32 | 26 | 24 | 70 | 180 | 20.4 | TSNG520 TSNS520 |
1220K 22220K |
FR180x12 FR180x4.85 |
2 2 |
SNL522-619 | 100 | 120 | 242 | 125 | 45 | 350 | 410 | 32 | 26 | 24 | 80 | 200 | 26.5 | TSNG522 TSNS522 |
1222K 22222K |
FR200x13.5 FR200x5.1 |
2 2 |
SNL524-620 | 110 | 120 | 271 | 140 | 45 | 350 | 410 | 32 | 26 | 24 | 86 | 215 | 32.2 | TSNG524 TSNS524 |
1224K 22224K |
FR215x5 | 2 2 |
SNL526 | 115 | 130 | 290 | 150 | 50 | 380 | 445 | 35 | 28 | 24 | 90 | 230 | 39.8 | TSNG526 TSNS526 |
22226K | FR230x5 | 2 |
SNL528 | 125 | 150 | 302 | 150 | 50 | 420 | 500 | 42 | 35 | 30 | 98 | 250 | 48.8 | TSNG528 TSNS528 |
22228K | FR250x5 | 2 |
SNL530 | 135 | 160 | 323 | 160 | 60 | 450 | 530 | 42 | 35 | 30 | 106 | 270 | 56.5 | TSNG530 TSNS530 |
22230K | FR270x5 | 2 |
SNL532 | 140 | 160 | 344 | 170 | 60 | 470 | 550 | 42 | 35 | 30 | 114 | 290 | 63.5 | TSNG532 TSNS532 |
22232K | FR290x5 | 2 |
