plummer bearing housings are usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately
High quality plummer bearing housing f206 bearing
Description:
plummer bearing is usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately. Pillow blocks are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.
plummer bearing: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.

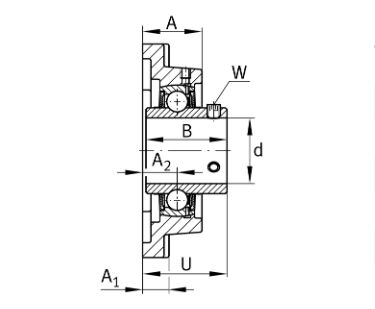

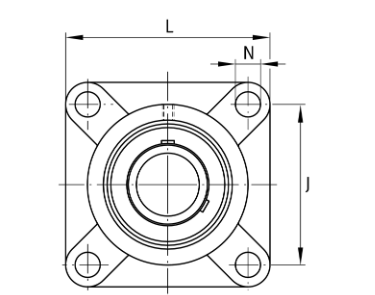

Roller pillow block bearing UCFL210 Details:
Bearing Number | F206 |
d | 30mm |
Housing Construction | Four-Bolt Flange |
L | 108.00mm |
A | 31.00mm |
J | 83.00mm |
N | 12.00mm |
A1 | 14.00mm |
A2 | 18.00mm |
B | 38.10mm |

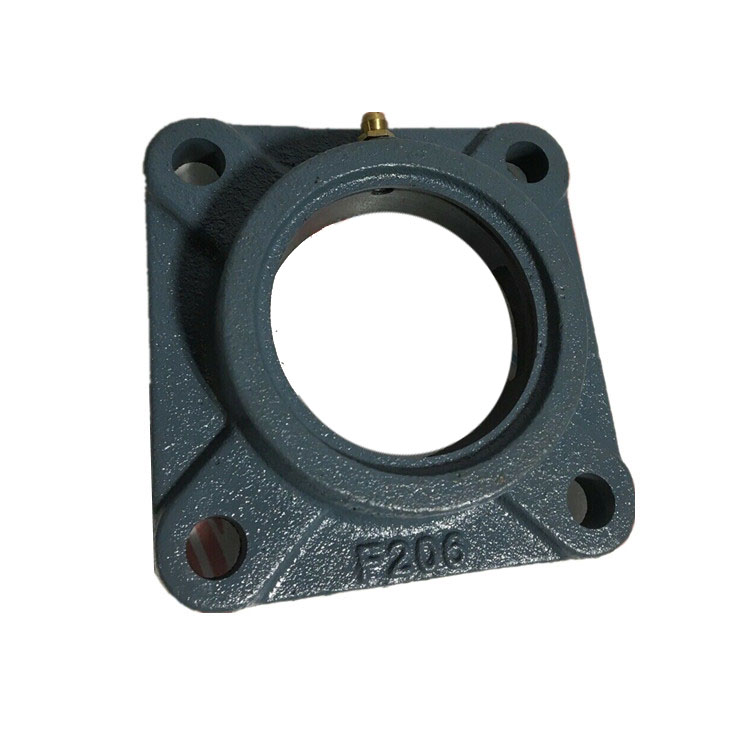

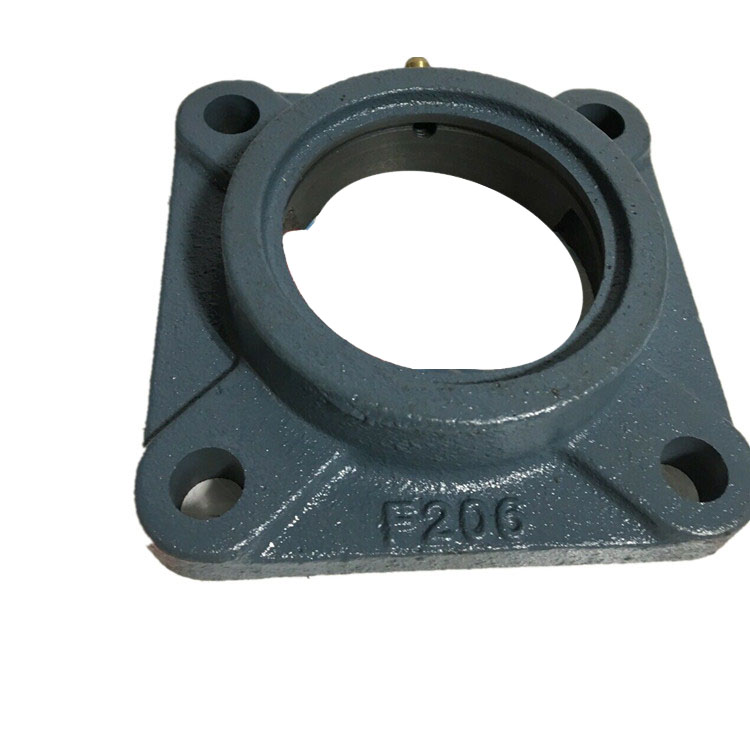

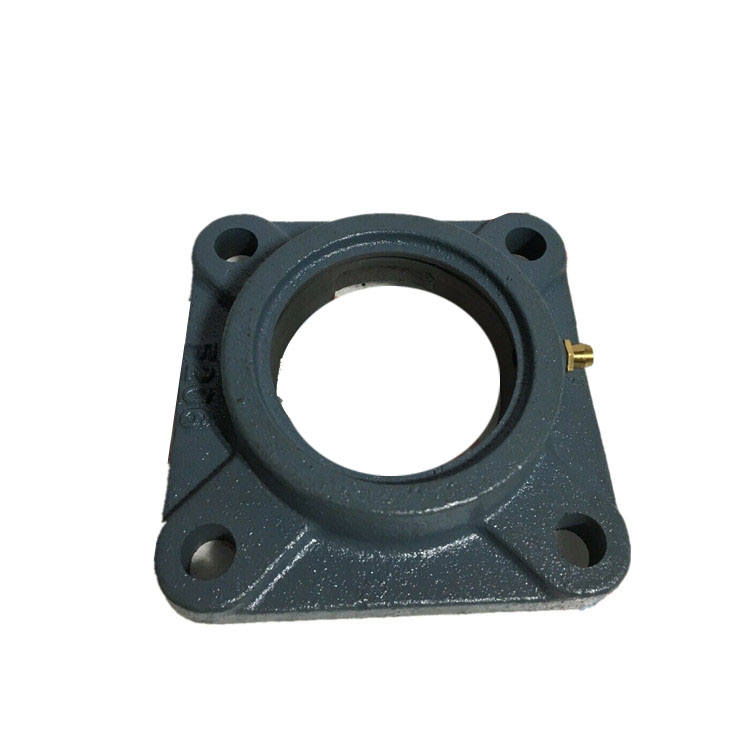

Roller pillow block bearing UCFL210 Pictures:
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for plummer bearing housing f206 bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for plummer bearing housing f206 bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for plummer bearing housing f206 bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for plummer bearing housing f206 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for plummer bearing housing f206 bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of plummer bearing housing f206 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your plummer bearing housing f206 bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these sprag bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the plummer bearing housing f206 bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
Type
|
Pillow Block Bearing
|
Model
|
UCFL210
|
Brand
|
LLH/OEM
|
d (mm)
|
22mm
|
Material
|
Chrome Steel GCR15
|
a (mm)
|
50mm
|
Seal type
|
Open
|
||
Precision rate
|
P0, P6, P5, or as requested
|
Payment Term
|
30% T/T In Advance, 70% T/T before shipment
|
Bearing Unit | Dimensions(mm) | Shaft Dia | Weight | |||||||||
No. | d | (kg) | ||||||||||
mm | a | e | b | i | g | l | z | s | n | Bi | ||
UCFL202 | 15 | 113 | 90 | 60 | 15 | 12 | 25.5 | 30.9 | 12 | 11.5 | 27.4 | 0.42 |
UCFL203 | 17 | 113 | 90 | 60 | 15 | 12 | 25.5 | 30.3 | 12 | 11.5 | 27.4 | 0.41 |
UCFL204 | 20 | 113 | 90 | 60 | 15 | 12 | 25.5 | 33.7 | 12 | 12.3 | 31 | 0.48 |
UCFL205 | 25 | 130 | 99 | 68 | 16 | 14 | 27 | 35.8 | 16 | 14.3 | 34.1 | 0.6 |
UCFL206 | 30 | 148 | 117 | 80 | 18 | 14 | 31 | 40.2 | 16 | 15.9 | 38.1 | 0.98 |
UCFL207 | 35 | 161 | 130 | 90 | 19 | 16 | 34 | 44.4 | 16 | 17.5 | 42.9 | 1.31 |
UCFL208 | 40 | 175 | 144 | 100 | 21 | 16 | 36 | 51.2 | 16 | 19 | 49.2 | 1.53 |
UCFL209 | 45 | 188 | 148 | 108 | 22 | 18 | 38 | 52.2 | 19 | 19 | 49.2 | 1.68 |
UCFL210 | 50 | 197 | 157 | 115 | 22 | 18 | 40 | 54.6 | 19 | 19 | 51.6 | 1.88 |
UCFL211 | 55 | 224 | 184 | 130 | 25 | 20 | 43 | 58.4 | 19 | 22.2 | 55.6 | 3.1 |
UCFL212 | 60 | 250 | 202 | 140 | 29 | 20 | 48 | 68.7 | 23 | 25.4 | 65.1 | 4 |
UCFL213 | 65 | 258 | 210 | 155 | 30 | 24 | 50 | 69.7 | 23 | 25.4 | 65.1 | 5 |
UCFL214 | 70 | 265 | 216 | 160 | 31 | 24 | 54 | 75.4 | 23 | 30.2 | 74.6 | 5.6 |
UCFL215 | 75 | 275 | 225 | 165 | 34 | 24 | 56 | 78.5 | 23 | 33.3 | 77.8 | 6.2 |
UCFL216 | 80 | 290 | 233 | 180 | 34 | 24 | 58 | 83.3 | 25 | 33.3 | 82.6 | 8.2 |
UCFL217 | 85 | 305 | 248 | 190 | 36 | 26 | 63 | 87.6 | 25 | 34.1 | 85.7 | 9.26 |
UCFL218 | 90 | 320 | 265 | 205 | 40 | 26 | 68 | 96.3 | 25 | 39.7 | 96 | 11.73 |
