RNA4906 needle roller bearing with high precision

Product Specification:

Model RNA4906
Size 35x47x17mm
Original China or as your request
Brand LLH or as your request

See Price

Product Details
Description
Specification
Our factory

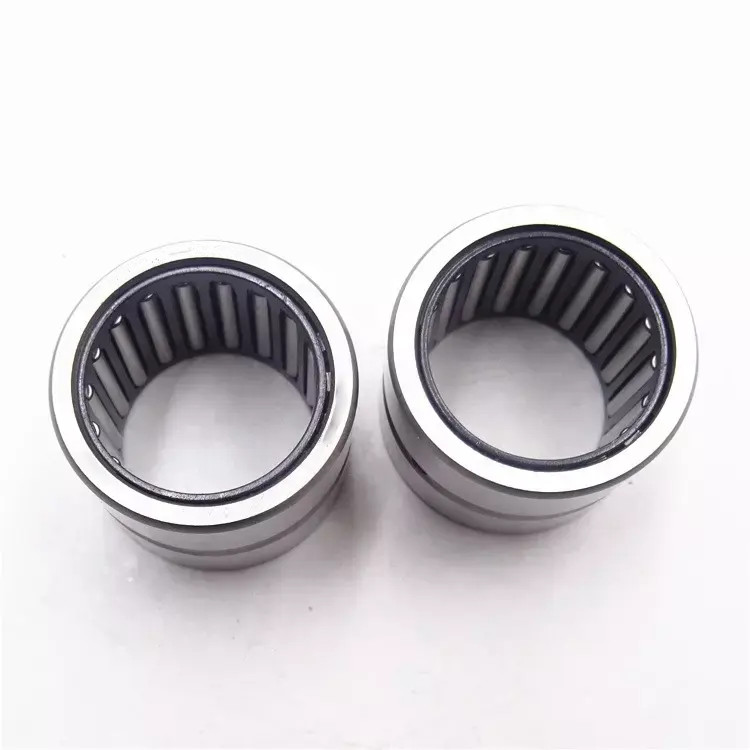

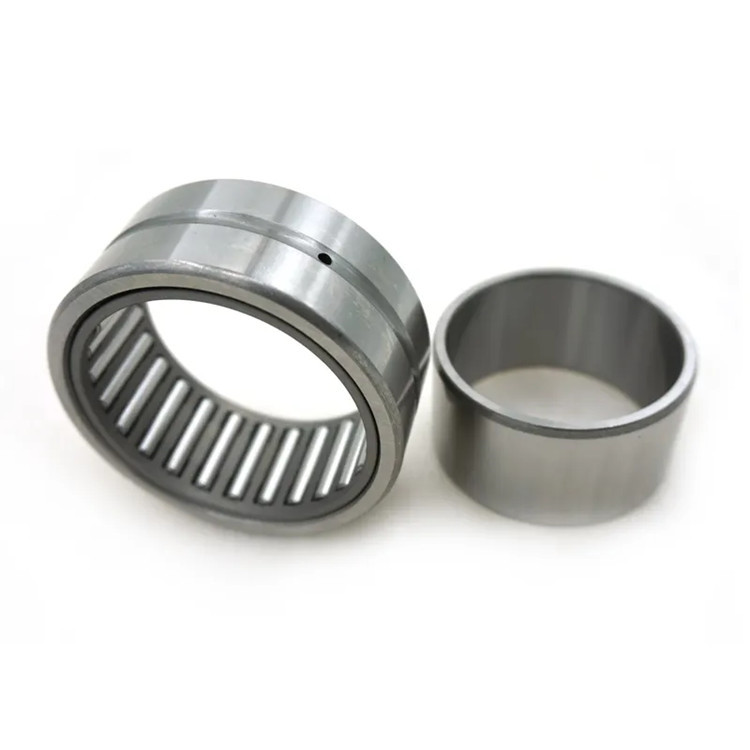

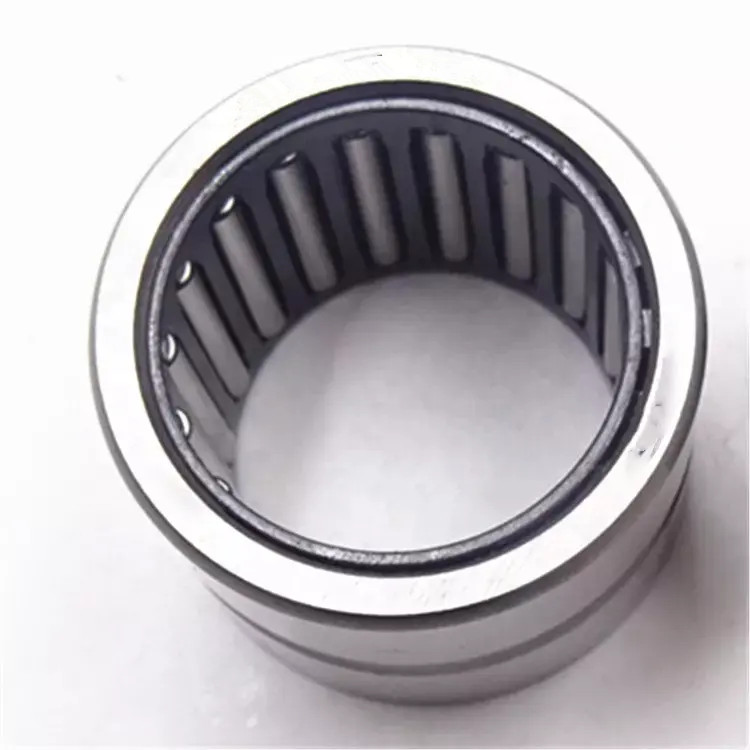

RNA4906 needle roller bearing with high precision

bearing supplier

These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.

Accommodate radial and axial loads in one direction
High load carrying capacity
Relatively high-speed capability
Low cross section
Separable design

rna4906 bearing rna4906 bearing factory rna4906 bearing manufacturer rna4906 bearing supplier

best groove ball bearing

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for RNA4906 needle roller bearing?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for RNA4906 needle roller bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for RNA4906 needle roller bearing?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of RNA4906 needle roller bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check RNA4906 needle roller bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need RNA4906 needle roller bearing or any brand bearings / any models of bearings, please contact me!
Contact: Bella
Email/Skype: skf@llhbearing.com
Tel/wechat:+8615318805907
MP/Whatsapp: +8615315596312

NO.	NO.	SIZE (MM)					BASIC LOAD RATING (KN)		LIMITING SPEED
with inner	without inner	d	Fw	D	C	rs/min	C	C0	r/min
NA495	RNA495	5	7	13	10	0.15	2.24	2.02	27200
NA496	RNA496	6	8	15	10	0.15	3.14	2.62	25600
NA497	RNA497	7	9	17	10	0.15	2.44	2.77	24000
NA498	RNA498	8	10	19	11	0.2	4.71	3.82	22400
NA499	RNA499	9	12	20	11	0.3	5.02	4.79	20800
NA4900	RNA4900	10	14	22	13	0.3	8.5	9.2	25000
NA4901	RNA4901	12	16	24	13	0.3	9.4	10.9	24000
NA4902	RNA4902	15	20	28	13	0.3	10.6	13.6	22000
NA4903	RNA4903	17	22	30	13	0.3	11	14.6	21000
NA4904	RNA4904	20	25	37	17	0.3	21	25.5	17000
NA49/22	RNA49/22	22	28	39	17	0.3	22.8	29.5	16000
NA4905	RNA4905	25	30	42	17	0.3	23.6	31.5	15000
NA49/28	RNA49/28	28	32	45	17	0.3	24.4	33.5	13000
NA4906	RNA4906	30	35	47	17	0.3	25	35.5	13000
NA49/32	RNA49/32	32	40	52	20	0.6	30.5	47.5	12000
NA4907	RNA4907	35	42	55	20	0.6	31.5	50	11000
NA4908	RNA4908	40	48	62	22	0.6	43	67	9500
NA4909	RNA4909	45	52	68	22	0.6	45	73	8500
NA4910	RNA4910	50	58	72	22	0.6	47	80	8000
NA4911	RNA4911	55	63	80	25	1	58	100	7500
NA4912	RNA4912	60	68	85	25	1	60	108	7000
NA4913	RNA4913	65	72	90	25	1	61	112	6500
NA4914	RNA4914	70	80	100	30	1	84	156	6000
NA4915	RNA4915	75	85	105	30	1	86	162	5500
NA4916	RNA4916	80	90	110	30	1	89	174	5000
NA4917	RNA4917	85	100	120	35	1.1	111	237	4800
NA4918	RNA4918	90	105	125	35	1.1	114	250	4300
NA4919	RNA4919	95	110	130	35	1.1	116	260	4400
NA4920	RNA4920	100	115	140	40	1.1	128	270	4100
NA4922	RNA4922	110	125	150	40	1.1	132	290	3800
NA4924	RNA4924	120	135	165	45	1.1	181	390	3400
NA4926	RNA4926	130	150	180	50	1.5	203	470	3200
NA4928	RNA4928	140	160	190	50	1.5	209	500	3000

high speed bearing

NKI series Shaft diameter: 5-100mm

NKI5/12 NKI 5/16 NKI6/12 NKI6/16 NKI7/12 NKI 7/16 NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16 NKI20/20 NKI22/16 NKI22/20 NKI25/20 NKI25/30 NKI28/20 NKI28/30 NKI30/20 NKI30/30 NKI32/20 NKI32/30 NKI35/20 NKI35/30 NKI38/20 NKI40/20 NKI40/30 NKI42/20 NKI42/30 NKI45/25 NKI45/35 NKI50/25 NKI50/35 NKI55/25 NKI55/35 NKI60/25 NKI60/35 NKI65/25 NKI65/35 NKI70/25 NKI70/35 NKI75/25 NKI75/35 NKI80/25 80/35 NKI85/26 NKI85/36

NKIS series Shaft diameter:15-65mm

NKIS 15 15X35X20MM NKIS 17 17X37X20MM NKIS 20 20X42X20MM NKIS 25 25X47X22MM NKIS 30 30X52X22MM NKIS 35 35X58X22MM NKIS 40
40X65X22MM NKIS 45 45X72X22MM NKIS 50 50X80X28MM NKIS 55 55X85X28MM NKIS 60 60X90X28MM NKIS 65 65X95X28MM

NA49 series:NA4900 NA4901 NA4902 NA4903 NA4904 NA4905NA4907 NA 4908 NA 4909 NA4910 NA4911 NA4912 NA4913 NA4914 NA4915 NA4916 NA4917 NA4918 NA4919 NA4920 NA4922 NA4924 NA4926 NA4928 NA49/28 NA19/32 NA49/22

NA69 Series: NA6901 NA6902 NA6903 NA6904 NA6905 NA6906 NA6907 NA6908 NA6909 NA6910 NA6911 NA6912 NA6913 NA6914 NA6915 NA6916 NA6917 NA6918 NA6919 NA69/22 NA69/32 NA69/28

NA48 series:NA4822 NA4824 NA4826 NA4828 NA4830 NA4832 NA4834 NA4836 NA4838 NA4840 NA4844 NA4848 NA4852 NA4856 NA4860 NA4864 NA4868 NA4872 NA4876

model code	d	D	T	Weight
	(mm)	(mm)	(mm)	(kg)
RNA69/22	22	39	30	0.1
RNA69/28	28	45	30	–
RNA69/32	32	52	36	–
RNA6901	12	24	22	0.03
RNA6902	15	28	23	0.038
RNA6903	17	30	23	0.04
RNA6904	20	37	30	0.096
RNA6905	25	42	30	0.112
RNA6906	35	47	30	0.126
RNA6907	42	55	36	0.182
RNA6908	48	62	40	0.247
RNA6909	52	68	40	0.334
RNA6910	58	72	40	0.291
RNA6911	63	80	45	0.458
RNA6912	68	85	45	0.49
RNA6913	72	90	45	0.541
RNA6914	80	100	54	0.827
RNA6915	85	105	54	0.866
RNA6916	90	110	54	0.916
RNA6917	100	120	63	1.17
RNA6918	105	125	63	1.21
RNA6919	110	130	63	1.27
RNA6920	100	140	71	–

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd.We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
