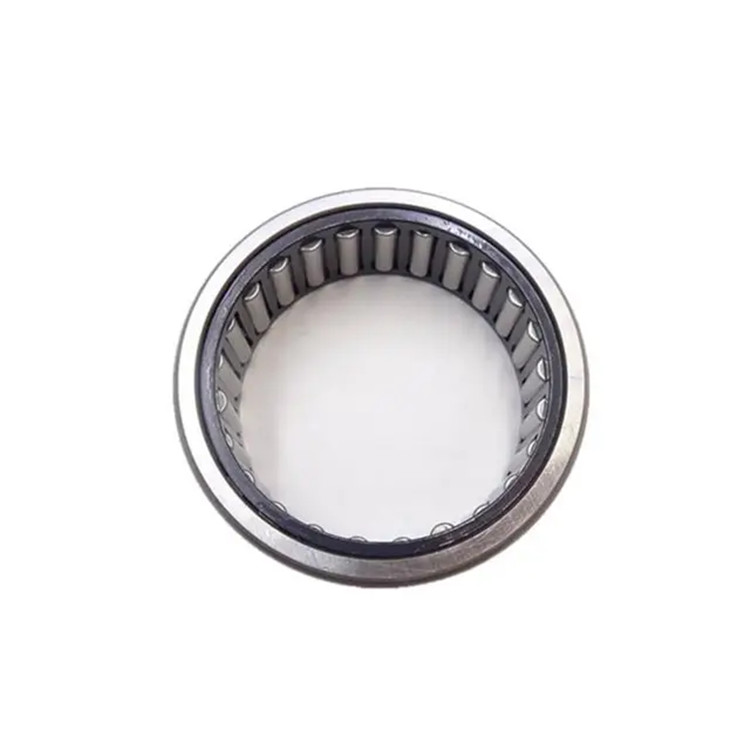

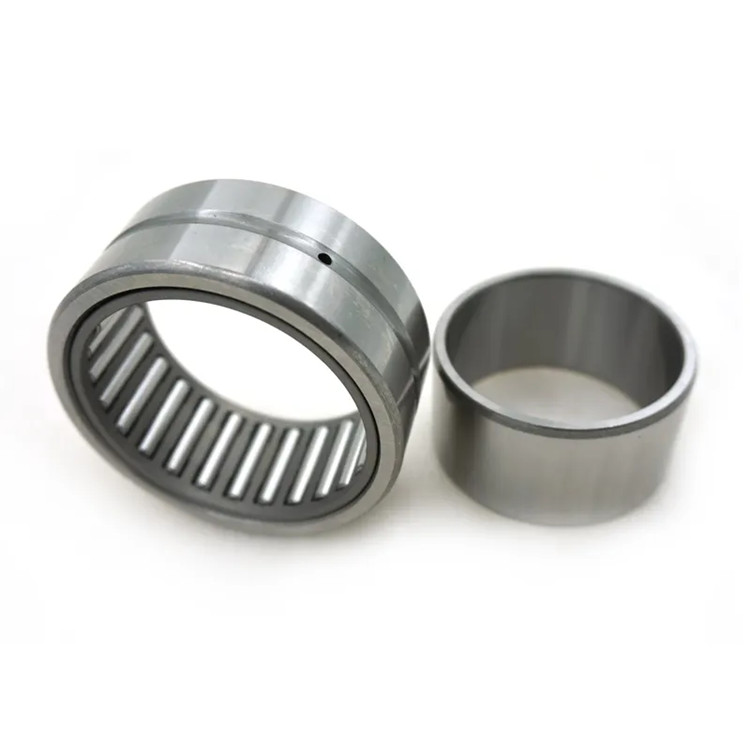

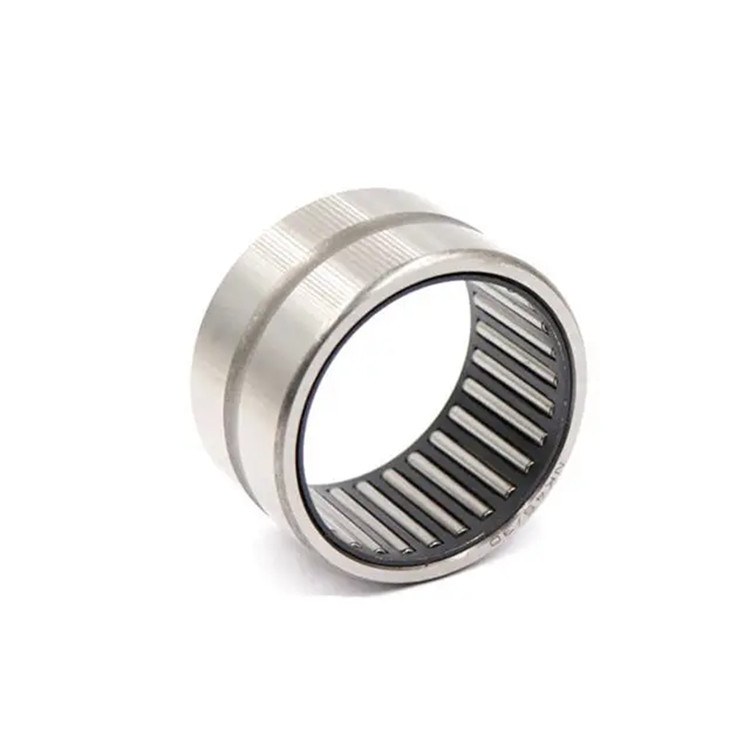

China factory RNA4914 needle roller bearing 80*100*30mm
China factory RNA4914 needle roller bearing 80*100*30mm
Introduction of Precision Needle Bearings:
The needle roller bearings are roller bearings with cylindrical rollers. Relative to its diameter, the roller is thin and long.This type roller called needle.Although with a small cross -section, the bearings still have high load tolerance.Needle bearing is equipped with a thin and long roller (the diameter of the roller is D≤5mm, L/D≥2.5, and l is the length of the roller), so when the radial structure is compact, its inner diameter size and load capacity are the same as other types of bearing, and the outer diameter is the smallest. It is particularly suitable for a supporting structure with limited diameter installation size.we produce different series,different needle bearing size needle roller bearing.

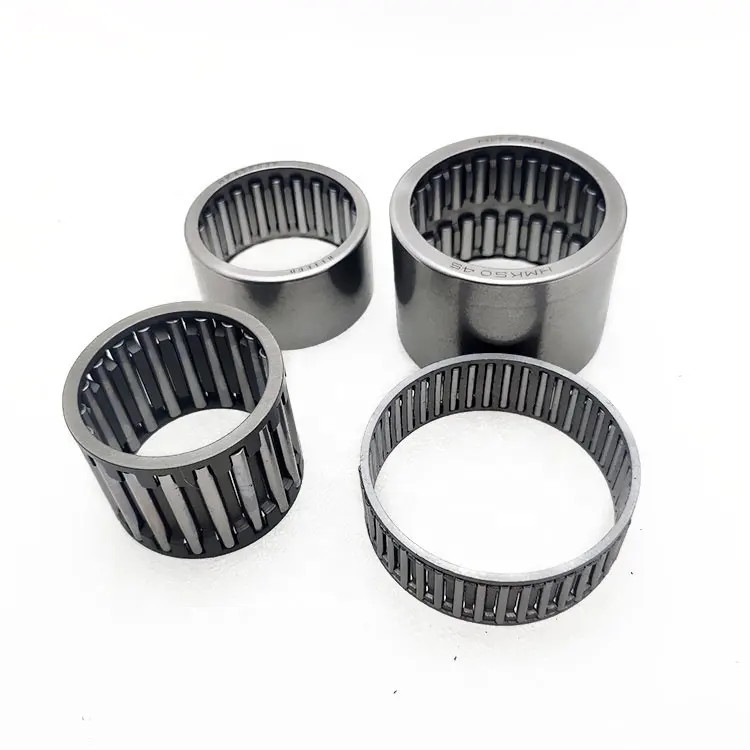

Pouring the outer ring needle roller bearing:The outer ring is formed with a thin steel plate, with small structural space and a large load capacity. It is suitable for the installation space to be restricted and the shell holes should not be used as rolling roads.
Type: BA,HK,HK..2RS,HF,BK, BK ... RS, FY, MF ...
Entity Rings Needle Bearings:It consists of one or two rings with cage which occupy small space and large transmission power.
NA,RNA,NKI,TAF,NK,PNA...
Combined Needle Bearings:it is a unit,consists of needle bearing and thrust bearing.The structure is compact and the volume is small, the rotation accuracy is high, and certain axial load can be suffered while tolerate high radial load. And the product structure is diverse, adaptable, and easy to install.
NKIA, NKIB, NKX, RAX, NX...Z...
Thrust Needle Bearings:It consists of 2 washers and 1 cage with needles embed in it.
AXK,NTA,80000 series...
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for RNA4914 needle roller bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for RNA4914 needle roller bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for RNA4914 needle roller bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for different type bearing, different needle bearing size ?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for RNA4914 needle roller bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of RNA4914 needle roller bearing?
A: Usually ≥10,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Bella
Email: skf@llhbearing.com
TEL/wechat/skype:+8615318805907
Whatsapp: +8615318805907
| Ring material | Chrome Steel GCr15 |
| Brand | LLH |
| Precision | P0,P6,P5,P4 |
| Clearance: | C2 ,C3, C4 |
| Quality standard | ISO9001:2008 |
| Samples | Available |
|
Bearing number
|
RNA4914 |
|
d mm
|
80 mm
|
|
D mm
|
100 mm
|
|
B mm
|
30 mm
|
|
Items NO.
|
d(mm)
|
D(mm)
|
B(mm)
|
Weight(kg)
|
|
NA4900
|
10
|
22
|
13
|
0.0240
|
|
NA4901
|
12
|
24
|
13
|
0.0265
|
|
NA4902
|
15
|
28
|
13
|
0.0360
|
|
NA4903
|
17
|
30
|
13
|
0.0370
|
|
NA4904
|
20
|
37
|
17
|
0.0740
|
|
NA49/22
|
22
|
39
|
17
|
0.0800
|
|
NA4905
|
25
|
42
|
17
|
0.0880
|
|
NA49/28
|
28
|
45
|
17
|
0.0980
|
|
NA4906
|
30
|
47
|
17
|
0.101
|
|
NA49/32
|
32
|
52
|
20
|
0.157
|
|
NA4907
|
35
|
55
|
20
|
0.171
|
|
NA4908
|
40
|
62
|
22
|
0.232
|
|
NA4909
|
45
|
68
|
22
|
0.232
|
|
NA4910
|
50
|
72
|
22
|
0.276
|
|
NA4911
|
55
|
80
|
25
|
0.396
|
|
NA4912
|
60
|
85
|
25
|
0.427
|
|
NA4913
|
65
|
90
|
25
|
0.454
|
|
NA4914
|
70
|
100
|
30
|
0.727
|
|
NA4915
|
75
|
105
|
30
|
0.776
|
|
NA4916
|
80
|
110
|
30
|
0.820
|
|
NA4917
|
85
|
120
|
35
|
1.240
|
|
NA4918
|
90
|
125
|
35
|
1.310
|
|
NA4919
|
95
|
130
|
35
|
1.360
|
|
NA4920
|
100
|
140
|
40
|
1.930
|
PS:This is part model number of bearings we have, if you are fail to find the one you need, please contact us directly.
