Application of rod ends and spherical bearings:Engineering hydraulic cylinders,Forging machines,Construction machinery, Auto shock absorber etc

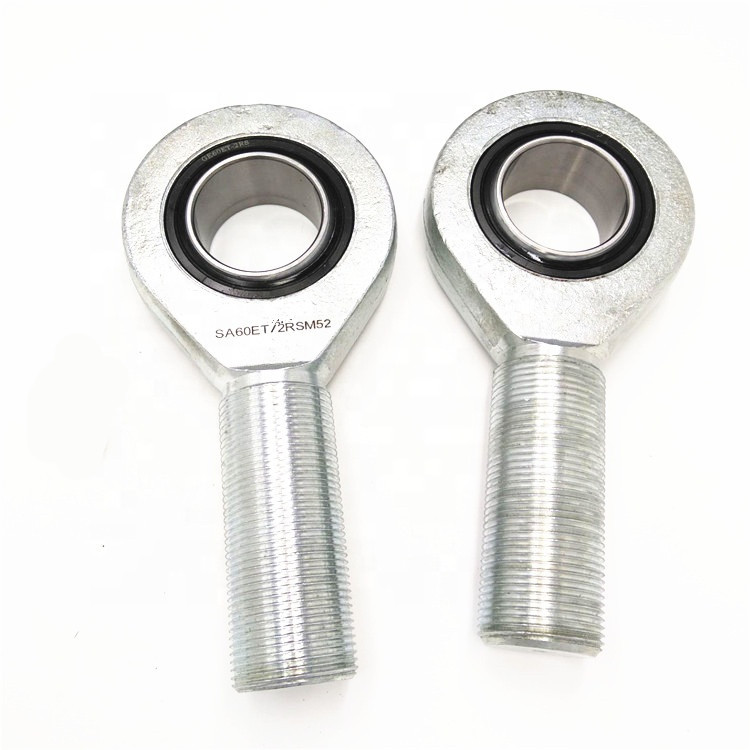

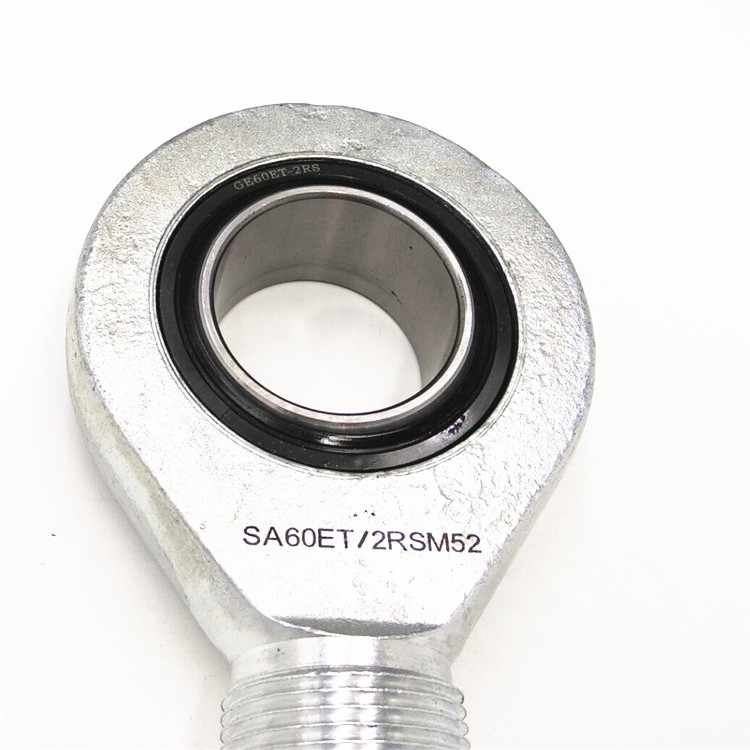

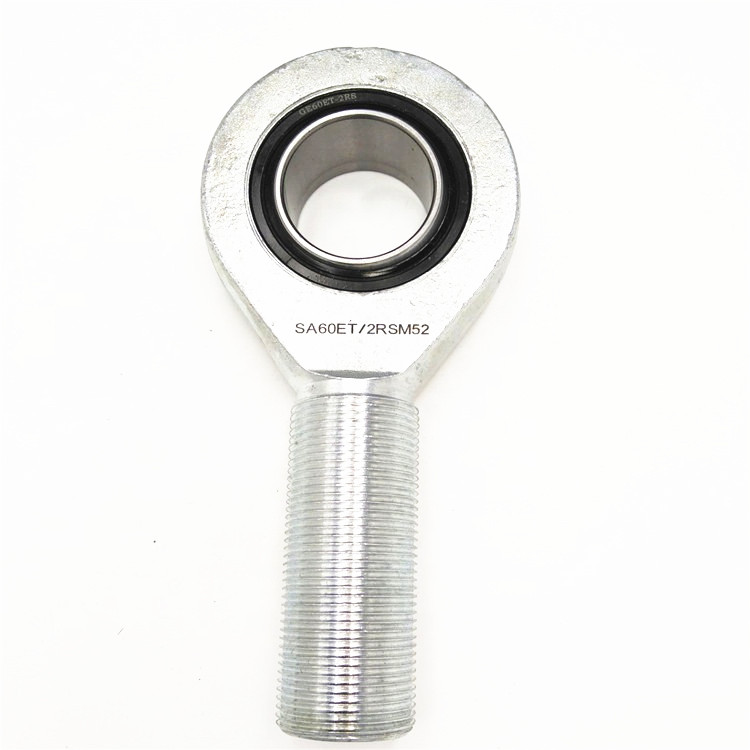

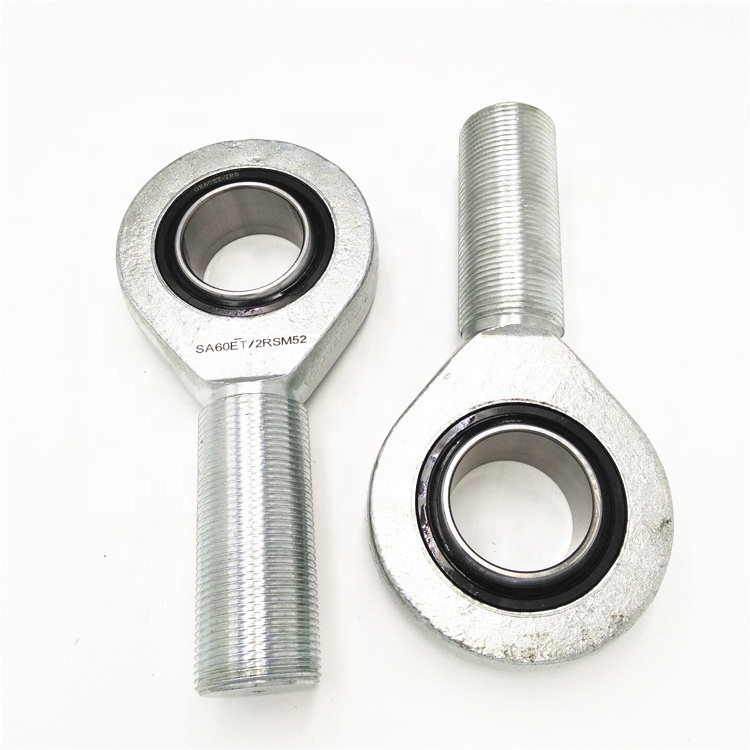

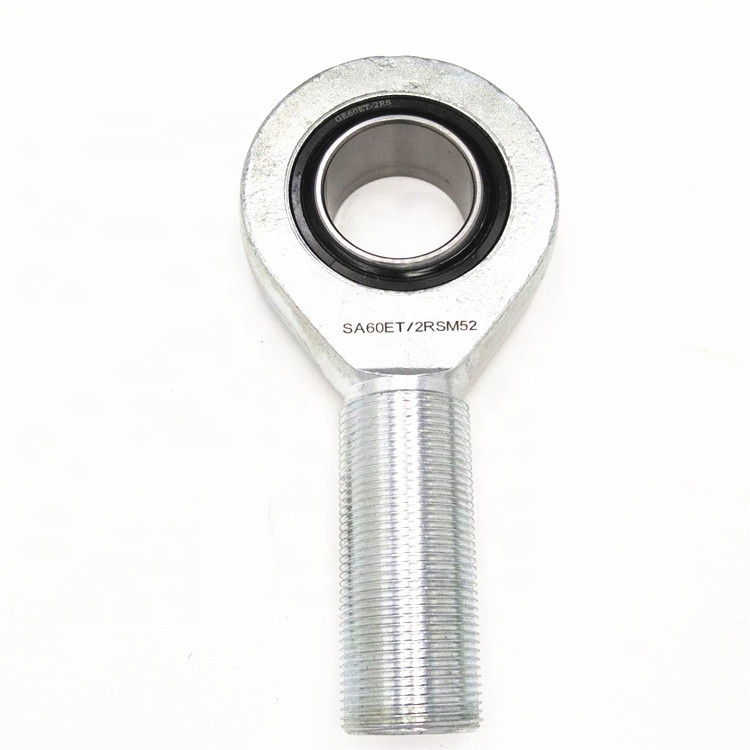

rod ends and spherical bearings SA60ET-2RS imperial spherical bearings from China factory
rod ends and spherical bearings structure than simply rolling bearing, which is dominated by an inner and outer sphere within a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the sliding surface of the spherical shape, but also for tilting movement within a certain range of angles (ie,aligning movement), the supporting shaft misalignment and shaft housing bore when a large degree, still work.
FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for rod ends and spherical bearings SA60ET-2RS imperial spherical bearings?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for rod ends and spherical bearings SA60ET-2RS imperial spherical bearings? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for rod ends and spherical bearings SA60ET-2RS imperial spherical bearings?
A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for rod ends and spherical bearings SA60ET-2RS imperial spherical bearings?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for rod ends and spherical bearings SA60ET-2RS imperial spherical bearings?
A: Usually ≥1, According your demand.
9,Q: Will you check these rod ends and spherical bearings SA60ET-2RS imperial spherical bearings before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the rod ends and spherical bearings SA60ET-2RS imperial spherical bearings?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
Product Name | Rod End Bearing |
Precision Rating | P0, P6, P5, P4, P2 |
Material | Bearing Steel (GCr15) |
Clearance | C0 C1 C2 C3 C4 C5 |
Vibration & Noisy | Z1,Z2,Z3 V1,V2,V3 |
Seal | 2RS, RS |
Features | High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction |
Certification | ISO 9001:2008 |
Packing | 1.Neutral Packing Bearing 2.Industrial Packing 3.Commercial Packing Bearing 4.Customize |
Delivery Time | 30 – 45 Days After The Order is Confirmed |
Shippment | 1.By Sea 2.By Air 3.By Express |
ITEM | Dimension(mm) | Weight | |||||||||||
d | d3 | B | C1 | L1 | d2 | h1 | L7 | h | L2 | dk | a | kg | |
6H | min | ≈ | |||||||||||
SA6E* | 6 | M6x1.0 | 6 | 4.4 | 18 | 21 | 30 | 12 | 36 | 46.5 | 10 | 13 | 0.017 |
SA8E* | 8 | M8x1.25 | 8 | 6 | 22 | 24 | 36 | 14 | 42 | 54 | 13 | 15 | 0.029 |
SA10E* | 10 | M10x1.5 | 9 | 7 | 26 | 29 | 43 | 15 | 48 | 62.5 | 16 | 12 | 0.051 |
SA12E* | 12 | M12x1.75 | 10 | 8 | 28 | 34 | 50 | 18 | 54 | 71 | 18 | 11 | 0.086 |
SA15ES | 15 | M14x2.0 | 12 | 10 | 34 | 40 | 61 | 20 | 63 | 83 | 22 | 8 | 0.14 |
SA17ES | 17 | M16x2.0 | 14 | 11 | 36 | 46 | 67 | 23 | 69 | 92 | 25 | 10 | 0.19 |
SA20ES0 | 20 | M20x1.5 | 16 | 13 | 43 | 53 | 77 | 27 | 78 | 104.5 | 29 | 9 | 0.31 |
SA25ES | 25 | M24x2.0 | 20 | 17 | 53 | 64 | 94 | 32 | 94 | 126 | 35.5 | 7 | 0.56 |
SA30ES | 30 | M30x2.0 | 22 | 19 | 65 | 73 | 110 | 37 | 110 | 146.5 | 40.7 | 6 | 0.89 |
SA35ES | 35 | M36x3.0 | 25 | 21 | 82 | 82 | 125 | 42 | 140 | 181 | 47 | 6 | 1.4 |
SA40ES | 40 | M39x3.0 | 28 | 23 | 86 | 92 | 142 | 48 | 150 | 196 | 53 | 7 | 1.8 |
SA40-1ES | 40 | M42x3.0 | 28 | 23 | 86 | 92 | 142 | 48 | 150 | 196 | 53 | 7 | 1.85 |
SA45ES | 45 | M42x3.0 | 32 | 27 | 94 | 102 | 145 | 52 | 163 | 214 | 60 | 7 | 2.6 |
SA45-1ES | 45 | M45x3.0 | 32 | 27 | 94 | 102 | 145 | 52 | 163 | 214 | 60 | 7 | 2.66 |
SA50ES | 50 | M45x3.0 | 35 | 30 | 107 | 112 | 160 | 60 | 185 | 241 | 66 | 6 | 3.4 |
SA50-1ES | 50 | M52x3.0 | 35 | 30 | 107 | 112 | 160 | 60 | 185 | 241 | 66 | 6 | 3.5 |
SA60ES | 60 | M52x3.0 | 44 | 38 | 115 | 135 | 175 | 75 | 210 | 277.5 | 80 | 6 | 5.9 |
SA60-1ES | 60 | M60x4.0 | 44 | 38 | 115 | 135 | 175 | 75 | 210 | 277.5 | 80 | 6 | 6.02 |
SA70ES | 70 | M56x4.0 | 49 | 42 | 125 | 160 | 200 | 87 | 235 | 315 | 92 | 6 | 8.2 |
SA70-1ES | 70 | M72x4.0 | 49 | 42 | 125 | 160 | 200 | 87 | 235 | 315 | 92 | 6 | 8.38 |
SA80ES1 | 80 | M64x4.0 | 55 | 47 | 140 | 180 | 230 | 100 | 270 | 360 | 105 | 6 | 12 |
SA80-1ES | 80 | M80x4.0 | 55 | 47 | 140 | 180 | 230 | 100 | 270 | 360 | 105 | 6 | 12.2 |
