CNC parts SBR16 2000mm linear rails with SBR16UU linear block bearing

Product Specification:

Model SBR16
Brand LLH
Original China

See Price

Product Details
Description
Specification
Our factory

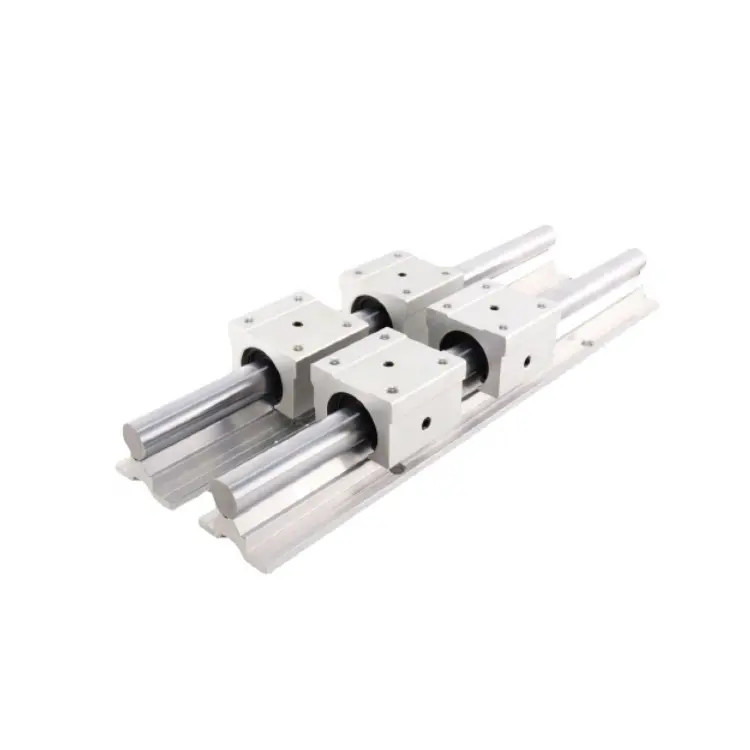

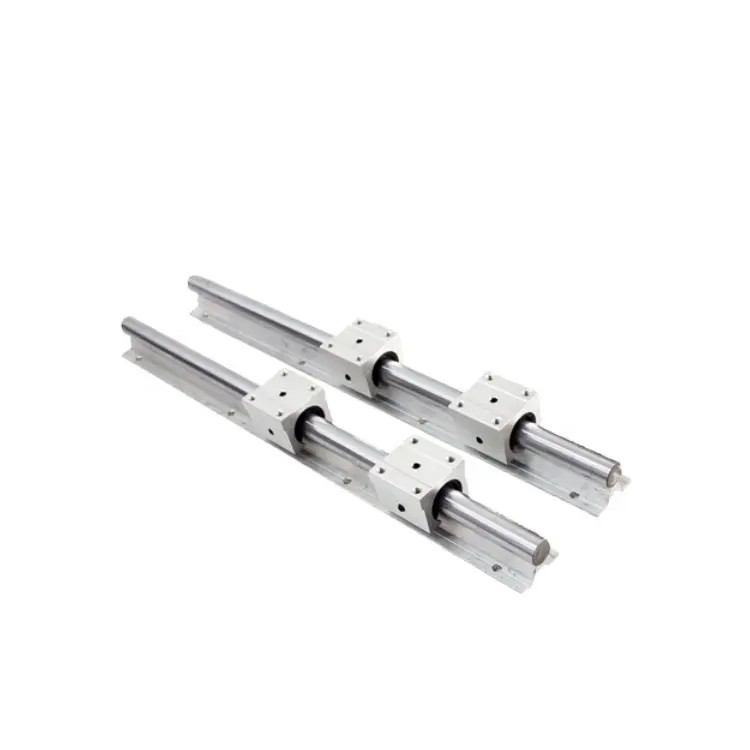

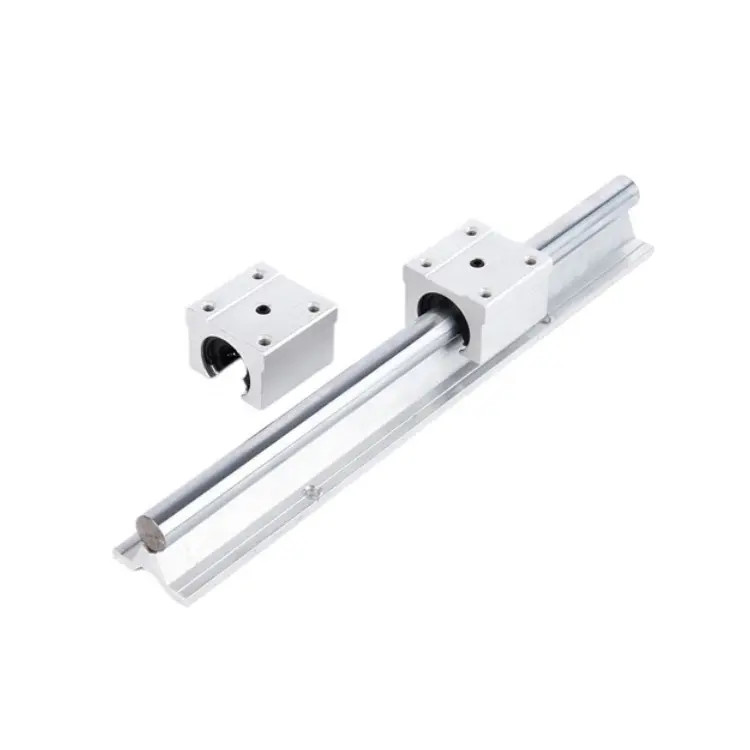

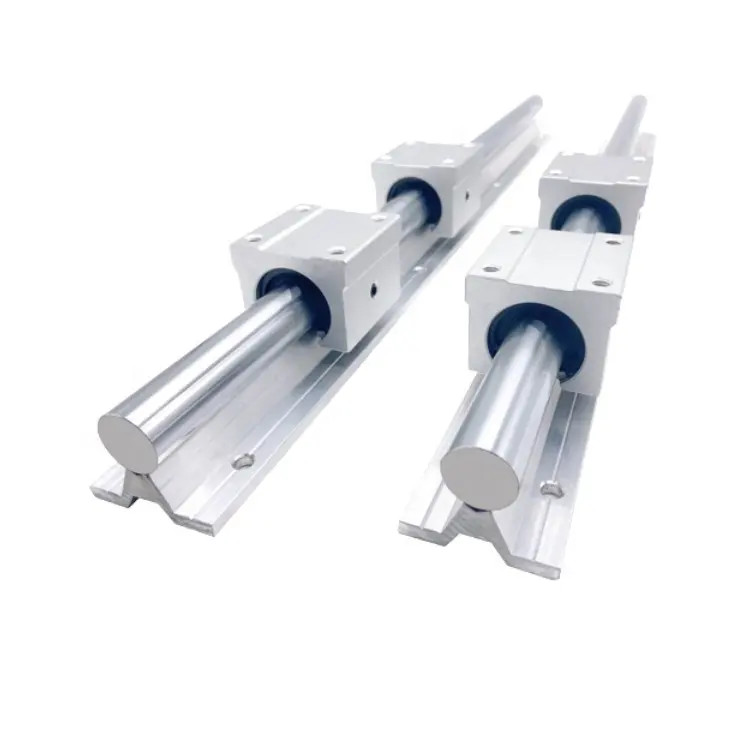

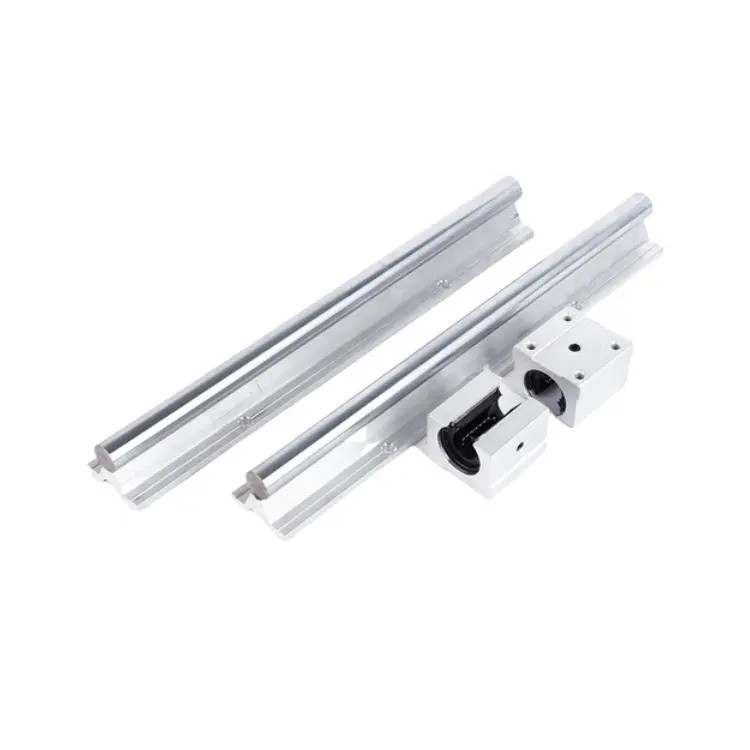

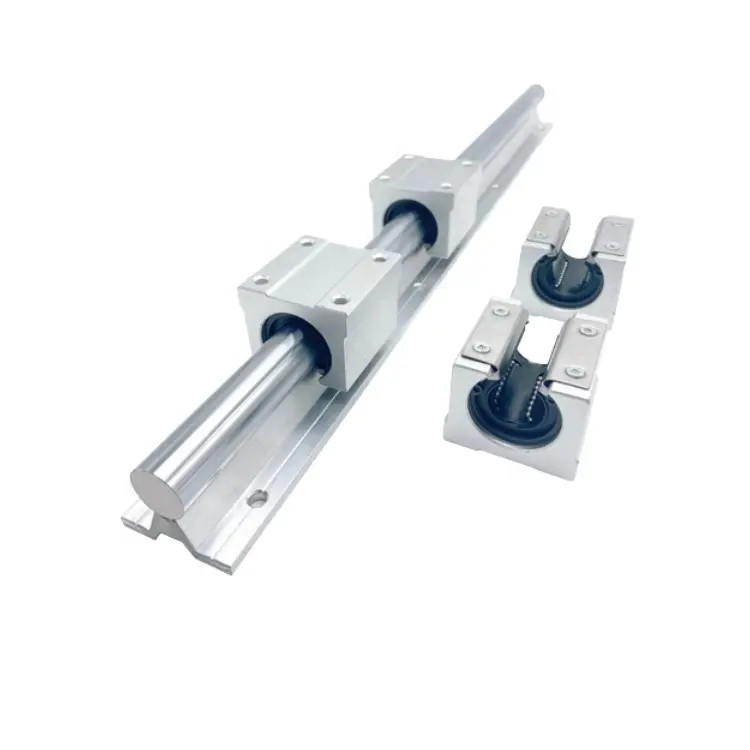

CNC parts SBR16 2000mm linear rails with SBR16UU linear block bearing

bearing supplier High quality bearing

Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.

SBR/TBR

Cylindrical linear guide rail is composed of a rail support, a shaft (rail), and number of blocks. They are provided as a unit or as respective components as well. All components are standardized to be fully interchangeable.

Support Rail (SBS/TBS)

Support Rail provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.

Case (SBR/TBR )

Effective for high load or long stroke application with maximum rigidity and excelent motion in combination with Open type Linear Bushing. Moreover , preload can be applied on SBR/TBR/SMD series for high precision performance.

Support Rail Unit (SBR-S/TBR-S)

SBR-S and TBR-S type are optimum guide units for high precision and deflection free sliding system with smooth motion and maximum rigidity, and less cost and time.

insert ball bearing sbr16 2000mm linear rails factory sbr16 2000mm linear rails manufacturer sbr16 2000mm linear rails supplier stock sbr16 2000mm linear rails high quality bearing high quality insert ball bearing

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for SBR16 2000mm linear rails ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for SBR16 2000mm linear rails ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for SBR16 2000mm linear rails ?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for SBR16 2000mm linear rails ?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of SBR16 2000mm linear rails ?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Bella
Skype/Email: skf@llhbearing.com
Whatsapp: +8615315596312
TEL/Wechat:+8615318805907

Type	Round linear rail
Material	45#/Chrome steel
Width	10-55mm
Block type	SBR…UU standard type
Length	Requirements
Grade	C, also have H/P/SP/UP
Structure	Rail+block

high speed bearing

MODEL NO.	SHAFT DIAMETER	MAIN DIMENSIONS										MOUNTING DIMENSION					WEIGHT(kg)
		H	E	W	L	F	T	K	J	h1	θ	B	N	M × P	S1	S2
SBR10-200	10	18	16	32	200	13.5	4	8.9	12.4	4.7	80°	22	50	1×100	4.5	M4	0.110
SBR10-300					300								50	2×100			0.160
SBR10-400					400								50	3×100			0.220
SBR10-500					500								50	4×100			0.270
SBR10-600					600								50	5×100			0.330
SBR12-200	12	20.46	17	34	200	15	4.5	9.8	15	6	80°	25	50	1×100	4.5	M4	0.140
SBR12-300					300								50	2×100			0.210
SBR12-400					400								50	3×100			0.280
SBR12-500					500								50	4×100			0.350
SBR12-600					600								50	5×100			0.420
SBR13-200	13	21	17	34	200	15	4.5	9.8	15	6	80°	25	50	1×100	4.5	M4	0.140
SBR13-300					300								50	2×100			0.210
SBR13-400					400								50	3×100			0.280
SBR13-500					500								50	4×100			0.350
SBR13-600					600								50	5×100			0.420
SBR16-200	16	25	20	40	200	17.8	5	11.7	18.5	8	80°	30	25	1×100	5.5	M5	0.200
SBR16-300					300								75	1×100			0.300
SBR16-400					400								50	2×100			0.400
SBR16-500					500								25	3×100			0.500
SBR16-600					600								75	3×100			0.600
SBR20-200	20	27	22.5	45	200	17.7	5	10	19	8	50°	30	25	1×100	5.5	M6	0.200
SBR20-300					300								75	1×100			0.300
SBR20-400					400								50	2×100			0.400
SBR20-500					500								25	3×100			0.510
SBR20-600					600								75	3×100			0.610
SBR25-200	25	33	27.5	55	200	21	6	12	21.5	8	50°	35	25	1×100	6.5	M6	0.290
SBR25-300					300								50	1×100			0.430
SBR25-400					400								100	1×100			0.580
SBR25-500					500								50	2×100			0.730
SBR25-600					600								100	2×100			0.880
SBR30-200	30	37	30	60	200	22.8	7	13	26.5	10.3	50°	40	25	1×150	6.5	M8	0.360
SBR30-300					300								50	1×200			0.550
SBR30-400					400								100	1×200			0.730
SBR30-500					500								50	2×200			0.920
SBR30-600					600								100	2×200			1.100

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
