Sealed bearings bike mountain bike front wheel bearings contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.

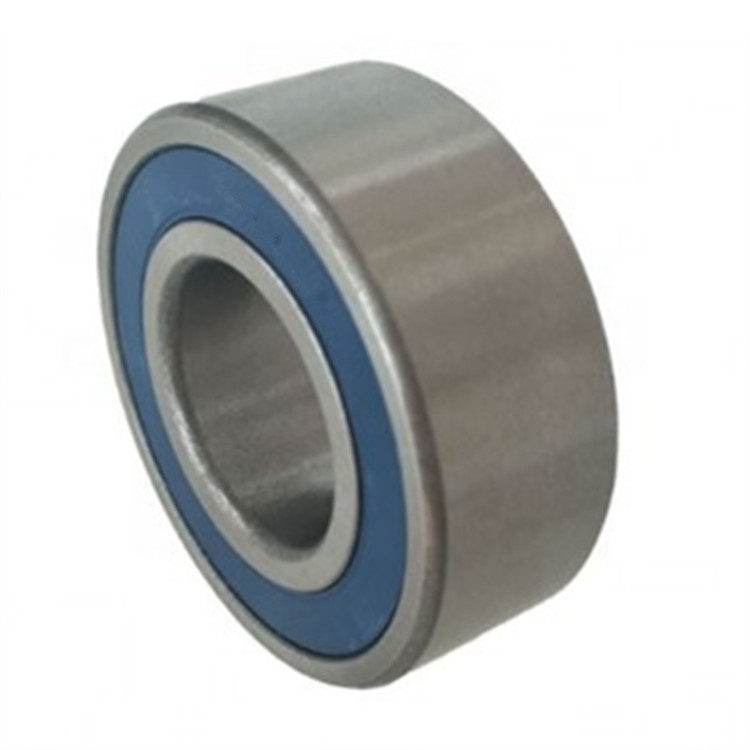

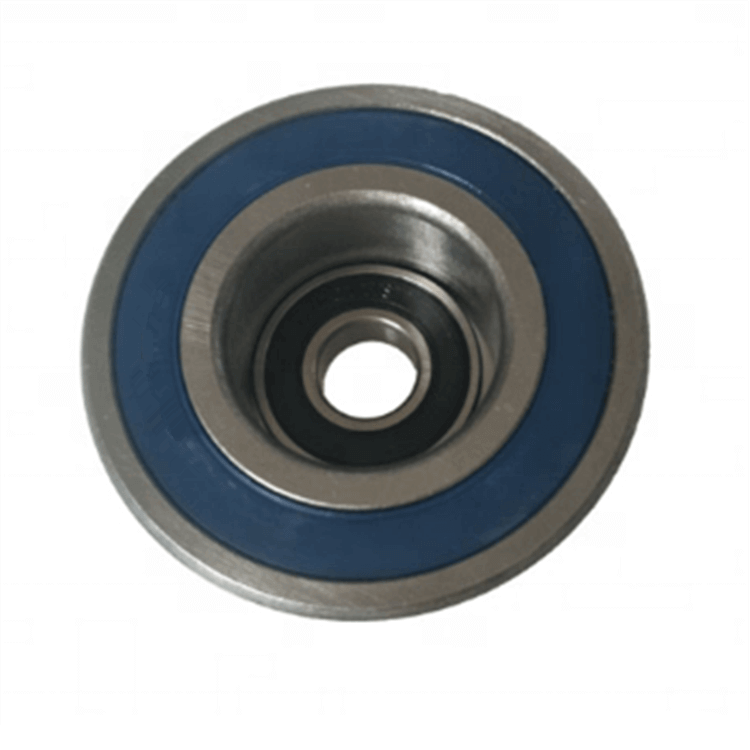

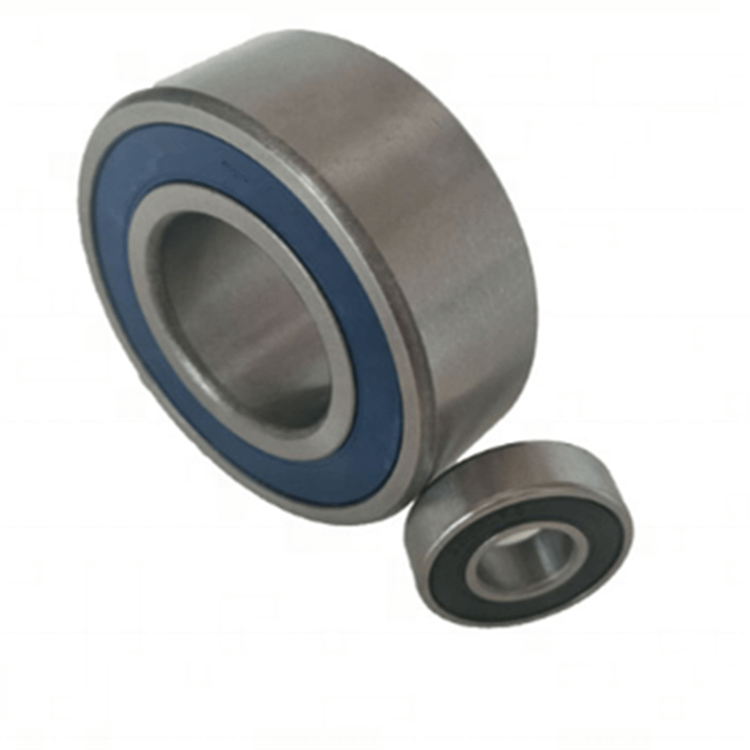

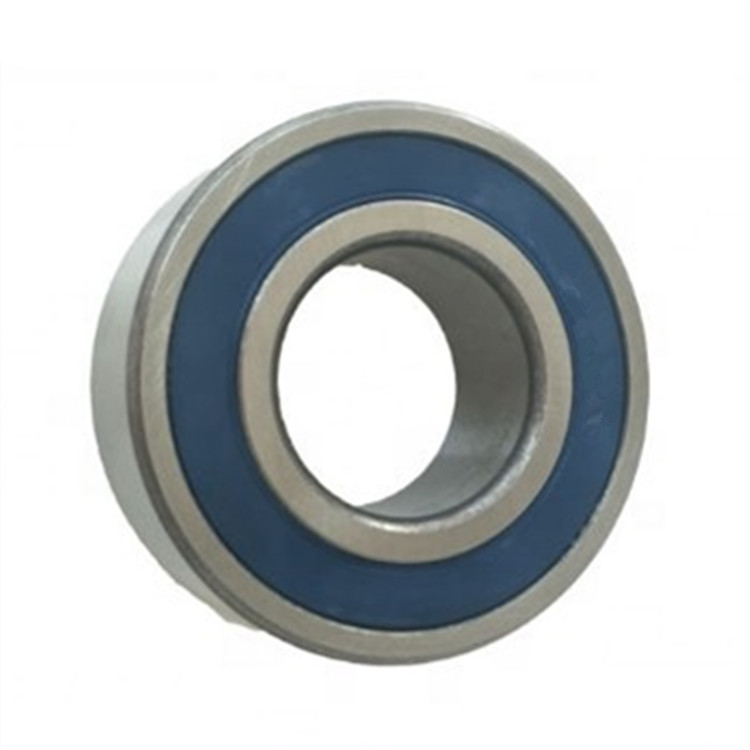

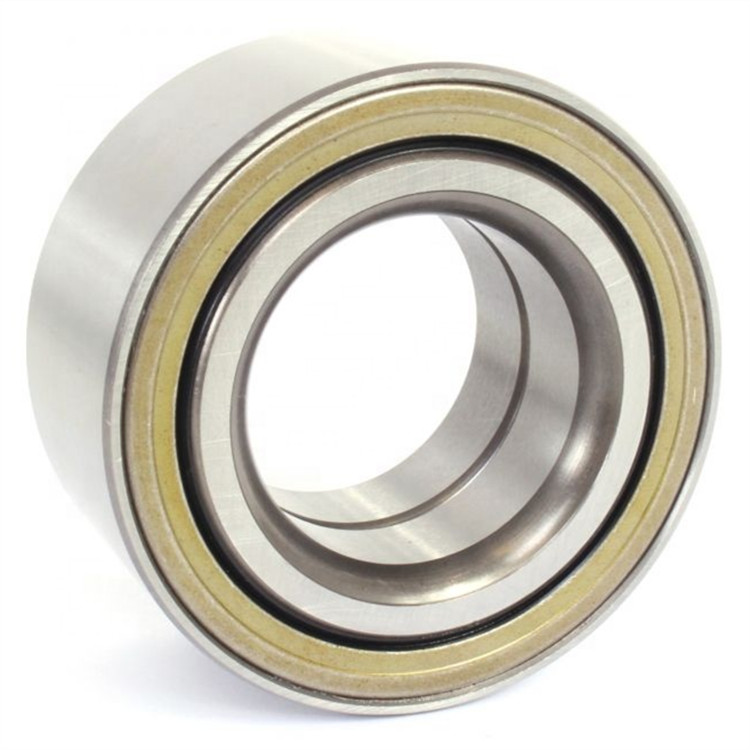

Sealed bearings bike mountain bike front wheel bearings
Sealed bearings bike mountain bike front wheel bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e.simultaneously supporting radial and axial loads.
Sealed bearings bike mountain bike front wheel bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each.The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Sealed bearings bike mountain bike front wheel bearings?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Sealed bearings bike mountain bike front wheel bearings? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment ?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize Sealed bearings bike mountain bike front wheel bearings?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of Sealed bearings bike mountain bike front wheel bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Sealed bearings bike mountain bike front wheel bearings or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Brand | LLH or OEM |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
| Clearance | C0, C3 ,C5 |
| Package | carton package |
| Used | Machine |
| Bearing No. | Dimensions (mm) | Weight (kg) | Bearing No. | Dimensions (mm) | Weight (kg) | ||||||
| d | D | B | d | D | B | ||||||
| 7004C | 7004AC | 20 | 42 | 12 | 0.06 | 7212C | 7212AC | 60 | 110 | 22 | 0.80 |
| 7005C | 7005AC | 25 | 47 | 12 | 0.07 | 7213C | 7213AC | 65 | 120 | 23 | 1.00 |
| 7006C | 7006AC | 30 | 55 | 13 | 0.11 | 7214C | 7214AC | 70 | 125 | 24 | 1.10 |
| 7007C | 7007AC | 35 | 62 | 14 | 0.15 | 7215C | 7215AC | 75 | 130 | 25 | 1.20 |
| 7008C | 7008AC | 40 | 68 | 15 | 0.18 | 7216C | 7216AC | 80 | 140 | 26 | 1.45 |
| 7009C | 7009AC | 45 | 75 | 16 | 0.23 | 7217C | 7217AC | 85 | 150 | 28 | 1.80 |
| 7010C | 7010AC | 50 | 80 | 16 | 0.25 | 7218C | 7218AC | 90 | 160 | 30 | 2.25 |
| 7011C | 7011AC | 55 | 90 | 18 | 0.38 | 7219C | 7219AC | 95 | 170 | 32 | 2.70 |
| 7012C | 7012AC | 60 | 95 | 18 | 0.40 | 7220C | 7220AC | 100 | 180 | 34 | 3.25 |
| 7013C | 7013AC | 65 | 100 | 18 | 0.43 | 7221C | 7221AC | 105 | 190 | 36 | 3.85 |
| 7014C | 7014AC | 70 | 110 | 20 | 0.60 | 7222C | 7222AC | 110 | 200 | 38 | 4.55 |
| 7015C | 7015AC | 75 | 115 | 20 | 0.63 | 7224C | 7224AC | 120 | 215 | 40 | 5.40 |
| 7016C | 7016AC | 80 | 125 | 22 | 0.85 | 7304C | 7304AC | 20 | 52 | 15 | 0.15 |
| 7017C | 7017AC | 85 | 130 | 22 | 0.89 | 7305C | 7305AC | 25 | 62 | 17 | 0.23 |
| 7018C | 7018AC | 90 | 140 | 24 | 1.15 | 7306C | 7306AC | 30 | 72 | 19 | 0.35 |
| 7019C | 7019AC | 95 | 145 | 24 | 1.20 | 7307C | 7307AC | 35 | 80 | 21 | 0.47 |
| 7020C | 7020AC | 100 | 150 | 24 | 1.25 | 7308C | 7308AC | 40 | 90 | 23 | 0.66 |
| 7021C | 7021AC | 105 | 160 | 26 | 1.60 | 7309C | 7309AC | 45 | 100 | 25 | 0.86 |
| 7022C | 7022AC | 110 | 170 | 28 | 1.95 | 7310C | 7310AC | 50 | 110 | 27 | 1.08 |
| 7024C | 7024AC | 120 | 180 | 28 | 2.10 | 7311C | 7311AC | 55 | 120 | 29 | 1.42 |
| 7203C | 7203AC | 17 | 40 | 12 | 0.06 | 7312C | 7312AC | 60 | 130 | 31 | 1.71 |
| 7204C | 7204AC | 20 | 47 | 14 | 0.10 | 7313C | 7313AC | 65 | 140 | 33 | 2.23 |
| 7205C | 7205AC | 25 | 52 | 15 | 0.12 | 7314C | 7314AC | 70 | 150 | 35 | 2.67 |
| 7206C | 7206AC | 30 | 62 | 16 | 0.19 | 7315C | 7315AC | 75 | 160 | 37 | 3.10 |
| 7207C | 7207AC | 35 | 72 | 17 | 0.28 | 7316C | 7316AC | 80 | 170 | 39 | 3.60 |
| 7208C | 7208AC | 40 | 80 | 18 | 0.37 | 7317C | 7317AC | 85 | 180 | 41 | 4.38 |
| 7209C | 7209AC | 45 | 85 | 19 | 0.41 | 7318C | 7318AC | 90 | 190 | 43 | 5.17 |
| 7210C | 7210AC | 50 | 90 | 20 | 0.46 | 7319C | 7319AC | 95 | 200 | 45 | 6.69 |
