thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.

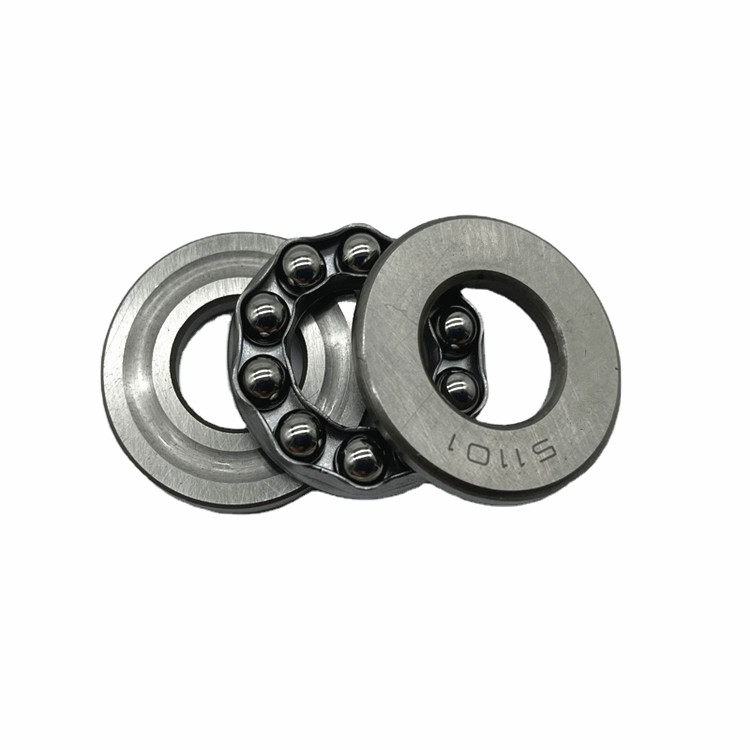

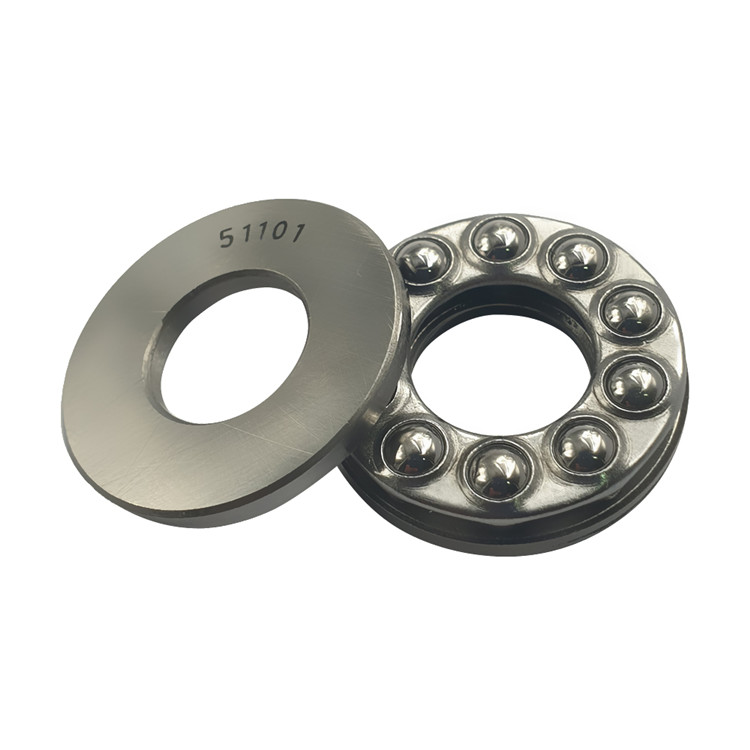

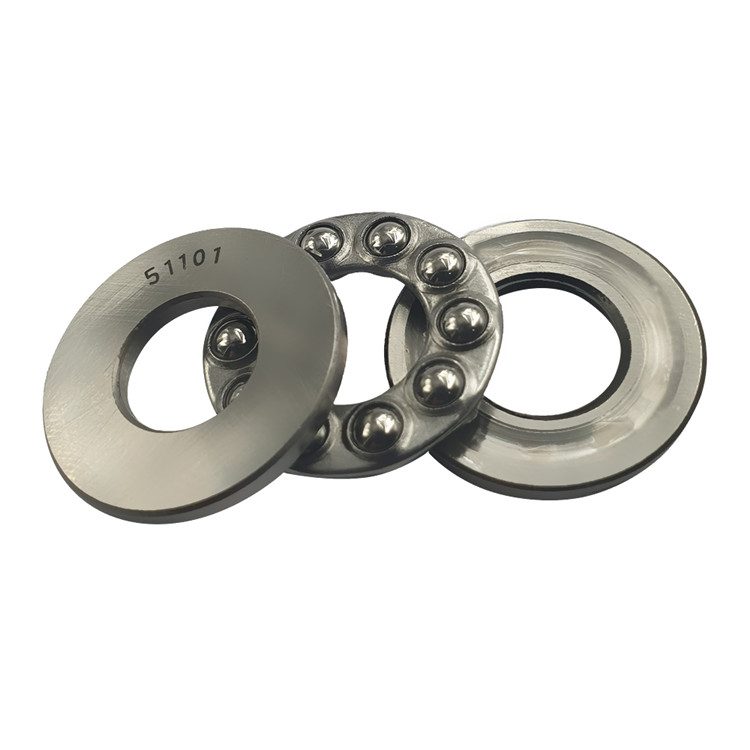

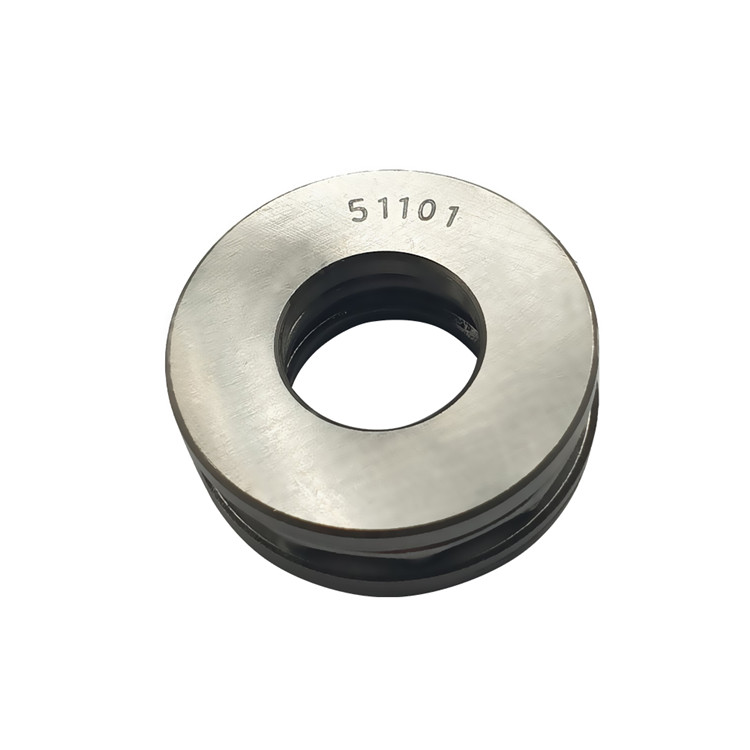

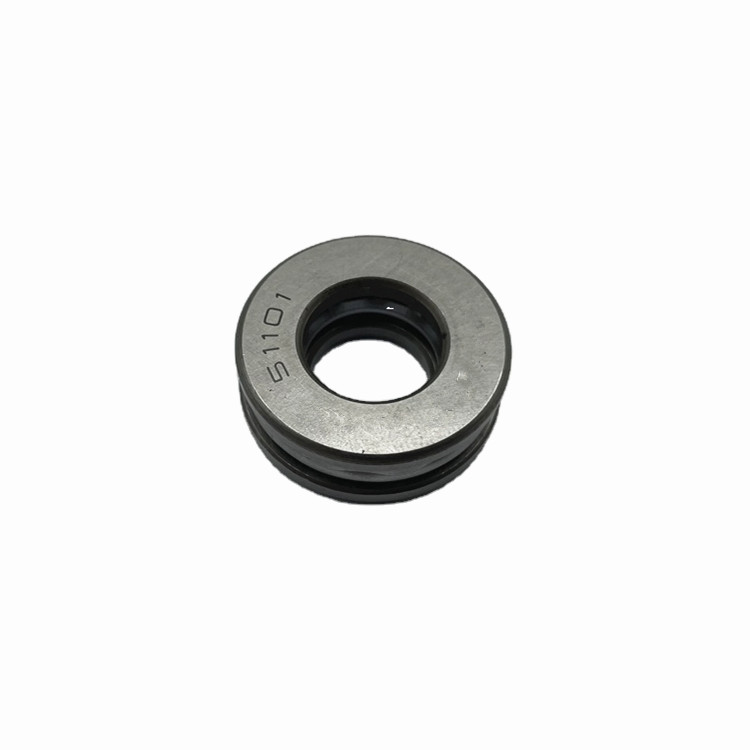

ship thrust bearing 51101 thrust ball bearing size 12x26x9 mm
Thrust ball bearings are classfied into those with flat seats or aligning seats depending on the shape of the outer ring sear(housing washer).They can sustain axial loads but no radial loads.
For single-direction Thrust Ball Bearings,pressed steel cages and machined brass cages usually used as shown.The cage in Double-Direction Thrust Ball Bearings are the same as those in Single-Direction Thrust Ball Bearings of the same diamteter series.
Single direction thrust ball bearings: consist of two washers with raceways, balls guided and cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
- Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
 |
 |
 |
 |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for ship thrust bearing 51101 thrust ball bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for types of ship thrust bearing 51101 thrust ball bearing is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for types of ship thrust bearing 51101 thrust ball bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of types of ship thrust bearing 51101 thrust ball bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your types of ship thrust bearing 51101 thrust ball bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with types of ship thrust bearing 51101 thrust ball bearing.
A: If have any problem,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace |
 |
|
Product name |
Thrust ball bearing |
|
Series |
51101 |
|
Material |
Chrome steel |
|
Cage |
steel,brass |
|
Precision |
P0,P6,P5,P4,P2 |
|
Clearance codes |
C2, C3, C4, C5 |
|
Quality |
ISO9001:2000 Standard |
|
Size |
12*26*9mm |
|
Item
|
Size (mm) | Load rating (kN) | Limit speed (r/min) | Weight | ||||
| d | D | T | Ca | Coa | Grease | Oil | (kg) | |
| 51100 | 10 | 24 | 9 | 10 | 14 | 6500 | 1000 | 0.02 |
| 51200 | 10 | 26 | 11 | 12.7 | 17.1 | 5700 | 8800 | 0.03 |
| 51101 | 12 | 26 | 9 | 10.3 | 15.4 | 6500 | 10000 | 0.022 |
| 51201 | 12 | 28 | 11 | 13.2 | 19 | 5400 | 8300 | 0.034 |
| 51102 | 15 | 28 | 9 | 10.5 | 16.8 | 6100 | 9400 | 0.024 |
| 51202 | 15 | 32 | 12 | 16.6 | 24.8 | 4900 | 7500 | 0.046 |
| 51103 | 17 | 30 | 9 | 10.8 | 18.2 | 6100 | 9400 | 0.028 |
| 51203 | 17 | 25 | 12 | 17.2 | 27.3 | 4900 | 7500 | 0.053 |
| 51104 | 20 | 25 | 10 | 14.2 | 24.7 | 5100 | 7900 | 0.04 |
| 51204 | 20 | 40 | 14 | 22.3 | 37.7 | 3900 | 6000 | 0.082 |
| 51304 | 20 | 47 | 18 | 35 | 55.8 | 3600 | 4500 | 0.092 |
| 51105 | 25 | 42 | 11 | 19.5 | 37.2 | 4400 | 6800 | 0.059 |
| 51205 | 25 | 47 | 15 | 27.8 | 50.4 | 3600 | 5500 | 0.12 |
| 51305 | 25 | 52 | 18 | 35.7 | 61.4 | 3100 | 4800 | 0.18 |
| 51405 | 25 | 60 | 24 | 55.6 | 89.4 | 2600 | 4000 | 0.34 |
| 51106 | 30 | 47 | 11 | 20.4 | 42.2 | 4300 | 6600 | 0.068 |
| 51206 | 30 | 52 | 16 | 29.3 | 58.2 | 3400 | 5200 | 0.15 |
| 51306 | 30 | 60 | 21 | 42.8 | 78.7 | 2700 | 4200 | 0.27 |
| 51406 | 30 | 70 | 28 | 72.8 | 126 | 2200 | 3400 | 0.53 |
| 51107 | 35 | 52 | 12 | 20.4 | 44.7 | 3900 | 6000 | 0.09 |
| 51207 | 35 | 62 | 18 | 39.2 | 78.2 | 2900 | 4500 | 0.22 |
| 51307 | 35 | 68 | 24 | 55.5 | 105 | 2400 | 3700 | 0.39 |
| 51407 | 35 | 80 | 32 | 87.1 | 155 | 1900 | 2900 | 0.79 |
| 51108 | 40 | 60 | 13 | 26.9 | 62.8 | 3400 | 5300 | 0.12 |
| 51208 | 40 | 68 | 19 | 46.9 | 98.3 | 2700 | 4200 | 0.27 |
| 51308 | 40 | 78 | 26 | 69.3 | 135 | 2100 | 3300 | 0.55 |
| 51408 | 40 | 90 | 36 | 113 | 205 | 1700 | 2600 | 1.14 |
| 51109 | 45 | 65 | 14 | 27.8 | 69.1 | 3200 | 5000 | 0.15 |
| 51209 | 45 | 73 | 20 | 47.7 | 105 | 2600 | 4000 | 0.32 |
| 51309 | 45 | 85 | 28 | 80 | 163 | 1900 | 3000 | 0.69 |
| 51409 | 45 | 100 | 39 | 130 | 242 | 1500 | 2300 | 1.47 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
