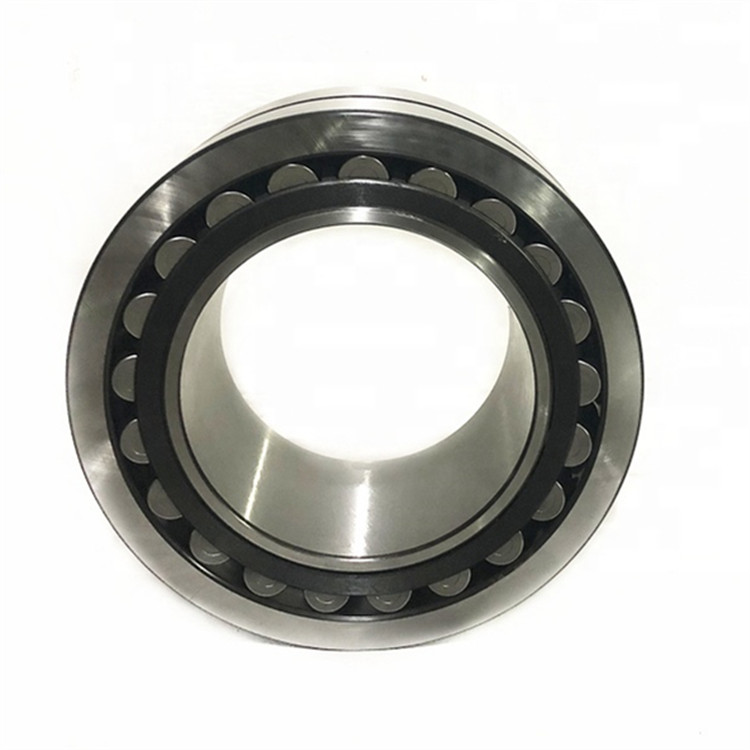

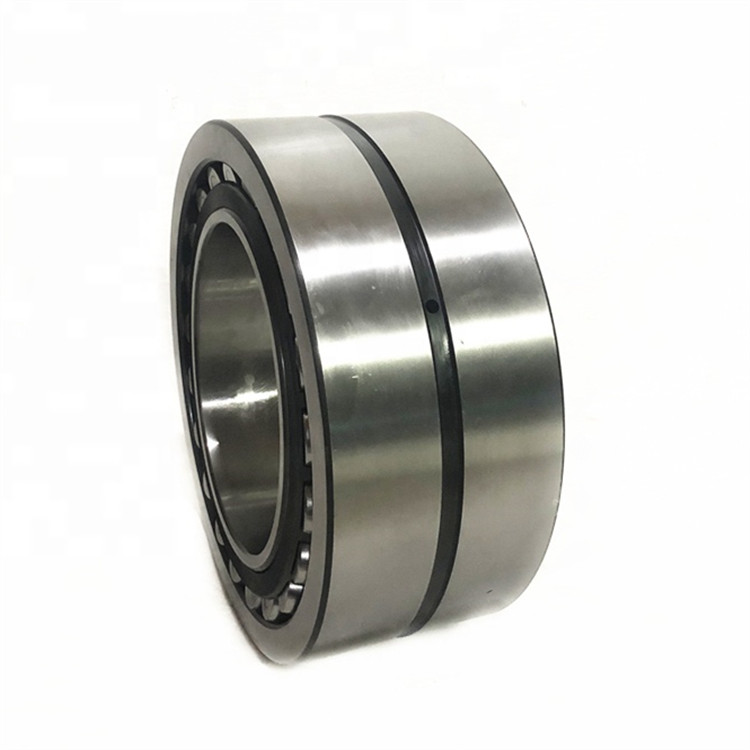

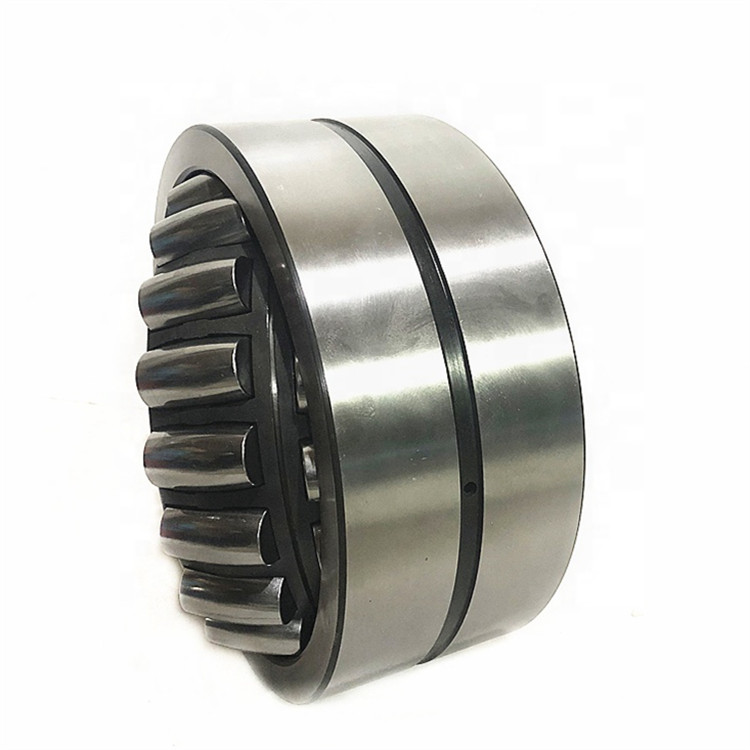

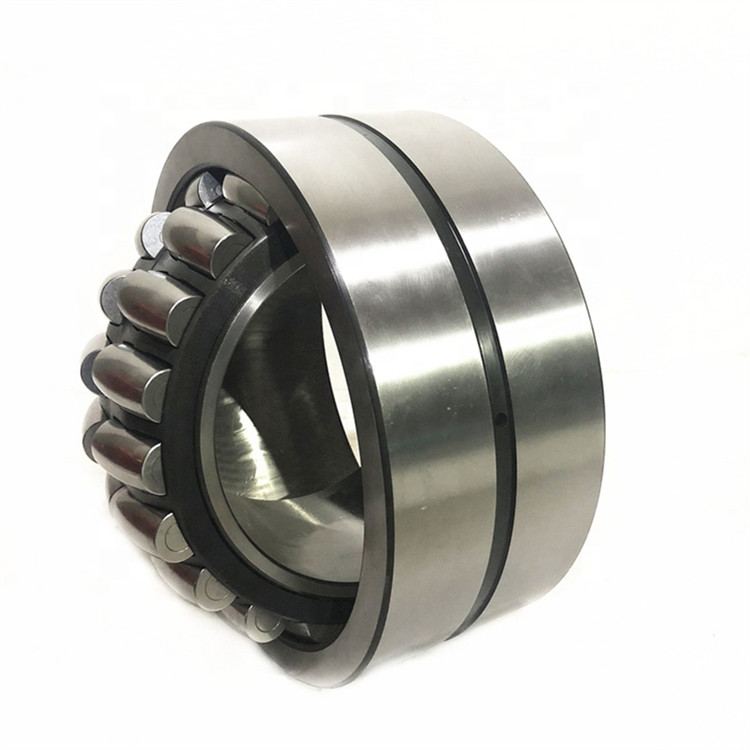

Spherical bearings uk link belt spherical roller bearing

Spherical bearings uk link belt spherical roller bearing with two rollers, mainly bear radial load, but also can withstand axial load in either direction.A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load.


Product Specification:

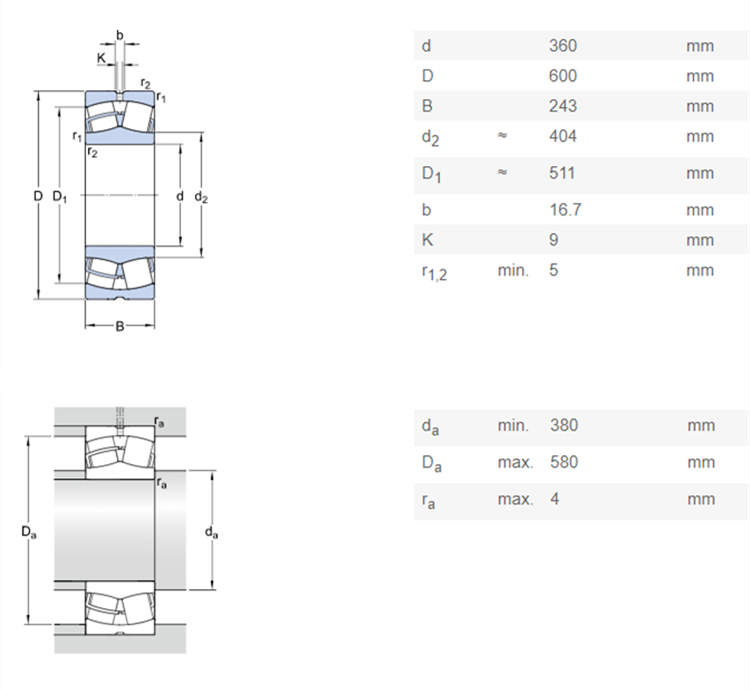

  • Size 360*600*243mm
  • Model 24172CC W33
  • Origin China
See Price

Spherical bearings uk link belt spherical roller bearing

spherical bearings uk

link belt spherical roller bearing

Spherical bearings uk link belt spherical roller bearing is dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations.And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for spherical roller bearings.

spherical bearings uk c3

c3 spherical bearings uk

Spherical bearings uk link belt spherical roller bearing is used in countless applications, wherever rotational motion must be allowed to change the alignment of its rotation axis.A prime example is a tie rod on a vehicle suspension.The mechanics of the suspension allow the axle to moveup and down, but the linkages are designed to control that motion in one direction only and they must allow motion in the other directions.

link belt spherical roller bearing

FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for Spherical bearings uk link belt spherical roller bearing?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3,Q: Do you provide samples for Spherical bearings uk link belt spherical roller bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for Spherical bearings uk link belt spherical roller bearing?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price of Spherical bearings uk link belt spherical roller bearing?
A:  after we get your inquiry, usually within 2-6 hours. Urgent will be faster.

7,Q:How about your quality of  your products?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of bearing?
A: Usually ≥1, According your demand.

9,Q: Will you check these Spherical bearings uk link belt spherical roller bearing before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need Spherical bearings uk link belt spherical roller bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Row Number
double row
Cage
STEEL / BRASS
Clearance
C0, C2, C3, C4
Material
GCr15, chrome steel
MOQ
1 pc



china link belt spherical roller bearing

specification

dimensions(mm) specification dimensions(mm)
22205 25*52*18 23064 320*480*121
22206 30*62*20 23068 340*520*133
22207 35*72*23 23072 360*540*134
22208 40*80*23 23076 380*560*135
22209 45*85*23 23080 400*600*148
22210 50*90*23 23084 420*620*150
22211 55*100*25 23088 440*650*157
22212 60*110*28 23092 460*680*163
22213 65*120*31 23096 480*700*165
22214 70*125*31 230/500 500*720*167
22215 75*130*31 230/530 530*780*185
22216 80*140*33 230/560 560*780*195
22217 85*150*36 230/600 600*870*200
22218 90*160*40 230/630 630*920*212
22219 95*170*43 230/670 670*980*230
22220 100*180*46 240/850 850*1220*365
22222 110*200*53 240/900 900*1280*375
22224 120*215*58 23121 105*175*56
22226 130*230*64 23122 110*180*56
22228 140*250*68 23124 120*200*62
22230 150*270*73 23126 130*210*80
22232 160*260*80 23128 140*225*85
22234 170*310*86 23130 150*250*80
22236 180*320*86 23132 160*270*86
22238 190*320*92 23134 170*280*88
22240 200*360*98 23136 180*300*96
22244 220*400*108 23138 190*320*104
22248 240*440*120 23140 200*340*112
22252 260*480*130 23144 220*370*120
22256 280*500*130 23148 240*400*128
22260 300*540*140 23152 260*440*144
22308 40*90*33 23156 280*460*146
22309 45*90*33 23160 300*500*160
22310 50*110*40 23164 320*540*176
22311 55*120*43 23168 340*580*190
22312 60*130*46 23172 360*600*192
22313 65*140*48 23176 380*620*194
22314 70*150*51 23180 400*650*200
22315 75*160*55 23184 420*700*224
22316 80*170*58 23188 440*720*226
22317 85*180*60 23192 460*760*240
22318 90*190*64 23196 480*790*248
22319 95*200*67 23218 90*160*52.4
22320 100*215*73 23220 100*180*60.3

high quality link belt spherical roller bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd.We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
