The structure of the joint bearing is simpler than that of the rolling bearing, and it mainly consists of an inner ring having an outer spherical surface and an outer ring having an inner spherical surface.

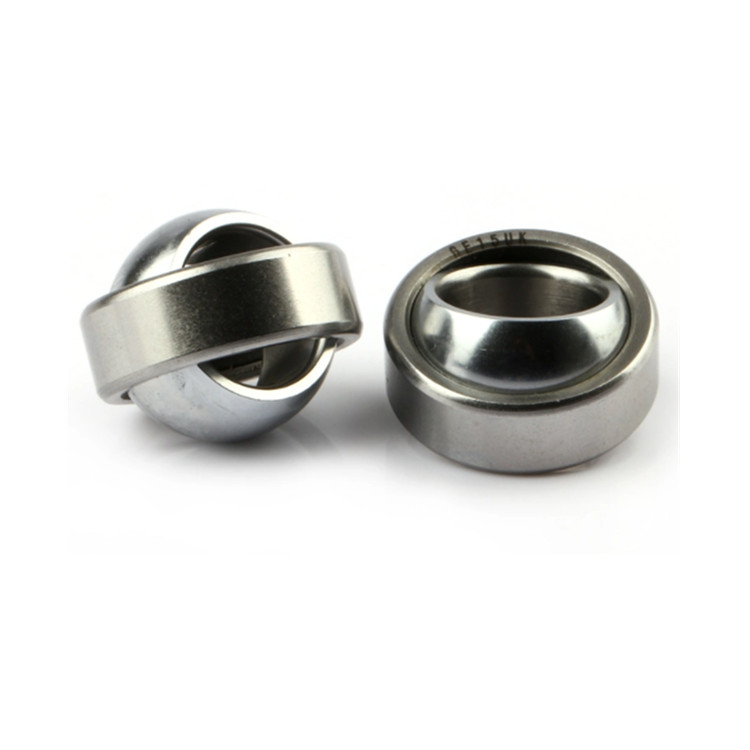

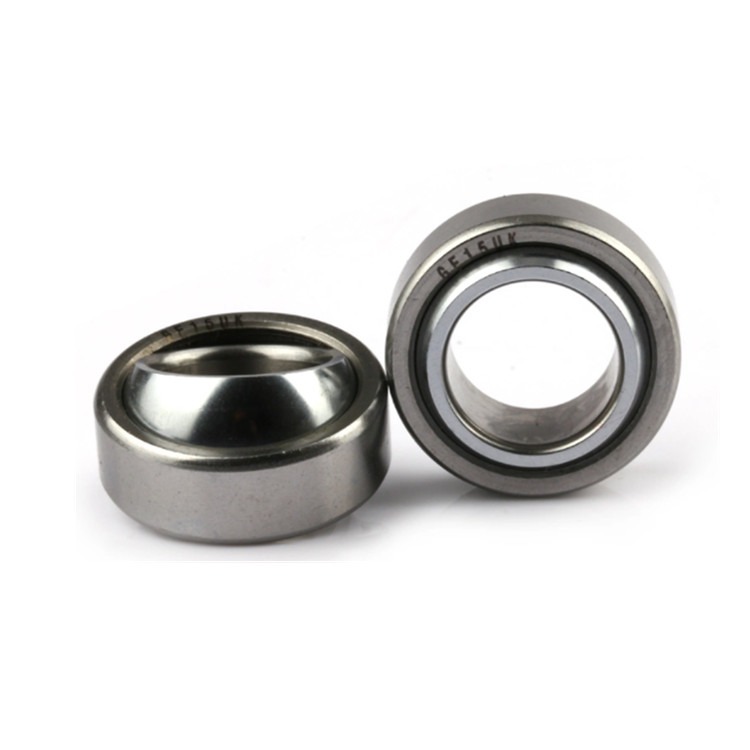

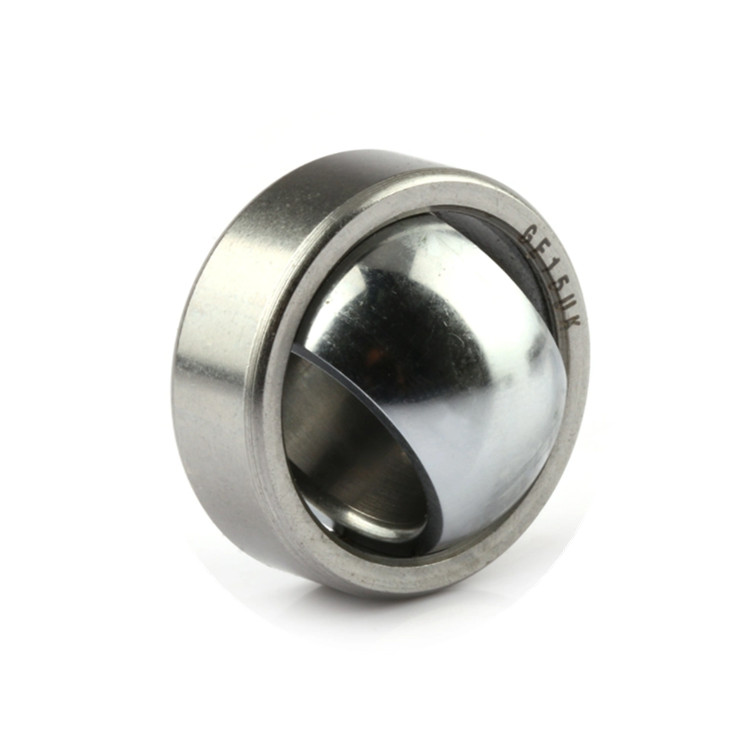

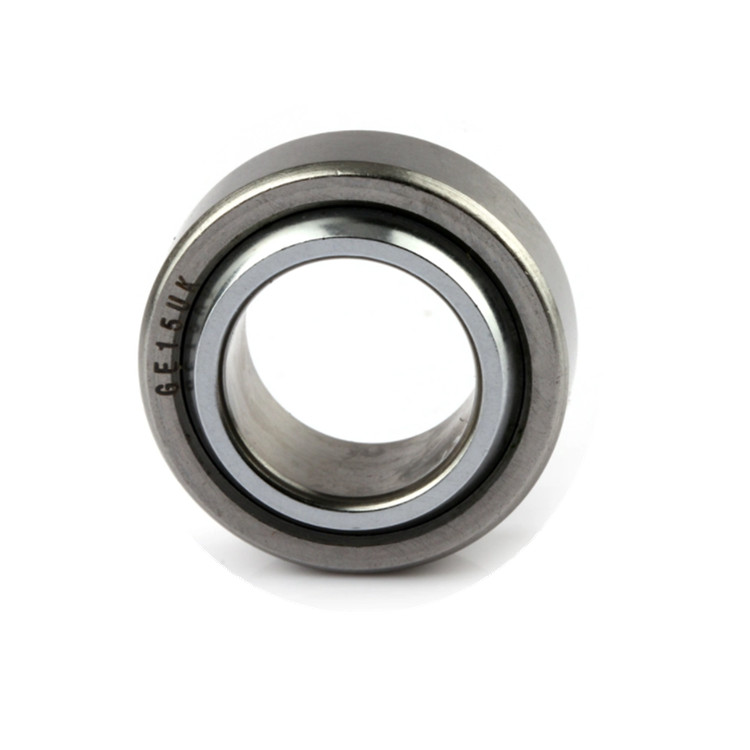

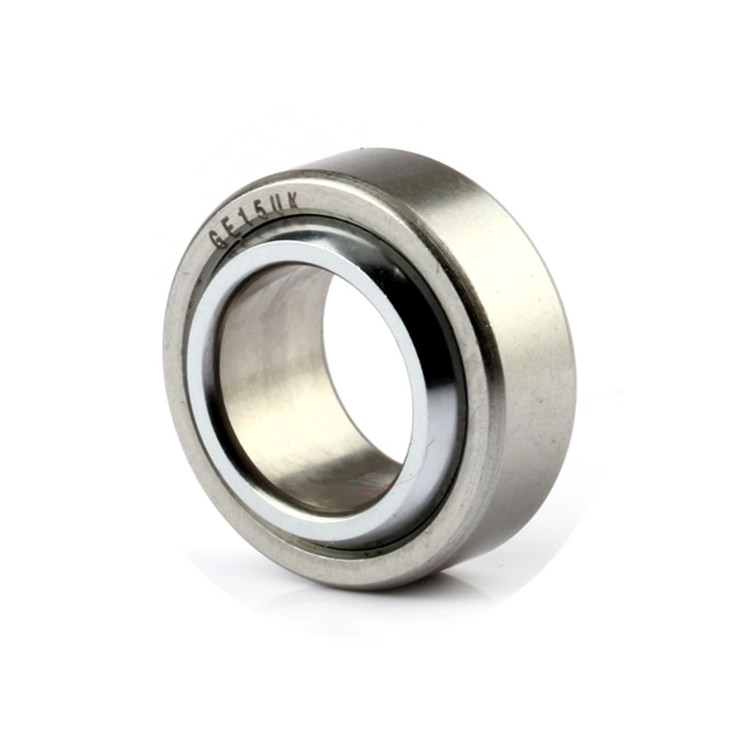

spherical bushing GE15UK maintenance-free bearing
The plain bearing is a spherical plain bearing whose sliding contact surface is an inner spherical surface and an outer sphere. It can be swung at any angle when it is moved. It is treated with a variety of special processes such as surface phosphating, frying, padding, spraying Method made. Joint bearing with a load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning, good lubrication and so on.
Feature editing
Joint bearings can withstand greater load. According to its different types and structures, can withstand radial load, axial load or radial, axial co-existence of the joint load. As the inner ring in the spherical surface with a composite material, so the bearing in the work can produce self-lubricating. Generally used for low-speed swing movement, and low-speed rotation, but also in a certain range of tilt movement, when the support shaft and shaft shell hole greater degree of mind, still work properly. Self-lubricating joint bearings used in water conservancy, professional machinery and other industries.
Usage
Joint bearings are widely used in engineering hydraulic cylinders, forging machine tools, engineering machinery, automation equipment, automotive shock absorbers, water machinery and other industries. Spherical plain bearings are spherical plain bearings, the basic type is a spherical sliding spherical surface with the contact, the outer ring composition. According to its structure and type of different, can withstand radial load, axial load, or radial, axial simultaneous joint load.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for spherical bushing GE15UK maintenance-free bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for spherical bushing GE15UK maintenance-free bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for spherical bushing GE15UK maintenance-free bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of spherical bushing GE15UK maintenance-free bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your spherical bushing GE15UK maintenance-free bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with spherical bushing GE15UK maintenance-free bearing?
A: If have any problem,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
Product name
|
Radial Spherical Plain Bearing GE 15 UK Ball Joint Bearing GE15UK 15x26x12mm
|
Model No.
|
GE15UK
|
Bearing Type
|
Spherical plain bearing
|
Bearing Material
|
Chrome Steel
|
Precision
|
P0 P6 P5 P4 P2
|
Keywords
|
Spherical plain bearing GE15UK
|
Weight
|
0,027kg
|
Model | Dimensions(mm) | Load Ratings | Weight | |||||||||
d | D | B | C | dk | r1 min | r2 min | α | Dynamic | Static | |||
(KN) | (KN) | (Kg) | ||||||||||
GE15ES | GE15ES 2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 16 | 84 | 0.027 |
GE17ES | GE17ES 2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21 | 106 | 0.041 |
GE20ES | GE20ES 2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 30 | 146 | 0.066 |
GE25ES | GE25ES 2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.119 |
GE30ES | GE30ES 2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.153 |
GE35ES | GE35ES 2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 79 | 399 | 0.233 |
GE40ES | GE40ES 2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 99 | 495 | 0.306 |
GE44ES | GE45ES 2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 637 | 0.427 |
GE50ES | GE50ES 2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.546 |
GE60ES | GE60ES 2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1.04 |
GE70ES | GE70ES 2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 313 | 1560 | 1.55 |
GE80ES | GE80ES 2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.31 |
GE90ES | GE90ES 2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 488 | 2440 | 2.75 |
GE100ES | GE100ES 2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 607 | 3030 | 4.45 |
GE110ES | GE110ES 2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 654 | 3270 | 4.82 |
GE120ES | GE120ES 2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8.05 |
GE140ES | GE140ES 2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1070 | 5350 | 11.02 |
GE160ES | GE160ES 2RS | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 8 | 1360 | 6800 | 14.01 |
GE180ES | GE180ES 2RS | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 6 | 1530 | 7650 | 18.65 |
GE190ES | GE200ES 2RS | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 7 | 2120 | 10600 | 28.03 |
GE220ES | GE220ES 2RS | 220 | 320 | 135 | 100 | 275 | 1.1 | 1.1 | 8 | 2320 | 11600 | 35.51 |
GE240ES | GE240ES 2RS | 240 | 340 | 140 | 100 | 300 | 1.1 | 1.1 | 8 | 2550 | 12700 | 39.91 |
GE260ES | GE260ES 2RS | 260 | 370 | 150 | 110 | 325 | 1.1 | 1.1 | 7 | 3050 | 15300 | 51.5 |
GE280ES | GE280ES 2RS | 280 | 400 | 155 | 120 | 350 | 1.1 | 1.1 | 7 | 3550 | 18000 | 65 |
GE300ES | GE300ES 2RS | 300 | 430 | 165 | 120 | 375 | 1.1 | 1.1 | 7 | 3800 | 19000 | 78.5 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. bear We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
