Stainless steel needle roller thrust bearings axk1024 bearing calculation hives thrust bearing for axial load mainly axial, radial joint load, but the radial load shall not exceed 55% of the axial load. With the other thrust roller bearings, such bearings lower friction coefficient, higher speed, and with self-aligning properties.
Stainless steel needle roller thrust bearings axk1024 bearing and washers have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited. |
Stainless steel needle roller thrust bearings axk1024 bearing are used for axles of axial load and radial joint load, but the radial load shall not exceed 55% of axial load.Compared with other thrust roller bearings, such bears are provided with lower friction coefficient, higher speed and self-aligning properties.The rollers of these bearings are of spherical shape, and the spherical raceway surface of the housing washer is self aligned.
Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality. |
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Stainless steel needle roller thrust bearings axk1024 bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Stainless steel needle roller thrust bearings axk1024 bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Stainless steel needle roller thrust bearings axk1024 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of Stainless steel needle roller thrust bearings axk1024 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for Stainless steel needle roller thrust bearings axk1024 bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Stainless steel needle roller thrust bearings axk1024 bearing or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
Material
|
Chrome steel
|
Vibration
|
V1,V2,V3,V4
|
Precision Rating
|
P0, P6,P5,P4,P2
|
Quality standard
|
ISO9001, ABEC-1(Z1V1)
|
Tolerance Grades
|
ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
|
Package
|
A: tube package+outer carton+pallets
B: single box+outer carton+pallet C: According to your’s requirement |
Diameter | Bearing Designation | Weight | Borndary Dimensions | Basic Load Rating | Limiting Speed | |||||
Cr | Cor | Oil | ||||||||
Dynamic | Static | |||||||||
mm | Torrington | g | mm | N | rpm | |||||
AXK SERIES (Metric) | ||||||||||
4 | — | AXK0414TN | — | 0.7 | 4 | 14 | 2 | 4380 | 7500 | 18000 |
5 | — | AXK0515TN | — | 0.8 | 5 | 15 | 2 | 4680 | 9100 | 17000 |
6 | 889016 | AXK0619TN | FNT-619 | 1 | 6 | 19 | 2 | 6740 | 15400 | 16000 |
8 | 889018 | AXK0821TN | FNT-821 | 2 | 8 | 21 | 2 | 7750 | 19000 | 15000 |

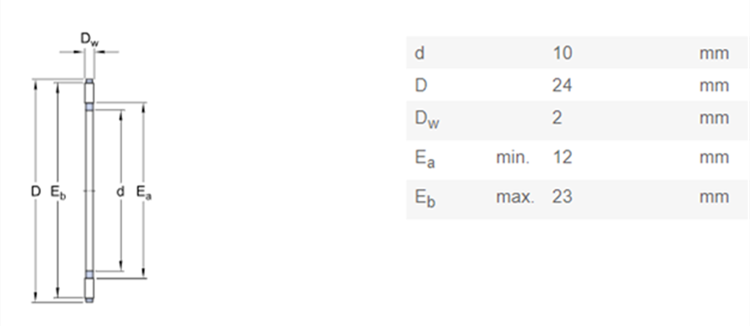

10 | 889100 | AXK1024 | FNT-1024 | 3 | 10 | 24 | 2 | 9150 | 24500 | 14000 |
12 | 889101 | AXK1226 | FNT-1226 | 3 | 12 | 26 | 2 | 9860 | 28600 | 13000 |
15 | 889102 | AXK1528 | FNT-1528 | 4 | 15 | 28 | 2 | 11200 | 35500 | 11000 |
17 | 889103 | AXK1730 | FNT-1730 | 4 | 17 | 30 | 2 | 11800 | 38600 | 10000 |
20 | 889104 | AXK2035 | FNTA-2035 | 5 | 20 | 35 | 2 | 12900 | 45600 | 8500 |
25 | 889105 | AXK2542 | FNT-2542 | 7 | 25 | 42 | 2 | 13800 | 57800 | 7000 |
30 | 889106 | AXK3047 | FNTA-3047 | 8 | 30 | 47 | 2 | 15600 | 69500 | 6000 |
35 | 889107 | AXK3552 | FNT-3552 | 10 | 35 | 52 | 2 | 16900 | 80100 | 5500 |
40 | 889108 | AXK4060 | FNT-4060 | 16 | 40 | 60 | 3 | 27500 | 113500 | 4700 |
45 | 889109 | AXK4565 | FNT-4565 | 18 | 45 | 65 | 3 | 29050 | 127600 | 4300 |
50 | 889110 | AXK5070 | FNT-5070 | 20 | 50 | 70 | 3 | 31500 | 138000 | 3900 |
55 | 889111 | AXK5578 | FNT-5578 | 28 | 55 | 78 | 3 | 37400 | 185000 | 3500 |
60 | 889112 | AXK6085 | FNTA-6085 | 33 | 60 | 85 | 3 | 43900 | 232500 | 3200 |
65 | 889113 | AXK6590 | FNTA-6590 | 35 | 65 | 90 | 3 | 45800 | 254600 | 3000 |
70 | 889114 | AXK7095 | FNTA-7095 | 60 | 70 | 95 | 4 | 53600 | 254400 | 2900 |
75 | 889115 | AXK75100 | FNT-75100 | 61 | 75 | 100 | 4 | 54500 | 264600 | 2700 |
80 | 889116 | AXK80105 | FNTA-80105 | 63 | 80 | 105 | 4 | 55600 | 278500 | 2600 |
85 | 889117 | AXK85110 | FNTA-85110 | 67 | 85 | 110 | 4 | 57500 | 28800 | 2400 |
90 | 889118 | AXK90120 | FNTA-90120 | 86 | 90 | 120 | 4 | 72500 | 401000 | 2300 |
100 | 889120 | AXK100135 | FNTA-100135 | 104 | 100 | 135 | 4 | 90500 | 559500 | 2000 |
110 | 889122 | AXK110145 | — | 122 | 110 | 145 | 4 | 96500 | 617500 | 1900 |
120 | 889124 | AXK120155 | — | 131 | 120 | 155 | 4 | 101500 | 679600 | 1700 |
130 | 889126 | AXK130170 | — | 205 | 130 | 170 | 5 | 132400 | 838900 | 1600 |
140 | 889128 | AXK140180 | — | 219 | 140 | 180 | 5 | 137200 | 899600 | 1500 |
150 | 889130 | AXK150190 | — | 232 | 150 | 190 | 5 | 142800 | 959000 | 1400 |
160 | 889132 | AXK160200 | — | 246 | 160 | 200 | 5 | 147600 | 1015000 | 1300 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd.We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
