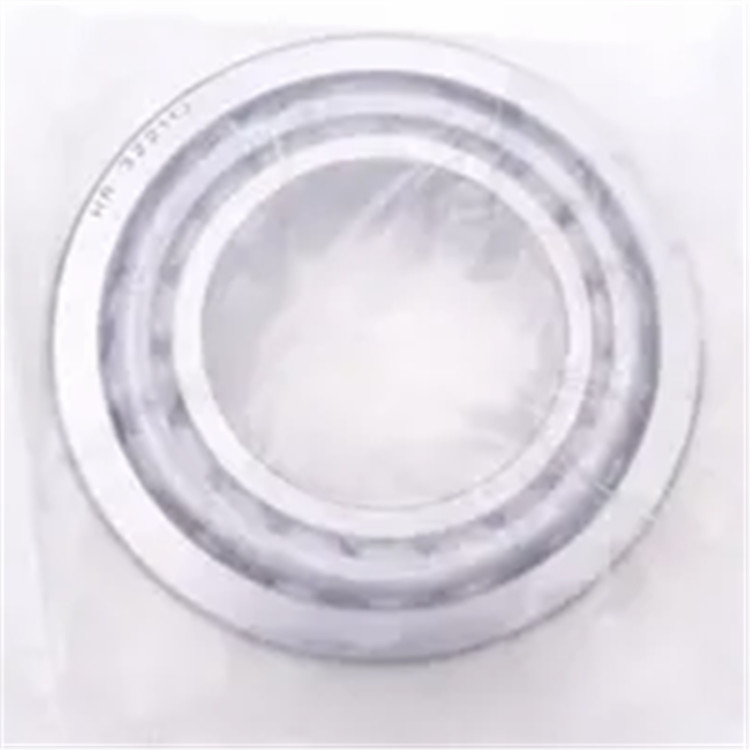

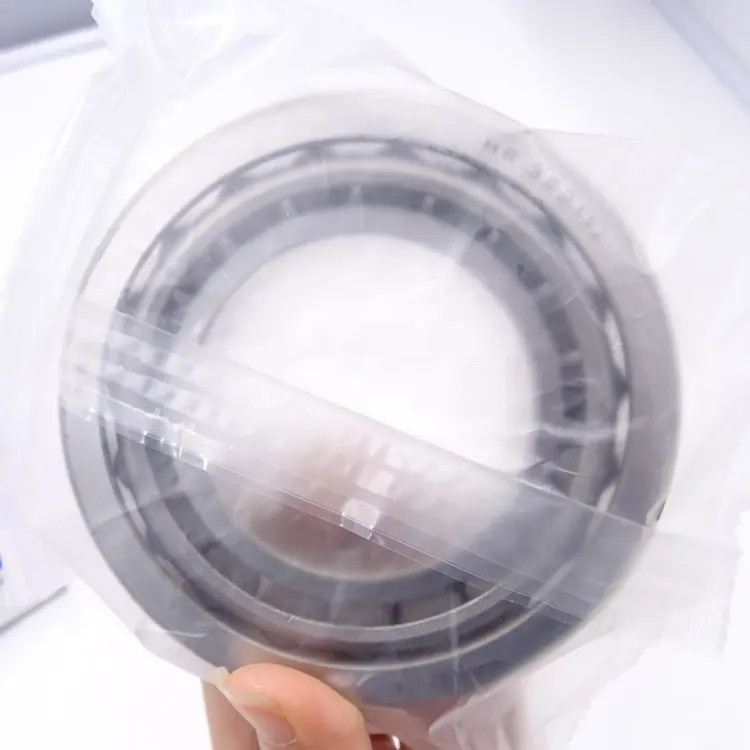

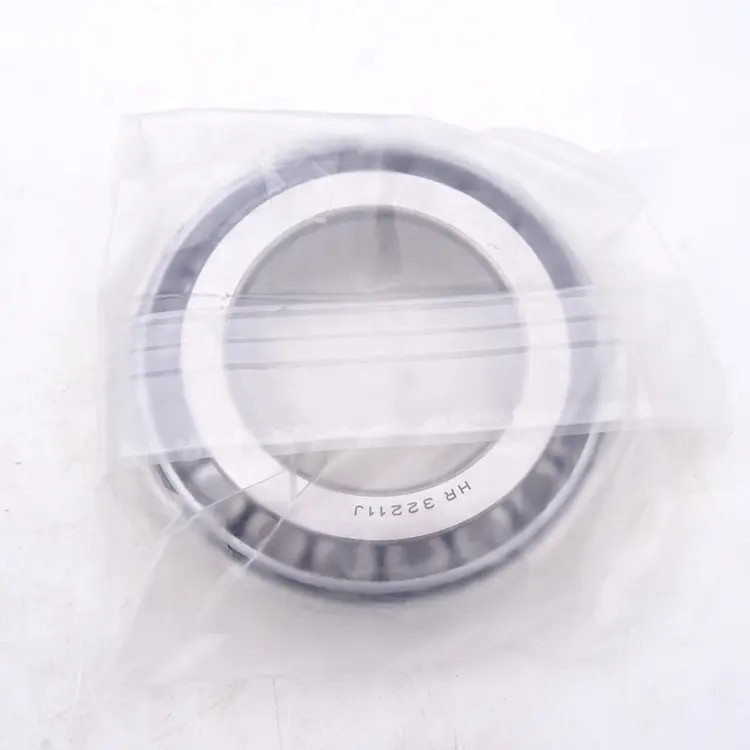

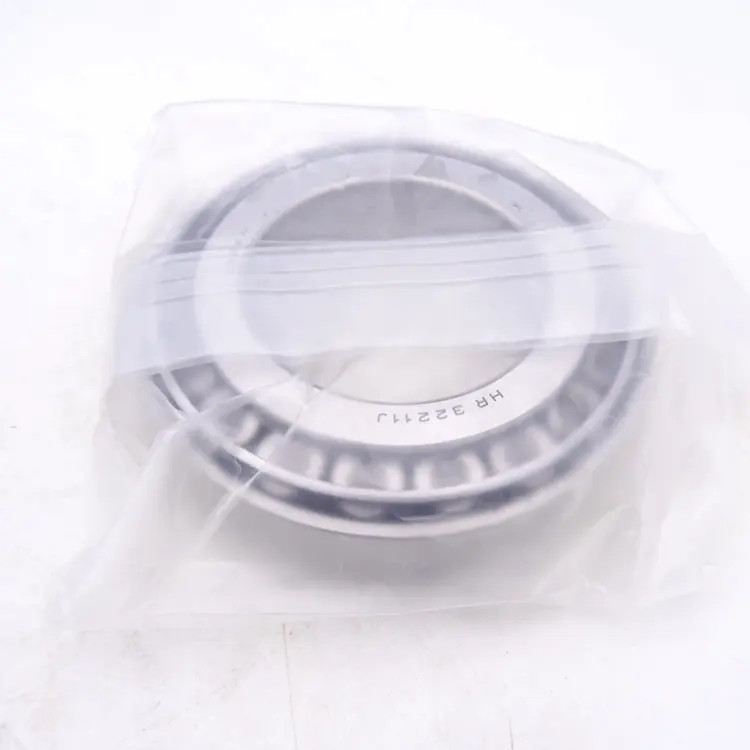

Taper roller bearing 32211 high quality taper roller bearing

Taper roller bearing 32211 high quality taper roller bearing is designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.


Product Specification:

  • Model 32211
  • Brand LLH or ZYSL
  • Origin China
See Price

custom single row inch taper roller bearing

taper roller bearing 32211 Taper roller bearing 32211 high quality taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.
Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

high speed single row inch taper roller bearing

taper roller bearing 32211 original taper roller bearing 32211

taper roller bearing 32211

Taper roller bearing 32211 high quality taper roller bearing mainly carry radial, axial combined load with radial load in the main.The capacity of axial load carrying depends on the contact angle of outer ring’s raceway.The bigger the contact angle is, the greater the capacity will be.
Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.
Taper roller bearing 32211 high quality taper roller bearing have tapered inner and outer ring raceways,The tapered roller is in the middle of the two raceways.This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart.They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.
Types:

1.Single-row tapered roller bearings

2.Double-row tapered roller bearings

3.Four-row tapered roller bearings

4.Double, four-row tapered roller bearings with multi-seal

china single row inch taper roller bearing

precision taper roller bearing 32211 high quality taper roller bearing 32211

Typical applications:
Taper roller bearing 32211 high quality taper roller bearing are widely applied to machine tool spindles, gear reduction units, automotive transaxles, transmissions, rolling mill, mining, metallurgical industry, plastic machinery, home appliances, electric motors, pumps, machinery and other automotive components.
Advantages:
1.high speed and high precision
2.long service lifetime
3.lowest noise and good performance

miniature single row inch taper roller bearing

single row inch taper roller bearing package china single row inch taper roller bearing single row inch taper roller bearing

single row inch taper roller bearing certificatebest single row inch taper roller bearingsingle row inch taper roller bearing factory

original single row inch taper roller bearing Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings.We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers.

single row inch taper roller bearing FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for Taper roller bearing 32211 high quality taper roller bearing?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3,Q: Do you provide samples for Taper roller bearing 32211 high quality taper roller bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for Taper roller bearing 32211 high quality taper roller bearing?

A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price?

A:  after we get your inquiry,usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of Taper roller bearing 32211 high quality taper roller bearing?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your bearing?

A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the Taper roller bearing 32211 high quality taper roller bearing?

A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need Taper roller bearing 32211 high quality taper roller bearing or any models of bearings, please contact me!

Contact: Leon

Email: nsk@zyslbearing.com

Skype: lh19881023

MP/Whatsapp: +8615098916271

Wechat:leon15098916271

Lubrications Oil or grease
Hardness HRC60-65
Clearance C0 C3
Precision: ABEC 1 3 5 7
Brand LLH



HM218248/HM218210 taper roller bearing

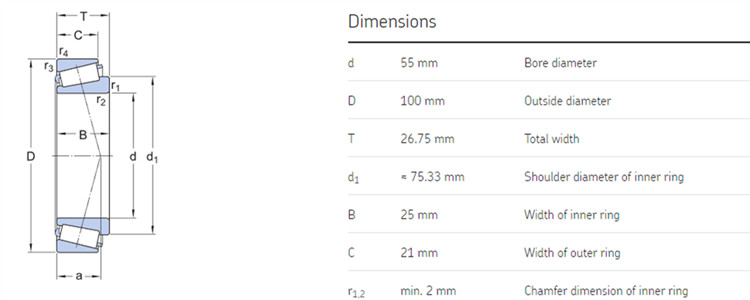

Bearing Number Boundary Dimensions(mm) R R1 Cr Cor a Mass
d D T B C (KN) (KN) (mm) (Kg)
32205 7505E 25 52 19.25 18 15 1 1 36.7 46.3 22.3 0.174
32206 7506E 30 62 21.25 20 17 1 1 51.8 63.7 15.6 0.287
32207 7507E 35 72 24.25 23 19 1.5 1.5 70.6 89.5 17.9 0.445
32208 7508E 40 80 24.75 23 19 1.5 1.5 77.9 97.2 18.9 0.532
32209 7509E 45 85 24.75 23 19 1.5 1.5 80.7 104 20.1 0.573
32210 7510E 50 90 24.75 23 19 1.5 1.5 82.8 107.6 21 0.626
32211 7511E 55 100 26.75 25 21 2 1.5 108 142.3 22.8 0.853
32212 7512E 60 110 29.75 28 24 2 1.5 132.8 179.6 25 1.17
32213 7513E 65 120 32.75 31 27 2 1.5 160.9 221.7 27.3 1.55
32214 7514E 70 125 33.25 31 27 2 1.5 168.5 237.1 28.8 1.64
32215 7515E 75 130 33.25 31 27 2 1.5 170.3 242.1 30 1.74
32216 7516E 80 140 35.25 33 28 2.5 2 198.1 279 31.4 2.13
32217 7517E 85 150 38.5 36 30 2.5 2 226.7 324 33.9 2.68
32218 7518E 90 160 42.5 40 34 2.5 2 269.8 395.5 36.8 3.44
32219 7519E 95 170 45.5 43 37 3 2.5 302.5 448.4 39.2 4.24
32220 7520E 100 180 49 46 39 3 2.5 341 512 41.9 5.1
32221 7521E 105 190 53 50 43 3 2.5 381 579.2 45 6.26
32222 7522E 110 200 56 53 46 3 2.5 431.7 666.3 47.3 7.43
32224 7524E 120 215 61.5 58 50 3 2.5 477.7 758.1 52.3 9.26
32226 7526E 130 230 67.75 64 54 4 3 551.7 888.7 56.6 11.4
32228 7528E 140 250 71.75 68 58 4 3 643.7 1049.3 60.7 14.4
32306 7606E 30 72 28.75 27 23 1.5 1.5 81.6 96.4 18.9 0.562
32307 7607E 35 80 32.75 31 25 2 1.5 99 118.3 20.4 0.763
32308 7608E 40 90 35.25 33 27 2 1.5 115.7 147.8 23.3 1.04
32309 7609E 45 100 38.25 36 30 2 1.5 145.3 189.4 25.6 1.4
32310 7610E 50 110 42.25 40 33 2.5 2 177.5 236.1 28.2 1.89
32311 7611E 55 120 45.5 43 35 2.5 2 203 271.4 30.4 2.37
32312 7612E 60 130 48.5 46 37 3 2.5 226.7 303 32 2.9
32313 7613E 65 140 51 48 39 3 2.5 259.6 349.8 34.3 3.51
32314 7614E 70 150 54 51 42 3 2.5 298.9 408.5 36.5 4.34
