Thrust bearing price list submersible thrust bearing

Thrust bearing price list submersible thrust bearing are separable, the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit.The bore of the housing washer is turned and always larger than the shaft washer bore.


Product Specification:

  • Model 52210
  • Size 40*78*39mm
  • Origin China
See Price

Thrust bearing price list submersible thrust bearing

thrust bearing price list 52210

thrust bearing price list

Thrust bearing price list submersible thrust bearing is produced as single direction or double direction thrust ball bearings.They are designed to accommodate axial loads only and must not be subjected to any radial load.

thrust bearing price list

Two Types of Thrust bearing price list submersible thrust bearing:

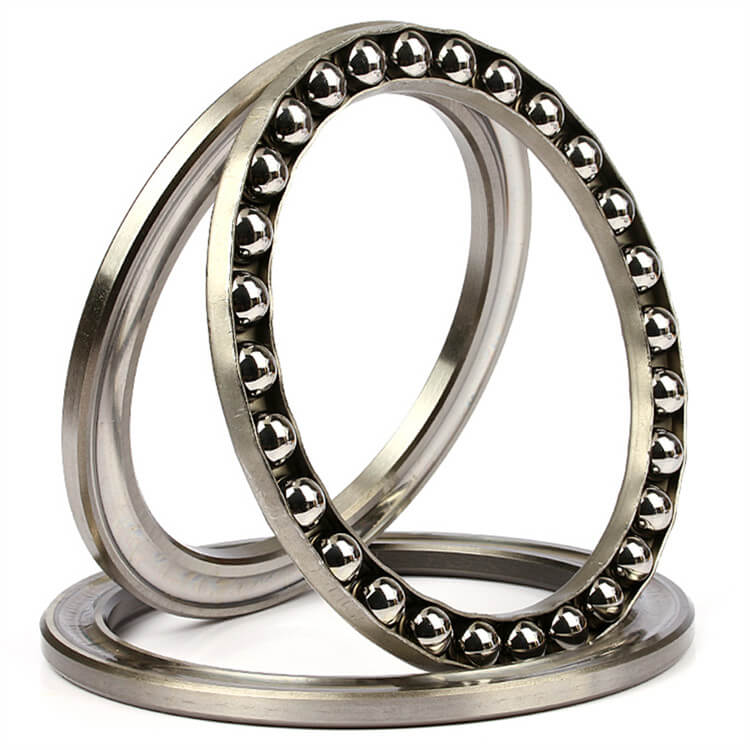

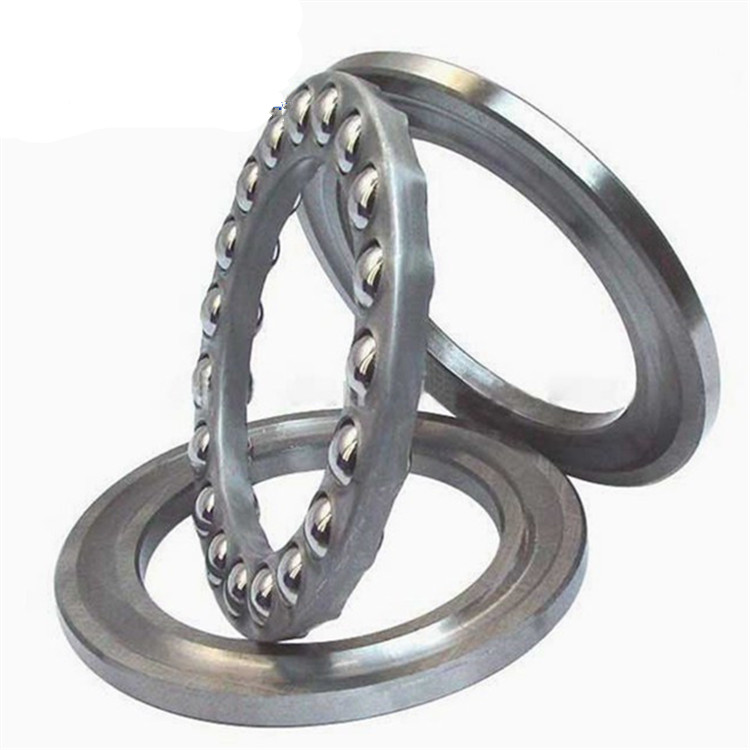

A: Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.

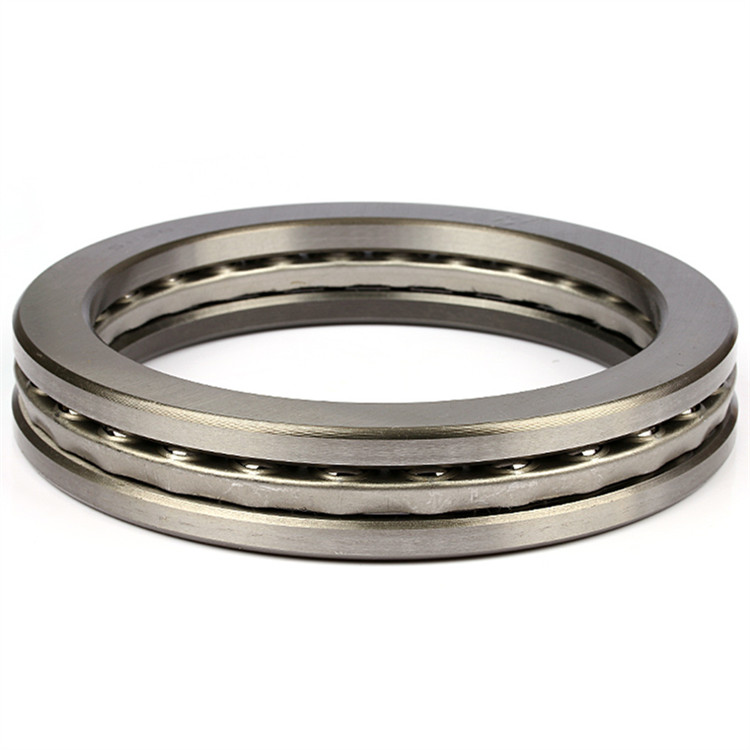

B: Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.

52210 thrust bearing price list

precision thrust bearing price list

Application of Thrust bearing price list submersible thrust bearing:

1.Thrust bearing price list submersible thrust bearing should use close to the radial bearing, in order to prevent the effect of shafts deflection.

2.When using big size ball bearings on a horizontal shaft, preload should be implemented to prevent the clearance between housing washer and balls.

3.Under the inevitable circumstances of shaft deflection and misalignment, aligning seat washer should be applied.

submersible thrust bearing

FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Thrust bearing price list submersible thrust bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Thrust bearing price list submersible thrust bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Thrust bearing price list submersible thrust bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for Thrust bearing price list submersible thrust bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with Thrust bearing price list submersible thrust bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any Thrust bearing price list submersible thrust bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Material chrome steel or stainless steel
Brand OEM
Standard DIN GB ISO JIS BA ANSI
Grade ABEC-3 ABEC-5 , ABEC-7, ABEC-9
Clearance C0, C3 ,C5
Package carton package
Used Machine

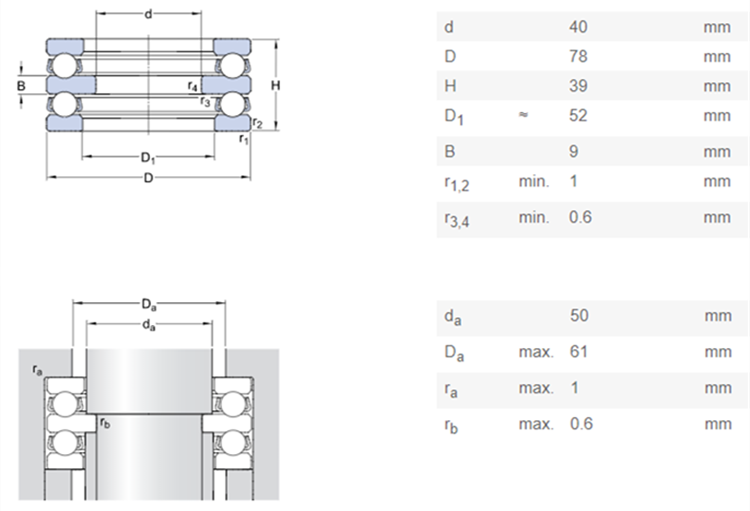

precision submersible thrust bearing

Model

DIA (mm) Weight (kg)
d d1 D H
52202 15 10 32 26 0.085
52204 20 15 40 26 0.144
52205 25 20 47 28 0.23
52206 30 25 52 29 0.26
52207 35 30 62 34 0.405
52208 40 30 68 36 0.54
52209 45 35 73 37 0.64
52210 50 40 78 39 0.71
52211 55 45 90 45 1.12
52212 60 50 95 46 1.15
52213 65 55 100 47 1.36
52214 70 55 105 47 1.52
52215 75 60 110 47 1.6
52216 80 64 115 48 1.73
52217 85 70 125 55 2.22
52218 90 75 135 62 3.14
52220 100 85 150 67 4.2
