The pillow block bearing is is mainly used to bear the radial and axial combined load mainly based on the radial load, and generally it is not suitable to bear the axial load alone.

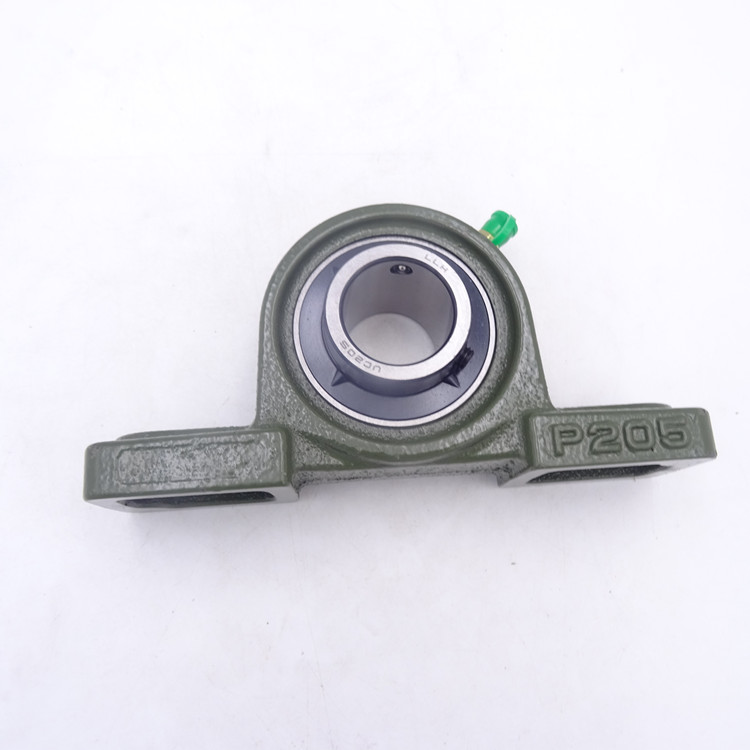

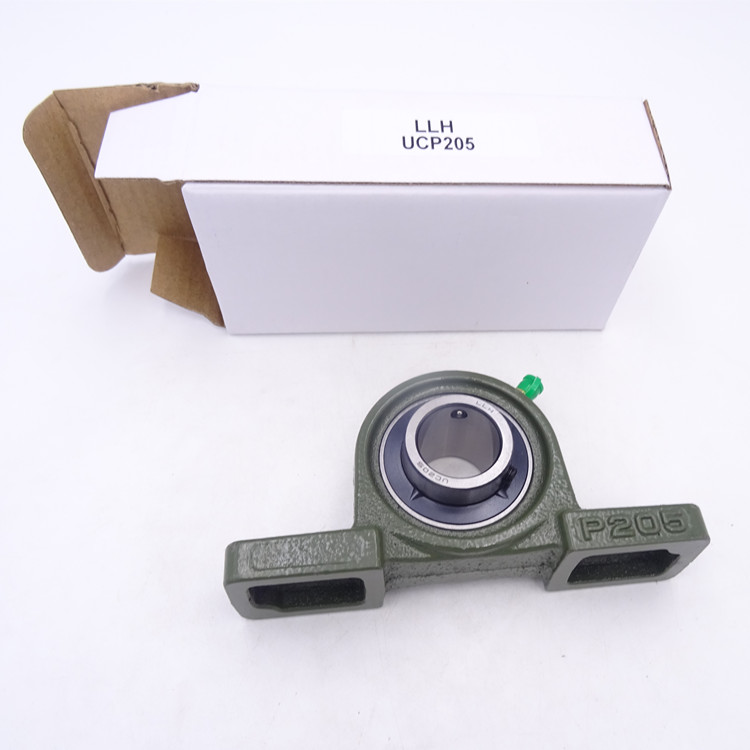

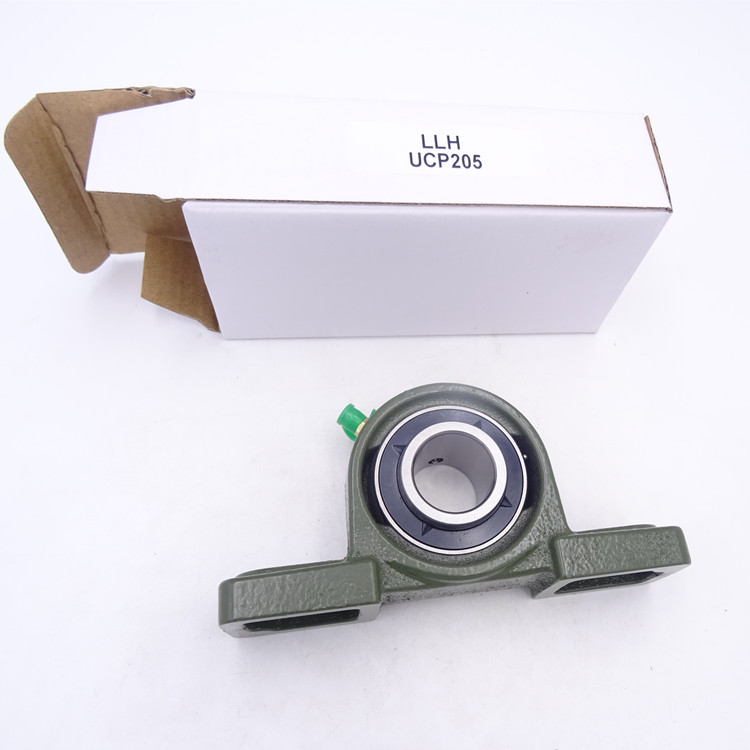

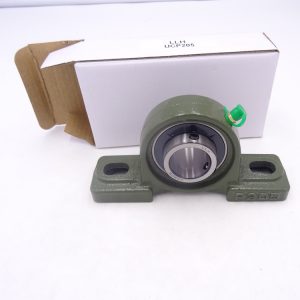

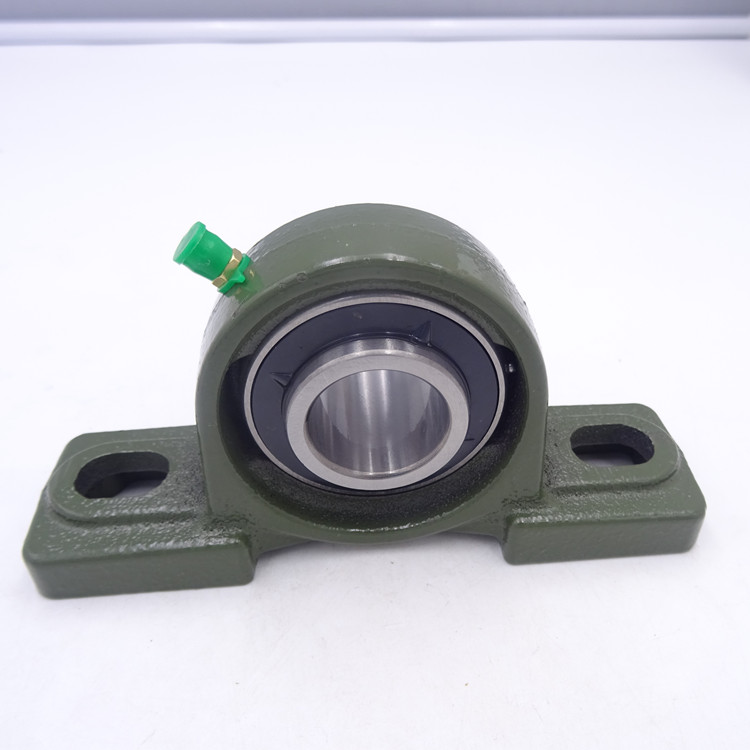

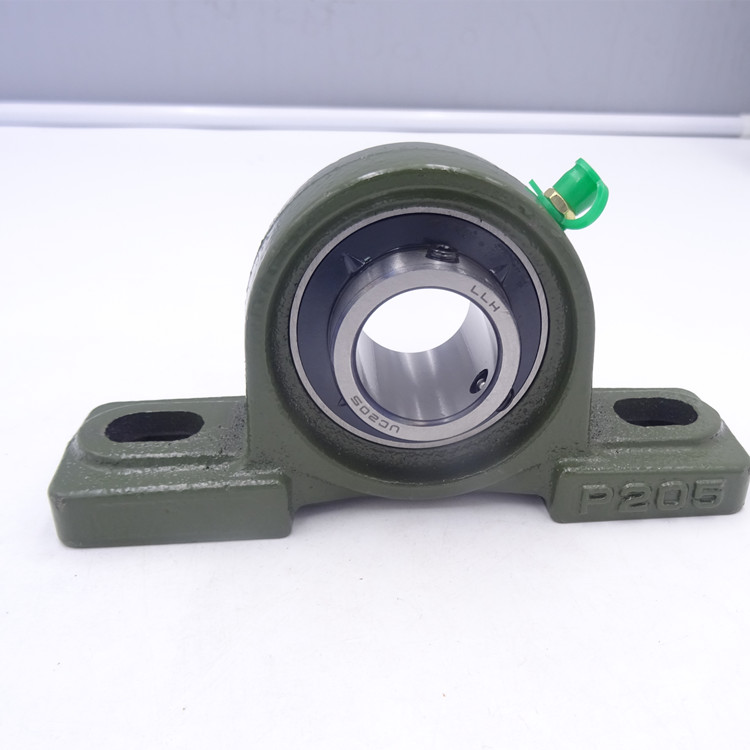

ucp bearings UCP205 pillow block bearing housing types
The pillow block bearing is actually a variant of the deep groove ball bearing. It is characterized by the fact that the outer diameter surface of its outer ring is spherical and can be fitted into the corresponding concave ball surface of the bearing seat to play a central role.
Pillow Block Bearing is the rolling bearing and bearing seat together a bearing unit. Most particularly the spherical bearing are made spherical outer diameter, and the imported bearing with spherical inner hole to install together, variety structure, good versatility and interchangeability.
This kind of bearing in design also has a certain adjustable mind, easy to install, has a dual structure of sealing device, can work under harsh environment.
 |
 |
 |
 |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for ucp bearings UCP205 pillow block bearing housing types?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for ucp bearings UCP205 pillow block bearing housing types? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for ucp bearings UCP205 pillow block bearing housing types?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of ucp bearings UCP205 pillow block bearing housing types?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your ucp bearings UCP205 pillow block bearing housing types?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with ucp bearings UCP205 pillow block bearing housing types?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
|
Brand
|
LLH
|
|
Product Name
|
Pillow Block Ball Bearing
|
|
Model Number
|
UCP205
|
|
Material
|
Cast Iron Bearing House and Chrome Steel Bearing
|
|
d
|
25 mm
|
|
d1
|
33.7 mm
|
|
A
|
38 mm
|
|
A1
|
23 mm
|
|
B
|
34 mm
|
|
B4
|
5.5 mm
|
|
H
|
36.5 mm
|
|
H1
|
16 mm
|
|
H2
|
70.5 mm
|
|
J
|
105 mm
|
|
J
|
max. 110 mm
|
|
J
|
min. 100 mm
|
|
L
|
139.5 mm
|
| Model No. | Dimensions (mm) | Weight kg |
|||||||||||
| d | H | L | J | A | N | N1 | H1 | HO | S | B | Bolt Size | ||
| UCP202 | 15 | 30.2 | 125 | 96 | 32 | 12 | 16 | 13 | 57 | 11.5 | 27.4 | M10 | 0.6 |
| UCP203 | 17 | 30.2 | 125 | 96 | 32 | 12 | 16 | 13 | 57 | 11.5 | 27.4 | M10 | 0.6 |
| UCP204 | 20 | 33.3 | 127 | 96 | 37 | 13 | 16 | 14 | 63.8 | 12.7 | 31 | M10 | 0.65 |
| UCP205 | 25 | 36.5 | 140 | 105 | 38 | 14 | 19 | 15 | 69.5 | 14.3 | 34 | M10 | 0.72 |
| UCP206 | 30 | 42.9 | 160 | 121 | 44 | 15 | 19 | 16 | 82 | 15.9 | 38.1 | M12 | 1.15 |
| UCP207 | 35 | 47.6 | 167 | 126 | 48 | 15 | 19 | 17 | 92 | 17.5 | 42.9 | M12 | 1.53 |
| UCP208 | 40 | 49.2 | 180 | 136 | 52 | 180 | 21 | 18 | 98 | 19 | 49.2 | M12 | 1.88 |
| UCP209 | 45 | 54 | 189 | 146 | 54 | 15 | 21 | 20 | 105.5 | 19 | 49.2 | M12 | 2.1 |
| UCP210 | 50 | 57.2 | 204 | 159 | 57 | 19 | 22 | 21 | 112.2 | 19 | 51.6 | M10 | 2.5 |
| UCP211 | 55 | 63.5 | 217 | 172 | 60 | 19 | 22 | 22 | 124.5 | 22.2 | 55.6 | M11 | 3.3 |
| UCP212 | 60 | 69.9 | 238 | 186 | 66 | 19 | 25 | 24 | 137 | 25.4 | 65.1 | M12 | 5.5 |
| UCP213 | 62 | 76.3 | 262 | 203 | 70 | 23 | 29 | 26 | 149 | 25.4 | 65.1 | M13 | 5.6 |
| UCP214 | 70 | 79.4 | 266 | 210 | 72 | 23 | 29 | 27 | 155 | 30.2 | 74.6 | M14 | 6.6 |
| UCP215 | 75 | 82.6 | 274 | 17 | 71 | 25 | 29 | 28 | 161.6 | 33.3 | 77.8 | M15 | 7.3 |
| UCP216 | 80 | 88.9 | 292 | 232 | 78 | 25 | 30 | 30 | 174 | 33.3 | 82.6 | M16 | 8.3 |
| UCP217 | 85 | 95.2 | 310 | 247 | 83 | 25 | 30 | 32 | 186 | 34.1 | 85.7 | M17 | 10.8 |
| UCP218 | 90 | 101.6 | 326 | 262 | 85 | 27 | 30 | 33 | 198 | 39.7 | 96 | M18 | 13 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
