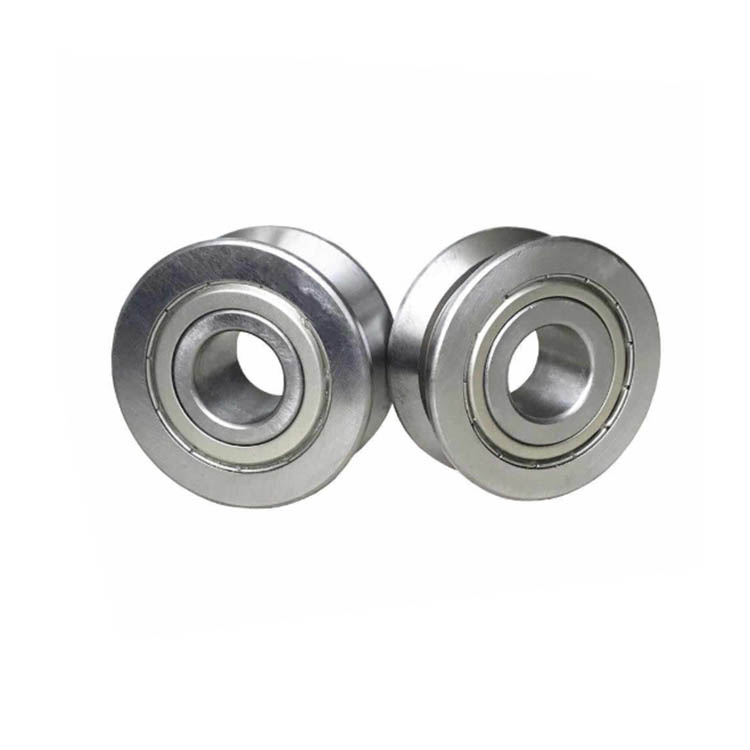

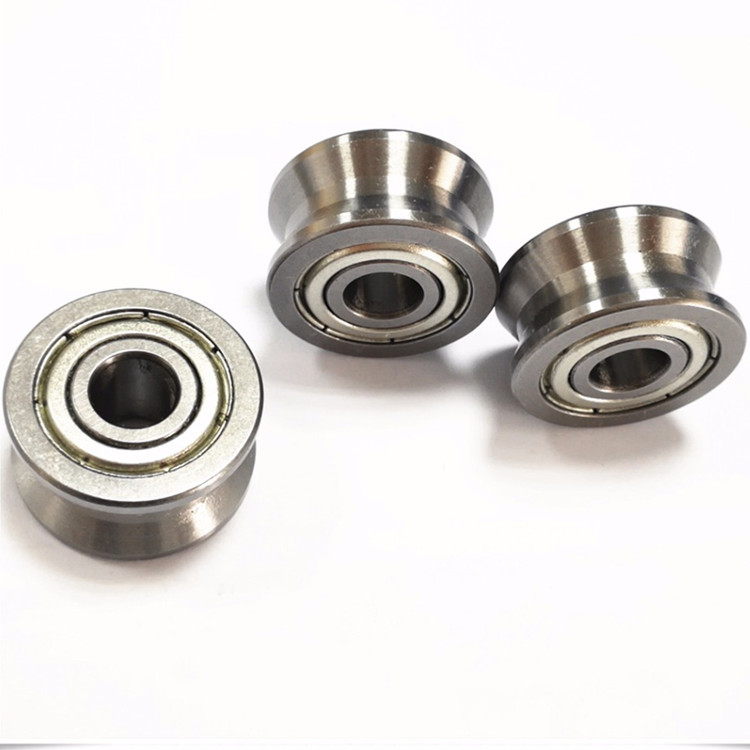

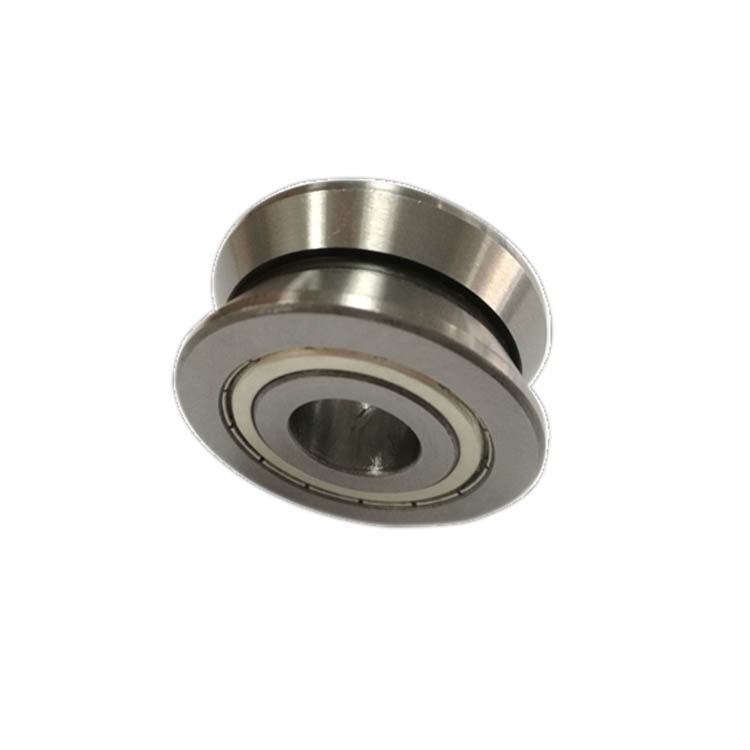

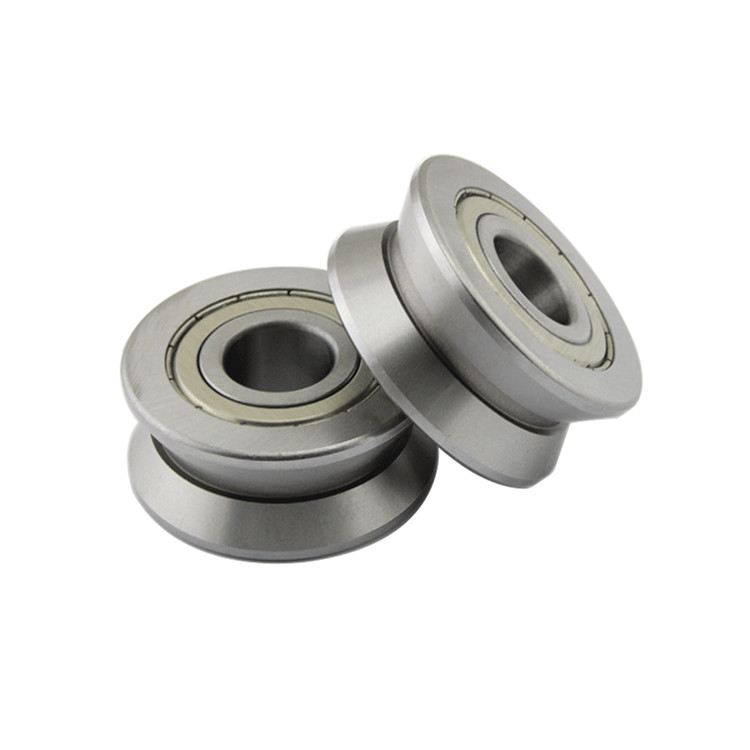

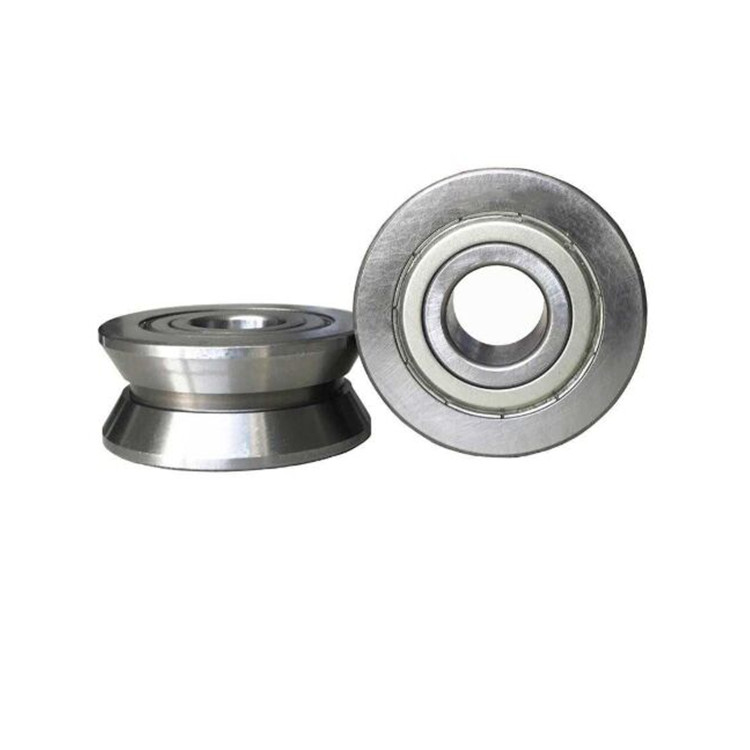

v groove wheels and track mainly used to bear radial load, but increase the bearing radial clearance, with certain features of the angular contact ball bearings can withstand radial and axial load.
v groove wheels and track LV20/7-ZZ v groove wheels track rollersSeries LV bearings can be widely used in the cylindrical track or " V " profile track with an angle of 120 degrees. Different from the series LFR bearings, series LV bearings are more adaptable to the different track sizes. Each type can be applied with a larger range of track diameters. v groove wheels and track are widely used for the heavy-duty track, mobile equipment, wire straightening machine and so on.
v groove wheels and track take the internal structure design of double row angular contact ball bearings and have a thick-walled outer ring, so the bearings can accommodate higher loads.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for v groove wheels and track v groove wheels track rollers ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for v groove wheels and track v groove wheels track rollers ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for v groove wheels and track v groove wheels track rollers?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of v groove wheels and track v groove wheels track rollers?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your v groove wheels and track v groove wheels track rollers?
A: Usually ≥1, According your demand.
9,Q: Will you check these v groove wheels and track v groove wheels track rollers before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with angular contact bearings back to back 7205 bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: 008618668903871
Wechat:GraceXu1234
No . |
Φdw |
Bore |
O.D. |
Width |
Width |
A |
Angle |
Chamfer r/min |
Load |
Weight |
|
|
Φdw |
D |
D |
B |
C |
A |
α |
R/min |
Cw(KN) |
Cow(KN) |
Kg |

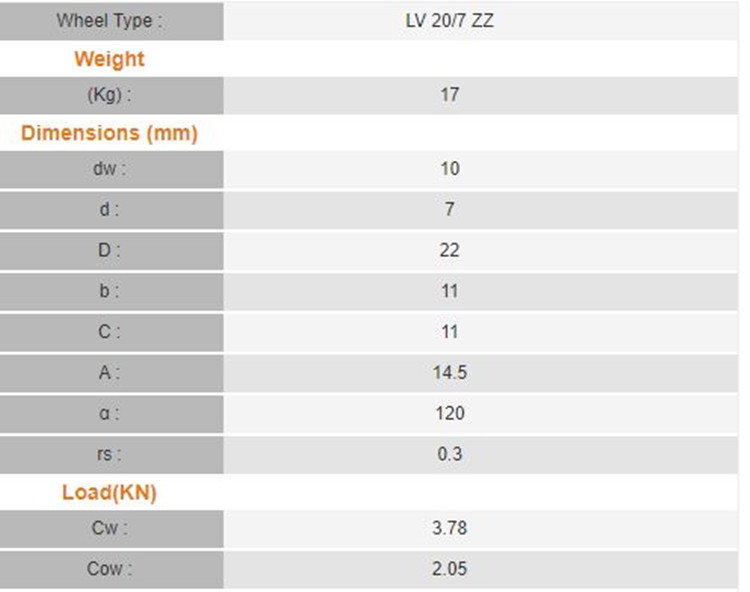

LV 20/7 ZZ |
10 |
7 |
22 |
11 |
11 |
14.5 |
120 |
0.3 |
3.78 |
2.05 |
17 |
LV 20/8 ZZ |
10 |
8 |
30 |
14 |
14 |
18.1 |
120 |
0.3 |
5.13 |
2.67 |
49 |
LV20/10ZZ |
10 |
10 |
30 |
14 |
14 |
18.1 |
120 |
0.3 |
5.13 |
2.67 |
48 |
LV 202-38 ZZ |
10 |
15 |
38 |
17 |
17 |
22.25 |
120 |
0.5 |
8.47 |
5.37 |
87 |
LV 202-40 ZZ |
10 |
15 |
40 |
18 |
18 |
22 |
120 |
0.5 |
8.47 |
5.37 |
110 |
LV 201 ZZ |
20 |
12 |
41 |
20 |
20 |
28 |
120 |
0.3 |
8.47 |
5.37 |
130 |
LV 201-14.2RS |
14 |
12 |
39.9 |
20.1 |
18 |
24 |
100 |
0.5 |
8.9 |
5 |
107 |
LV 202-41 ZZ |
20 |
15 |
41 |
20 |
20 |
28 |
120 |
0.5 |
8.47 |
5.37 |
116 |
LV 203 ZZ |
20 |
17 |
58 |
25 |
25 |
35 |
120 |
0.5 |
14.66 |
9.1 |
325 |
LV 204-57 ZZ |
20 |
20 |
57 |
22 |
22 |
34.5 |
120 |
0.6 |
14.66 |
9.1 |
290 |
LV 204-58 ZZ |
30 |
20 |
58 |
25 |
25 |
41 |
120 |
0.6 |
14.66 |
9.1 |
310 |
