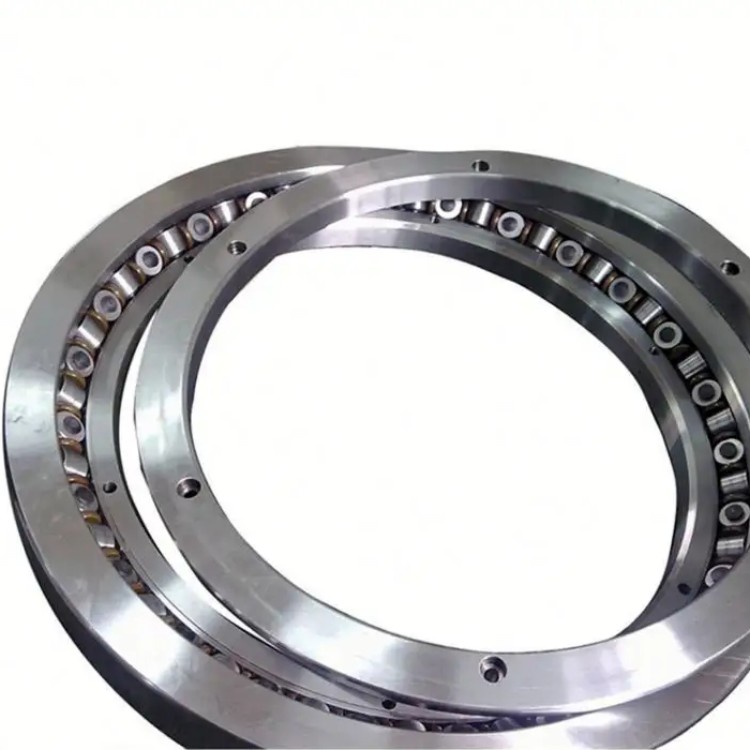

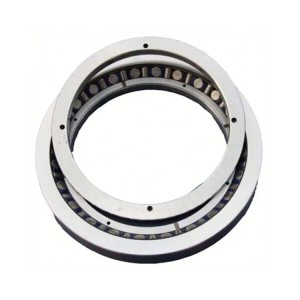

XR766051 cross tapered roller bearing 457.2*609.6*63.5mm
The Structure and Character of Cross Roller Bearing Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar. because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for xr766051?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for xr766051? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for xr766051?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for xr766051?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of xr766051?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
| If you need any brand bearings or any models of bearings, please contact me! Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
 |
|
Bearing Model
|
XR 766051 Cross Tapered Roller Bearings
|
|
Application
|
robots
|
|
Type
|
tapered Crossed Roller Bearing
|
|
Structure
|
Separable Outer Ring Cross Roller Bearing
|
|
(dxDxB)
|
457.2X609.6X63.5mm
|
|
Mass /
|
58.73KG
|
|
Lead Time
|
Within 3 Days
|
| Model Number | Main dimensions | Basic dynamic load rating | Limiting speed (Oil) r/m | Weight (Kg) | ||||
| Inner ring (mm) |
Outer ring D(mm) | Width B(mm) | Chamfer r(min) | Radial Cr(KN) | Axial Ca(KN) | |||
| XR496051 | 203.2 | 279.4 | 31.75 | 1.5 | 41 | 49.2 | 800 | 6.5 |
| XR678052 | 330.2 | 457.2 | 63.5 | 3 | 80 | 98.4 | 620 | 35 |
| XR766051 | 457.2 | 609.6 | 63.5 | 3 | 106 | 133 | 520 | 51 |
| XR820060 | 580 | 760 | 80 | 5 | 106 | 209 | 300 | 100 |
| XR855053 | 685.8 | 914.4 | 79.375 | 3 | 180 | 224 | 260 | 150 |
| XR882055 | 901.7 | 1117.6 | 82.55 | 3 | 225 | 297 | 200 | 185 |
| XR889058 | 1028.7 | 1327.15 | 114.3 | 3 | 283 | 374 | 160 | 400 |
| XR897051 | 1549.4 | 1828.8 | 101.6 | 3 | 326 | 489 | 80 | 500 |
| JXR637050 | 300 | 400 | 37 | 1.5 | 47.2 | 60 | 720 | 13 |
| JXR652050 | 310 | 425 | 45 | 2.5 | 61.6 | 76.5 | 640 | 20 |
| JXR699050 | 370 | 495 | 50 | 3 | 70.2 | 89.2 | 600 | 30 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. bear We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
