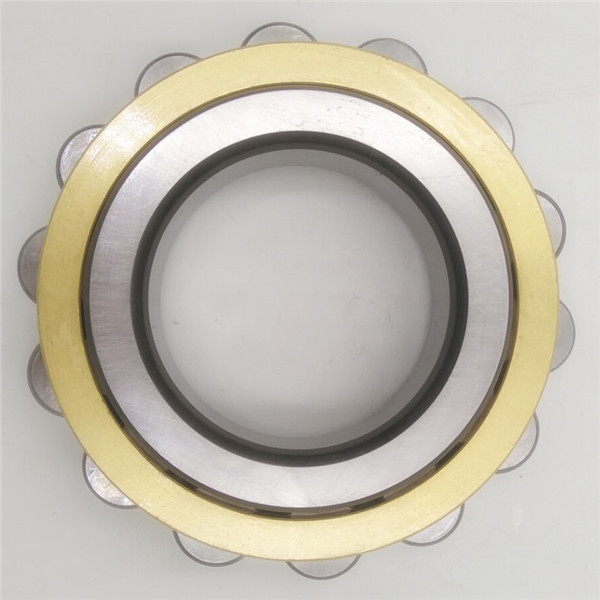

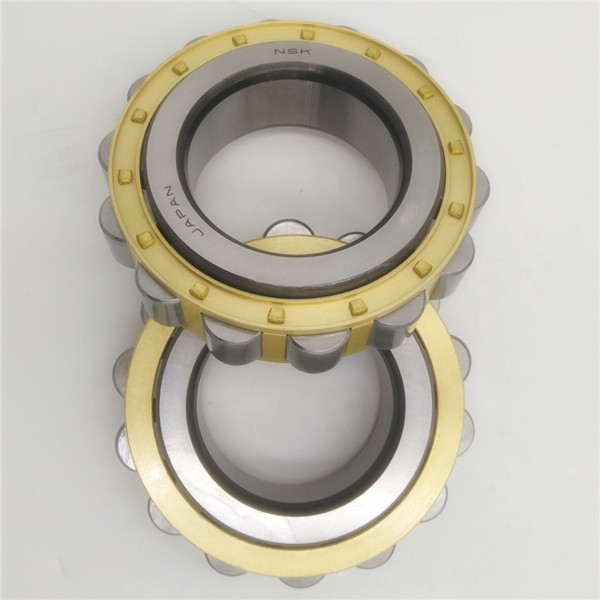

RN312 bearing is high quality bearing

RN312 bearing cylindrical roller bearings with inner or outer rings without retaining edges, whose inner and outer rings can move relative to each other in the axial direction, can be used as free end rn312 bearing.
A bearing with double flanges on one side of the inner and outer rings and a single flange on the other side of the ring can withstand a certain degree of axial load in one direction. Generally, steel plate stamping retaining frames or copper alloy solid retaining frames are used. But there are also some that use polyamide formed retaining frames.

The raceway and rolling elements of rn312 bearing have geometric shapes. After improved design, the new structural design of the retaining edge and roller end face not only enhances the axial load-bearing capacity of the rn312 bearing, but also improves the lubrication conditions in the contact area between the roller end face and the retaining edge, thereby improving the performance of the bearing.

Characteristics of rn312 bearing:
1. The roller and raceway are in line contact or repaired to make line contact, with a large radial bearing capacity, suitable for bearing heavy loads and impact loads.
2. Low friction coefficient, suitable for high speed, with a maximum speed close to deep groove ball bearings.
3. N-type and NU types can move axially and adapt to changes in the relative position between the shaft and the housing caused by thermal expansion or installation errors. They can be used as free end supports.
4. The machining requirements for the shaft or seat hole are high, and the relative deviation of the outer ring axis after rn312 bearing installation should be strictly controlled to avoid contact stress concentration.
5. The inner or outer ring can be separated for easy installation and disassembly.
If you need rn312 bearing or need any other bearings, please feel free to contact me!
