Do you know round rail linear bearing?

Round rail linear bearing is a linear motion system with high accuracy, low cost, and low frictional resistance.
Round rail linear bearing is a direct motion system that is combined with a guide shaft and utilizes the rolling motion of the ball to achieve infinite linear motion.

Working process of round rail linear bearing
A round rail linear bearing is equipped with a steel ball cage inside the outer ring, which is equipped with multiple rolling balls that move in an infinite cycle. The two ends of the cage are fixed with sealing pads and retaining rings, and there are notched windows in the straight track direction where each steel ball works under force. This part allows the loaded steel ball to make rolling contact with the shaft and move relatively with a very low coefficient of friction.
Therefore, round rail linear bearing are the most suitable bearings for mechanical equipment, automation equipment, energy-saving equipment, etc.

Round rail linear bearing classification
1. By material:
Shell: stainless steel, bearing steel, aluminum alloy (linear bearing with seat);
Cage: Made of resin, stainless steel, and bearing steel;
Surface treatment: chrome plating, nickel plating, surface anodizing (linear bearing outer fixed seat), etc.

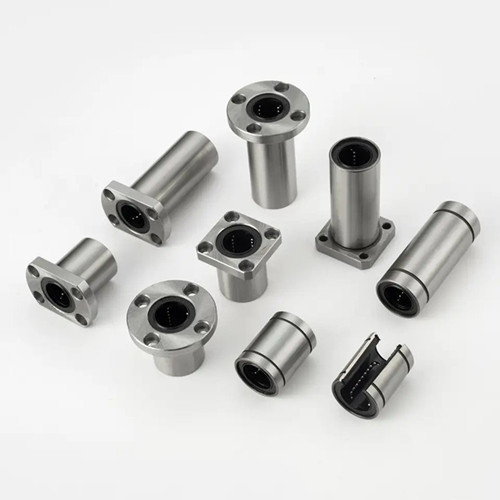

2. Divided by shape
Standard type

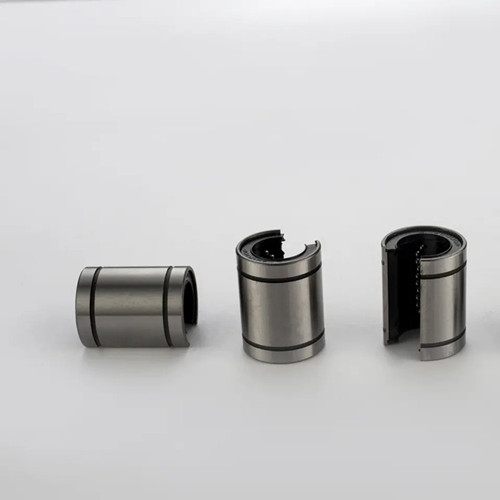

Open end type
Gap adjustable type
Elongated
Flange type (circular)
Flange type (square)

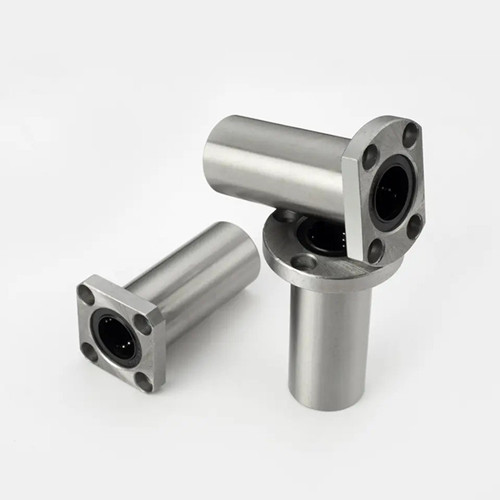

Flange type (circular) long type
Flange type (square) long type
Flange type (circular chamfered)
Flange type (circular chamfered) long type
LM Ball Bushing SC Type
LM Ball Bushing Long SL Type
LM Ball Bushing SH Type
LM Ball Bushing Long SH-L Type
LM optical axis support unit SK type
3. By series:
Round rail linear bearing are divided into two major series by series, namely LM and LME series.
The LM series is used in Asia, Southeast Asian countries, Japan, South Korea, China, etc;
The LME series is mostly used in Europe, the United States, Germany, Italy and other regions;
The structural characteristics of the two series are roughly the same, except for differences in size and aperture tolerances.

Application of round rail linear bearing
In precision equipment or special machinery industries such as electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, tool machinery, CNC machine tools, automobiles, and digital three-dimensional coordinate measurement equipment.
