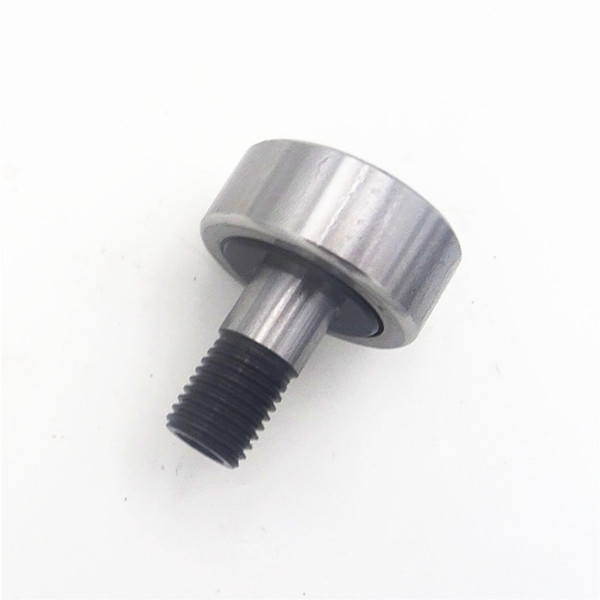

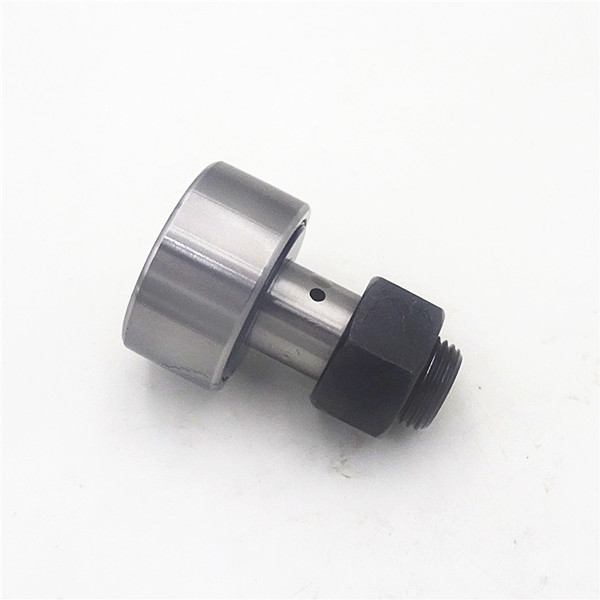

Sliding door roller bearing cam follower stud type

  The outer ring of the sliding door roller bearing adopts a fully loaded cylindrical roller bearing with a thick outer ring wall. The outer diameter surface of the roller has cylindrical and arc-shaped shapes, which can be designed to match the raceway surface according to the usage situation. By using this outer ring, the roller can roll directly on the raceway and withstand heavy loads and impact loads.
  The combination of sliding door roller bearing consists of a main roller, side rollers, shaft head, and cover plate.
  This bearing is a sealed structure filled with lubricating grease, providing long-term effective lubrication, and users can avoid lubrication. For harsh operating conditions, a channel for supplementing lubricating grease can be designed to improve the service life of bearings. Improper methods can also cause the roller bearings to heat up. Lubrication can reduce wear during the movement of parts, ensure the accuracy of the press, and reduce energy consumption.

Install of sliding door roller bearing
1. Clean the bearing with kerosene, press it into the bearing seat, fill the rollers on the outer ring of the bearing with lubricating grease, apply it evenly with a clean hand, install the cover, and tighten the bearing cover with fastening bolts coated with anti loosening glue;
2. Insert the bearing into the shaft and ensure it is in place;
3. Install the bearing seat on the casing, and if there are grease injection holes, they must be aligned in position. Tighten the bearing seat with fastening bolts coated with anti loosening glue;
4. Install the inner and outer eccentric blocks on the shaft and ensure they are in place. If there is a shaft key, install the shaft key into the keyway and then install the outer eccentric block. Use a retaining ring to install the shaft on the shaft;
5. Tighten the fastening bolt of the fixed eccentric block, rotate the adjustable eccentric block to reach the angle position before removal, and tighten its fastening bolt.
6. Secure the protective covers at both ends of the vibration motor with screws.
