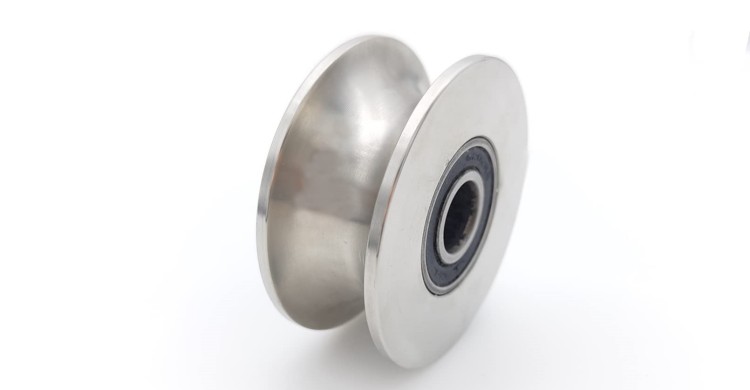

How to disassemble the sliding gate bearing wheels?

A. Prepare tools
The following tools are required to remove old sliding gate bearing wheels:
1. Phillips screwdriver
2. Flat-head screwdriver
3. Flat-nosed pliers

B. Removal steps
1. Open the door first and determine which sliding gate bearing wheels need to be removed.
2. Remove the door from the track and move the door aside for better repair.
3. Use flat-nosed pliers to clamp the sliding gate bearing wheels on the base part and rotate 90 degrees.
4. Pull out the sliding gate roller with both hands.
5. Remove the metal skirt from the wheel.
6. The flat washers at both ends of the wheel should be retained, and their installation positions should be recorded for later use.
7. Use a Phillips screwdriver to remove the fixing screws and remove the base part.
8. Remove the base of the sliding gate bearing wheels, and also pay attention to the flat washers on the inside of the base, and record their positions for later installation.

C. Replace parts
1. Replace damaged or aged sliding gate bearing wheels as needed.
2. Install the new base to the door body, and be careful to use the original gaskets and do not miss them.
3. Install the new sliding gate bearing wheels, and be careful to add the original flat gaskets at both ends.
4. Install the metal skirt and make sure it is properly installed on the wheel.
5. Use a cross screwdriver to fix the bottom and put it back in place.

D. Acceptance
After installing the new sliding gate bearing wheels, turn the roller for acceptance to ensure that the sliding door can slide freely without jamming.

The above is the method of disassembling sliding gate bearing wheels, which is simple and easy, and users can try it themselves. It should be noted that you should be careful during the disassembly process to avoid damaging other parts. If there is any uncertainty, it is recommended to ask a professional to repair it.
